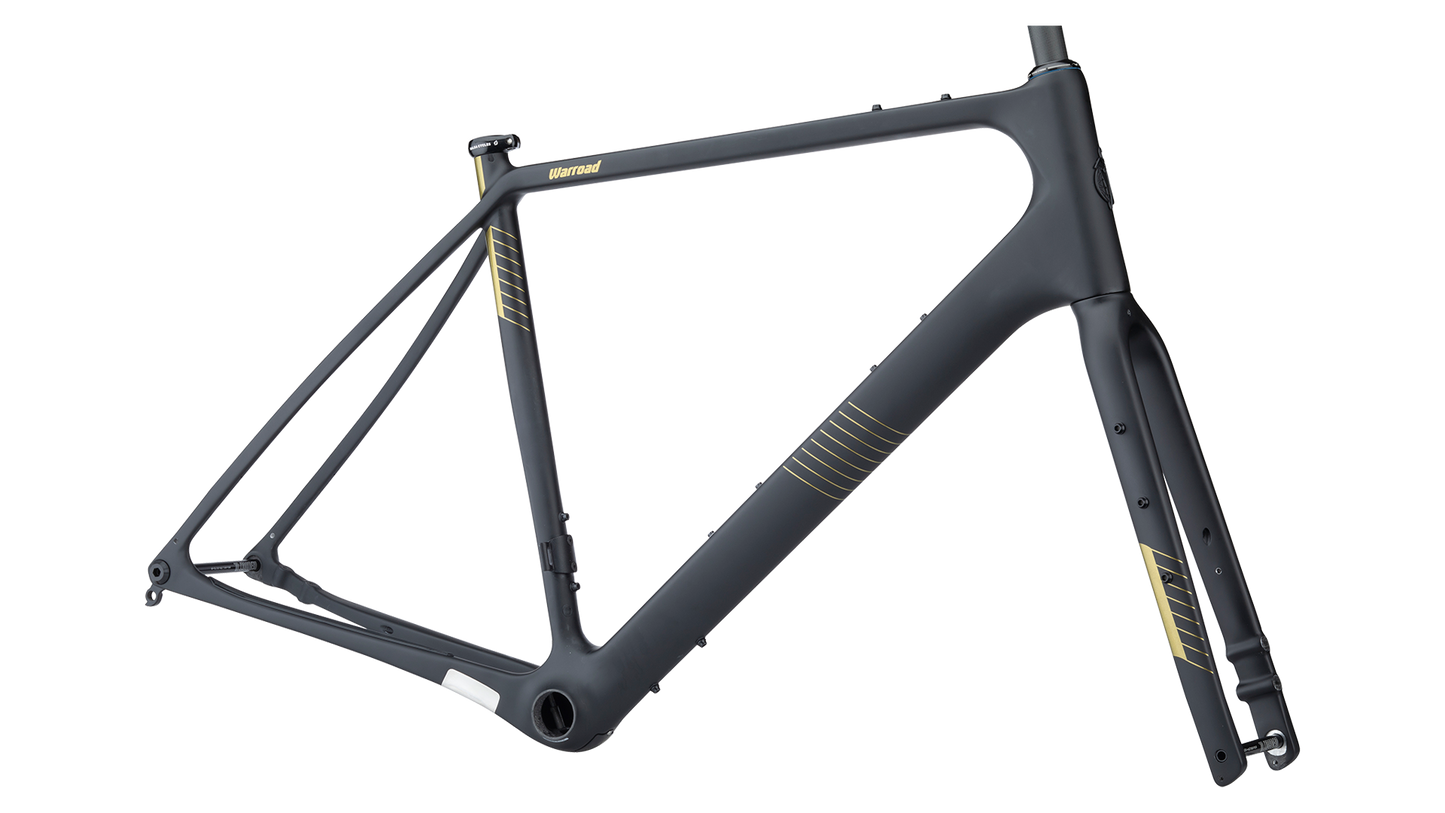

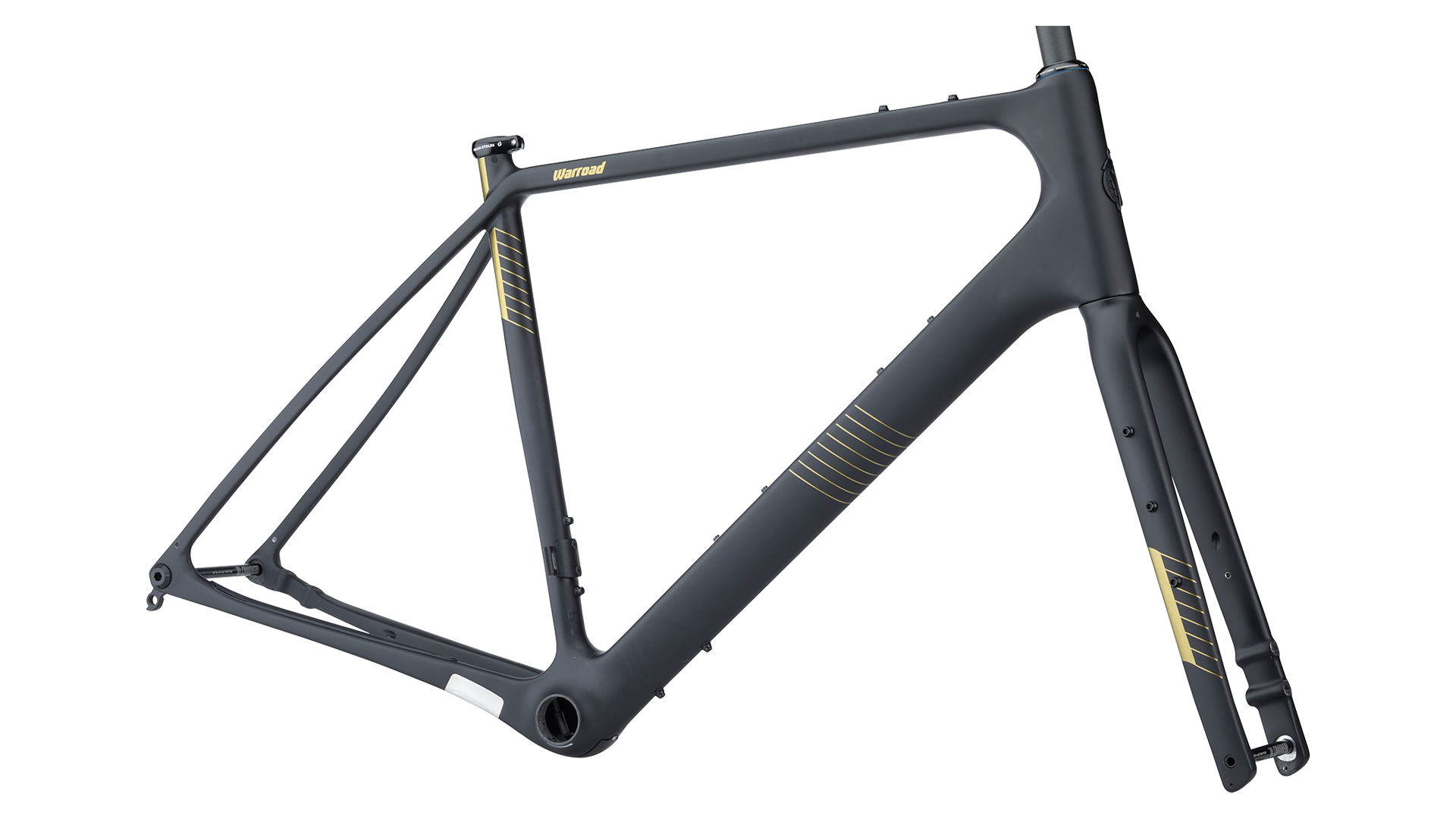

• Salsa Warroad Carbon Frameset side view

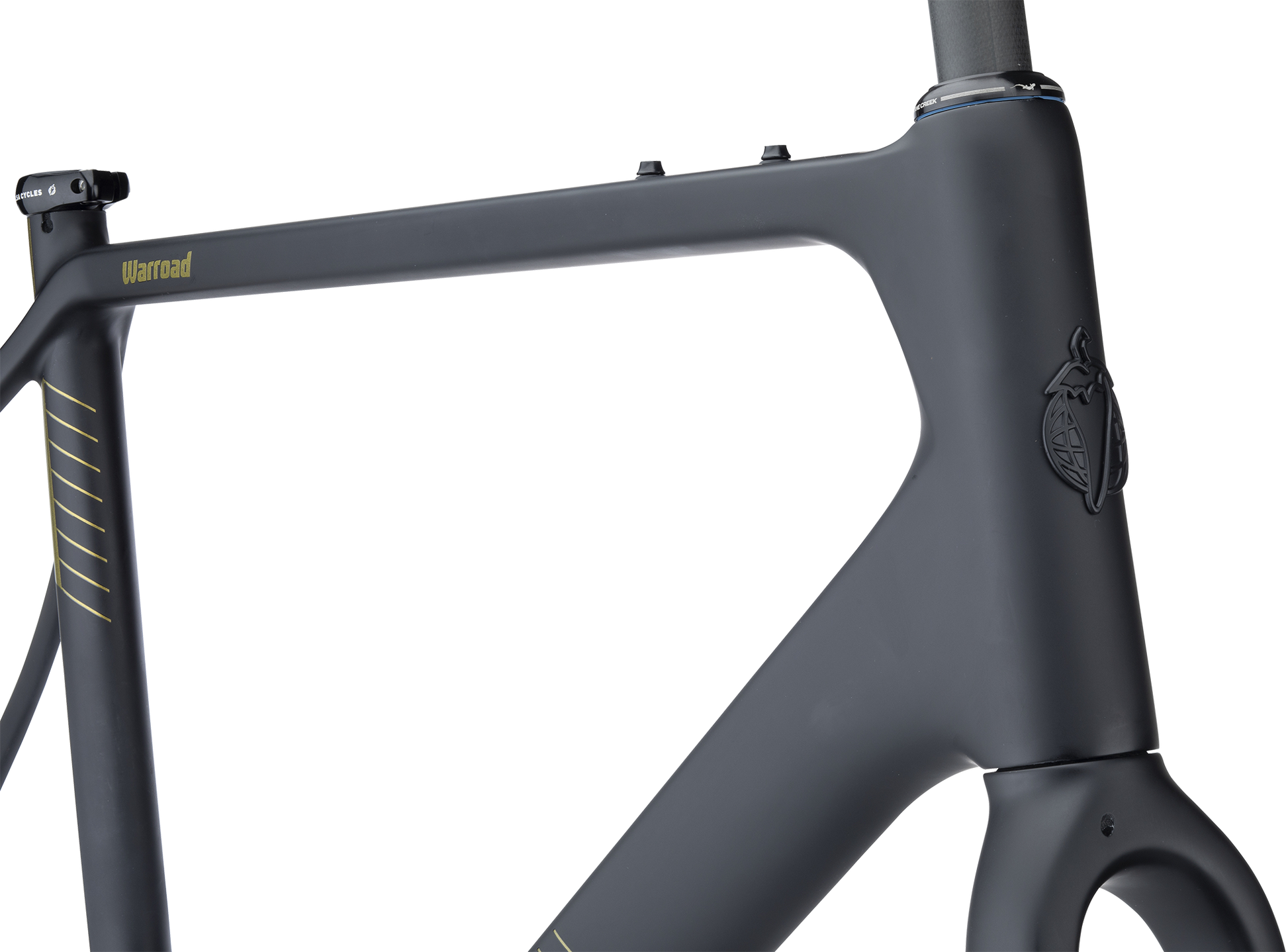

  • Salsa Warroad Carbon Frameset detail view of head tube area

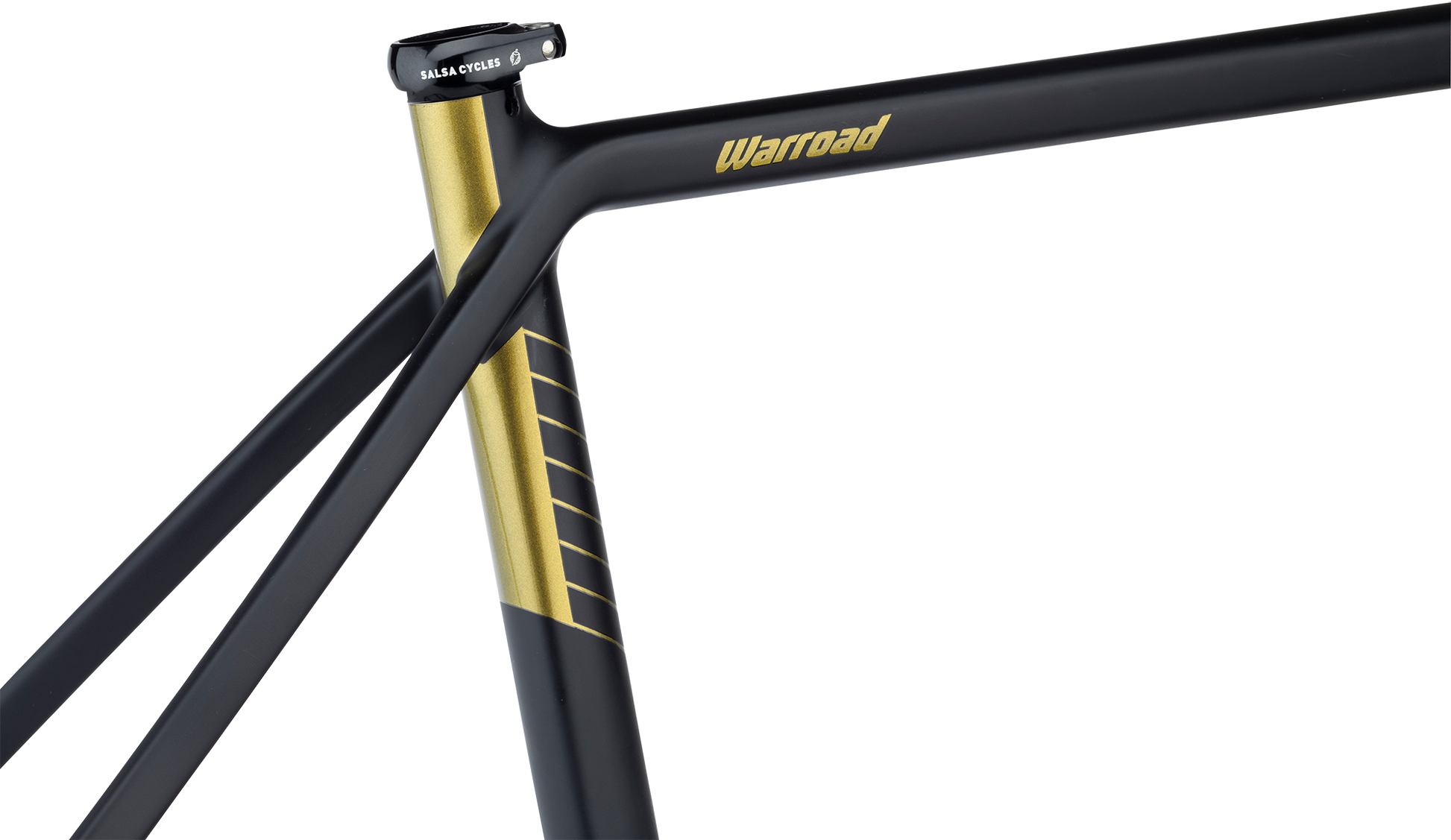

  • Salsa Warroad Carbon Frameset detail view of seat tube area

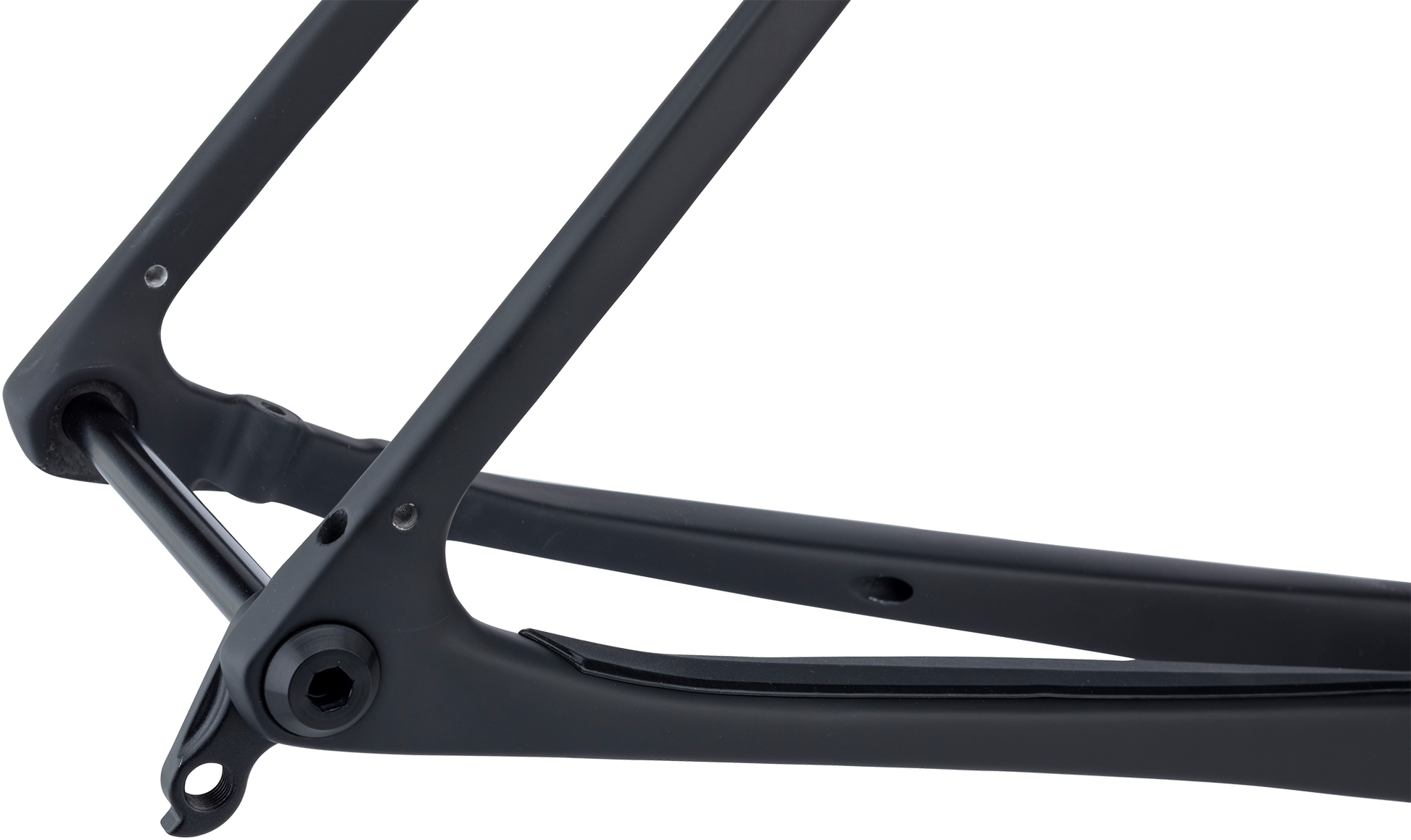

  • Salsa Warroad Carbon Frameset detail view of rear axle and dropout area

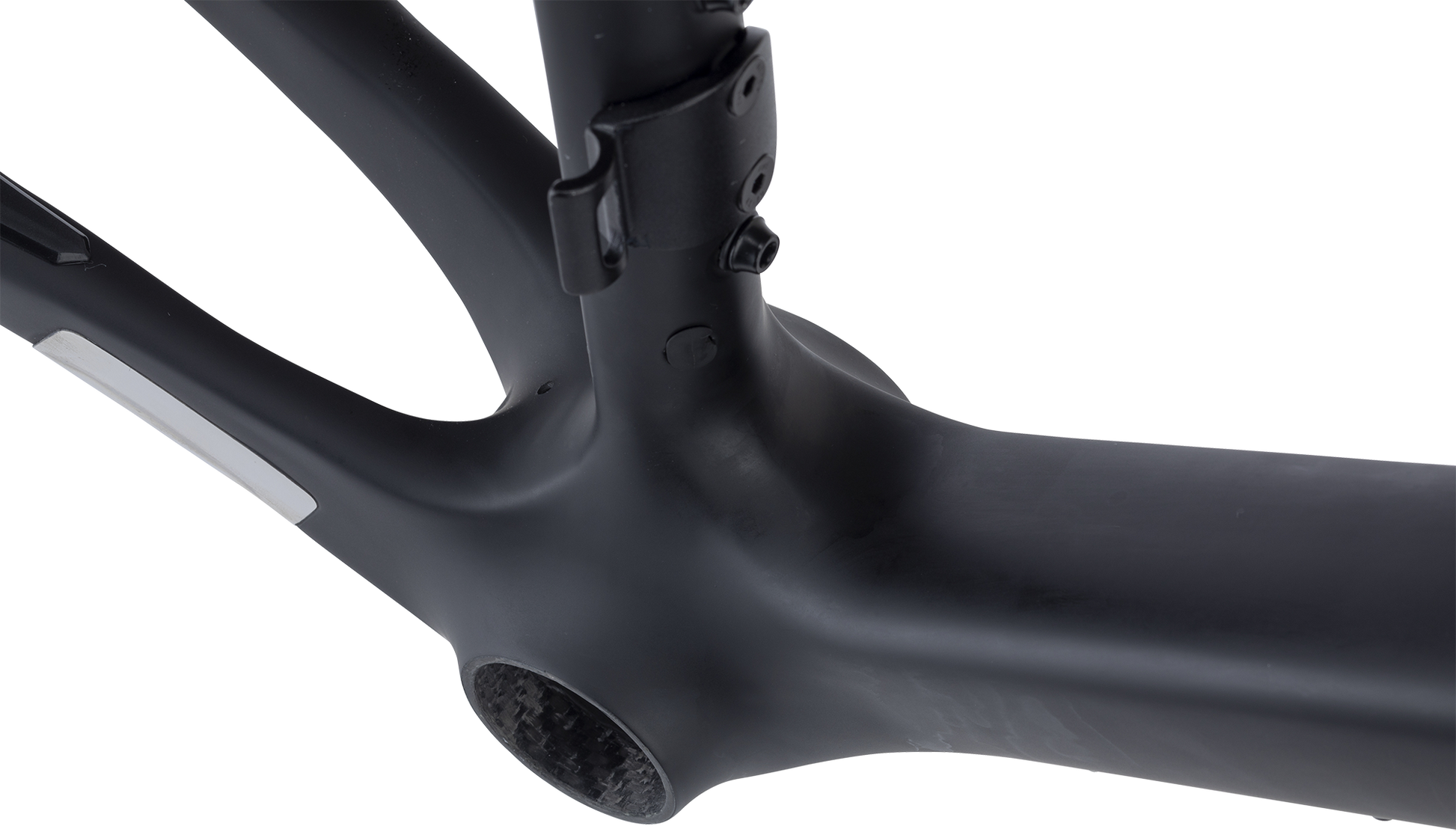

  • Salsa Warroad Carbon Frameset detail view of bottom bracket area
1 5

Warroad C Frameset

Warroad C Frameset

$2,199.00 USD
$2,199.00 USD $2,199.00 USD
Size

The Warroad frameset is an endurance road bike frameset that’s loaded with features, from the Class 5™ VRS to dual wheel size compatibility to mounts for racks, fenders, and an EXP Series Top Tube Bag. The durable, lightweight carbon construction and endurance all-road geometry ensure that wherever your road rides take you, Warroad is ready.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

1 3

Product Details

Build Kit

Frameset

Frame

Warroad Carbon

Color

Black

Fork

Warroad Carbon Deluxe

Rear Shock

N/A

Components

Headset

Cane Creek 40

Drivetrain

Wheels

Front Axle

Deadbolt UL, M12 x 120 mm thru axle

Rear Axle

Deadbolt UL, M12 x 167 mm thru axle

Weight

Frame

56cm: 2 lb 10 oz (frame only) / 56cm: 4 lb 5 oz (frame, fork, axles, seat collar, headset)

Geometry

Geometry Diagram
Size49cm52.5cm54.5cm56cm57.5cm59cm61cm
A. Effective Top Tube 499.0 525.0 545.0 560.0 575.0 590.0 610.0
B. Stand Over 665.27 717.9 747.41 761.44 787.56 809.98 832.12
C. Reach 363.14 368.25 372.1 381.31 390.54 399.75 407.83
D. Stack 507.02 546.64 565.55 584.46 603.73 622.28 641.19
E. Total Seat Tube Length 400.0 450.0 485.0 520.0 530.0 555.0 580.0
F. Headtube Length 92.0 132.0 152.0 172.0 192.0 212.0 232.0
G. Headtube Angle
70.5
71.0
71.0
71.0
71.0
71.0
71.0
H. Seat Tube Angle
75.0
74.0
73.0
73.0
73.0
73.0
72.5
I. BB Drop 72.0 72.0 72.0 72.0 72.0 72.0 72.0
K. Chainstay Length 415.0 415.0 415.0 415.0 415.0 415.0 415.0
L. Fork Length Axle to Crown 390.0 390.0 390.0 390.0 390.0 390.0 390.0
M. Fork Offset 51.0 51.0 51.0 51.0 51.0 51.0 51.0
N. Wheelbase 980.0 994.33 1004.68 1020.41 1036.14 1051.87 1066.47
Crank Arm Length 165.0 170.0 170.0 172.5 172.5 175.0 175.0
Handlebar Width 380.0 380.0 400.0 420.0 440.0 440.0 460.0
Recommended Rider Height 142.0 - 157.0 155.0 - 165.0 162.0 - 173.0 170.0 - 180.0 178.0 - 188.0 185.0 - 193.0 190.0
Stem Length 70.0 70.0 80.0 90.0 90.0 100.0 110.0

Measurements based on:

  • A fork which is 390 x 51mm offset
  • Measurements listed are based on a 650b x 47mm tire measuring 685mm in diameter
  • Standover for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center
  • Standover for 700c x 32mm tire add 6.5mm to Standover dimension

Frame Specs

  • Design Wheel/Tire Sizes Tire Size Range for 622 / 29" Wheels: 28–35mm (1.1–1.4")
  • Alternate Wheel/Tire Sizes Tire Size Range for 584 /27.5" Wheels: 47mm (1.85"); Tire Size Range for 559 / 26" Wheels: NOT COMPATIBLE
  • Max Tire Outer Diameter Ø698mm (27.4") (Some front derailleurs may reduce tire clearance. Check manufacturer’s specifications to confirm clearance before installing.)
  • Rigid Fork Length 390mm
  • Fork Offset 51mm
  • Rear Spacing 142mm
  • Rear Axle Size M12 x 167L, TP = 1.5, TL = 20mm
  • Front Brake (Rotor) 160mm, flat mount rear standard, 35mm thickness, 42mm bolt length
  • Headset - Upper IS41
  • Headset - Lower IS47
  • Front Spacing 100mm
  • Front Axle Size M12 x 120L, TP = 1.5, TL = 12mm
  • Crown Race Integrated SHIS 33, 45° angle
  • Stem Clamp Ø28.6mm
  • Seatpost 27.2mm
  • Dropper Post Compatible Internal, when not running front derailleur
  • Seatpost Clamp 32.0mm
  • Front Derailleur Clamp 06-001369
  • Derailluer Hanger Hanger 465, QBP# FS2322
  • Bottom Bracket BB86 Pressfit
  • Crankset (Max Ring) 1x crankset: 48t max, 2x crankset: 52/36t max
  • Accessory Mounts Frame Rack Mounts: Yes, universal rack rear compatible, Salsa Post-Lock seat collar required, Salsa Wanderlust Rack recommended; Toptube Mounts: Yes, compatible with Salsa Toptube bag; Downtube Accessory Mounts: Yes, one pair; Three Pack Mounts: One mount per fork leg
  • Bottle Mounts Frames up to 54.5cm: 2 in main triangle, frames 56cm and larger: 3 in main triangle, 1 under the down tube
  • Fork Mounts Fork Rack Mounts: 165mm low-rider compatible, Salsa Down Under Rack recommended
  • Front Fender Mounts Yes, required fender hardware included
  • Rear Fender Mounts Yes, required fender hardware included

Supportive Documents

Support Document links

Additional Features

Class 5 VRS

The Class 5™ Vibration Reduction System has specially shaped seatstays with a tall, thin, vertically oriented profile that promotes vertical compliance by allowing the seatstays to “flex” outwards on impacts. The horizontally oriented chainstays work to resist torque and maintain a laterally stiff rear end. The seatstays and chainstays lack bridges, furthering the full length of the stays to contribute to flexibility. And a rear thru-axle delivers precise tracking while allowing the seatstays to provide that incredible compliance

Interior Junction Control Molding Technology

We use internal molds at all the main front triangle junctions during layup and curing. This allows for precise control of wall thickness and inner wall smoothness in these areas. This process increases compaction and reduces voids and wrinkles in critical high-stress zones. The end result is a top-quality carbon frame that delivers consistent high performance

Warroad Geometry

Our endurance all-road geometry pairs a slack head tube angle with a long offset fork to create high mechanical trail, which increases stability on rough surfaces. 415mm chainstays, size-specific carbon layup and oversize bottom bracket junction make for a bike that’s responsive when accelerating but keeps the ride smooth

Warroad Deluxe Fork

This full-carbon fork utilizes a 12 x 100mm thru-axle for true tracking and flat mount brake for quick setup. Most importantly, the fork includes an incredible array of accessory features: Three-Pack mounts accept either water bottle cages or Anything Cages for increased hydration or gear carrying capacity / Mid-blade mounts allow the attachment of our Down Under Low Rider Rack for front pannier use / Internal dynamo hub cable routing means clean cable routing for those upgrading to dynamo front hubs / Fender mounts mean more pleasant riding in rainy weather, allowing you to tack on more training miles

Dual Wheel Size Compatible

Warroad fits up to 700c x 35mm OR 650b x 47mm wheels/tires. We offer models with each spec so you can choose the wheel size that best meets your needs, or set up a second wheel set so your Warroad is optimized for the ride at hand

Integrated Top Tube Bag Mount

Bolt on your Salsa EXP Series Toptube Bag for secure connection and elimination of strap wear on your frame

Generous Water Bottle Capacity

Stay hydrated during all-day rides and races. 2–3 bottle mounts inside the main triangle (56cm and larger receive 3), 1 accessory mount on underside of downtube, 2 bottle mounts possible on fork via Three-Pack mounts

Internal Sleeved Cable Routing

Internal tubes guide housing through the frame, simplifying setup and maintenance

Refined Drivetrain Compatibility

Internal tubes guide housing through the frame, simplifying setup and maintenance

Stealth Dropper Post Compatible

Accepts a 27.2mm dropper post when running 1x or Di2 drivetrain for more confident descending at high speeds on rough roads and unpredictable terrain

Fender Mounts

Stay clean and comfortable on wet-weather rides

Rear Rack Friendly

Compatible with the Salsa Wanderlust Rack when using the optional Salsa Rack-Lock seat collar

FAQ

Can I run fenders on the Warroad?

Yes, Warroad will fit up to 700c x 30mm tires or 650b x 42mm tires with fenders.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

ViewWarranty

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
