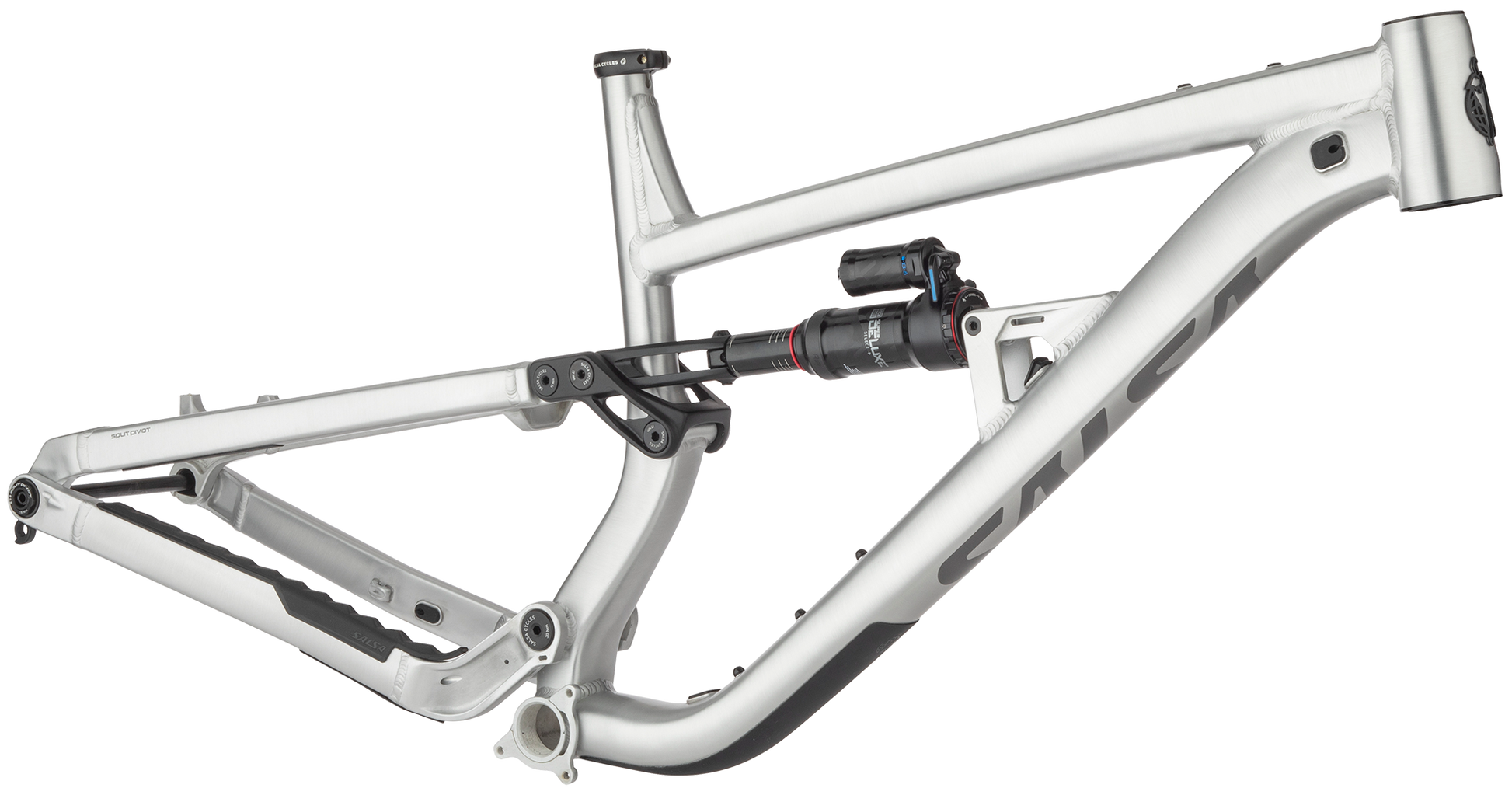

Blackthorn Alloy Frame

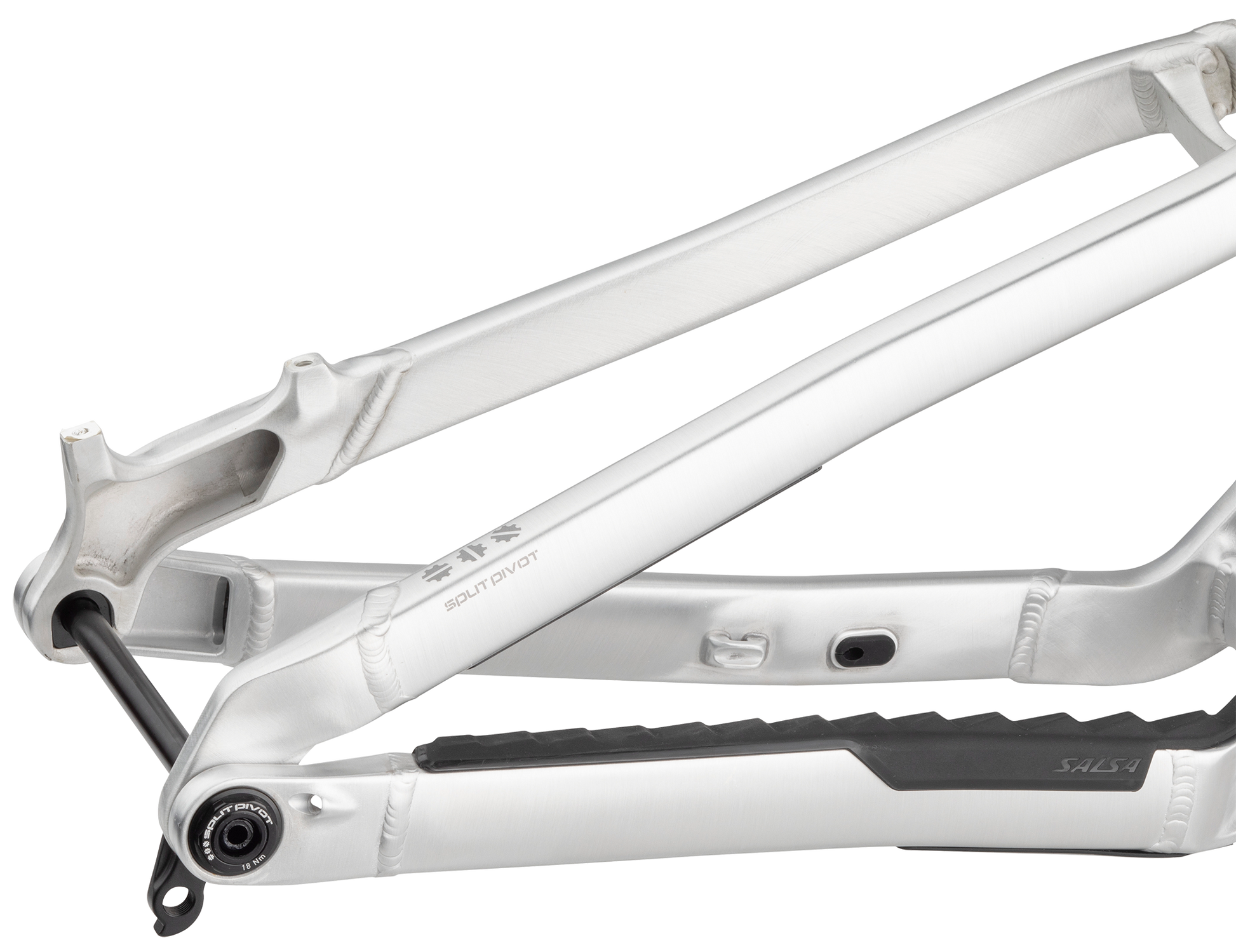

Split Pivot provides a host of impressive suspension characteristics because the system isolates pedaling forces and braking forces from each other, allowing us to tune and optimize the bike for both independently. The concentric rear axle pivot, in conjunction with precise wheel link, brake link, and control link placement, results in excellent bump compliance and pedaling efficiency, smooth and predictable braking throughout travel, and maximum traction

The Split Pivot+ design methodology allows our engineers to optimize a frame for more than one travel class. This means that Blackthorn riders can swap control and shock links, in addition to the rear shock and fork, to switch travel to Cassidy’s 165 mm rear and 180 mm front capability. One frame, multiple bikes

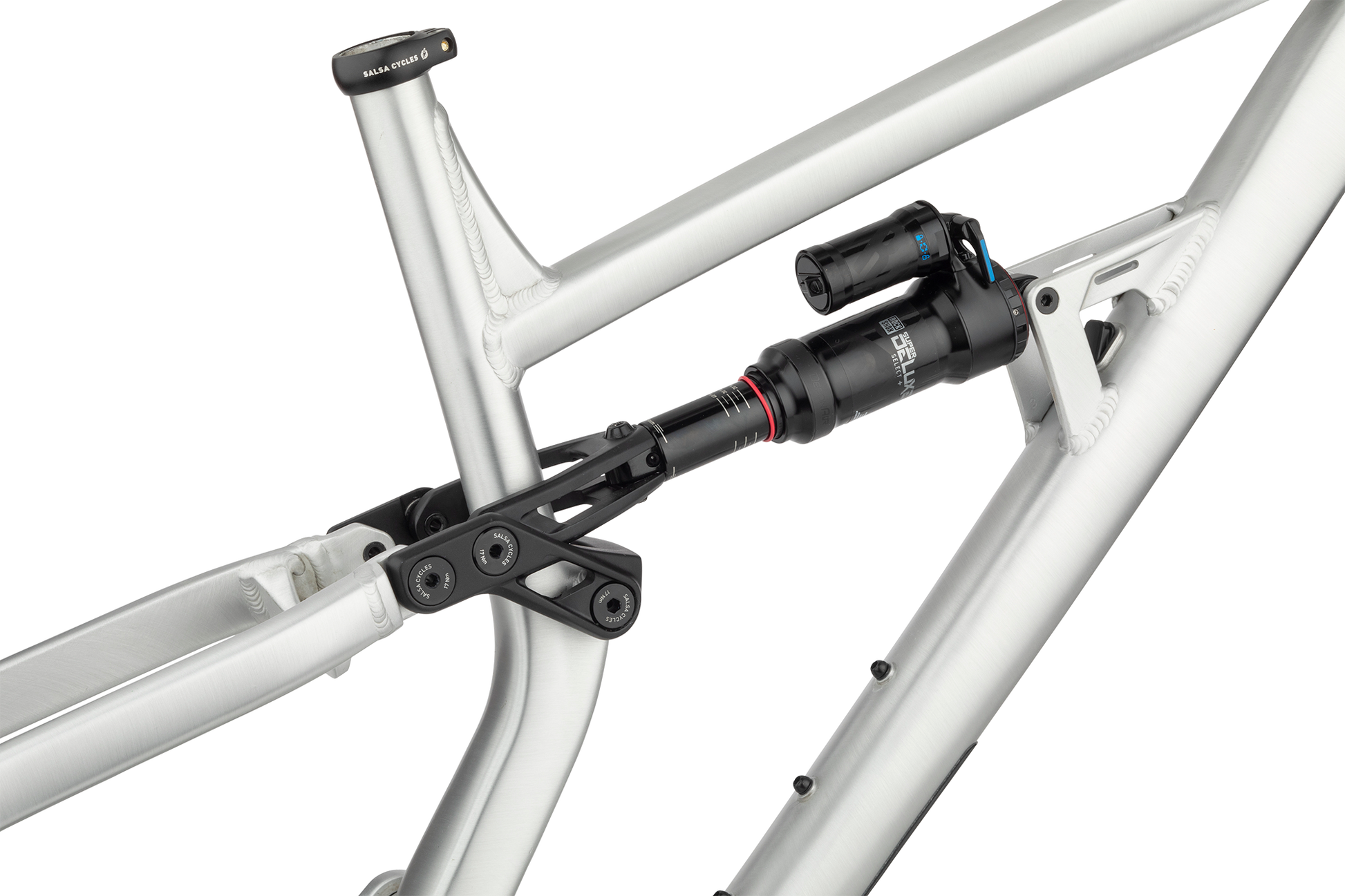

The Blackthorn-specific control link and shock links optimize the frame geometry and kinematics for its suspension travel, delivering a well-rounded, balanced trail feel

Blackthorn is long, low, and slack, with a dash of moderation to preserve pedaling performance. A 64.6-degree head tube angle and short-offset fork feel confident when descending loose, steep trails or blasting through rock gardens. A steep 76.5-degree seat tube angle and consistent cockpit sizing makes for a comfortable pedaling position, while the moderate bottom bracket height provides stability at speed without sacrificing pedaling performance in technical sections. The long front center provides stability in extreme terrain while the short 432 mm chainstays make for nimble handling in tight situations

Integrated into the shock link mount, Flip Chip 2.0 allows simple, quick adjustments to bottom bracket height and head tube angle to account for the rider’s personal preference, terrain, or wheel size and tire diameter

EPS construction allows for greater manufacturing control, smooth surfacing, a simplified bottom bracket junction, and an integrated shock mount. Carbon fiber material offers improved stiffness, better vibration damping, excellent toughness and weight savings compared to other materials. 6066-T6 aluminum heat-treated chainstays add durability

Top tube mounts accommodate K-Edge Top Tube Mount for bike computers or the Salsa EXP Series Direct Mount Top Tube Bag

Three-Pack mounts on down tube accommodate a large water bottle on the lower pair and a frame-mounted pump bracket on the upper pair

Three-Pack mounts on down tube accommodate a large water bottle on the lower pair and a frame-mounted pump bracket on the upper pair

All Blackthorn sizes accept a standard 26 oz water bottle within the front triangle

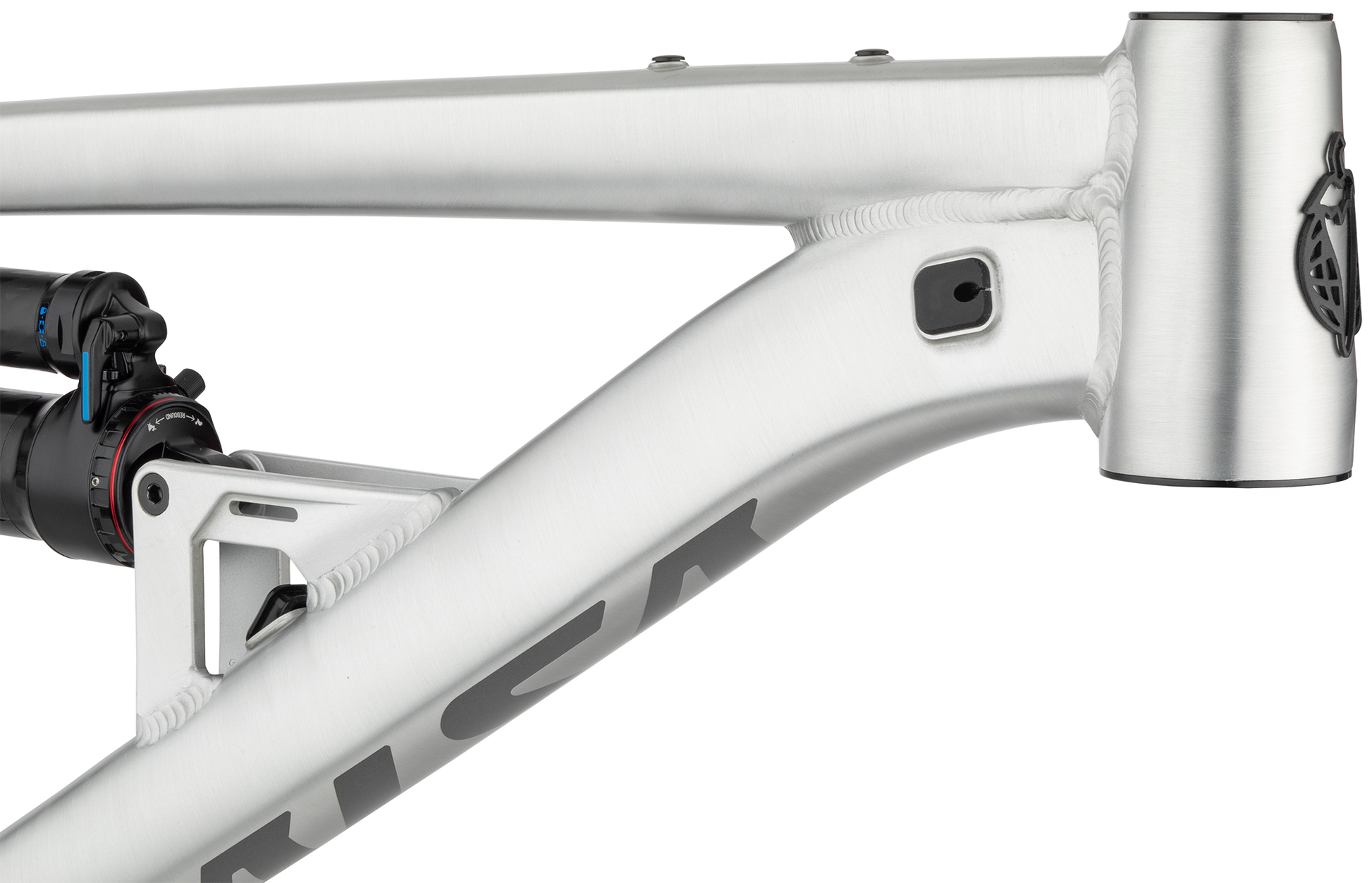

Internal tubes guide housing through the frame, simplifying setup and maintenance, and creating a clean bike profile

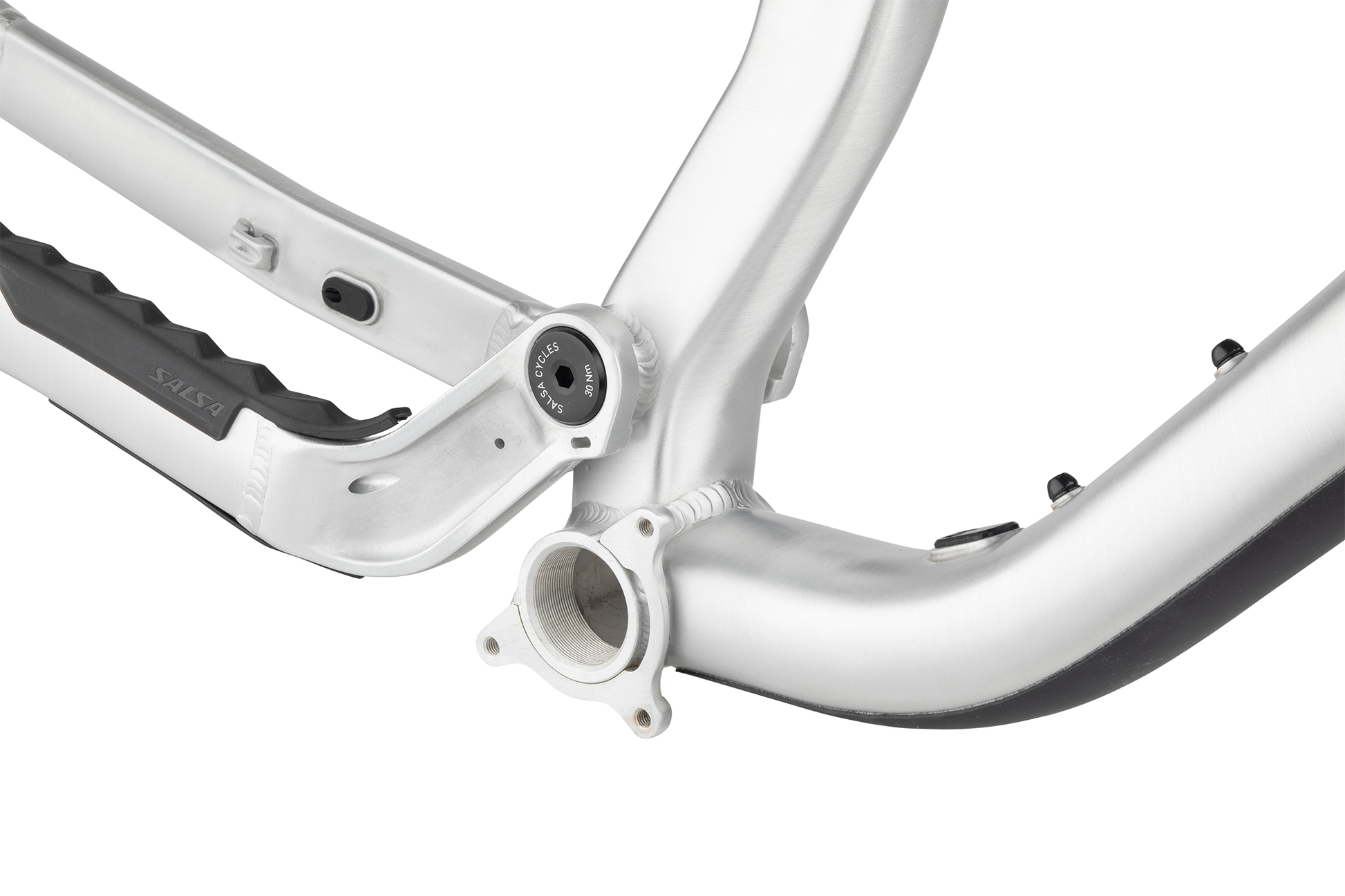

Molded rubber down tube, seat tube, chainstay, and seatstay guards protect your frame from impacts and abrasion

Spec’d as a 29er, Blackthorn is also capable of running 27.5 x 2.8-3.0" wheels and tires

Compatible with 30.9mm dropper posts for true trail bike performance

Blackthorn comes equipped for remote lockout, with cable routing to the rear shock via a cable port on the drive side of the downtube that exits between the forward shock mounting plates.
