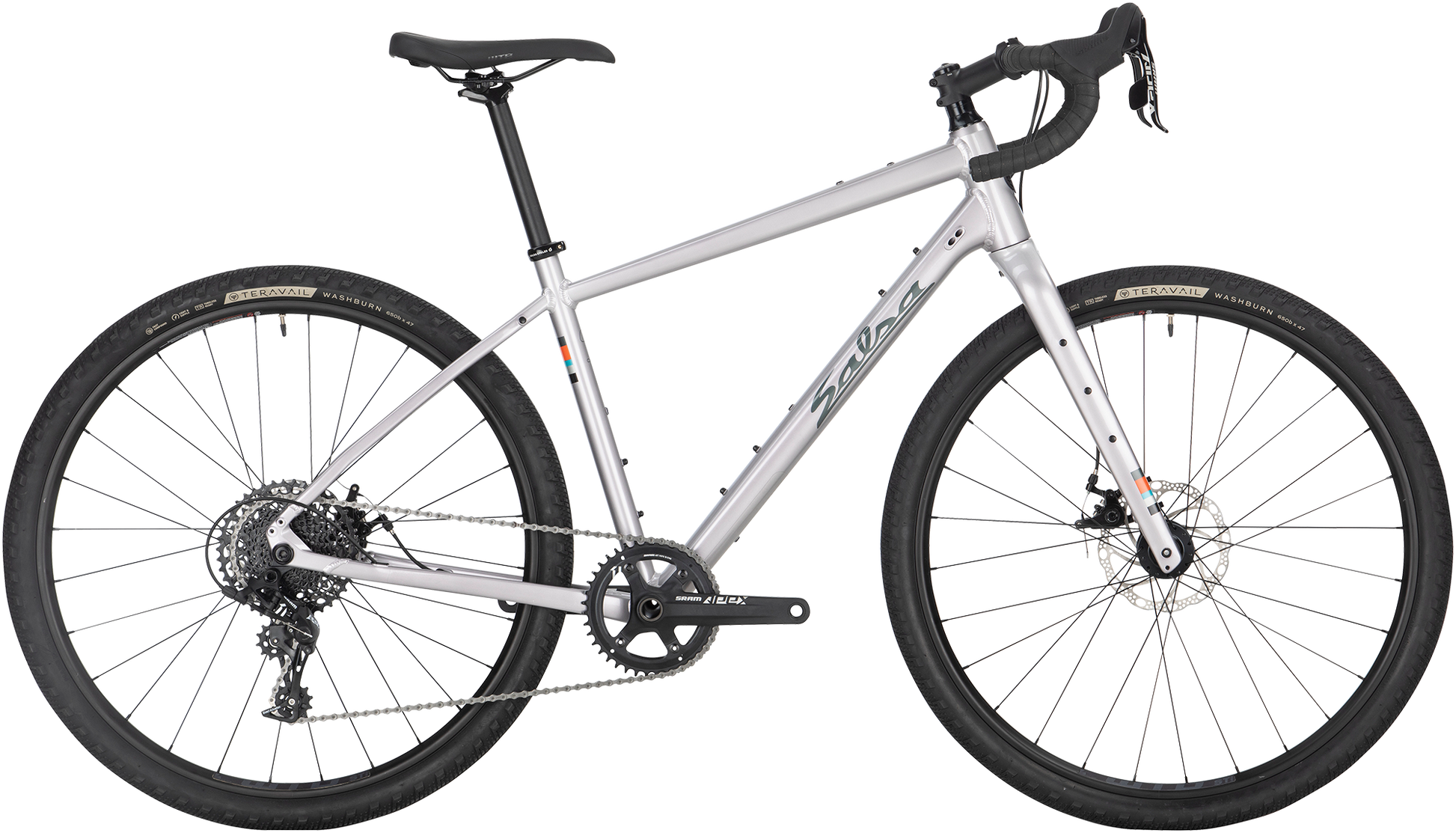

• Salsa Journeyer Apex 1 650b bike, silver, side view on white background

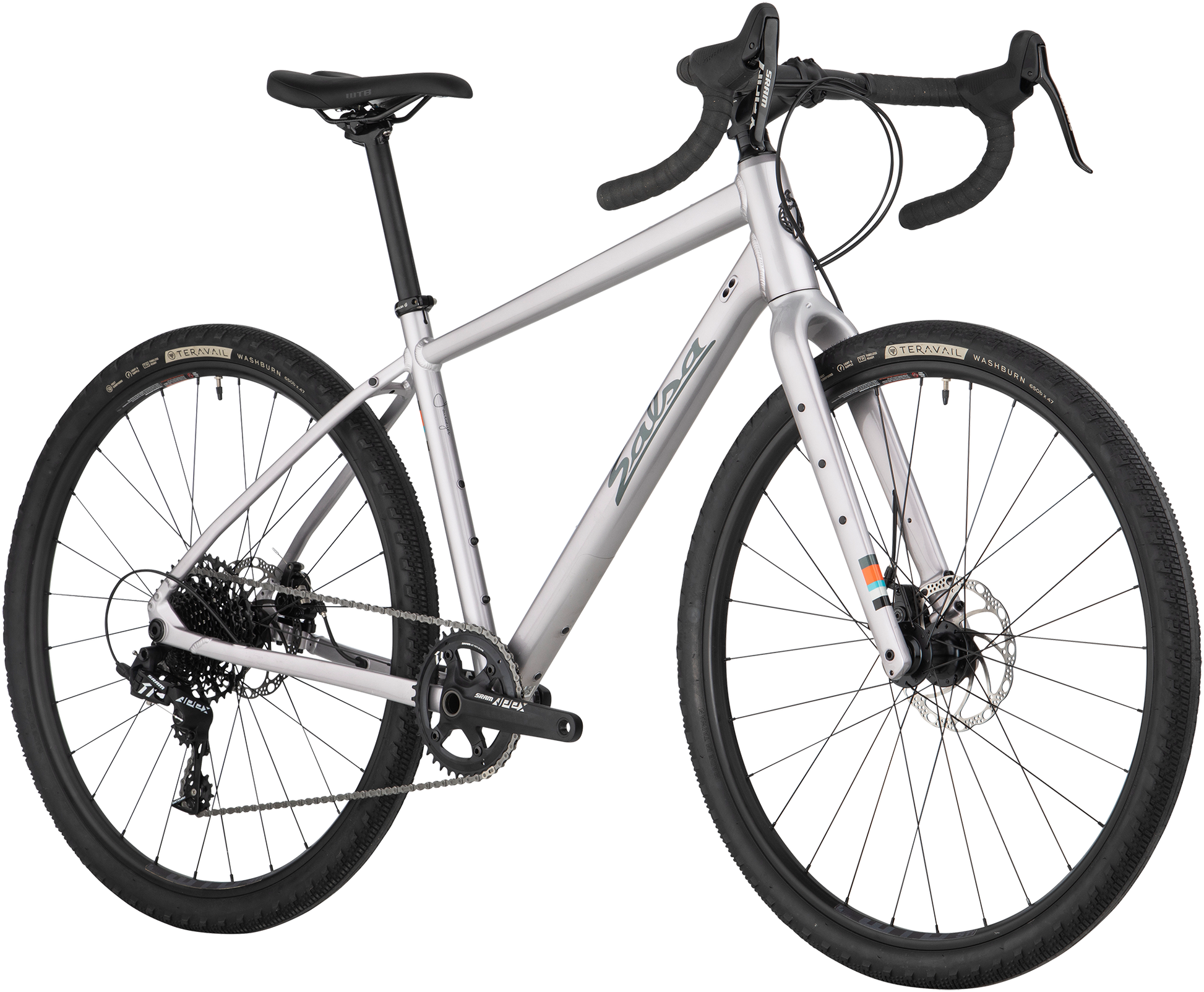

  • Salsa Journeyer Apex 1 650b bike, silver, front three-quarter view on white background

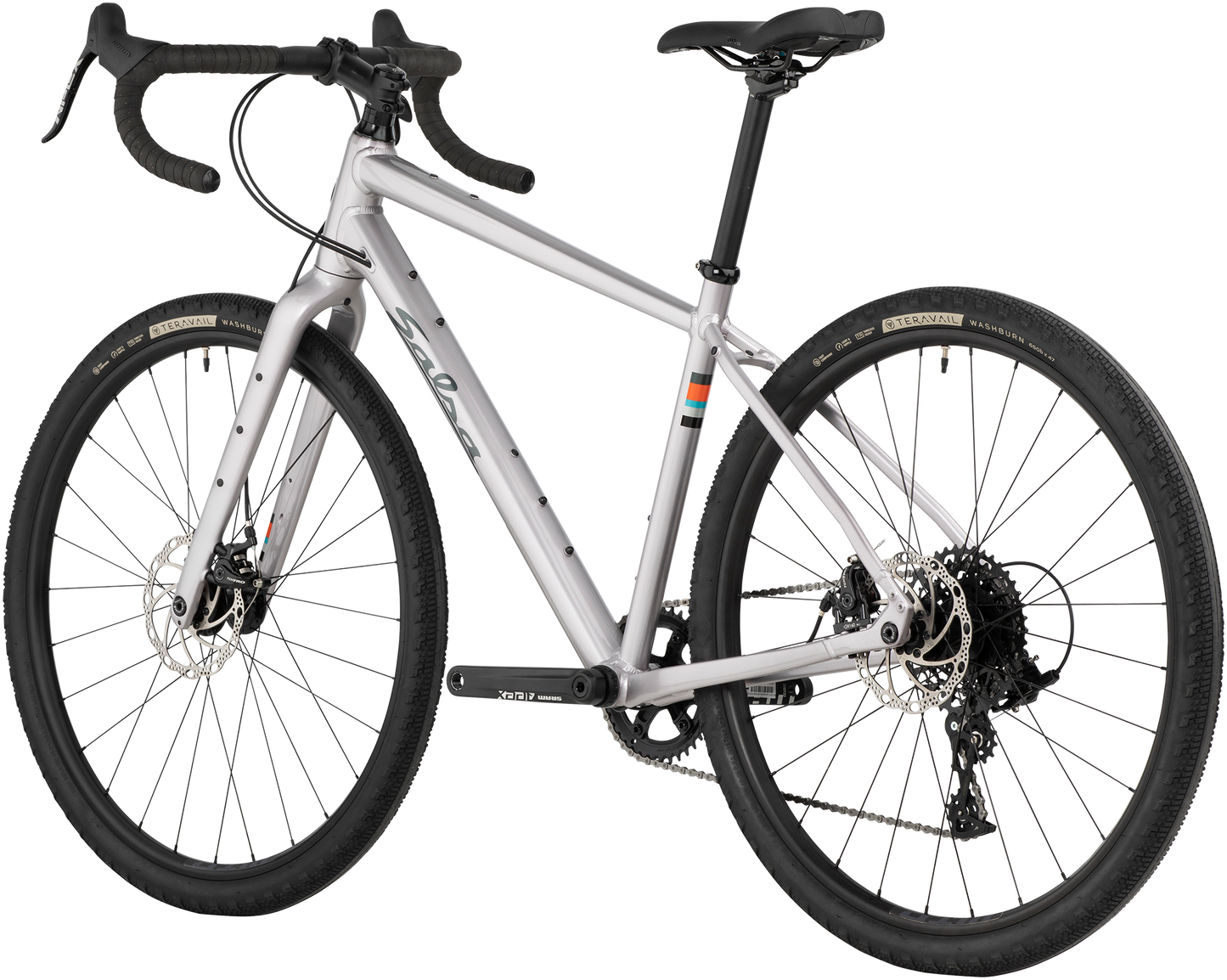

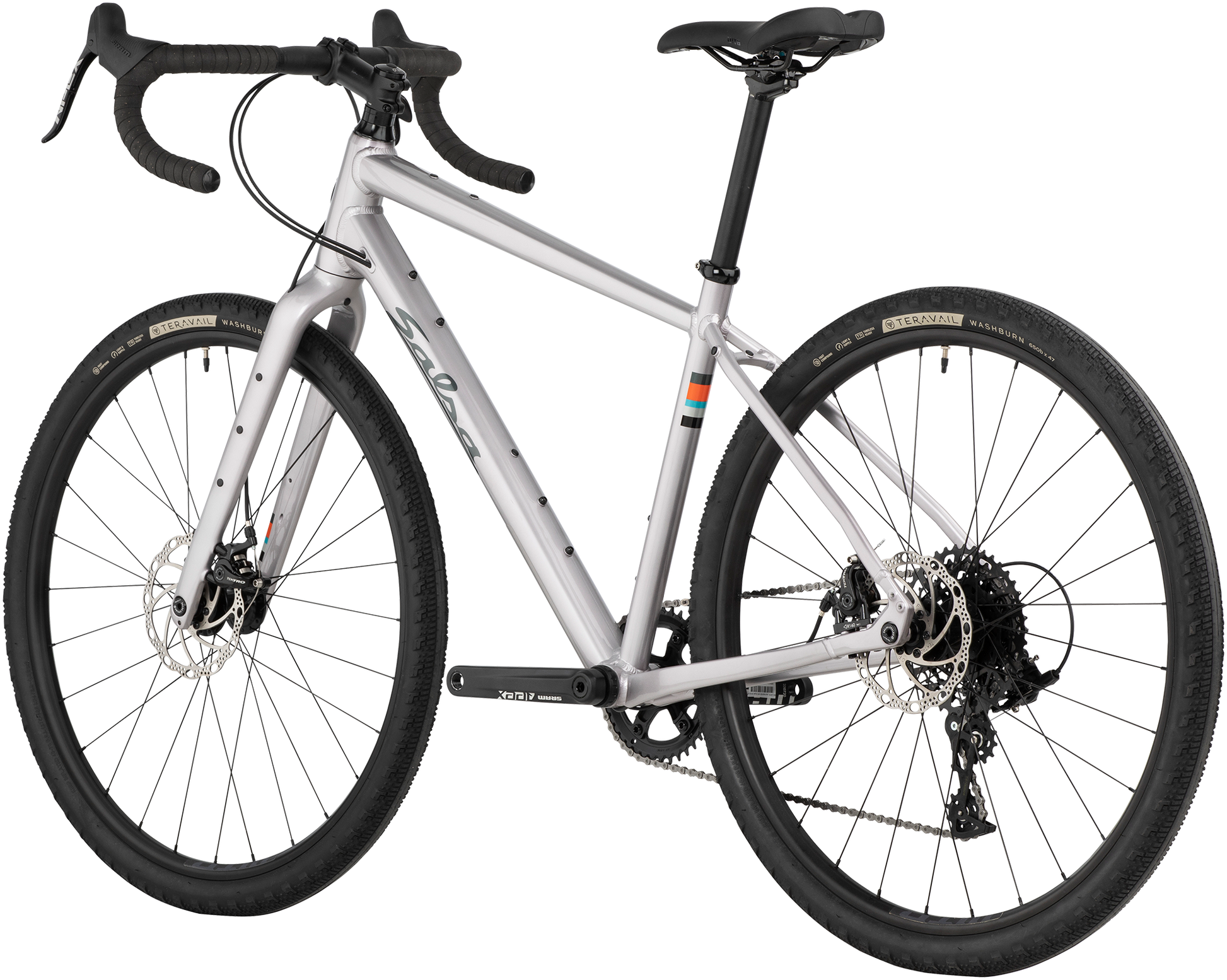

  • Salsa Journeyer Apex 1 650b bike, silver, rear three-quarter view on white background
1 3

Journeyer Apex 1 650b

Journeyer Apex 1 650b

$1,299.99 USD
$1,599.00 USD $1,299.99 USD
Sale
Size

Do you ever feel tempted by the rough-looking side roads and dirt detours you see while out riding? Journeyer Apex 1 650b is here to satisfy your curiosity. An all-new aluminum frame and our Waxwing carbon fork prioritize stability and comfort on all types of roads. We designed Journeyer with adventure-bike features, including fender, rack, and accessory mounts, plus Three-Pack mounts for extra supplies or camping gear.

650b wheels and high-volume 47 mm tires offer a large contact patch for great grip on loose surfaces. SRAM’s Apex 1 drivetrain is a dependable ride partner with the gear range to take on hilly routes or downtown hustles. Journeyer has all the makings of an adventure bike — time to start planning your next getaway.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

1 2

Product Details

Build Kit

Frameset

Frame

Journeyer Drop-Bar Thru-Axle

Color

Silver

Fork

Waxwing

Components

Headset

FSA NO.42 ACB IS-2

Seatpost

Salsa Guide, 27.2 x 350 mm

Stem

Salsa Guide 31.8, 6-degree

Grips/Bar Tape

Black Cork

Saddle

WTB Volt Medium, Steel, 142 x 265 mm

Handlebar

Salsa Cowbell 3, 31.8

Drivetrain

Front Derailleur

N/A

Rear Derailleur

SRAM Apex 1

Cassette

SRAM PG-1130, 11–42t, 11-speed

Chain

SRAM PC-1110

Crankset

SRAM Apex 1, 40t

Shifter

SRAM Apex 1

Brake Calipers

Tektro MD-C550

Rotors

Tektro TR160-22 (6-bolt, 160 mm)

Wheels

Front Wheel

WTB Serra 12 x 100 mm hub, WTB ST i23 650b rim, 28h

Rear Wheel

WTB Serra HG10 12 x 142 mm hub, WTB ST i23 650b rim, 28h

Front Tire

Teravail Washburn, 650b x 47 mm, 60 tpi, Light and Supple casing, tubeless ready

Rear Tire

Teravail Washburn, 650b x 47 mm, 60 tpi, Light and Supple casing, tubeless ready

Weight

Complete Bike

22 lb (56 cm, with pedals)

Geometry

Geometry Diagram
Size49cm51cm53cm55cm57cm60cm
A. Effective Top Tube 493.0 510.0 530.0 550.0 570.0 600.0
B. Stand Over 606.0 641.0 677.0 713.0 749.0 796.0
C. Reach 366.0 368.0 372.0 376.0 387.0 408.0
D. Stack 510.0 528.0 552.0 570.0 598.0 627.0
E. Total Seat Tube Length 340.0 380.0 410.0 450.0 490.0 520.0
F. Headtube Length 90.0 105.0 130.0 150.0 180.0 210.0
G. Headtube Angle
68.5
69.5
69.5
69.5
69.5
69.5
H. Seat Tube Angle
76.0
75.0
74.0
73.0
73.0
73.0
I. BB Drop 70.0 70.0 70.0 70.0 70.0 70.0
K. Chainstay Length 440.0 440.0 440.0 440.0 440.0 440.0
L. Fork Length Axle to Crown 402.0 402.0 402.0 402.0 402.0 402.0
M. Fork Offset 50.0 50.0 50.0 50.0 50.0 50.0
N. Wheelbase 1027.0 1028.0 1040.0 1050.0 1072.0 1104.0
Crank Arm Length 165.0 165.0 170.0 172.5 175.0 175.0
Handlebar Width 380.0 400.0 420.0 440.0 460.0 460.0
Recommended Rider Height 142.0 - 152.0 150.0 - 160.0 157.0 - 170.0 165.0 - 178.0 173.0 - 185.0 183.0
Stem Length 60.0 70.0 80.0 80.0 90.0 100.0

Measurements based on:

  • a fork measuring 405mm with 50mm offset
  • a 700 x 38mm tire measuring 706 mm in diameter
  • Stand over measured vertically to top of top tube from a position 50mm forward of BB center

Frame Specs

  • Design Wheel/Tire Sizes 650b x 47 mm
  • Alternate Wheel/Tire Sizes 650b x 47–50 mm; 700c x 32–50 mm
  • Rigid Fork Length 405 mm axle-to-crown
  • Fork Offset 50 mm
  • Rear Spacing 142 mm
  • Rear Axle Size M12 x 169 TP = 1.0, TL = 14 mm thru-axle
  • Front Brake (Rotor) Flat mount 160 frame standard (180 mm max.), 35 mm thickness, 42 mm bolt length
  • Headset - Upper IS41
  • Headset - Lower IS52
  • Front Spacing 100 mm
  • Front Axle Size M12 x 120 TP = 1.5, TL = 12 mm thru-axle
  • Crown Race 40 mm
  • Stem Clamp 28.6 mm / 1 1/8"
  • Seatpost 27.2 mm
  • Dropper Post Compatible Yes, internal
  • Seatpost Clamp 32.0 mm
  • Front Derailleur Clamp 31.8 mm OD, bottom pull
  • Front Derailleur Type 2x, bottom swing
  • Derailluer Hanger SRAM UDH
  • Bottom Bracket 68 mm BSA
  • Crankset (Max Ring) 1x crankset: 42t max.; 2x crankset: 48/33t max.
  • Accessory Mounts Downtube Accessory Mounts Yes, 1; TopTube Mounts: Yes; Rack Mounts: Rear: yes / Front: yes, low rider; Three-Pack Mounts: 47–53 cm frames: 1 on down tube; 55–60 cm frames: 1 on down tube + 1 on seat tube; All sizes: one per fork leg
  • Bottle Mounts 49 cm frame: 1 in main triangle; 51–56 cm frames: 2 in main triangle; 57–60 cm frames: 3 in main triangle
  • Front Fender Mounts Yes
  • Rear Fender Mounts Yes

Supportive Documents

Support Document links

Additional Features

6061-T6 Aluminum Frame

We use alloy tubing developed specifically for the Journeyer frame, which is then heat-treated to T6 alloy standards for extra strength and durability.

12 x 142 mm Thru-Axle Rear

A thru-axle keeps the frame stiff for improved tracking and allows for consistent wheel placement.

Waxwing Carbon Fork

The Waxwing fork features carbon construction with an aluminum steerer. The 12 x 100 mm thru-axle keeps the front end stiff, so it goes where you point it. We designed Waxwing to carry a load, with two sets of Three-Pack mounts and mid-blade rack mounts. Internal Dynamo Hub Cable Routing and fender mounts make it easier to ride in all conditions. Tire clearance is a huge 700c x 50 mm or 650b x 56.5 mm (27.5 x 2.25"), so you can run a wide range of wheels and tires. An abrasion-resistant plate on the inside of the fork prevents wear from mud and other road debris.

Gravel Geometry

Journeyer is comfortable, stable and confidence inspiring whether it’s your daily driver, you’re ripping up dirt paths through town, exploring unfamiliar terrain, or entering your first gravel race. Spirited when you want it to be, but relaxed enough to leave you with the energy for long rides.

Internal Cable Routing

Full-length housing improves shifting performance in poor conditions and increases use time between maintenance intervals. Internal routing for a clean, uncluttered look.

Dropper Post Routing

Internal dropper post routing makes it easy to outfit your Journeyer for more technical riding.

Flat-Mount Brakes

Flat-mount brakes offer a clean look, easy setup, and compatibility with most of today’s road and gravel brake offerings.

Cargo Capability

Journeyer features front and rear rack mounts, a Three-Pack mount on each fork leg, a top tube mount, down tube mount, and bottle mounts. With this many options, you can load it up however you like.

650b x 47 mm Wheels and Tires

Journeyer features front and rear rack mounts, a Three-Pack mount on each fork leg, a top tube mount, down tube mount, and bottle mounts. With this many options, you can load it up however you like.

Salsa Cowbell Drop Handlebar

Drop bars provide multiple hand positions, increasing comfort and efficiency on long rides. They also provide the rider a more aerodynamic position when stiff headwinds arise. Our Cowbell bars feature a 12° flare that puts your hands, wrists, and arms into a position that feels natural when you’re in the drops.

Dual Wheel Size Compatibility

Journeyer fits both 700c and 650b wheel sizes. We offer models in each size so you can choose the one that meets your needs or set up a second wheel set so your Journeyer is ready for any type of ride.

FAQ

Can I use a suspension fork on this frame?

No, this frame was not designed or tested for use with a suspension fork.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.
