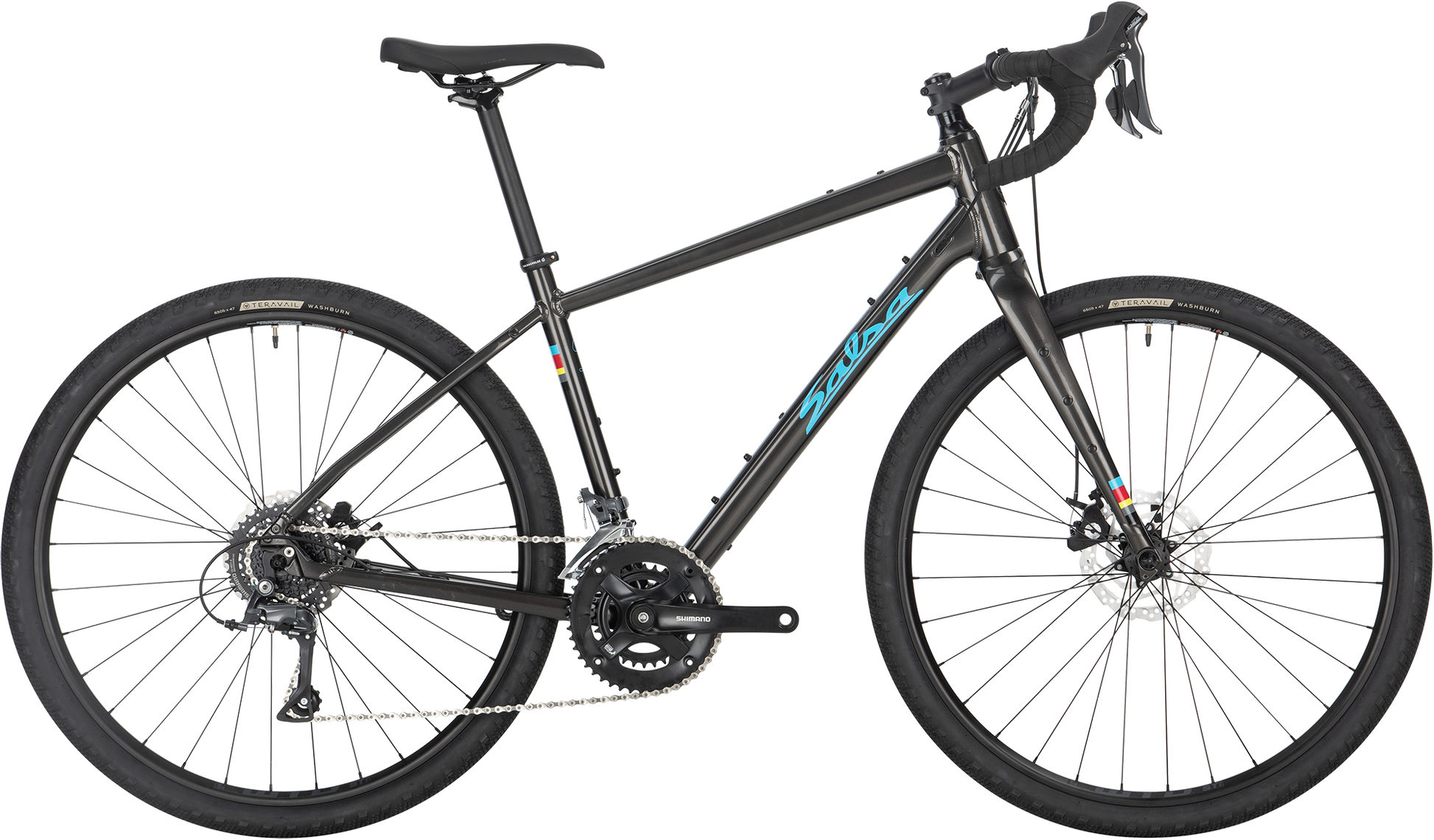

• Salsa Journeyer Claris 650b bike, black, side view on white background

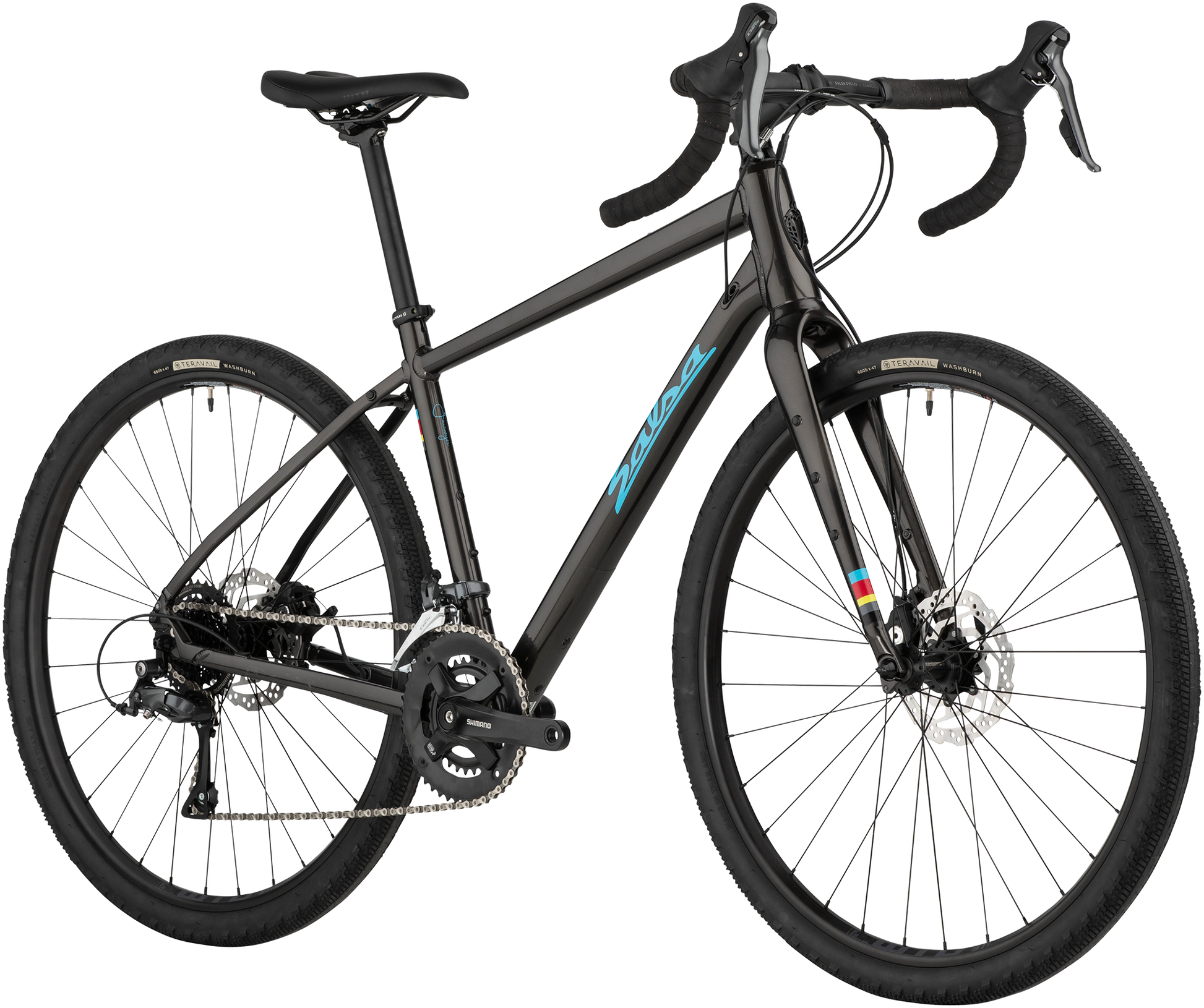

  • Salsa Journeyer Claris 650b bike, black, front three-quarter view on white background

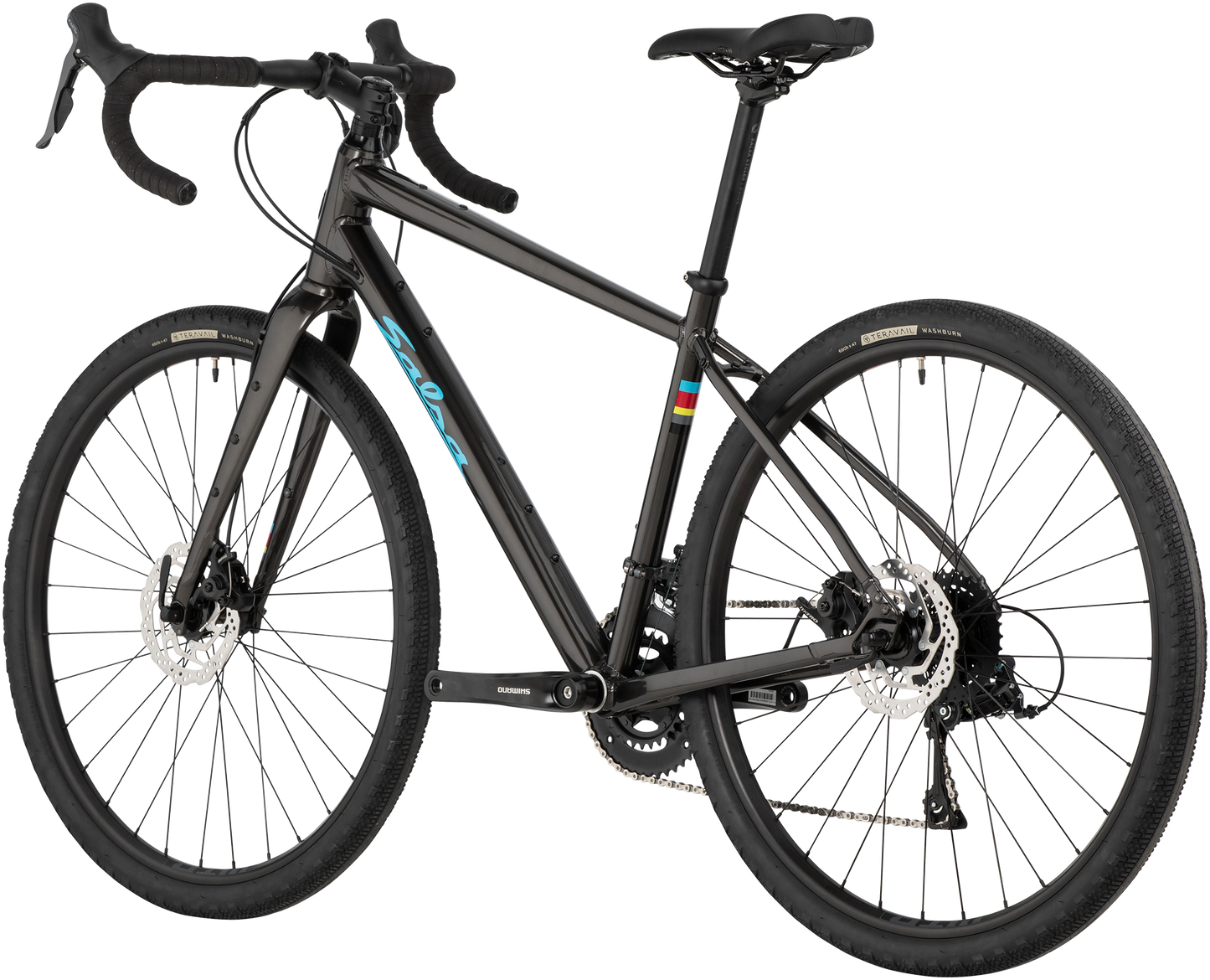

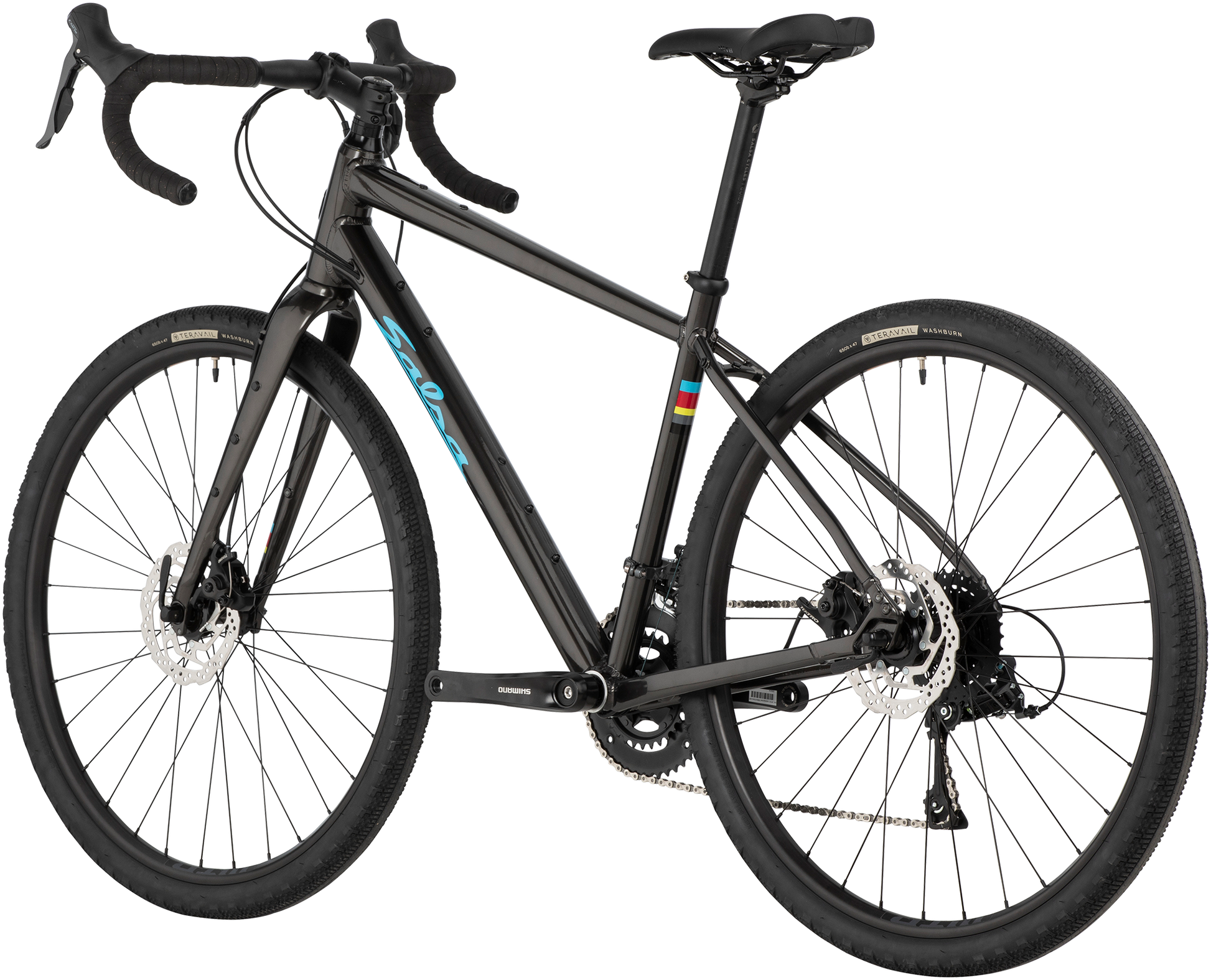

  • Salsa Journeyer Claris 650b bike, black, rear three-quarter view on white background
1 3

Journeyer Claris 650b

Journeyer Claris 650b

$799.99 USD
$999.00 USD $799.99 USD
Sale
Size

There are many kinds of roads — gravel, rugged doubletrack, urban asphalt — and Journeyer Claris 650b is built to make the most of each of them. With a fully redesigned aluminum frame and Fantail aluminum fork, its geometry is set up for comfort and confidence wherever you find yourself. Versatile features such as fender and rack mounts, Three Pack mounts, and plenty of space for bottles and accessories make it possible to use one bike for many missions.

The 650b wheels and 47 mm tires have generous grip in loose conditions but roll fast enough to be your first choice for errands and commuting around town. Shimano’s Claris 2 x 8-speed gearing is reliable and makes nearly any terrain possible. It’s our recipe for the perfect beginner gravel bike that won’t limit you only to gravel roads.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

1 1

Product Details

Build Kit

Frameset

Frame

Journeyer Drop-Bar Quick-Release

Color

Black

Fork

Fantail

Components

Headset

FSA NO.42 ACB IS-2

Seatpost

Salsa Guide 27.2 x 350 mm, 12 mm offset

Stem

Salsa Guide 31.8, 6-degree

Grips/Bar Tape

Black Cork

Saddle

WTB Volt Medium, Steel, 142 x 265 mm

Handlebar

Salsa Cowbell 3, 31.8

Drivetrain

Front Derailleur

Shimano Claris R2000

Rear Derailleur

Shimano Claris R2000, Medium Cage

Cassette

Shimano HG31, 11–34t, 8 speed

Chain

KMC X8

Crankset

Shimano TY501 46/30t, Shimano UN101 68 x 122.5 mm bottom bracket

Shifter

Shimano Claris R2000

Brake Calipers

Tektro MD-C310

Rotors

Shimano RT10 (Center Lock, 160 mm)

Wheels

Front Wheel

Shimano TX505 9 x 100 mm QR hub, WTB ST i23 650b rim, 32h

Rear Wheel

Shimano TX505-8 10 x 135 mm QR hub, WTB ST i23 650b rim, 32h

Front Tire

Teravail Washburn, 650b x 47 mm, 30 tpi

Rear Tire

Teravail Washburn, 650b x 47 mm, 30 tpi

Geometry

Geometry Diagram
Size49cm51cm53cm55cm57cm60cm
A. Effective Top Tube 493.0 510.0 530.0 550.0 570.0 600.0
B. Stand Over 606.0 641.0 677.0 713.0 749.0 796.0
C. Reach 366.0 368.0 372.0 376.0 387.0 408.0
D. Stack 510.0 528.0 552.0 570.0 598.0 627.0
E. Total Seat Tube Length 340.0 380.0 410.0 450.0 490.0 520.0
F. Headtube Length 90.0 105.0 130.0 150.0 180.0 210.0
G. Headtube Angle
68.5
69.5
69.5
69.5
69.5
69.5
H. Seat Tube Angle
76.0
75.0
74.0
73.0
73.0
73.0
I. BB Drop 70.0 70.0 70.0 70.0 70.0 70.0
K. Chainstay Length 440.0 440.0 440.0 440.0 440.0 440.0
L. Fork Length Axle to Crown 402.0 402.0 402.0 402.0 402.0 402.0
M. Fork Offset 50.0 50.0 50.0 50.0 50.0 50.0
N. Wheelbase 1027.0 1028.0 1040.0 1050.0 1072.0 1104.0
Crank Arm Length 165.0 165.0 170.0 172.5 175.0 175.0
Handlebar Width 38.0 40.0 42.0 44.0 46.0 46.0
Recommended Rider Height 142.0 - 152.0 150.0 - 160.0 157.0 - 170.0 165.0 - 178.0 173.0 - 185.0 183.0
Stem Length 60.0 70.0 80.0 80.0 90.0 100.0

Measurements based on:

  • a fork measuring 405mm with 50mm offset
  • a 700 x 38mm tire measuring 706 mm in diameter
  • Stand over measured vertically to top of top tube from a position 50mm forward of BB center

Frame Specs

  • Design Wheel/Tire Sizes 650b x 47 mm
  • Alternate Wheel/Tire Sizes 650b x 47–50 mm; 700c x 32–50 mm
  • Rigid Fork Length 405 mm axle-to-crown
  • Fork Offset 50 mm
  • Rear Spacing 135 mm
  • Rear Axle Size 10 x 135 mm quick release
  • Front Brake (Rotor) Flat mount 140 fork standard (160 mm max.)
  • Headset - Upper IS41
  • Headset - Lower IS52
  • Front Spacing 100 mm
  • Front Axle Size 9 x 100 mm quick release
  • Crown Race 40 mm
  • Stem Clamp 28.6 mm / 1 1/8"
  • Seatpost 27.2 mm
  • Dropper Post Compatible Yes, internal
  • Seatpost Clamp 32.0 mm
  • Front Derailleur Clamp 31.8 mm OD, bottom pull
  • Front Derailleur Type 2x, bottom swing
  • Derailluer Hanger Salsa 959
  • Bottom Bracket 68 mm BSA
  • Crankset (Max Ring) 1x crankset: 42t max.; 2x crankset: 48/33t max.
  • Accessory Mounts Downtube Accessory Mounts: Yes, 1; TopTube Mounts: Yes; Rack Mounts: Rear: yes / Front: yes, low rider; Three-Pack Mounts: 47–53 cm frames: 1 on down tube; 55–60 cm frames: 1 on down tube + 1 on seat tube; All sizes: one per fork leg
  • Bottle Mounts 49 cm frame: 1 in main triangle; 51–56 cm frames: 2 in main triangle; 57–60 cm frames: 3 in main triangle
  • Front Fender Mounts Yes
  • Rear Fender Mounts Yes

Supportive Documents

Support Document links

Additional Features

6061-T6 Aluminum Frame

We use alloy tubing developed specifically for the Journeyer frame, which is then heat-treated to T6 alloy standards for extra strength and durability.

Fantail Aluminum Fork

The Fantail fork is constructed from aluminum alloy and designed for a 9 x 100 mm quick-release axle. Fantail’s two sets of Three-Pack mounts and mid-blade rack mounts let you load up everything you need for your rides. Fender mounts add a touch of all-weather utility, and massive 700c x 56 mm or 650b x 59 mm (27.5 x 2.3") tire clearance lets you choose the wheel and tire setup for your riding conditions.

Gravel Geometry

Journeyer is comfortable, stable and confidence inspiring whether it’s your daily driver, you’re ripping up dirt paths through town, exploring unfamiliar terrain, or entering your first gravel race. Spirited when you want it to be, but relaxed enough to leave you with the energy for long rides.

Internal Cable Routing

Full-length housing improves shifting performance in poor conditions and increases use time between maintenance intervals. Internal routing for a clean, uncluttered look.

Dropper Post Routing

Internal dropper post routing makes it easy to outfit your Journeyer for more technical riding.

Flat-Mount Brakes

Flat-mount brakes offer a clean look, easy setup, and compatibility with most of today’s road and gravel brake offerings.

Cargo Capability

Journeyer features front and rear rack mounts, a Three-Pack mount on each fork leg, a top tube mount, down tube mount, and bottle mounts. With this many options, you can load it up however you like.

650b x 47 mm Wheels and Tires

650b wheels accelerate quickly, and the high-volume 47 mm Teravail Washburn tires blend straight-line speed with confidence in turns on loose terrain.

Salsa Cowbell Drop Handlebar

650b wheels accelerate quickly, and the high-volume 47 mm Teravail Washburn tires blend straight-line speed with confidence in turns on loose terrain.

Dual Wheel Size Compatibility

Journeyer fits both 700c and 650b wheel sizes. We offer models in each size so you can choose the one that meets your needs or set up a second wheel set so your Journeyer is ready for any type of ride.

FAQ

Can I use a suspension fork on this frame?

No, this frame was not designed or tested for use with a suspension fork.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

ViewWarranty

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
