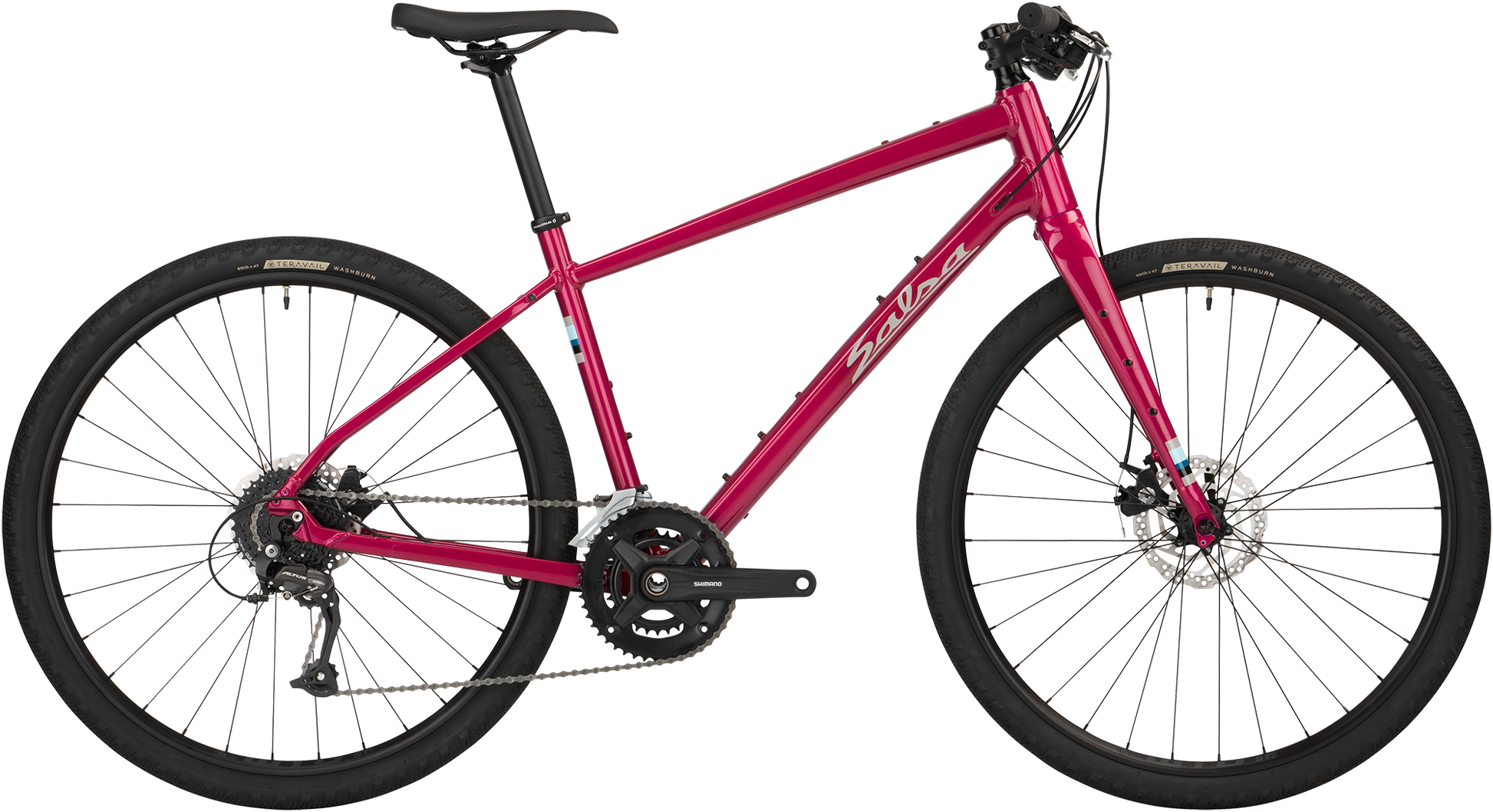

• Salsa Journeyer Flat Bar Altus 650b bike, red, side view on white background

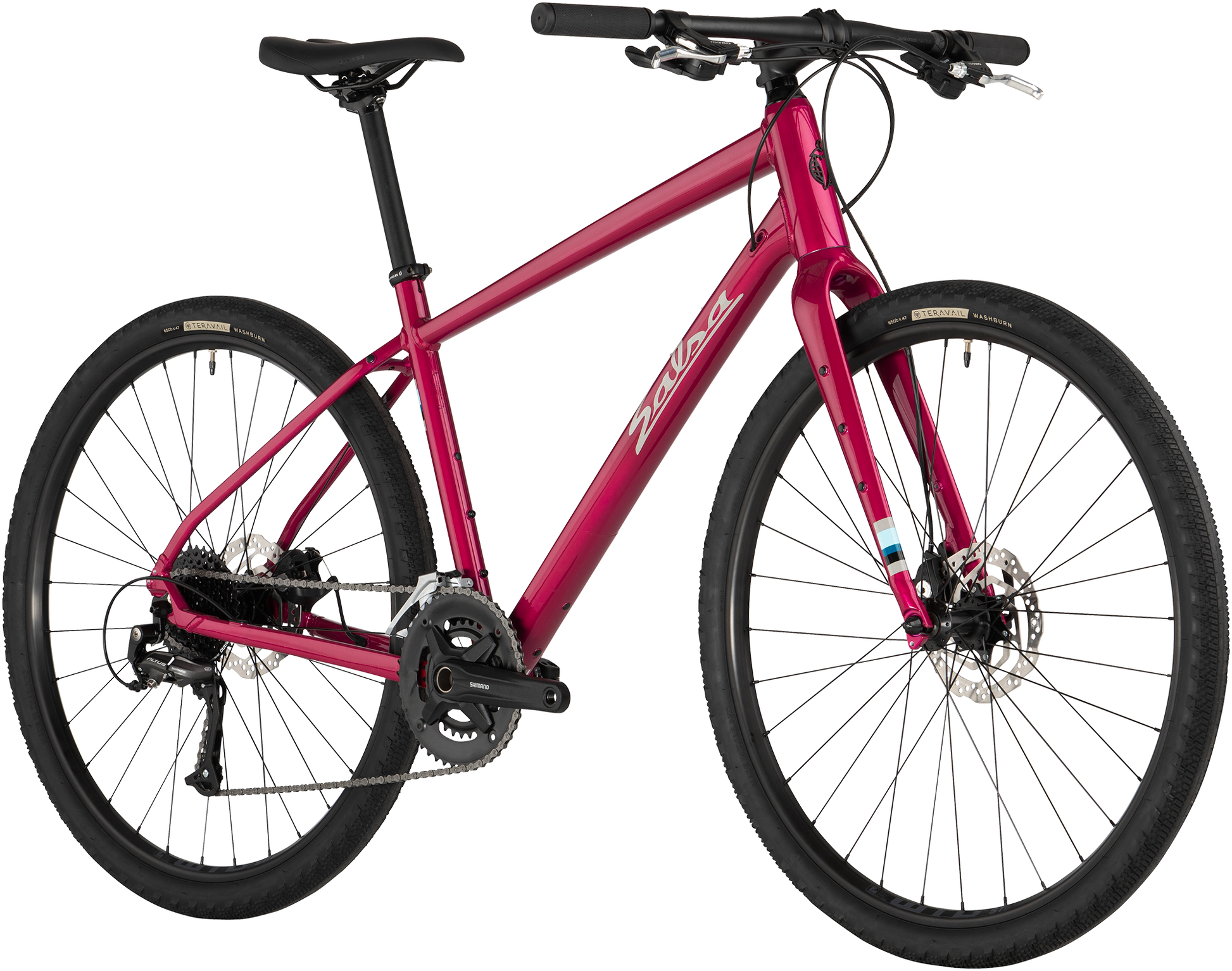

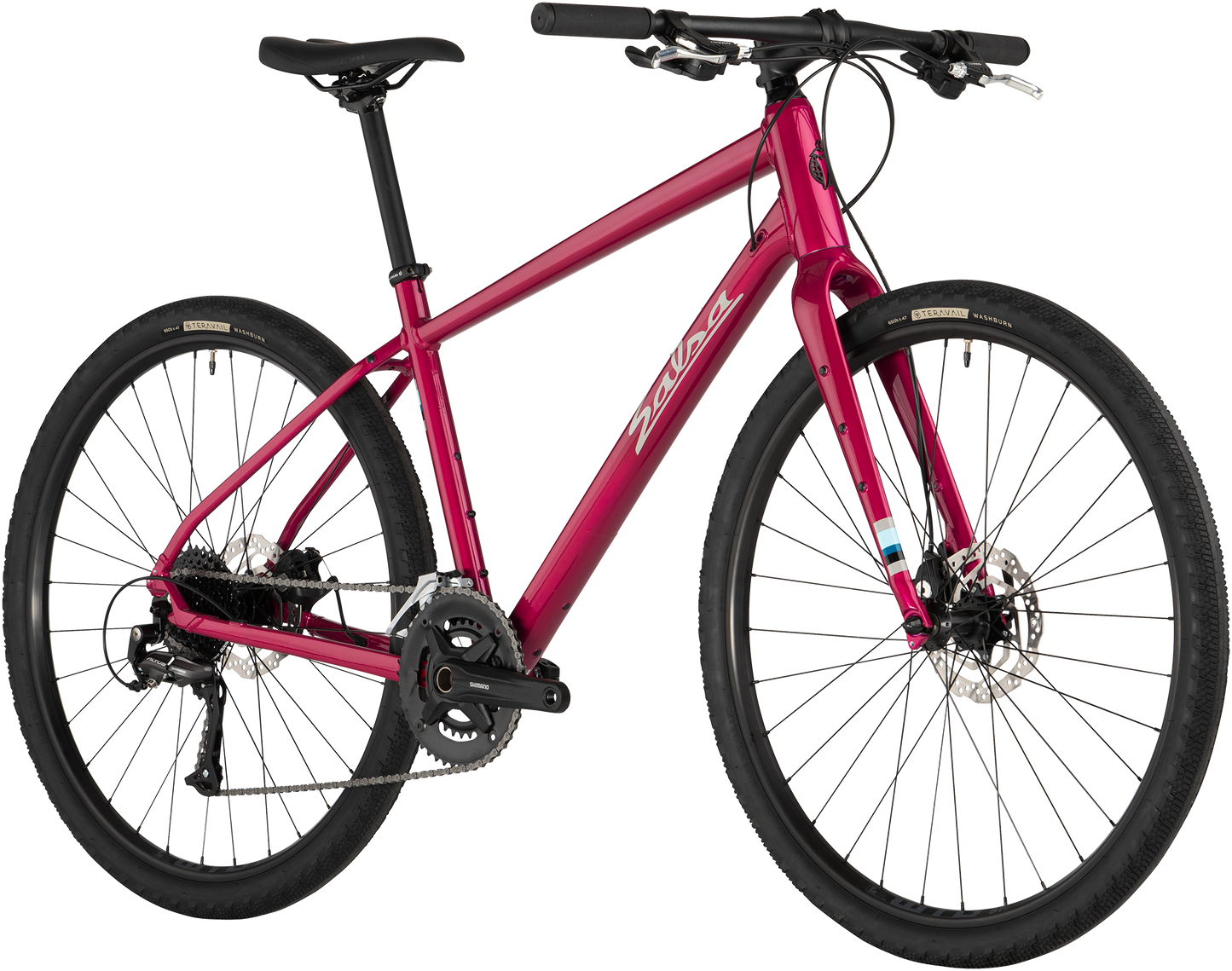

  • Salsa Journeyer Flat Bar Altus 650b bike, red, front three-quarter view on white background

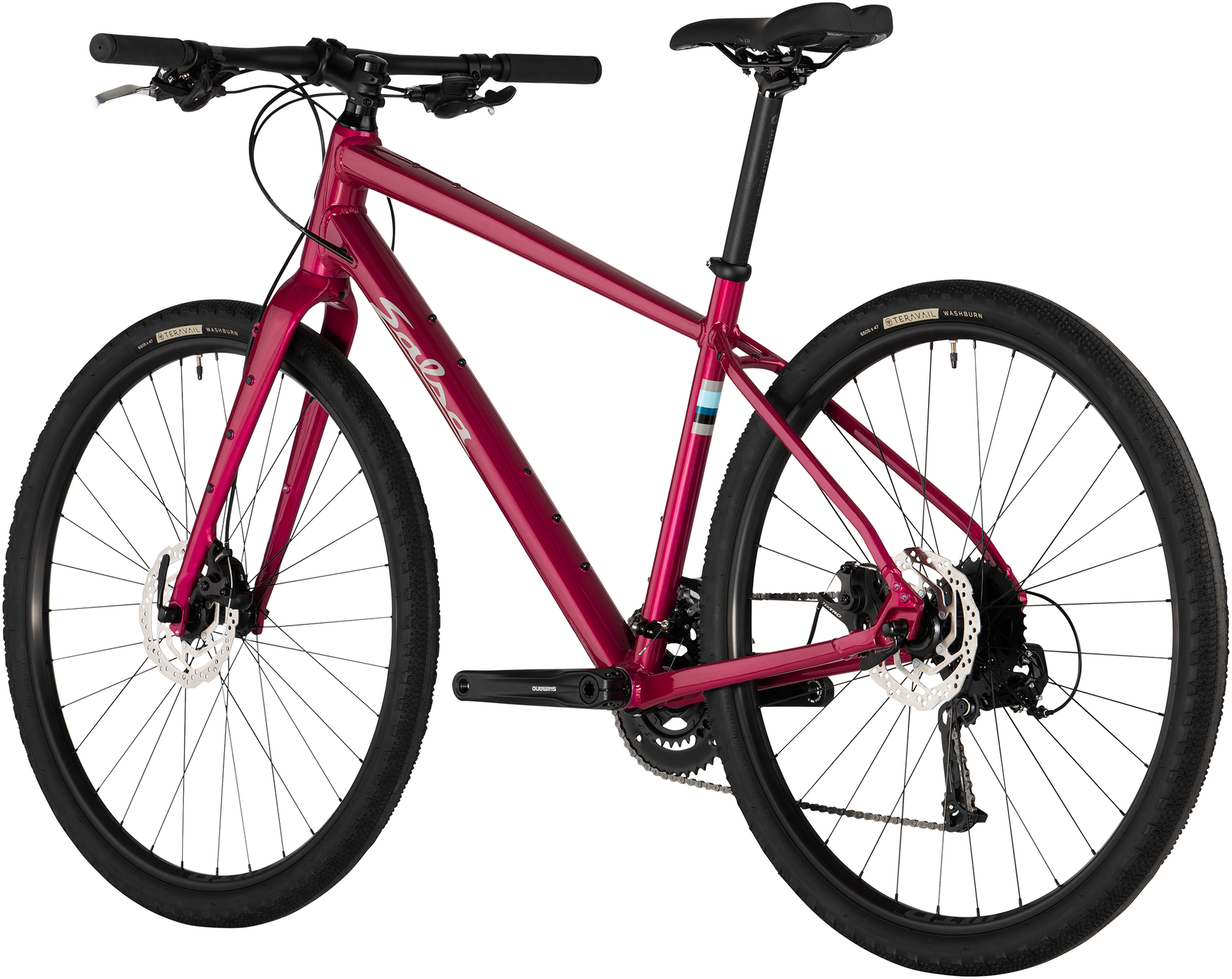

  • Salsa Journeyer Flat Bar Altus 650b bike, red, rear three-quarter view on white background
1 3

Journeyer Flat Bar Altus 650b

Journeyer Flat Bar Altus 650b

$749.99 USD
$899.00 USD $749.99 USD
Sale
Size

Journeyer Flat Bar Altus 650b is a thoughtful gravel bike with the leverage and upright riding position that flat bars afford. Built with an all-new aluminum frame and Fantail aluminum fork, this flat bar adventure bike is suited to sporty gravel rides or roaming far and wide. Rack and fender mounts offer loads of utility, while the Three-Pack mounts, top tube mount, and bottle mounts let you get creative with your pack list.

650b x 47 mm tires ride with cushiony comfort at low pressures and have a wide contact patch for ample grip, no matter the road surface. With Shimano’s reliable Altus 2 x 9 drivetrain, this Journeyer is a flat bar adventure bike that lets you explore your limits.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

1 1

Product Details

Build Kit

Frameset

Frame

Journeyer Flat-Bar Quick-Release

Color

Red

Fork

Fantail

Rear Shock

Shimano Acera T3000-2-TS3

Components

Headset

FSA NO.42 ACB IS-2

Seatpost

Salsa Guide 27.2 x 350 mm, 12 mm offset

Stem

Salsa Guide 31.8, 6-degree

Grips/Bar Tape

Salsa File Tread

Saddle

WTB Volt Medium, Steel, 142 x 265 mm

Handlebar

Salsa Salt Flat 31.8, 700 mm

Drivetrain

Front Derailleur

Shimano Altus M370-L SGS

Rear Derailleur

Shimano M200, 11–34t, 9 speed

Cassette

KMC Z9

Chain

Shimano MT210 46/30t, Shimano MT500 bottom bracket -OR- FSA VERO PRO ML019 46 S.B Black 46/30t 165L

Crankset

Shimano Altus M2010

Brake Levers

Tektro RS360A lever

Brake Calipers

Tektro MD-U310

Rotors

Shimano RT10 (160 mm)

Wheels

Front Wheel

Shimano TX505 9 x 100 mm QR hub, WTB ST i23 650b rim, 32h

Rear Wheel

Shimano TX505-8 10 x 135 mm QR hub, WTB ST i23 650b rim, 32h

Front Tire

Teravail Washburn 650b x 47 mm, 30 tpi, Wire Bead

Rear Tire

Teravail Washburn 650b x 47 mm, 30 tpi, Wire Bead

Geometry

Geometry Diagram
SizeX-SmallSmallMediumLargeX-Large
A. Effective Top Tube 550.0 570.0 600.0 625.0 650.0
B. Stand Over 606.0 641.0 677.0 713.0 749.0
C. Reach 393.0 404.0 423.0 436.0 450.0
D. Stack 514.0 542.0 580.0 617.0 655.0
E. Total Seat Tube Length 340.0 380.0 450.0 490.0 530.0
F. Headtube Length 90.0 120.0 160.0 200.0 240.0
G. Headtube Angle
69.5
69.5
69.5
69.5
69.5
H. Seat Tube Angle
73.0
73.0
73.0
73.0
73.0
I. BB Drop 70.0 70.0 70.0 70.0 70.0
K. Chainstay Length 440.0 440.0 440.0 440.0 440.0
L. Fork Length Axle to Crown 402.0 402.0 402.0 402.0 402.0
M. Fork Offset 50.0 50.0 50.0 50.0 50.0
N. Wheelbase 1047.0 1069.0 1101.0 1129.0 1156.0
Crank Arm Length 165.0 170.0 170.0 172.5 175.0
Handlebar Width 700.0 700.0 700.0 700.0 700.0
Recommended Rider Height 142.0 - 155.0 152.0 - 165.0 163.0 - 175.0 173.0 - 185.0 183.0 - 196.0
Stem Length 60.0 70.0 70.0 80.0 90.0

Measurements based on:

  • a fork measuring 405mm with 50mm offset
  • a 700 x 38mm tire measuring 706 mm in diameter
  • Stand over measured vertically to top of top tube from a position 50mm forward of BB center

Frame Specs

  • Design Wheel/Tire Sizes 650b x 47 mm
  • Alternate Wheel/Tire Sizes 650b x 47–50 mm; 700c x 32–50 mm
  • Rigid Fork Length 405 mm axle-to-crown
  • Fork Offset 50 mm
  • Rear Spacing 135 mm
  • Rear Axle Size 10 x 135 mm quick release
  • Front Brake (Rotor) Flat mount 140 fork standard (160 mm max.)
  • Headset - Upper IS41
  • Headset - Lower IS52
  • Front Spacing 100 mm
  • Front Axle Size 9 x 100 mm quick release
  • Crown Race 40 mm
  • Stem Clamp 28.6 mm / 1 1/8"
  • Seatpost 27.2 mm
  • Dropper Post Compatible Yes, internal
  • Seatpost Clamp 32.0 mm
  • Front Derailleur Clamp 31.8 mm OD, bottom pull
  • Front Derailleur Type 2x, bottom swing
  • Derailluer Hanger Salsa 959
  • Bottom Bracket 68 mm BSA
  • Crankset (Max Ring) 1x crankset: 42t max.; 2x crankset: 48/33t max.
  • Accessory Mounts Downtube Accessory Mounts: Yes, 1; TopTube Mounts: Yes; Rack Mounts: Rear: yes / Front: yes, low rider; Three-Pack Mounts: XS and SM frames: 1 on down tube; MD, LG, and XL frames: 1 on down tube + 1 on seat tube; All sizes: one per fork leg
  • Bottle Mounts XS frame: 1 in main triangle; SM frame: 2 in main triangle; MD, LG, and XL frames: 3 in main triangle
  • Front Fender Mounts Yes
  • Rear Fender Mounts Yes

Supportive Documents

Support Document links

Additional Features

6061-T6 Aluminum Frame

We use alloy tubing developed specifically for the Journeyer frame, which is then heat-treated to T6 alloy standards for extra strength and durability.

Fantail Aluminum Fork

The Fantail fork is constructed from aluminum alloy and designed for a 9 x 100 mm quick-release axle. Fantail’s two sets of Three-Pack mounts and mid-blade rack mounts let you load up everything you need for your rides. Fender mounts add a touch of all-weather utility, and massive 700c x 56 mm or 650b x 59 mm (27.5 x 2.3") tire clearance lets you choose the wheel and tire setup for your riding conditions.

Gravel Geometry

Journeyer is comfortable, stable and confidence inspiring whether it’s your daily driver, you’re ripping up dirt paths through town, exploring unfamiliar terrain, or entering your first gravel race. Spirited when you want it to be, but relaxed enough to leave you with the energy for long rides.

Internal Cable Routing

Full-length housing improves shifting performance in poor conditions and increases use time between maintenance intervals. Internal routing for a clean, uncluttered look.

Dropper Post Routing

Internal dropper post routing makes it easy to outfit your Journeyer for more technical riding.

Flat-Mount Brakes

Flat-mount brakes offer a clean look, easy setup, and compatibility with most of today’s road and gravel brake offerings.

Cargo Capability

Journeyer features front and rear rack mounts, a Three-Pack mount on each fork leg, a top tube mount, down tube mount, and bottle mounts. With this many options, you can load it up however you like.

650b x 47 mm Wheels and Tires

650b wheels accelerate quickly, and the high-volume 47 mm Teravail Washburn tires blend straight-line speed with confidence in turns on loose terrain.

Salsa Salt Flat Handlebar

650b wheels accelerate quickly, and the high-volume 47 mm Teravail Washburn tires blend straight-line speed with confidence in turns on loose terrain.

Dual Wheel Size Compatibility

Journeyer fits both 700c and 650b wheel sizes. We offer models in each size so you can choose the one that meets your needs or set up a second wheel set so your Journeyer is ready for any type of ride.

FAQ

Can I use a suspension fork on this frame?

No, this frame was not designed or tested for use with a suspension fork.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

View Warranty

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
