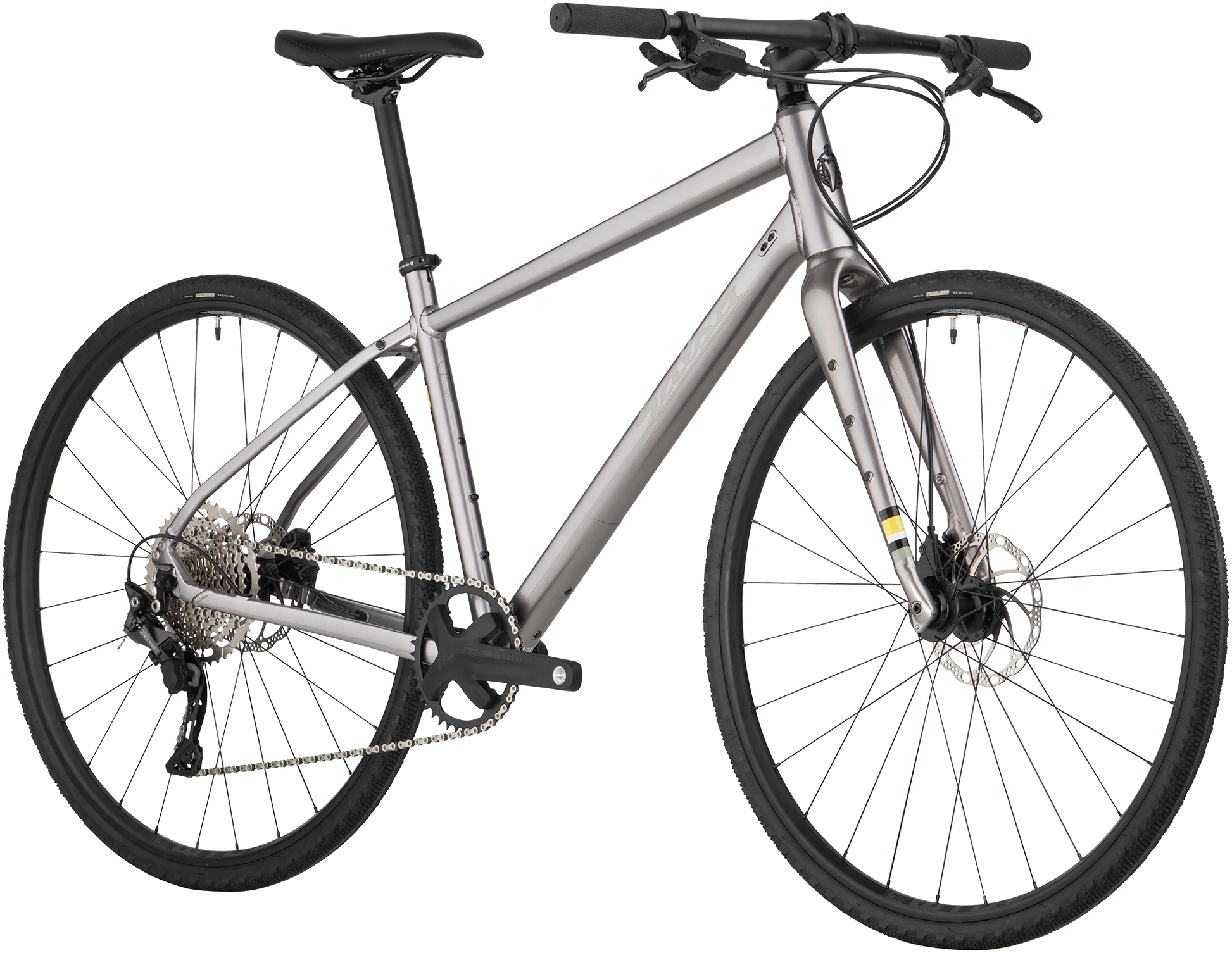

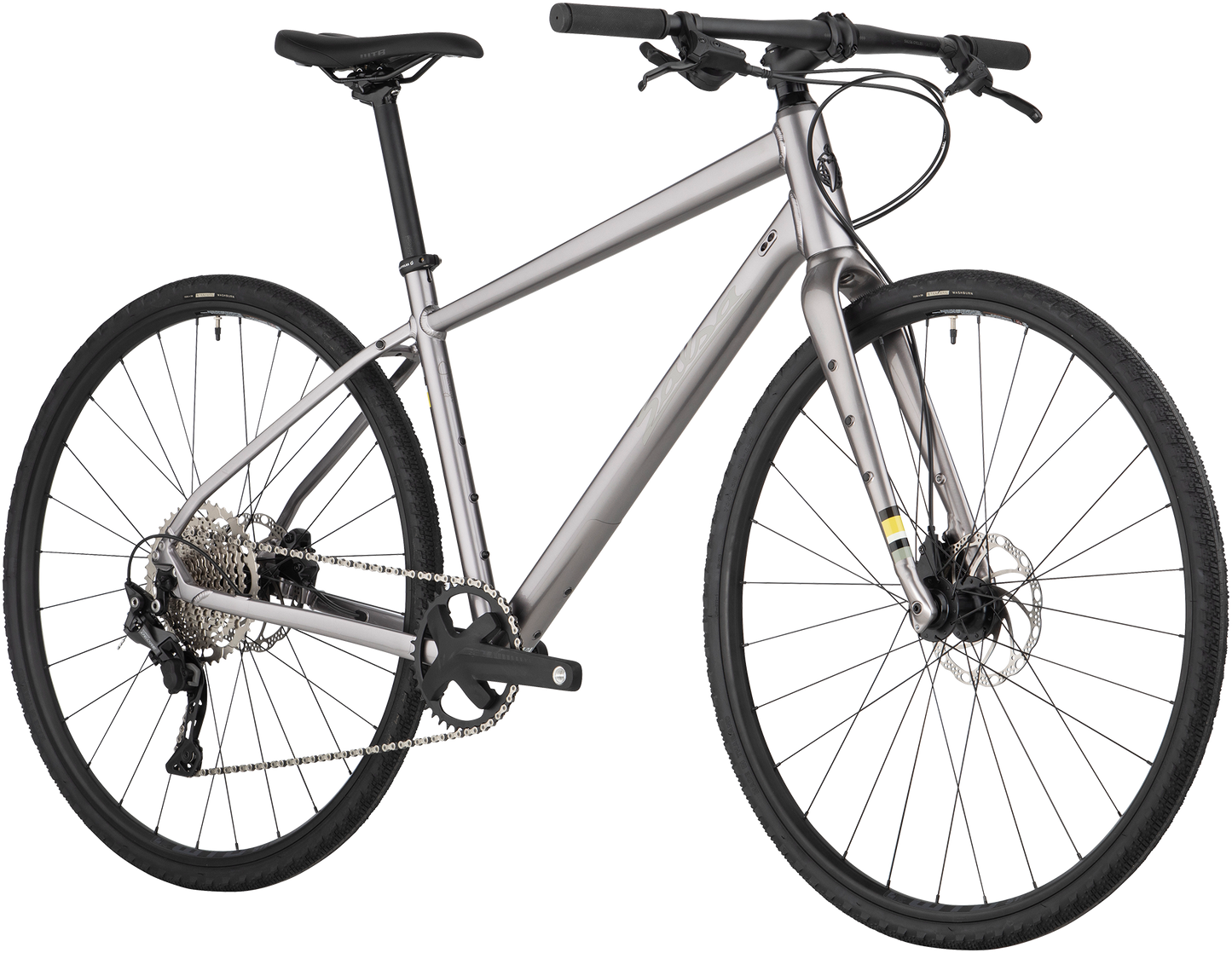

  • Salsa Journeyer Flat Bar Deore 700c bike, ash, three-quarter front view on white background

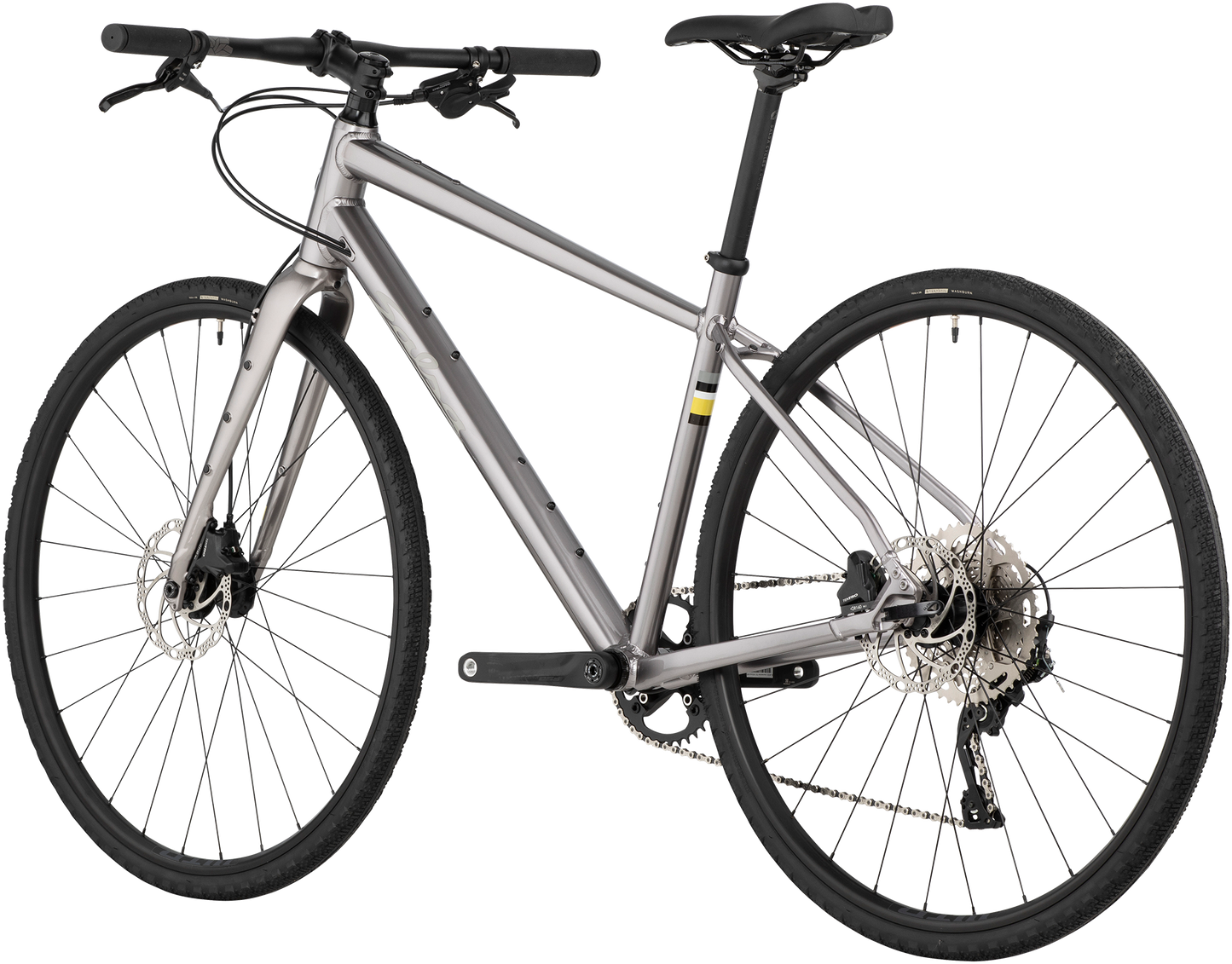

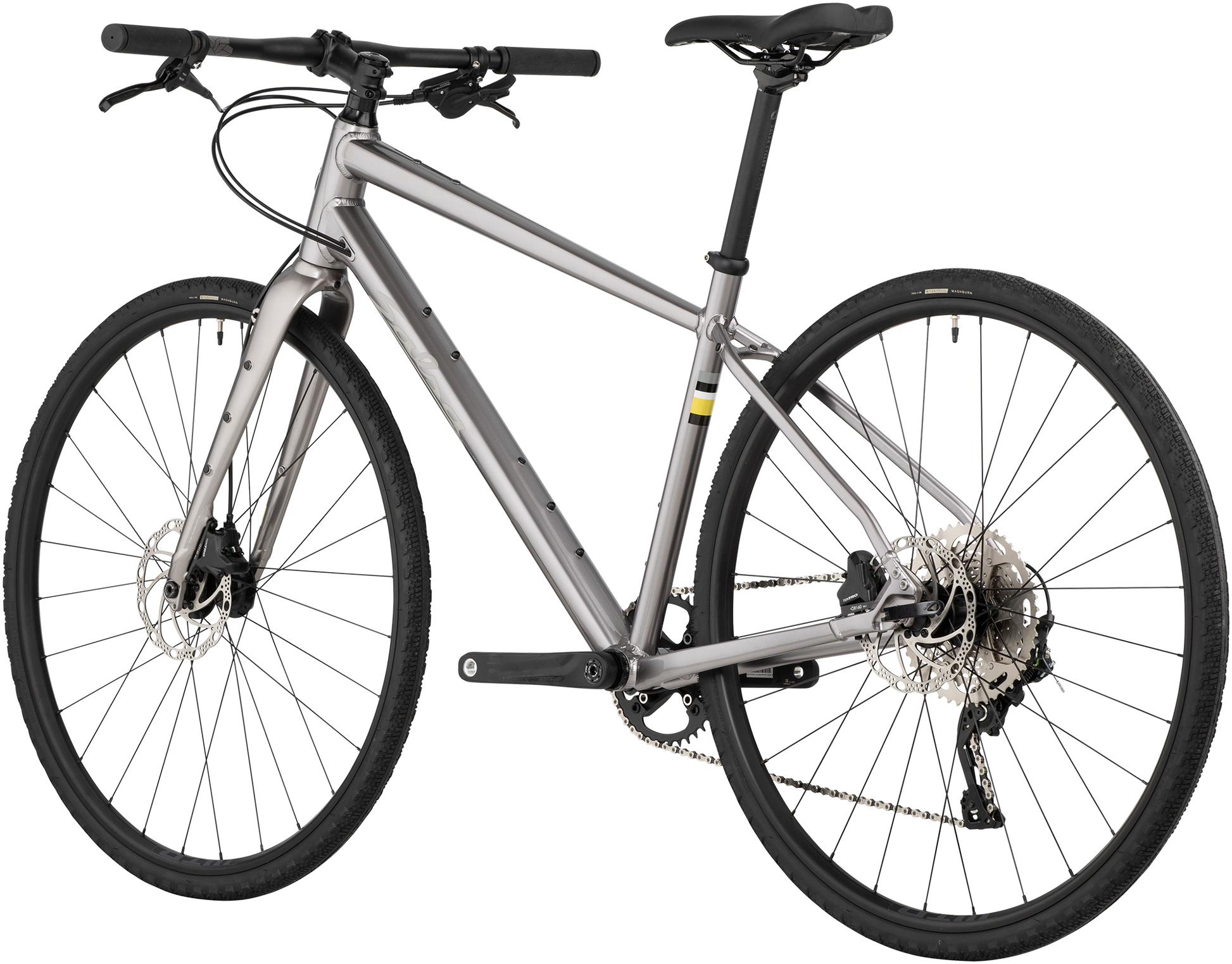

  • Salsa Journeyer Flat Bar Deore 700c bike, ash, three-quarter rear view on white background
1 3

Journeyer Flat Bar Deore 700c

Journeyer Flat Bar Deore 700c

$1,199.00 USD
$1,199.00 USD $1,199.00 USD
Size

Journeyer Flat Bar Deore 700c is more than capable on all your local gravel routes, with a flat-bar setup that grants you lots of leverage on rough roads or with heavy loads. The all-new aluminum frame and Fantail aluminum fork focus on rider comfort and versatility. Rack and fender mounts, plus our signature Three-Pack and accessory mounts, mean that Journeyer is ready for gravel rides, bikepacking, or adding a little fun to your errand run.

700c wheels and 38 mm tires roll efficiently on a wide range of surfaces and offer traction in loose corners. Shimano’s time-tested Deore components ensure a smooth, reliable ride. Journeyer is a flat bar gravel bike that can go a long way.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

1 1

Product Details

Build Kit

Frameset

Frame

Journeyer Flat-Bar Quick-Release

Color

Ash

Fork

Fantail Deluxe

Components

Headset

FSA NO.42 ACB IS-2

Seatpost

Promax SP-2016 27.2x350mm, 12 mm offset

Stem

Salsa Guide 31.8, 6-degree

Grips/Bar Tape

Salsa File Tread

Saddle

WTB Volt Medium, Steel, 142 x 265 mm

Handlebar

Salsa Salt Flat 31.8, 700 mm

Drivetrain

Front Derailleur

N/A

Rear Derailleur

Shimano Deore M5120 SGS, 10/11-speed

Cassette

Shimano Deore M4100, 11–46t, 10-speed

Chain

Shimano HG54

Crankset

Omega MegaExo 40t, FSA Road MegaExo bottom bracket

Shifter

Shimano Deore M4100

Brake Calipers

Tektro HD-R280

Rotors

TR-160-22 (6-bolt, 160 mm)

Wheels

Front Wheel

WTB Serra 12 x 100 mm TA hub, WTB ST i23 700c rim, 28h

Rear Wheel

WTB Serra 10 x 135 mm QR hub, WTB ST i23 700c rim, 28h

Front Tire

Teravail Washburn 700c x 38 mm, 30 tpi, Wire Bead

Rear Tire

Teravail Washburn 700c x 38 mm, 30 tpi, Wire Bead

Weight

Complete Bike

25lbs (MD, with pedals)

Geometry

Geometry Diagram
SizeX-SmallSmallMediumLargeX-Large
A. Effective Top Tube 550.0 570.0 600.0 625.0 650.0
B. Stand Over 613.5 648.5 684.5 720.5 756.5
C. Reach 393.0 404.0 423.0 436.0 450.0
D. Stack 514.0 542.0 580.0 617.0 655.0
E. Total Seat Tube Length 340.0 380.0 450.0 490.0 530.0
F. Headtube Length 90.0 120.0 160.0 200.0 240.0
G. Headtube Angle
69.5
69.5
69.5
69.5
69.5
H. Seat Tube Angle
73.0
73.0
73.0
73.0
73.0
I. BB Drop 70.0 70.0 70.0 70.0 70.0
K. Chainstay Length 440.0 440.0 440.0 440.0 440.0
L. Fork Length Axle to Crown 402.0 402.0 402.0 402.0 402.0
M. Fork Offset 50.0 50.0 50.0 50.0 50.0
N. Wheelbase 1047.0 1069.0 1101.0 1129.0 1156.0
Crank Arm Length 165.0 170.0 170.0 172.5 175.0
Handlebar Width 700.0 700.0 700.0 700.0 700.0
Recommended Rider Height 142.0 - 155.0 152.0 - 165.0 163.0 - 175.0 173.0 - 185.0 183.0 - 196.0
Stem Length 60.0 70.0 70.0 80.0 90.0

Measurements based on:

  • a fork measuring 405mm with 50mm offset
  • a 700 x 38mm tire measuring 706 mm in diameter
  • Stand over measured vertically to top of top tube from a position 50mm forward of BB center

Frame Specs

  • Design Wheel/Tire Sizes 700c x 38 mm
  • Alternate Wheel/Tire Sizes 700c x 32–50 mm; 650b x 47–50 mm
  • Rigid Fork Length 405 mm axle-to-crown
  • Fork Offset 50 mm
  • Rear Spacing 135 mm
  • Rear Axle Size 10 x 135 mm quick release
  • Front Brake (Rotor) Flat mount 140 fork standard (160 mm max.)
  • Headset - Upper IS41
  • Headset - Lower IS52
  • Front Spacing 100 mm
  • Front Axle Size M12 x 120 TP = 1.5, TL = 12 mm thru-axle
  • Crown Race 40 mm
  • Stem Clamp 28.6 mm / 1 1/8"
  • Seatpost 27.2 mm
  • Dropper Post Compatible Yes, internal
  • Seatpost Clamp 32.0 mm
  • Front Derailleur Clamp 31.8 mm OD, bottom pull
  • Front Derailleur Type 2x, bottom swing
  • Derailluer Hanger Salsa 959
  • Bottom Bracket 68 mm BSA
  • Crankset (Max Ring) 1x crankset: 42t max.; 2x crankset: 48/33t max.
  • Accessory Mounts Downtube Accessory Mounts: Yes, One; TopTube Mounts: Yes; Rack Mounts: Rear: yes / Front: yes, low rider; Three-Pack Mounts: XS and SM frames: 1 on down tube; MD, LG, and XL frames: 1 on down tube + 1 on seat tube; All sizes: one per fork leg
  • Bottle Mounts XS and SM frames: 1 on down tube; MD, LG, and XL frames: 1 on down tube + 1 on seat tube; All sizes: one per fork leg
  • Front Fender Mounts Yes
  • Rear Fender Mounts Yes

Supportive Documents

Support Document links

Additional Features

6061-T6 Aluminum Frame

We use alloy tubing developed specifically for the Journeyer frame, which is then heat-treated to T6 alloy standards for extra strength and durability.

Fantail Deluxe Aluminum Fork

The Fantail Deluxe fork features aluminum alloy construction with a 12 x 100 mm thru-axle for a stiff, responsive ride. Load it up your way with two sets of Three-Pack mounts and mid-blade rack mounts. Fender mounts mean that wet roads will never ruin your ride. Fantail Deluxe’s massive 700c x 56 mm or 650b x 59 mm (27.5 x 2.3") tire clearance lets you choose the wheel and tire setup for your riding conditions.

Gravel Geometry

Journeyer is comfortable, stable and confidence inspiring whether it’s your daily driver, you’re ripping up dirt paths through town, exploring unfamiliar terrain, or entering your first gravel race. Spirited when you want it to be, but relaxed enough to leave you with the energy for long rides.

Internal Cable Routing

Full-length housing improves shifting performance in poor conditions and increases use time between maintenance intervals. Internal routing for a clean, uncluttered look.

Dropper Post Routing

Internal dropper post routing makes it easy to outfit your Journeyer for more technical riding.

Flat-Mount Brakes

Flat-mount brakes offer a clean look, easy setup, and compatibility with most of today’s road and gravel brake offerings.

Cargo Capability

Journeyer features front and rear rack mounts, a Three-Pack mount on each fork leg, a top tube mount, down tube mount, and bottle mounts. With this many options, you can load it up however you like.

700c x 38 mm Wheels and Tires

700c wheels hold their momentum well, and the 38 mm Teravail Washburn tires blend straight-line speed with confidence in turns on loose terrain.

Salsa Salt Flat Handlebar

700c wheels hold their momentum well, and the 38 mm Teravail Washburn tires blend straight-line speed with confidence in turns on loose terrain.

Dual Wheel Size Compatibility

Journeyer fits both 700c and 650b wheel sizes. We offer models in each size so you can choose the one that meets your needs or set up a second wheel set so your Journeyer is ready for any type of ride.

FAQ

Can I use a suspension fork on this frame?

No, this frame was not designed or tested for use with a suspension fork.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

View Warranty

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.
