Bike Key Features
Build Kit

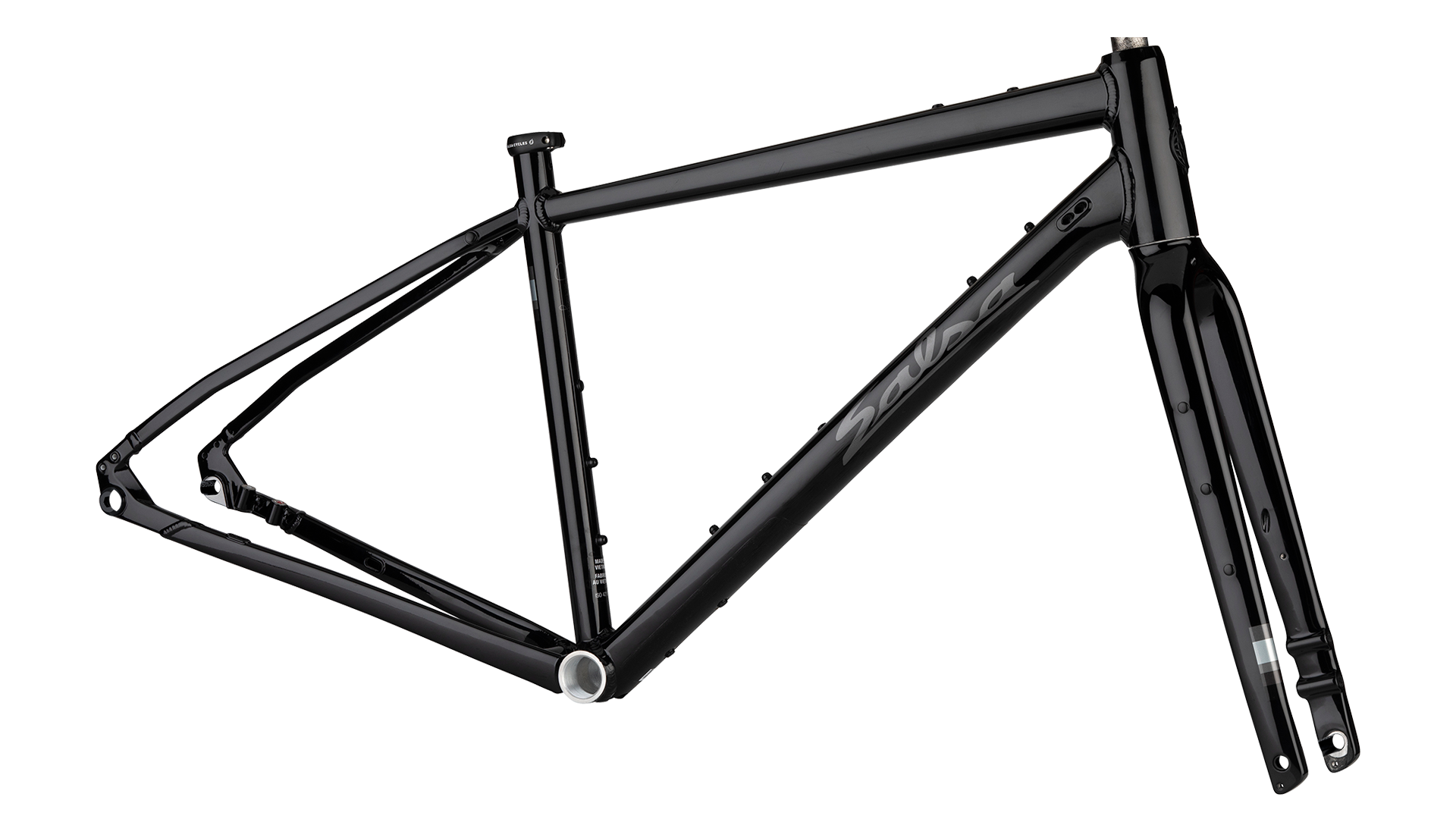

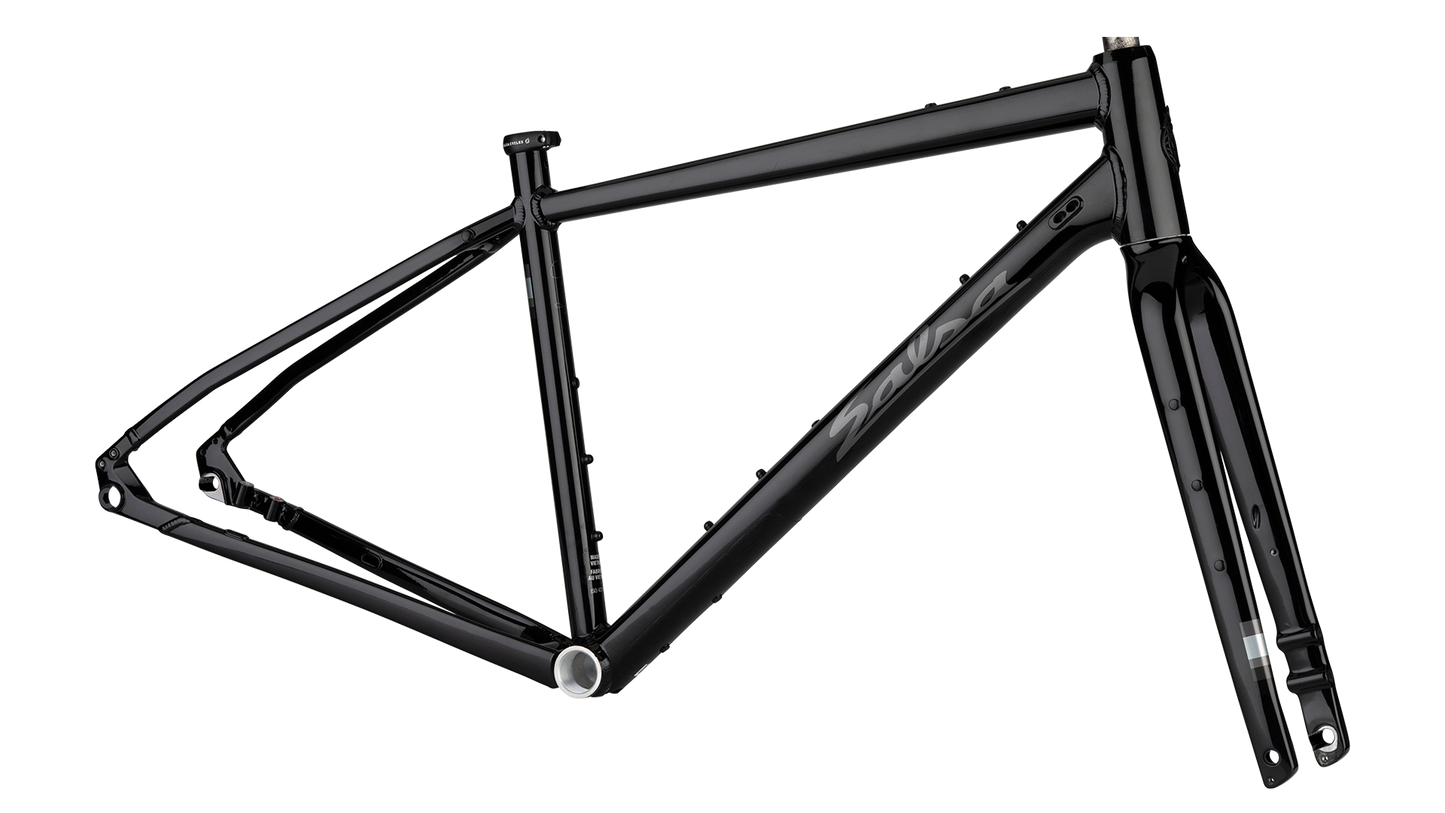

Frameset

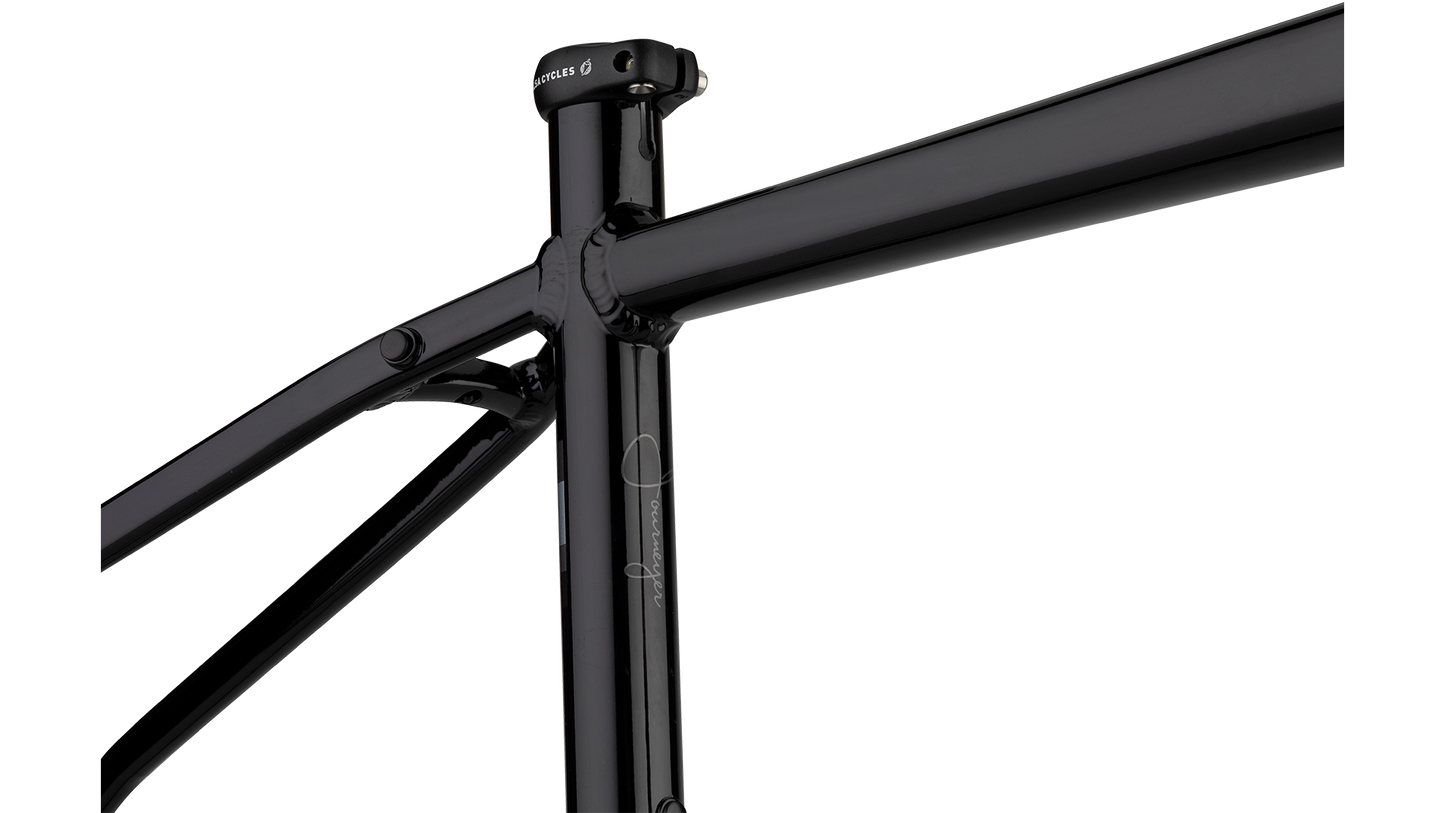

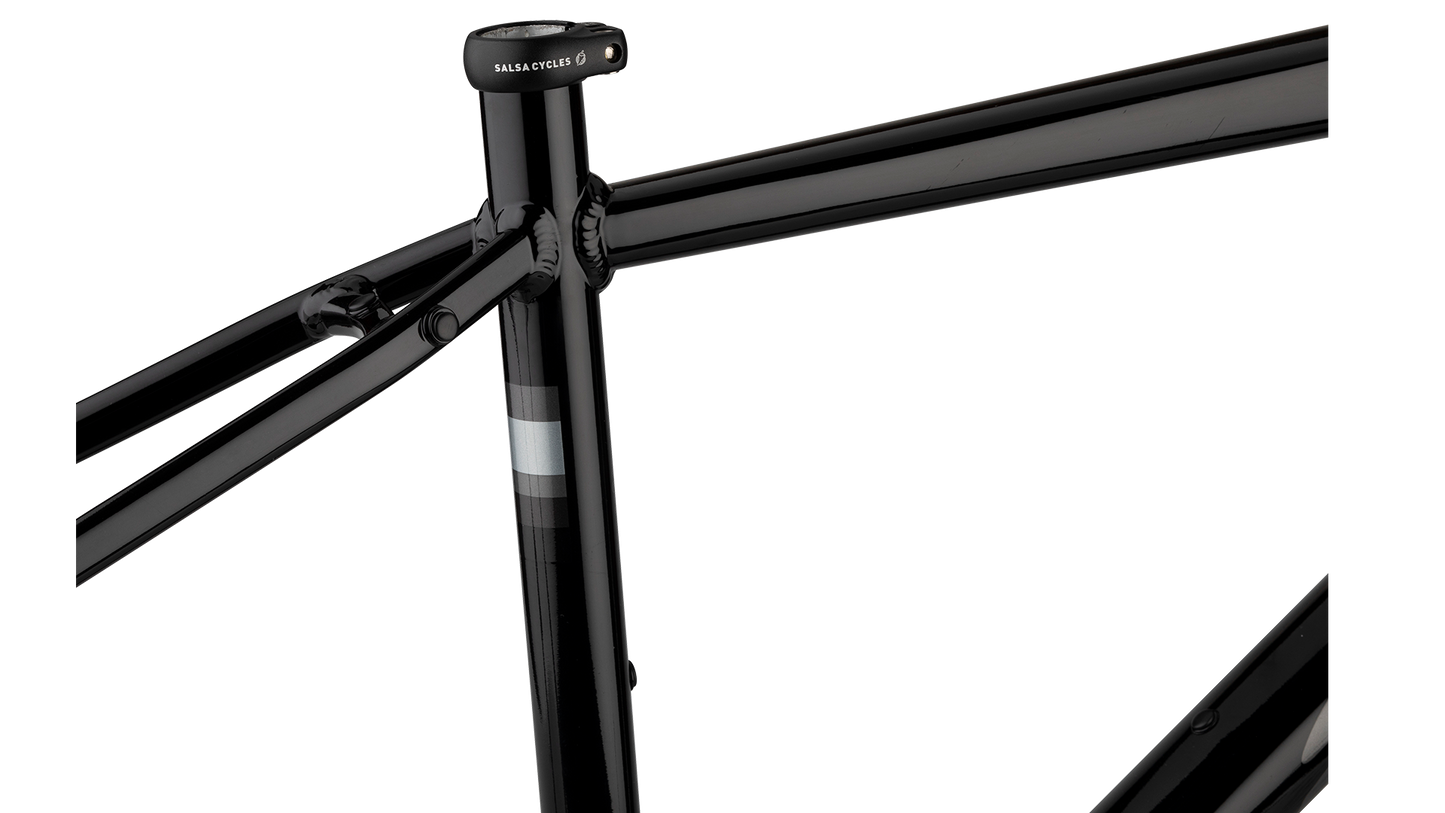

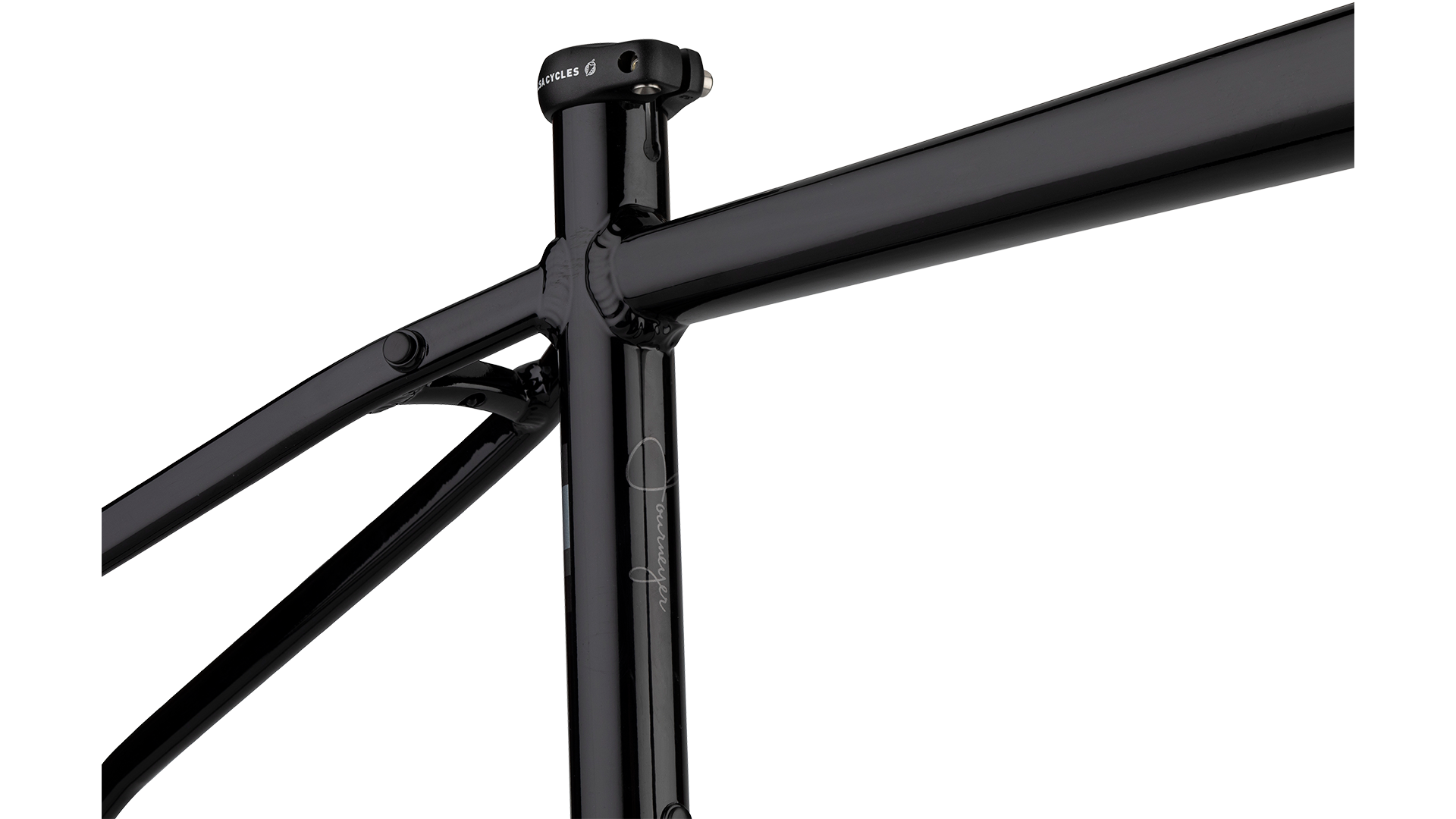

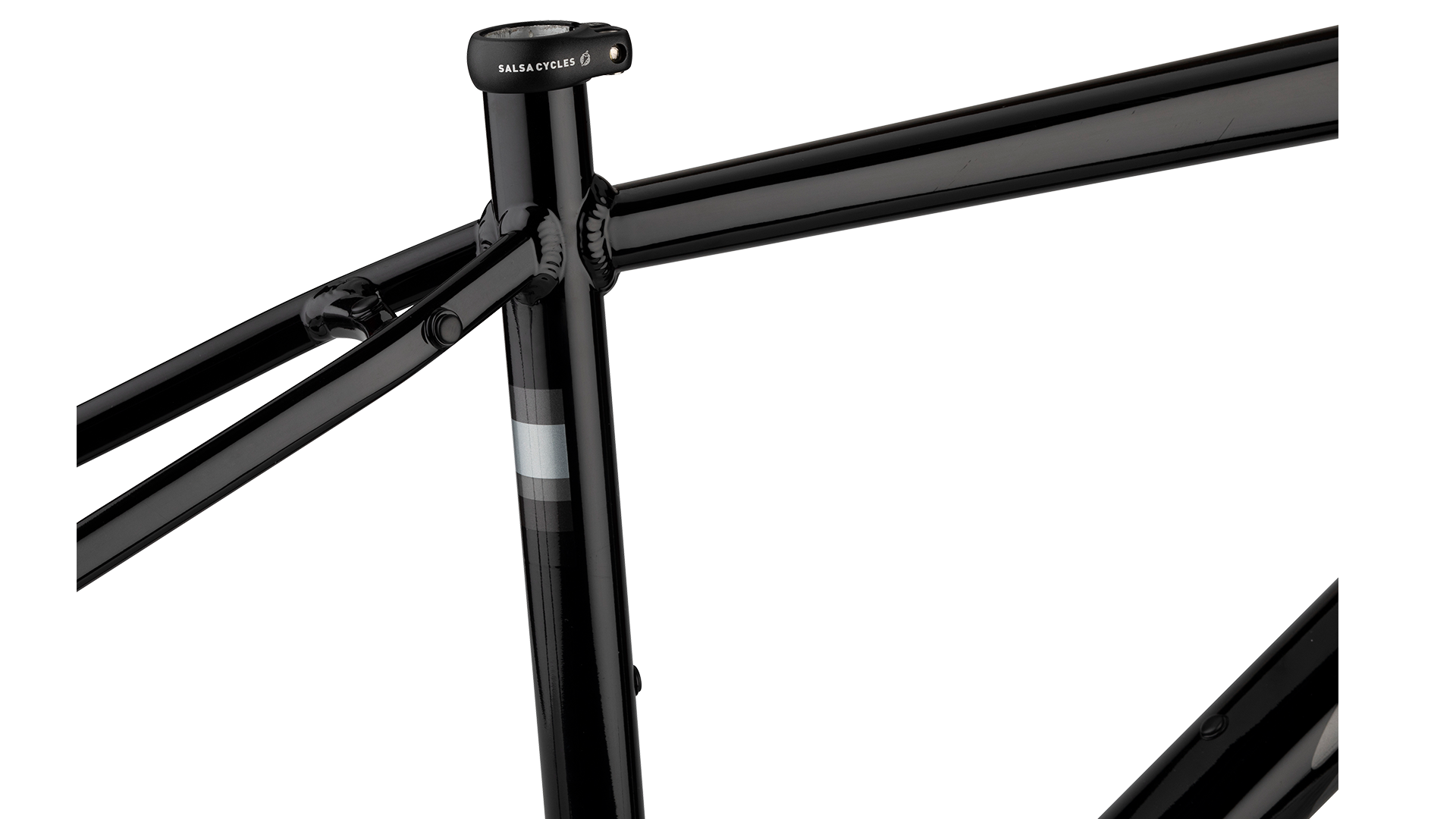

Frame
Journeyer Drop-Bar Thru-Axle
Color
Black

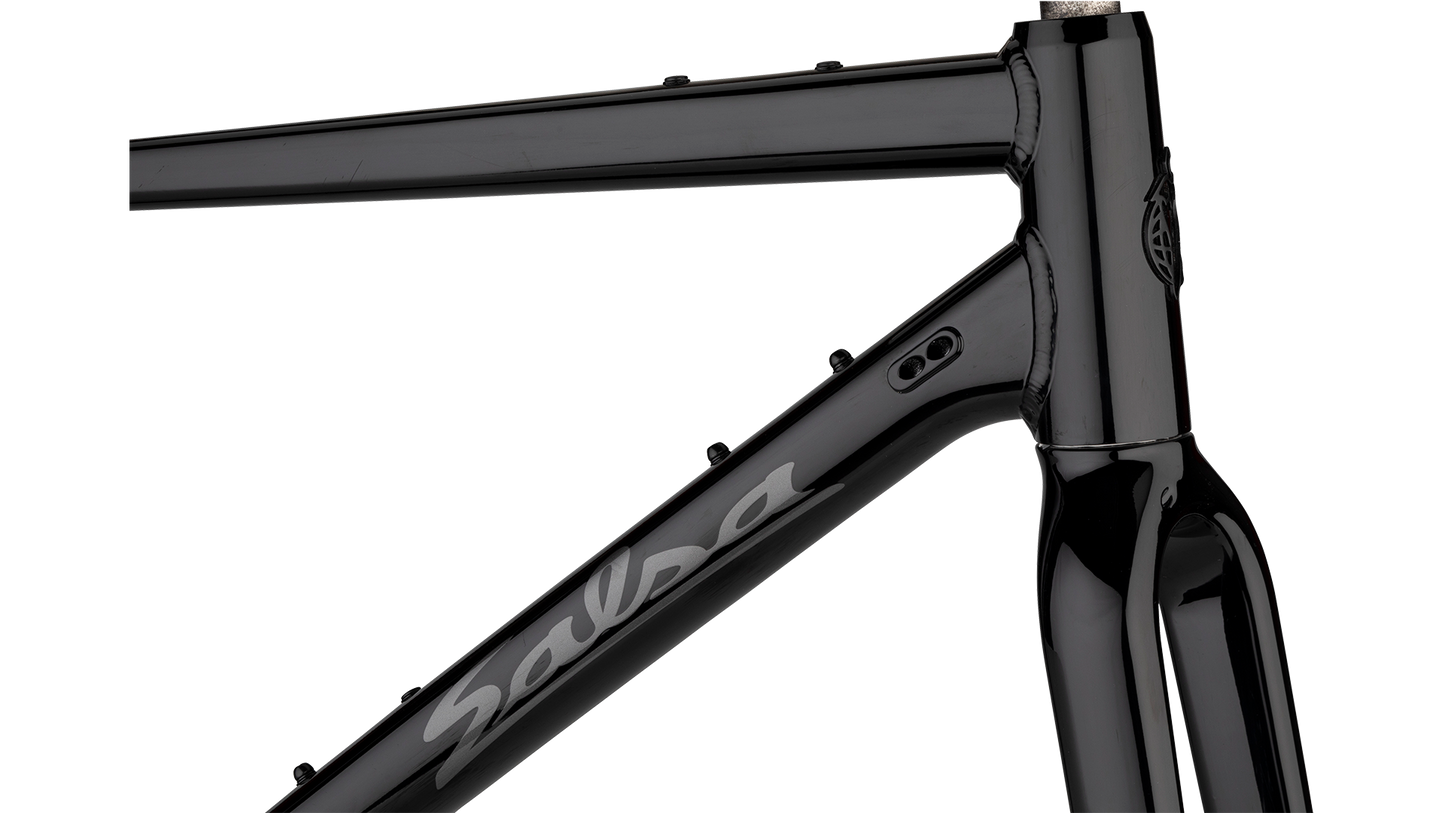

Fork
Waxwing
Components
Headset
FSA NO.42 ACB IS-2
Seatpost Clamp
Drivetrain
Rear Derailleur
SRAM UDH derailleur hanger
Wheels
Front Axle
Salsa Deadbolt UL thru-axle 12 x 120 mm, TP = 1.5, TL = 12 mm
Rear Axle
Salsa Deadbolt UL thru-axle 12 x 169 mm, TP= 1.0, TL = 20 mm
Weight
Frame
5 lb (56 cm frame w/headset, UDH dropout, and axles)
Geometry
| Size | 49cm | 51cm | 53cm | 55cm | 57cm | 60cm |
|---|---|---|---|---|---|---|
| A. Effective Top Tube | 493.0 | 510.0 | 530.0 | 550.0 | 570.0 | 600.0 |
| B. Stand Over | 613.5 | 648.5 | 684.5 | 720.5 | 756.5 | 803.5 |
| C. Reach | 366.0 | 368.0 | 372.0 | 376.0 | 387.0 | 408.0 |
| D. Stack | 510.0 | 528.0 | 552.0 | 570.0 | 598.0 | 627.0 |
| E. Total Seat Tube Length | 340.0 | 380.0 | 410.0 | 450.0 | 490.0 | 520.0 |
| F. Headtube Length | 90.0 | 105.0 | 130.0 | 150.0 | 180.0 | 210.0 |
| G. Headtube Angle |
68.5
|
69.5
|
69.5
|
69.5
|
69.5
|
69.5
|
| H. Seat Tube Angle |
76.0
|
75.0
|
74.0
|
73.0
|
73.0
|
73.0
|
| I. BB Drop | 70.0 | 70.0 | 70.0 | 70.0 | 70.0 | 70.0 |
| K. Chainstay Length | 440.0 | 440.0 | 440.0 | 440.0 | 440.0 | 440.0 |
| L. Fork Length Axle to Crown | 402.0 | 402.0 | 402.0 | 402.0 | 402.0 | 402.0 |
| M. Fork Offset | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 |
| N. Wheelbase | 1027.0 | 1028.0 | 1040.0 | 1050.0 | 1072.0 | 1104.0 |
| Crank Arm Length | ||||||
| Handlebar Width | ||||||
| Recommended Rider Height | 142.0 - 152.0 | 150.0 - 160.0 | 157.0 - 170.0 | 165.0 - 178.0 | 173.0 - 185.0 | 183.0 - 196.0 |
| Stem Length |
Measurements based on:
- a fork measuring 405mm with 50mm offset
- a 700 x 38mm tire measuring 706 mm in diameter
- Stand over measured vertically to top of top tube from a position 50mm forward of BB center
Frame Specs
- Design Wheel/Tire Sizes 700c x 38 mm
- Alternate Wheel/Tire Sizes 700c x 32–50 mm; 650b x 47–50 mm
- Rigid Fork Length 405 mm axle-to-crown
- Fork Offset 50 mm

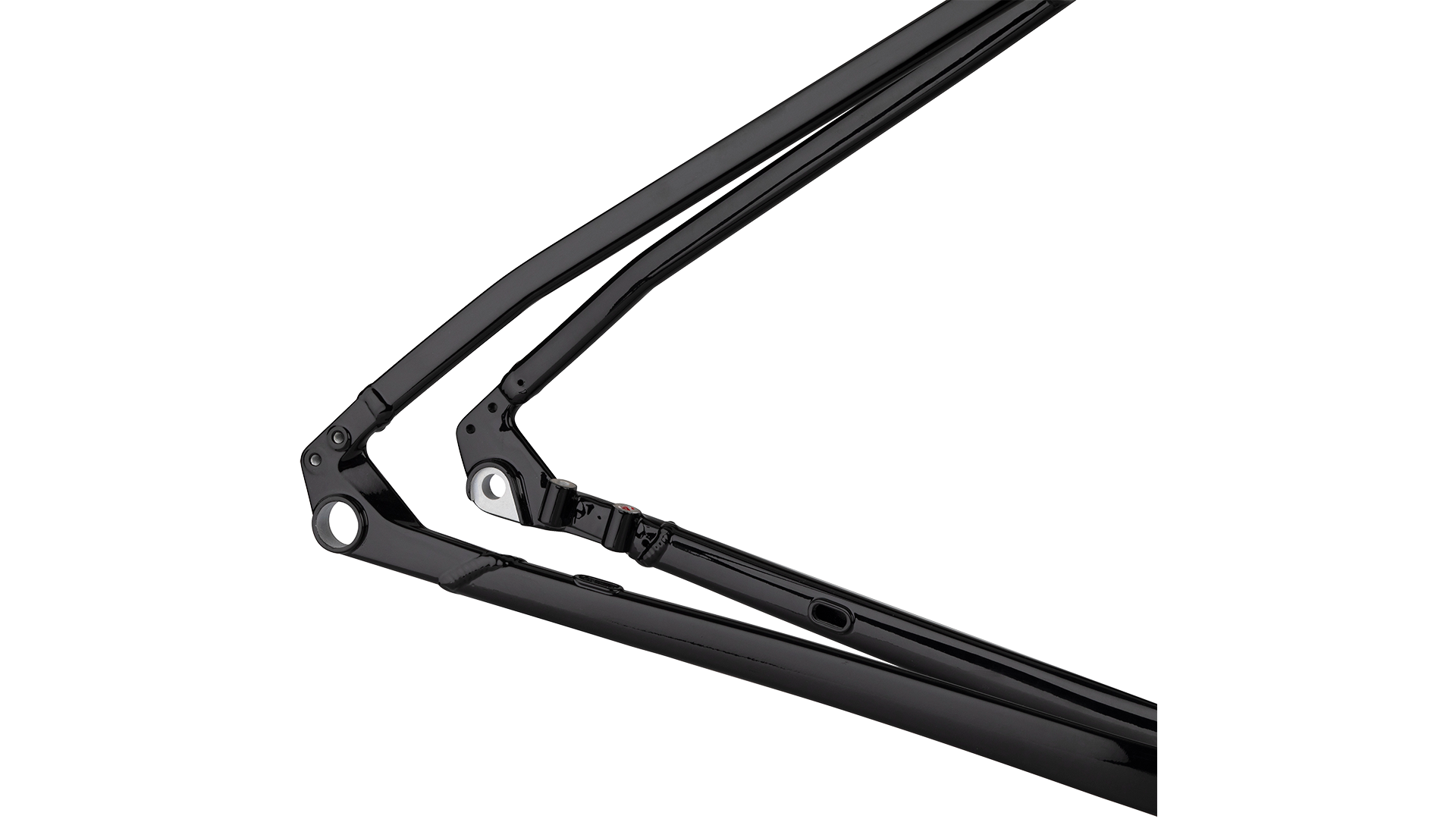

- Rear Spacing 142 mm
- Rear Axle Size M12 x 169 TP = 1.0, TL = 14 mm thru-axle
- Front Brake (Rotor) Flat mount 160 frame standard (180 mm max.), 35 mm thickness, 42 mm bolt length
- Headset - Upper IS41
- Headset - Lower IS52
- Front Spacing 100 mm
- Front Axle Size M12 x 120 TP = 1.5, TL = 12 mm thru-axle
- Crown Race 40 mm
- Stem Clamp 28.6 mm / 1 1/8"
- Seatpost 27.2 mm
- Dropper Post Compatible Yes, internal
- Seatpost Clamp 32.0 mm
- Front Derailleur Clamp 31.8 mm OD, bottom pull
- Front Derailleur Type 2x, bottom swing

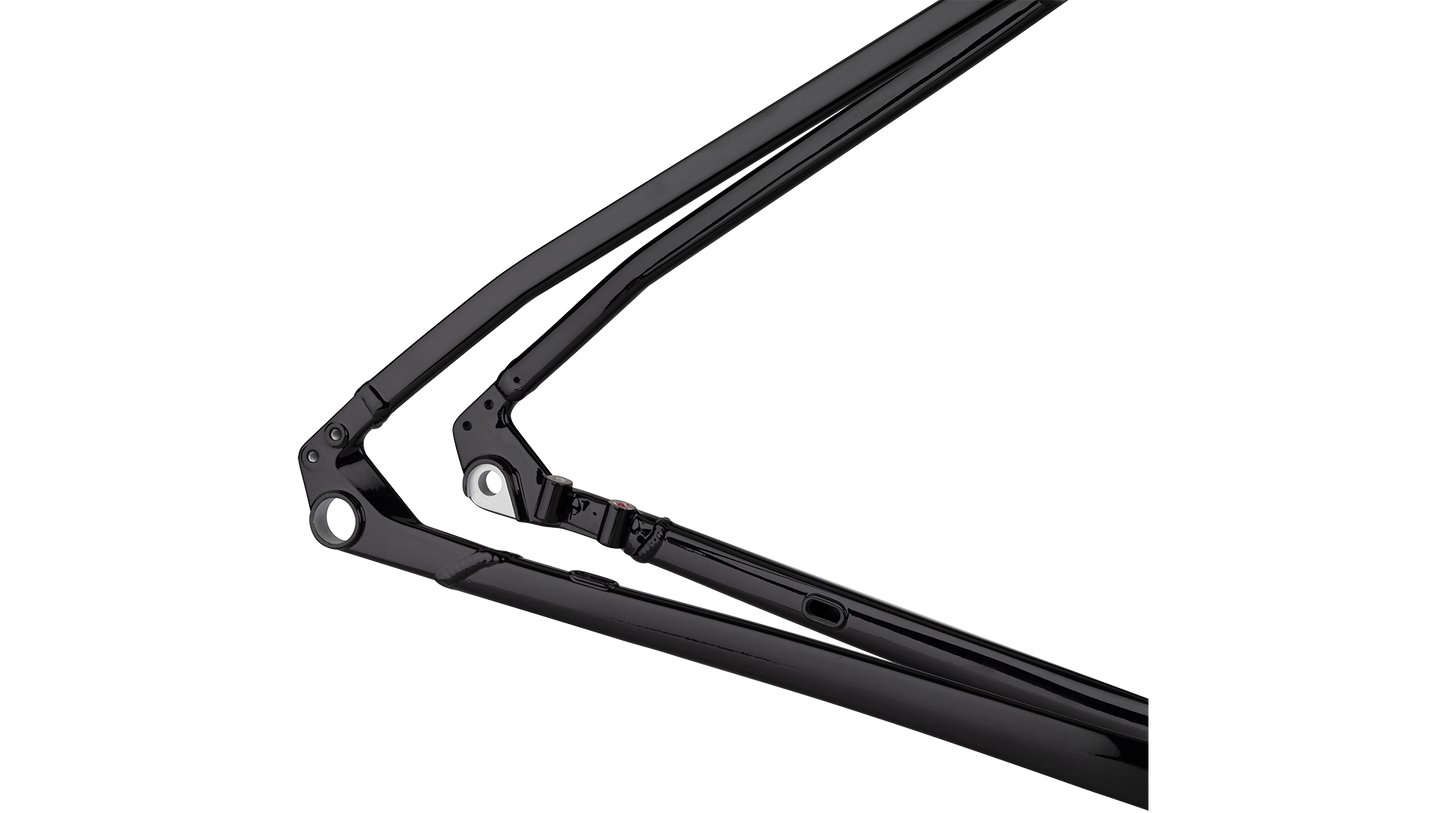

- Derailluer Hanger SRAM UDH

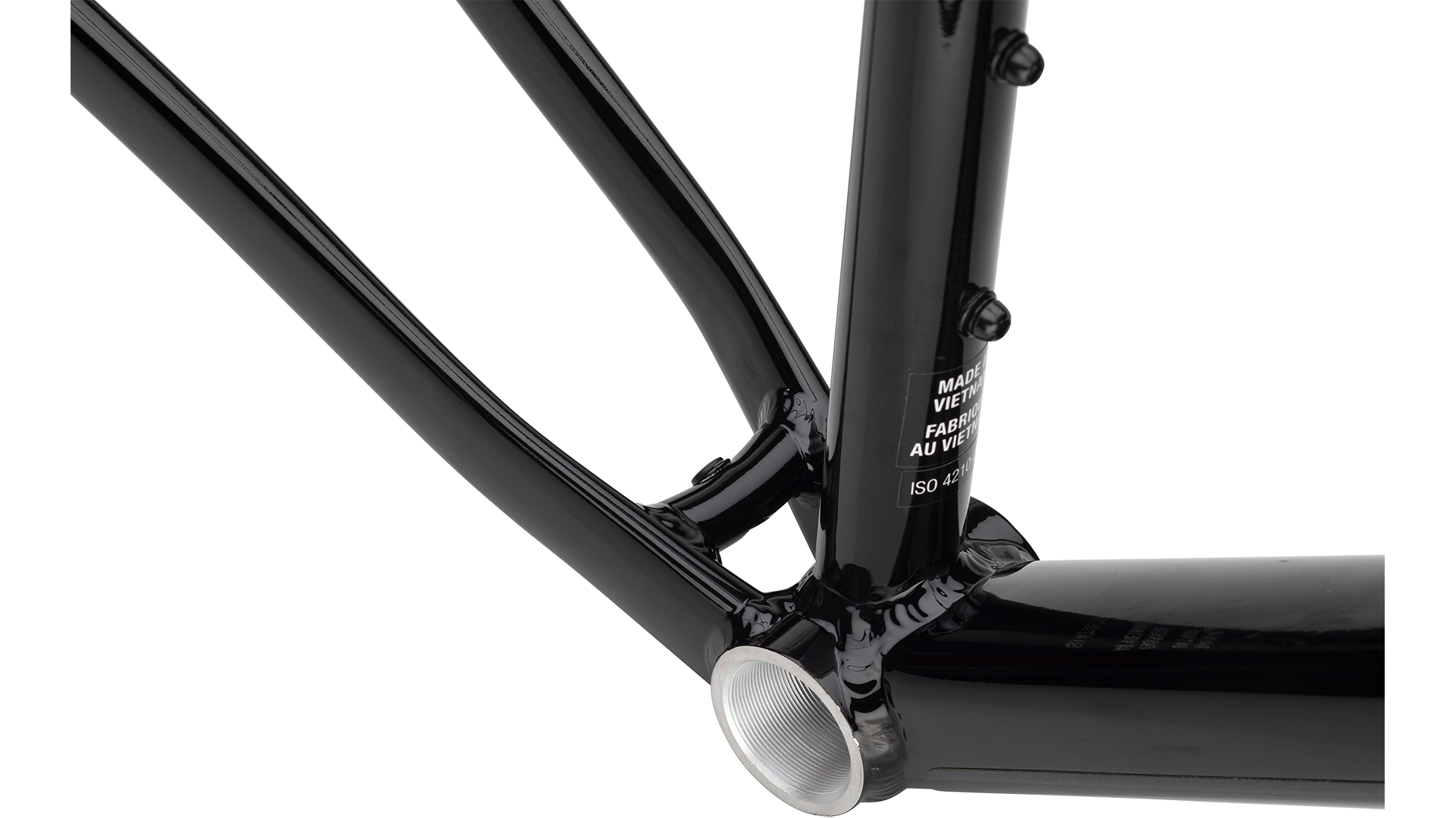

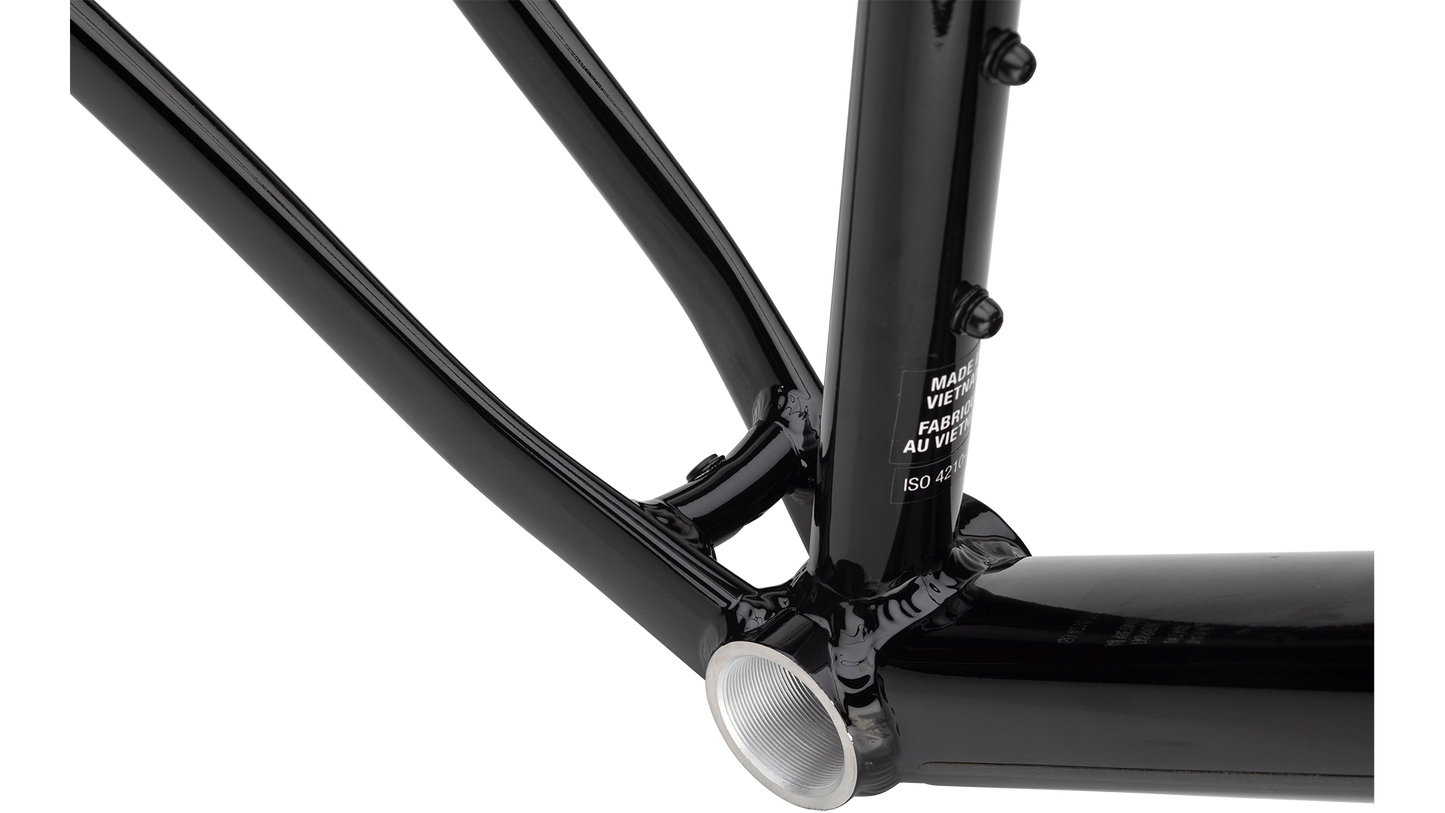

- Bottom Bracket 68 mm BSA
- Crankset (Max Ring) 1x crankset: 42t max.; 2x crankset: 48/33t max.
- Accessory Mounts Downtube Accessory Mounts Yes, 1; TopTube Mounts: Yes; Rack Mounts: Rear: yes / Front: yes, low rider; Three-Pack Mounts: 47–53 cm frames: 1 on down tube; 55–60 cm frames: 1 on down tube + 1 on seat tube; All sizes: one per fork leg
- Bottle Mounts 49 cm frame: 1 in main triangle; 51–56 cm frames: 2 in main triangle; 57–60 cm frames: 3 in main triangle
- Front Fender Mounts Yes
- Rear Fender Mounts Yes
