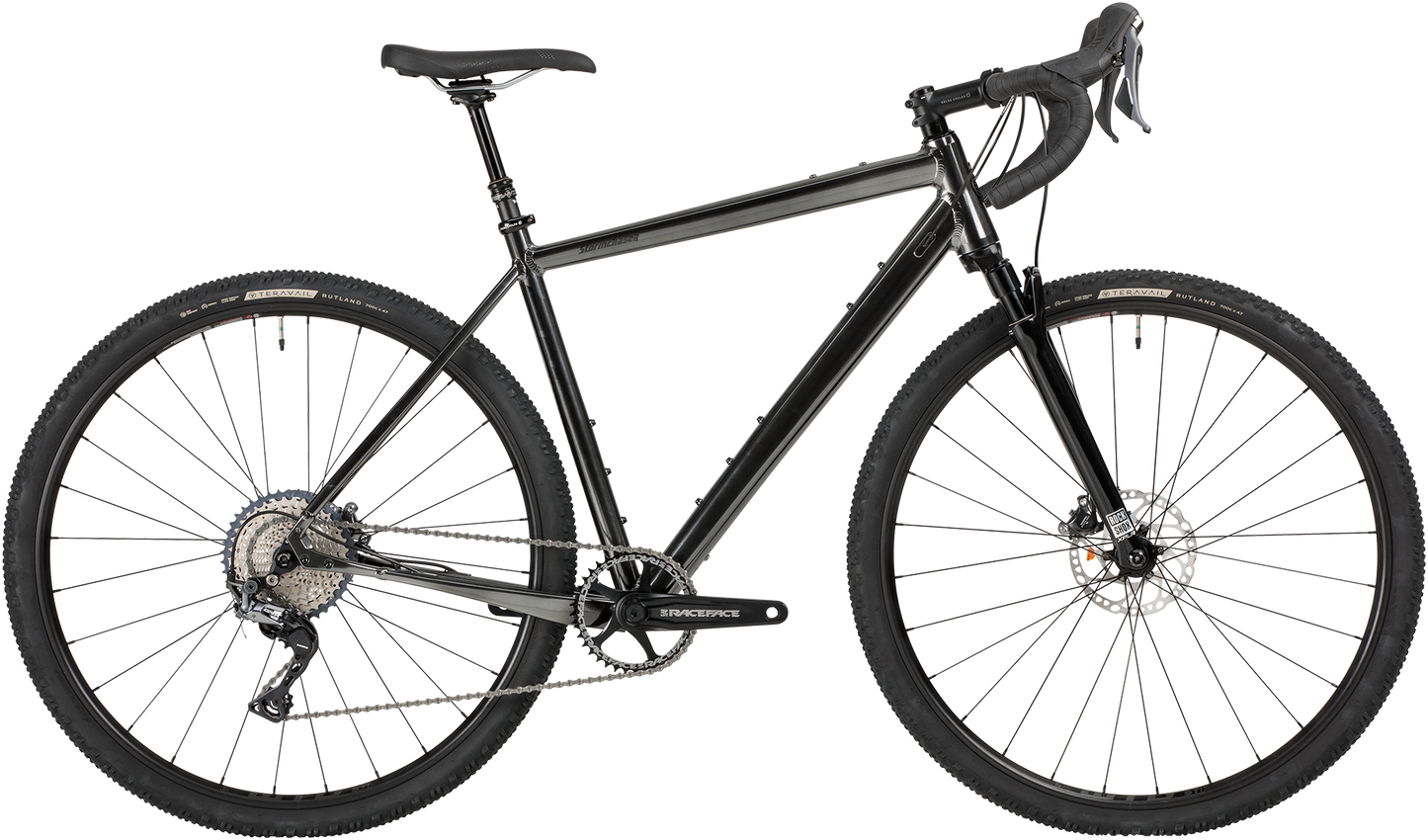

• Salsa Stormchaser GRX 810 1x Sus complete dropbar bike side view, black color, on white background

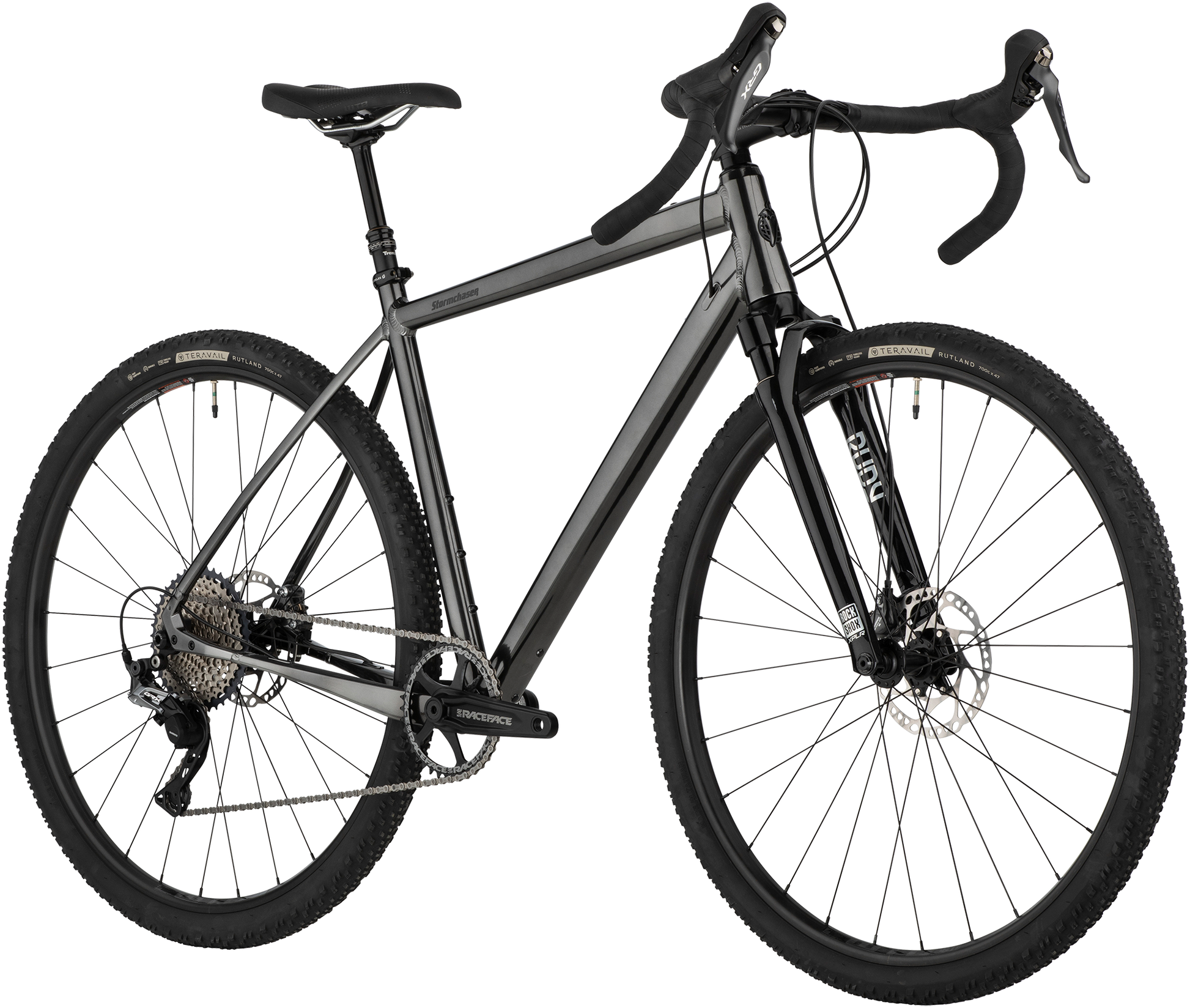

  • Salsa Stormchaser GRX 810 1x Sus complete dropbar bike, three-quarter front view, black color, on white background

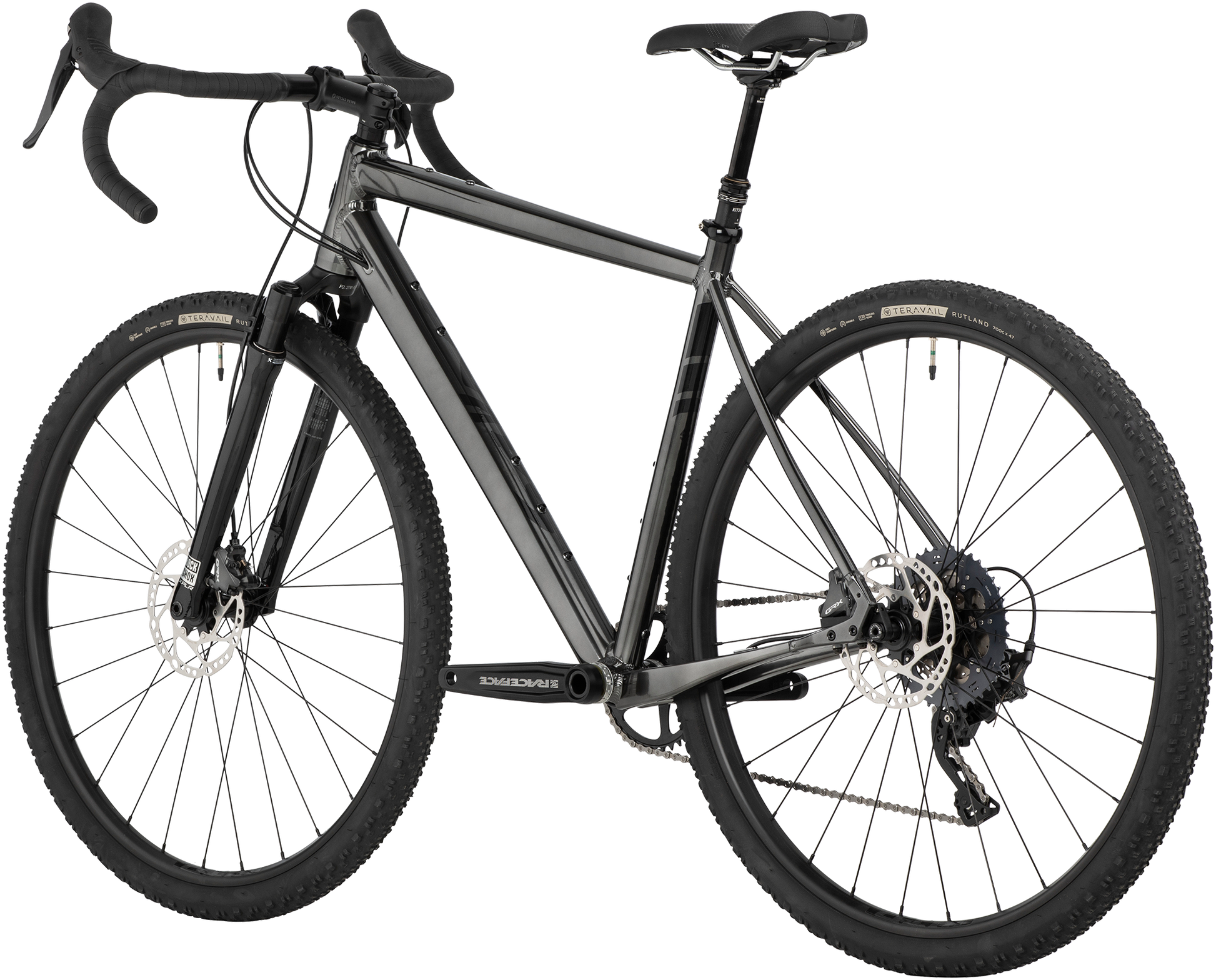

  • Salsa Stormchaser GRX 810 1x Sus complete dropbar bike, three-quarter rear view, black color, on white background
1 3

Stormchaser GRX 810 1x SUS

Stormchaser GRX 810 1x SUS

$3,549.00 USD
$3,549.00 USD $3,549.00 USD
Size

The Stormchaser GRX 810 1x SUS is a gravel bike with suspension for the most challenging terrain. The 6066-T6 alloy frame with Class 5™ VRS and RockShox Rudy XPLR suspension fork team up to drastically reduce chatter on the roughest roads and trails. Our Alternator Flat Mount dropouts allow for 1x geared drivetrains or easy, solid single speed setups (with single speed plate, sold separately). Mounts for water, food, and accessory storage let you go far and wide in places with few resupply options. If you regularly ride pothole- and rut-ridden gravel or want to weave rugged fire roads into your routes, Stormchaser GRX 810 1x SUS is up for it.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

1 4

Product Details

Build Kit

Frameset

Frame

Stormchaser

Color

Black

Suspension Fork

RockShox Rudy XPLR Base, 40 mm, 51 mm offset

Rear Shock

N/A

Components

Headset

FSA No.42 ACB

Seatpost

TranzX YSP38J, 90 x 360 mm

Stem

Salsa Guide

Grips/Bar Tape

XL anti-slip silicone tape

Saddle

WTB Volt Medium Steel SL

Handlebar

Salsa Cowchipper Deluxe

Drivetrain

Front Derailleur

N/A

Rear Derailleur

Shimano GRX RX812

Cassette

Shimano SLX M7000, 11–42t, 11-speed

Chain

Shimano HG601

Crankset

Race Face Ride, 38t

Shifter

Shimano GRX RX810-LA

Brake Calipers

Shimano GRX RX810

Rotors

Shimano RT 64 (Center Lock, 160 mm)

Wheels

Front Wheel

Shimano RS470 12 x 100 mm hub, WTB ST i25 TCS 2.0 29" rim, 28h

Rear Wheel

Shimano RS470 12 x 142 mm hub, WTB ST i25 TCS 2.0 29" rim, 28h

Front Tire

Teravail Rutland 700c x 47 mm, tubeless-ready, Durable casing

Rear Tire

Teravail Rutland 700c x 47 mm, tubeless-ready, Durable casing

Weight

Complete Bike

24 lbs. 13 oz. for 56cm

Geometry

Geometry Diagram
Size49cm52.5cm54.5cm56cm57.5cm59cm61cm
A. Effective Top Tube 508.0 529.0 548.0 563.0 578.0 593.0 608.0
B. Stand Over 696.5 736.0 765.6 794.3 806.9 829.1 851.2
C. Reach 358.6 363.0 364.8 373.9 383.0 392.1 643.5
D. Stack 535.2 549.3 568.1 586.9 605.8 624.6 643.5
E. Total Seat Tube Length 390.0 440.0 475.0 510.0 520.0 545.0 570.0
F. Headtube Length 90.0 105.0 125.0 145.0 165.0 185.0 205.0
G. Headtube Angle
69.2
69.2
69.2
69.2
69.2
69.2
69.2
H. Seat Tube Angle
74.4
73.2
72.2
72.2
72.2
72.2
72.3
I. BB Drop 64.0 64.0 64.0 64.0 64.0 64.0 64.0
K. Chainstay Length 435.0- 450.0 435.0- 450.0 435.0- 450.0 435.0- 450.0 435.0- 450.0 435.0- 450.0 435.0- 450.0
L. Fork Length Axle to Crown 433.0 433.0 433.0 433.0 433.0 433.0 433.0
M. Fork Offset 51.0 51.0 51.0 51.0 51.0 51.0 51.0
N. Wheelbase 1023.1- 1043.3 1032.8- 1052.9 1041.5- 1061.6 1057.6- 1077.7 1073.7- 1093.6 1089.8- 1109.6 1107.1- 1126.9
Crank Arm Length 165.0 165.0 170.0 170.0 175.0 175.0 175.0
Handlebar Width 400.0 420.0 440.0 460.0 480.0 500.0 520.0
Recommended Rider Height 142.0 - 157.0 155.0 - 165.0 162.0 - 173.0 170.0 - 180.0 178.0 - 188.0 185.0 - 193.0 190.0
Stem Length 60.0 70.0 80.0 90.0 90.0 100.0 110.0

Measurements based on:

  • a fork measuring 435x51mm which is equivalent to an average 40mm suspension fork at 5% sag
  • a 700x47mm tire measuring 721 mm in diameter
  • standover (B) measured vertically to top of toptube from a position 50mm forward of BB center.

Frame Specs

  • Design Wheel/Tire Sizes 700c x 42 mm
  • Alternate Wheel/Tire Sizes 700c x 32–50 mm; 650b x 47–50 mm
  • Suspension Fork Length (Travel) 435mm (40mm)
  • Rigid Fork Length 420 mm
  • Fork Offset 51 mm
  • Rear Spacing 12 x 142 mm TA
  • Rear Axle Size M12 x 167L, TP = 1.5, TL = 20 mm (NOTE, DOES NOT FIT SALSA DEABOLT W/ LEVER. DEADBOLT UL TOOLED AXLE ONLY)
  • Front Brake (Rotor) Flat mount frame standard, 35 mm thickness, 42 mm bolt length (160 mm rotor only)
  • Headset - Upper IS41
  • Headset - Lower IS52
  • Front Spacing 12 x 100 mm TA
  • Front Axle Size M12 x 120L, TP = 1.5, TL = 12 mm
  • Crown Race Integrated SHIS 40, 36° Angle
  • Stem Clamp 28.6 mm
  • Seatpost 27.2 mm
  • Dropper Post Compatible Yes (internal)
  • Seatpost Clamp 32.0 mm
  • Front Derailleur Clamp N/A
  • Front Derailleur Type N/A
  • Derailluer Hanger Hanger 465, QBP# FS2322 (Requires geared Alternator Flat Mount Plate, QBP# FS0719, and Hanger Axle/Stud Kit, QBP# FS1181)
  • Bottom Bracket 73 mm BSA, threaded
  • Crankset (Max Ring) Geared: 1x crankset only, 38t max, 49 mm MTN chainline, 168 Q-factor min; Single-Speed: 1x crankset, 40t max, Race Face/Easton 51 mm chainline, single speed only
  • Accessory Mounts Downtube Accessory Mounts: One; Top Tube Mounts: Yes, compatible with Salsa EXP Series Top Tube bagThree-Pack Mounts One mount per fork leg; Rack Mounts: 165 mm Low-rider compatible. Salsa Down Under rack recommended.
  • Bottle Mounts Frames up to 56 cm: 2 in main triangle. Frames 57.5 cm and larger: 3 in main triangle.

Supportive Documents

Support Document links

Additional Features

Class 5™ VRS

The Class 5™ Vibration Reduction System has specially shaped seatstays with a tall, thin, vertically oriented profile that promotes vertical compliance by allowing the seatstays to "flex" outwards on impacts. The horizontally oriented chainstays work to resist torque and maintain a laterally stiff rear end. The seatstays and chainstays lack bridges, furthering the full length of the stays to contribute to flexibility. And a rear thru-axle delivers precise tracking while allowing the seatstays to provide that incredible compliance

Gravel Race Geometry

Stormchaser features geometry similar to our Warbird gravel race bike, placing the rider in a position that can be maintained for hours on end over bumpy B-roads and loose surfaces, drastically reducing fatigue. A low bottom bracket and stable wheelbase help keep the tires planted and boost confidence. A long top tube paired with a short stem provides increased stability at high speed and on rough descents

Extra Mud Clearance

Stormchaser has 40% more mud clearance than Warbird (measured with a 700c x 42 mm tire)

Alternator Flat Mount Dropout

15 mm of dropout adjustability (435–450 mm) and capable of 1x geared and single speed drivetrains

Bottle Capacity

2–3 bottle mounts inside main triangle (57.5 cm and above can accommodate 3), 1 bottle or accessory mount on underside of downtube

Fender Mounts

Fenders allow for longer, more pleasant rides in wet weather

Wide Bar Spec

Wider handlebars improve leverage for single speeding and control in poor conditions. Bar width is relative to frame size—49 cm bikes come with 40 cm Cowchippers; 61 cm bikes come with 52 cm Cowchippers

Rear Rack Mounts

Compatible with the Salsa Wanderlust rear rack when used with a Salsa Rack-Lock seatpost collar

Top Tube Accessory Mount

Compatible with the Salsa Wanderlust rear rack when used with a Salsa Rack-Lock seatpost collar

Internal Cable Routing

Internal routing for brake, shift, and dynamo cables reduces maintenance

Stealth Dropper Post Routing

Equipped with a 90 mm dropper post for more confident descending at high speeds on rough, unpredictable gravel roads

FAQ

What size wheels/tires can I use on this frame?

Stormchaser is designed for 700c x 32–50 mm and 650b x 47–50 mm wheels and tires.

Can I use a suspension fork on this frame?

Yes, this frame was designed and tested for use with a suspension fork with an axle-to-crown length up to 457 mm (typically 60 mm of travel). Check the fork manufacturer’s specifications to ensure the model and travel combination you intend to use is equal to or less than this length. Using a longer length fork will void the frame warranty and could result in frame failure. We recommend forks with 51 mm offset.

How do I take care of the Alternator Dropouts?

Periodically, we recommend that you remove the bolts and clean the dirt and grime off the hardware and the frame surfaces. Then, lightly re-grease the threaded parts and re-assemble.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

ViewWarranty

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
