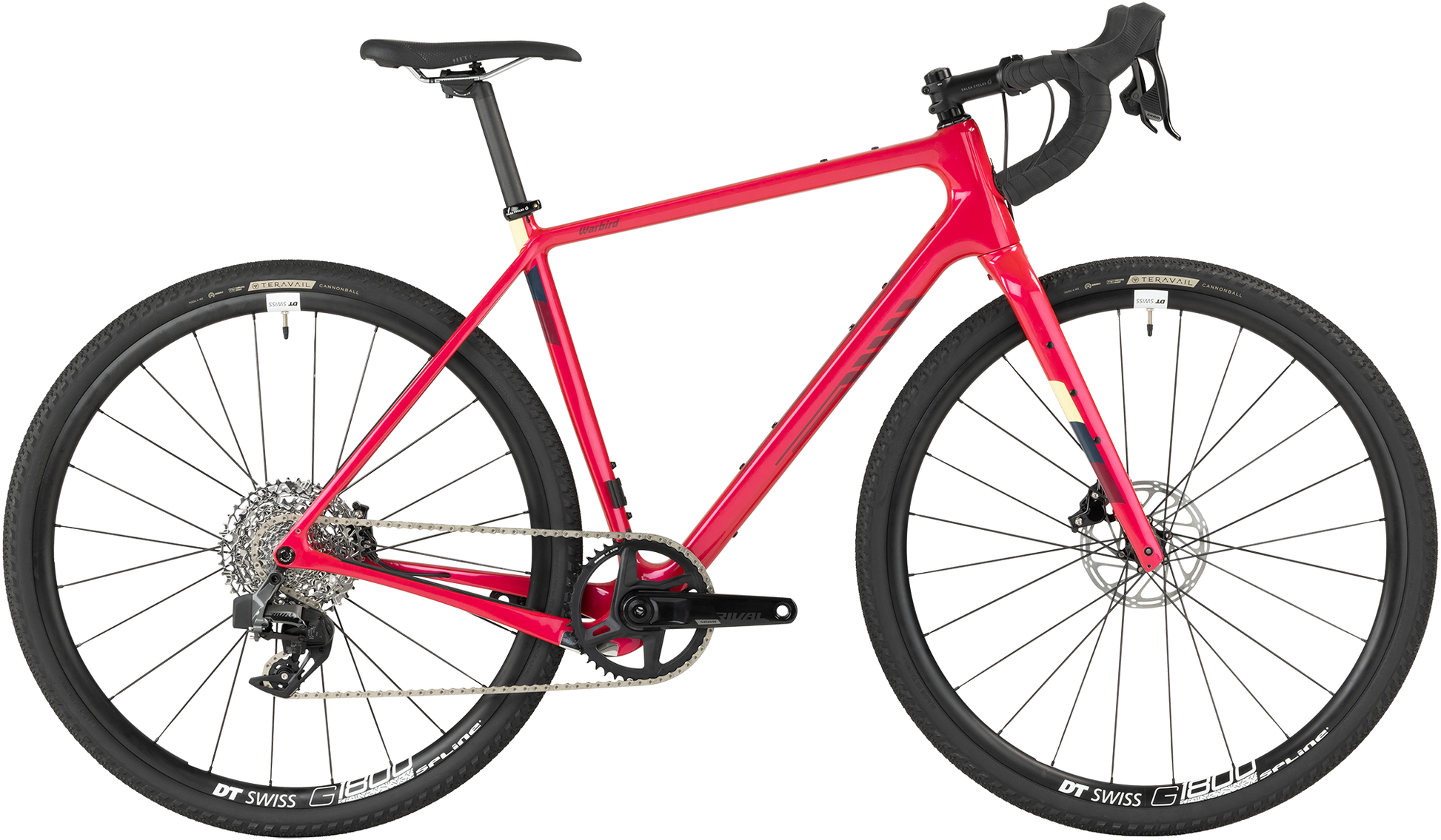

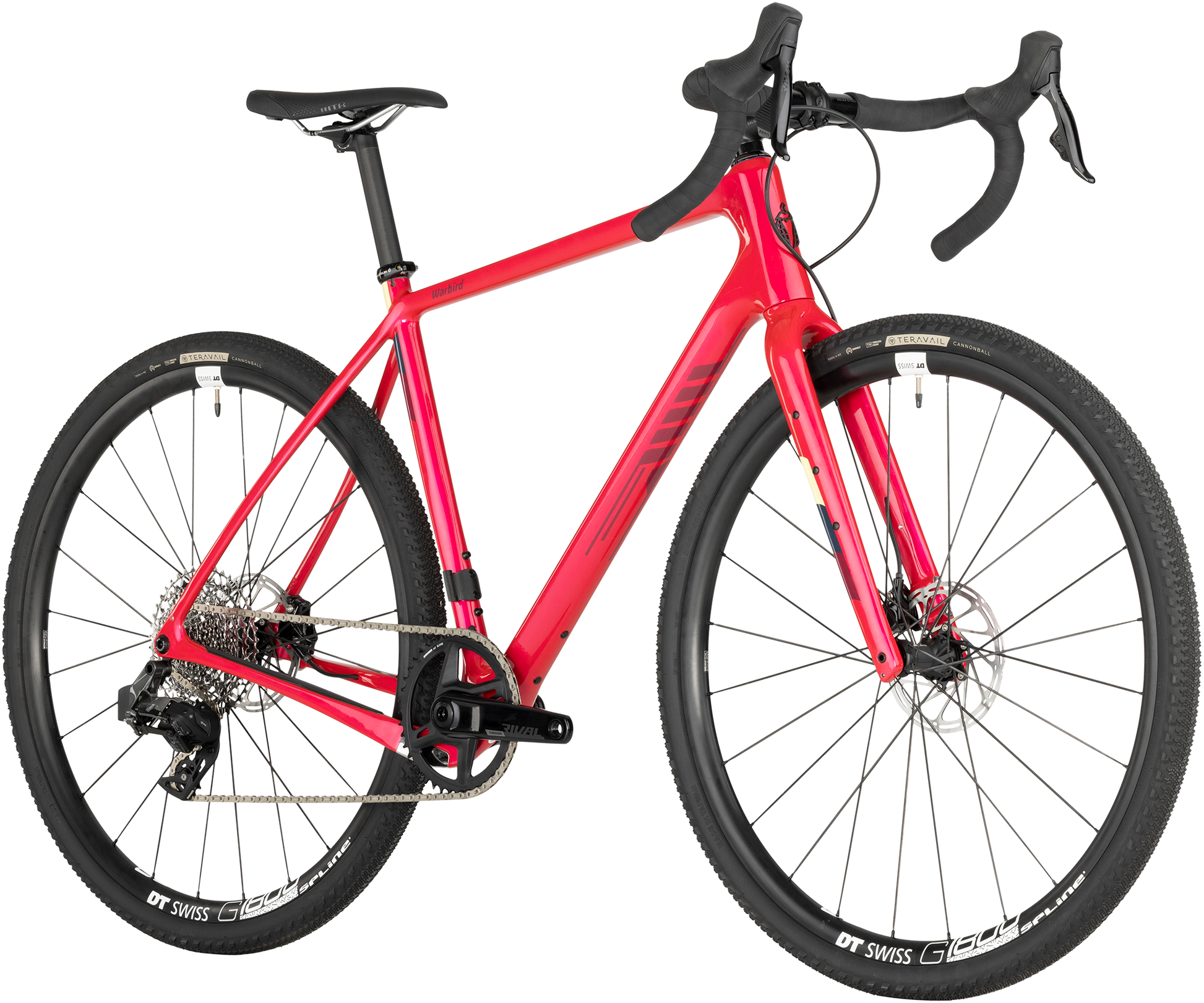

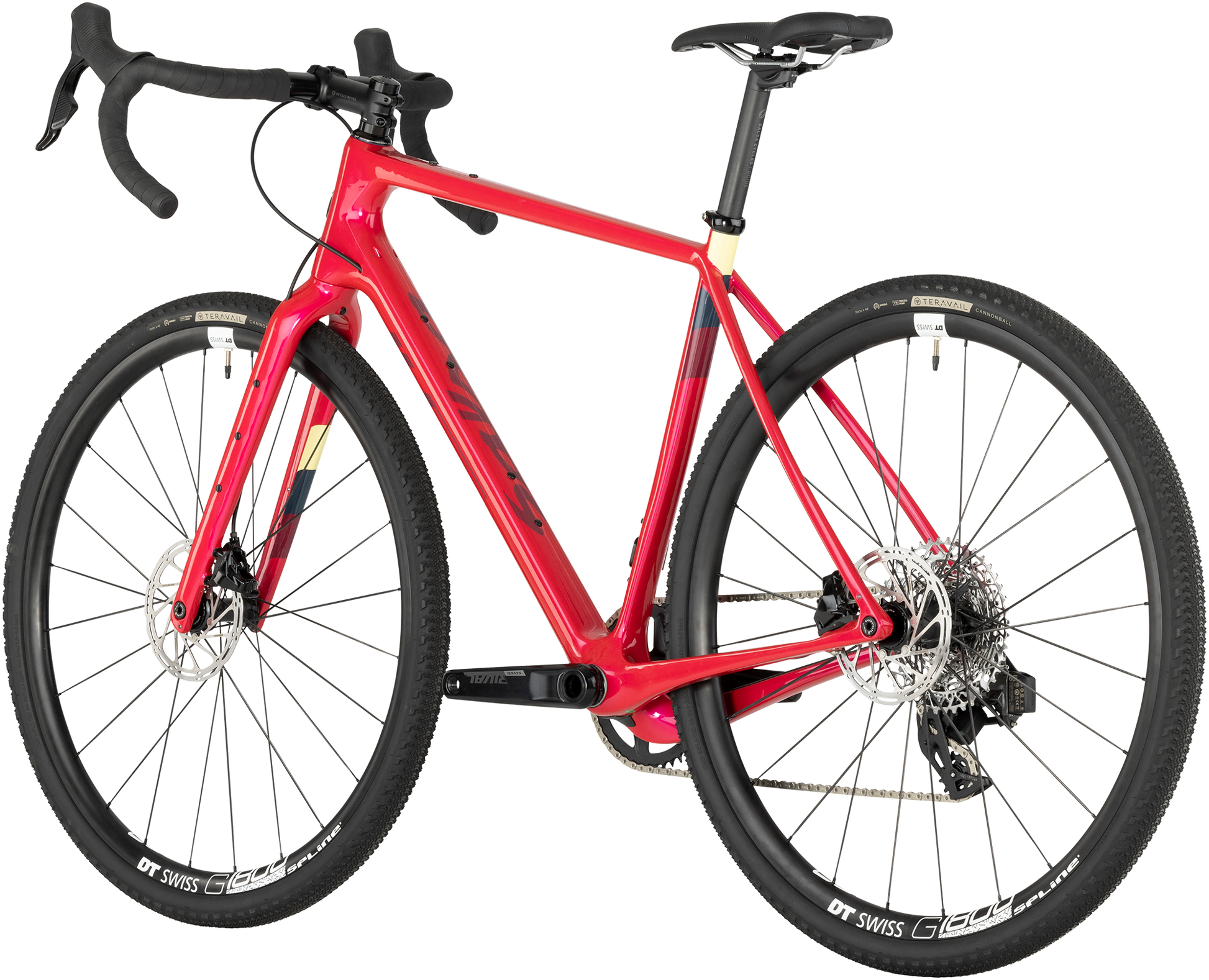

Warbird C Rival XPLR eTap AXS
Warbird C Rival XPLR eTap AXS
Warbird C Rival XPLR eTap AXS is built to tame the toughest terrain, with a Class 5™ VRS-equipped high-modulus carbon fiber frameset. Our gravel race geometry puts you in a comfortable, confident riding position. On-bike cargo features let you gear up for long days of riding far from anywhere. SRAM’s sure-shifting Rival XPLR eTap AXS drivetrain is a technological marvel with loads of gear range. As the industry’s first gravel race bike, Warbird is designed and built to provide control, comfort, and speed when the going gets rough.
Share
Warning for Residents of California
Warning for Residents of California
⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Bike Key Features
-
On-Bike Storage
View More- Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
-
Class 5 VRS
View More- Comfort equates to speed and distance over rough terrain
- Rider benefit is inherent to the design
-
Frame Protection
View More- Our products are built from experience — we’ve been there enough to know that a carbon fork can benefit from added protection just as much as the downtube on a suspension bike.
Product Details
Build Kit
Frameset
Frame
Warbird Carbon
Color
Red
Fork
Waxwing Deluxe
Rear Shock
N/A
Components
Headset
Cane Creek 40
Seatpost
Zoom SP-C255 Alloy -OR- Salsa Guide Carbon
Stem
Zoom TDS-D507G, ±7 degrees -OR- Salsa Guide
Grips/Bar Tape
Anti-Slip Silicone handlebar tape
Saddle
WTB SL8 Medium Cromoly
Handlebar
Zoom DR-AL-199BTFOV
Drivetrain
Front Derailleur
N/A
Rear Derailleur
SRAM Rival XPLR eTap AXS
Cassette
SRAM XG-1251 10–44t, 12-speed
Chain
SRAM Rival D1
Crankset
SRAM Rival 1 Wide, 42t
Shifter
SRAM Rival eTap AXS
Brake Calipers
SRAM Rival Hydraulic
Rotors
SRAM CenterLine (160 mm)
Wheels
Front Wheel
DT Swiss G 1800 12 x 100 mm
Rear Wheel
DT Swiss G 1800 12 x 142 mm
Front Tire
Teravail Cannonball 700c x 42 mm, tubeless compatible, Durable casing
Rear Tire
Teravail Cannonball 700c x 42 mm, tubeless compatible, Durable casing
Weight
Complete Bike
20 lb 3 oz (56 cm frame)
Geometry
| Size | 49cm | 52.5cm | 54.5cm | 56cm | 57.5cm | 59cm | 61cm |
|---|---|---|---|---|---|---|---|
| A. Effective Top Tube | 499.0 | 525.0 | 545.0 | 560.0 | 575.0 | 590.0 | 610.0 |
| B. Stand Over | 670.2 | 714.48 | 744.3 | 770.11 | 785.96 | 808.4 | 830.55 |
| C. Reach | 360.24 | 368.13 | 371.97 | 381.19 | 390.42 | 399.65 | 407.74 |
| D. Stack | 517.85 | 547.09 | 565.97 | 584.85 | 603.73 | 622.61 | 641.5 |
| E. Total Seat Tube Length | 390.0 | 440.0 | 475.0 | 510.0 | 520.0 | 545.0 | 570.0 |
| F. Headtube Length | 90.0 | 120.0 | 140.0 | 160.0 | 180.0 | 200.0 | 220.0 |
| G. Headtube Angle |
71.0
|
70.75
|
70.75
|
70.75
|
70.75
|
70.75
|
70.75
|
| H. Seat Tube Angle |
75.0
|
74.0
|
73.0
|
73.0
|
73.0
|
73.0
|
72.5
|
| I. BB Drop | 70.0 | 70.0 | 70.0 | 70.0 | 70.0 | 70.0 | 70.0 |
| K. Chainstay Length | 430.0 | 430.0 | 430.0 | 430.0 | 430.0 | 430.0 | 430.0 |
| L. Fork Length Axle to Crown | 405.0 | 405.0 | 405.0 | 405.0 | 405.0 | 405.0 | 405.0 |
| M. Fork Offset | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 |
| N. Wheelbase | 996.14 | 1011.96 | 1022.39 | 1038.21 | 1054.03 | 1069.85 | 1084.54 |
| Crank Arm Length | 165.0 | 170.0 | 170.0 | 172.5 | 172.5 | 175.0 | 175.0 |
| Handlebar Width | 380.0 | 400.0 | 420.0 | 440.0 | 460.0 | 460.0 | 460.0 |
| Recommended Rider Height | 142.0 - 157.0 | 155.0 - 165.0 | 162.0 - 173.0 | 170.0 - 180.0 | 178.0 - 188.0 | 185.0 - 93.0 | 190.0 |
| Stem Length | 70.0 | 70.0 | 80.0 | 90.0 | 90.0 | 100.0 | 110.0 |
Measurements based on:
- A Warbird Carbon Fork which is 405 x 50mm offset
- A 700c x 32mm tire measuring 698mm in diameter
- Standover for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center
Frame Specs
- Design Wheel/Tire Sizes 622 - 32 (700 x 32mm)
- Alternate Wheel/Tire Sizes 622 – 32-45 (700c x 32–45mm / 1.2–1.8”) / 584 – 47-51 (650b x 47mm–51mm / 1.85–2.0”)
- Max Tire Outer Diameter 700c: 716mm / 650b: 696mm (Some front derailleurs may reduce tire clearance. Check manufacturer’s specifications to confirm clearance before installing.)
- Suspension Fork Length (Travel) 436.7mm axle-to-crown (40mm travel)
- Rigid Fork Length 405mm
- Fork Offset 50mm
- Rear Spacing 142mm
- Rear Axle Size M12 x 167L, TP = 1.5, TL = 20mm
- Front Brake (Rotor) Flat mount 160, flat mount rear standard, 35mm thickness, 42mm bolt length
- Headset - Upper IS41
- Headset - Lower IS52
- Front Spacing 12 x 100 mm TA
- Front Axle Size M12 x 120L, TP = 1.5, TL = 12mm
- Crown Race Integrated SHIS 40, 36° angle
- Stem Clamp Ø28.6mm
- Seatpost 27.2mm
- Seatpost Clamp 32.0mm
- Derailluer Hanger Hanger 465, QBP# FS2322
- Bottom Bracket BB86 PressFit
- Crankset (Max Ring) 1x: 44t max; 2x: 52/36t max, 46/30t minimum
- Accessory Mounts Rack Mounts 165 mm Low-rider compatible. Salsa Down Under rack recommended; Downtube Accessory Mount: Yes, one pair; Toptube Mounts: Yes, compatible with Salsa Toptube bag; Three-Pack Mounts: One mount per fork leg
- Bottle Mounts Frames up to 54cm: 2 in main triangle, frames 56cm and larger: 3 in main triangle
- Front Fender Mounts Yes, required fender hardware included
- Rear Fender Mounts Yes, required fender hardware included
Supportive Documents
Support Document links
Additional Features
Class 5 VRS
The Class 5™ Vibration Reduction System has specially shaped seatstays with a tall, thin, vertically oriented profile that promotes vertical compliance by allowing the seatstays to "flex" outwards on impacts. The horizontally oriented chainstays work to resist torque and maintain a laterally stiff rear end. The seatstays and chainstays lack bridges, furthering the full length of the stays to contribute to flexibility. And a rear thru-axle delivers precise tracking while allowing the seatstays to provide that incredible compliance
Interior Junction Control Molding Technology
We use internal molds at all the main front triangle junctions during layup and curing. This allows for precise control of wall thickness and inner wall smoothness in these areas. This process increases compaction and reduces voids and wrinkles in critical high stress zones. The end result is a top-quality carbon frame that delivers consistent high performance
Warbird Geometry
Warbird features the latest evolution of our already industry leading gravel racing geometry. Warbird places the rider in a position that can be maintained for hours on end over bumpy B-roads and loose surfaces, drastically reducing fatigue. A low bottom bracket and stable wheelbase help keep the tires planted and boost confidence. Long top tubes paired with short stems provide increased stability at high speed and on rough descents
Waxwing Deluxe Fork
This fork features carbon construction with an aluminum steerer and utilizes a 12 x 100 mm thru axle for true tracking and flat mount brake for quick setup. Most importantly, the fork includes an incredible array of accessory features: Three-Pack mounts accept either water bottle cages or Anything Cages for increased hydration or gear carrying capacity / Mid-blade mounts allow the attachment of our Down Under Low Rider Rack for front pannier use / Internal Dynamo Hub Cable Routing means clean cable routing for those upgrading to dynamo front hubs / Fender mounts mean more pleasant riding in rainy weather, allowing you to tack on more training miles
700c x 42 mm Wheel/Tire Spec
For faster acceleration and overall speed
Dual Wheel Size Compatible
Warbird fits up to 700c x 45 mm OR 650b x 2.0" wheels/tires. We offer models with each spec so you can choose the wheel size that best meets your needs, or set up a second wheel set so your Warbird is optimized for the race course at hand
Integrated Toptube Bag Mount
Bolt on your Salsa EXP Series Top Tube Bag for secure connection and elimination of strap wear
Generous Water Bottle Capacity
Helps you stay hydrated during ultra-endurance training rides and races. 2–3 bottle mounts inside main triangle (56 cm and above receive 3), 1 accessory mount on underside of downtube, 2 bottle mounts possible on fork via Three-Pack mounts
Internal Sleeved Cable Routing
Helps you stay hydrated during ultra-endurance training rides and races. 2–3 bottle mounts inside main triangle (56 cm and above receive 3), 1 accessory mount on underside of downtube, 2 bottle mounts possible on fork via Three-Pack mounts
Refined Drivetrain Compatibility
Designed to accept 1x, 2x, and current electronic offerings
Stealth Dropper Post Compatible
Accepts 27.2 mm dropper posts for more confident descending at high speeds on rough, unpredicatable gravel roads. Internal stealth routing when running 1x setups
Fender Mounts
Fenders allow for longer, more pleasant rides in wet weather
Rear Rack Friendly
Compatible with the Salsa Wanderlust Rack when using the optional Salsa Rack-Lock seat collar
FAQ
Warranty Information
All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.
