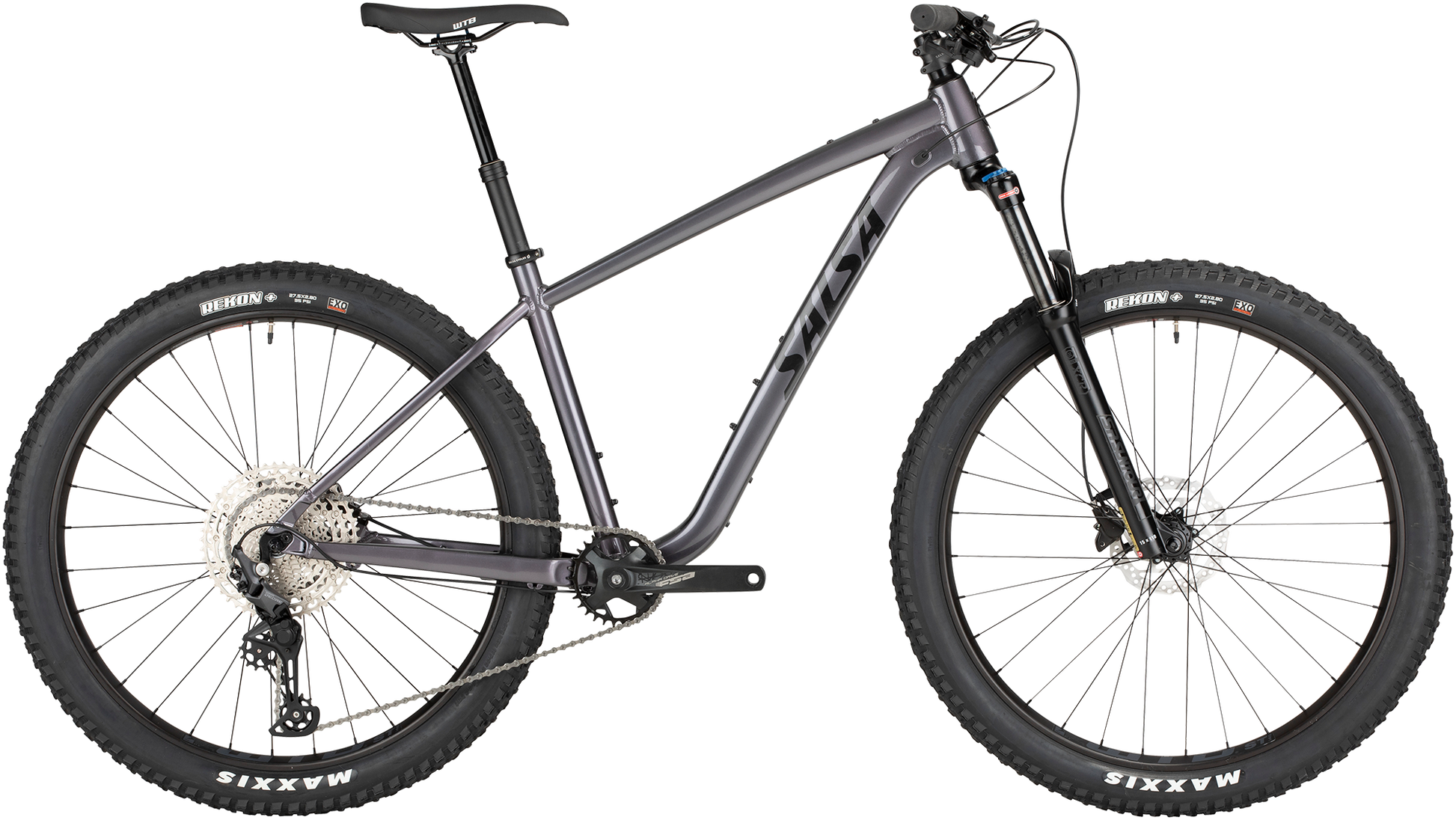

• Salsa Rangefinder Deore 11 bike gray side view on white background

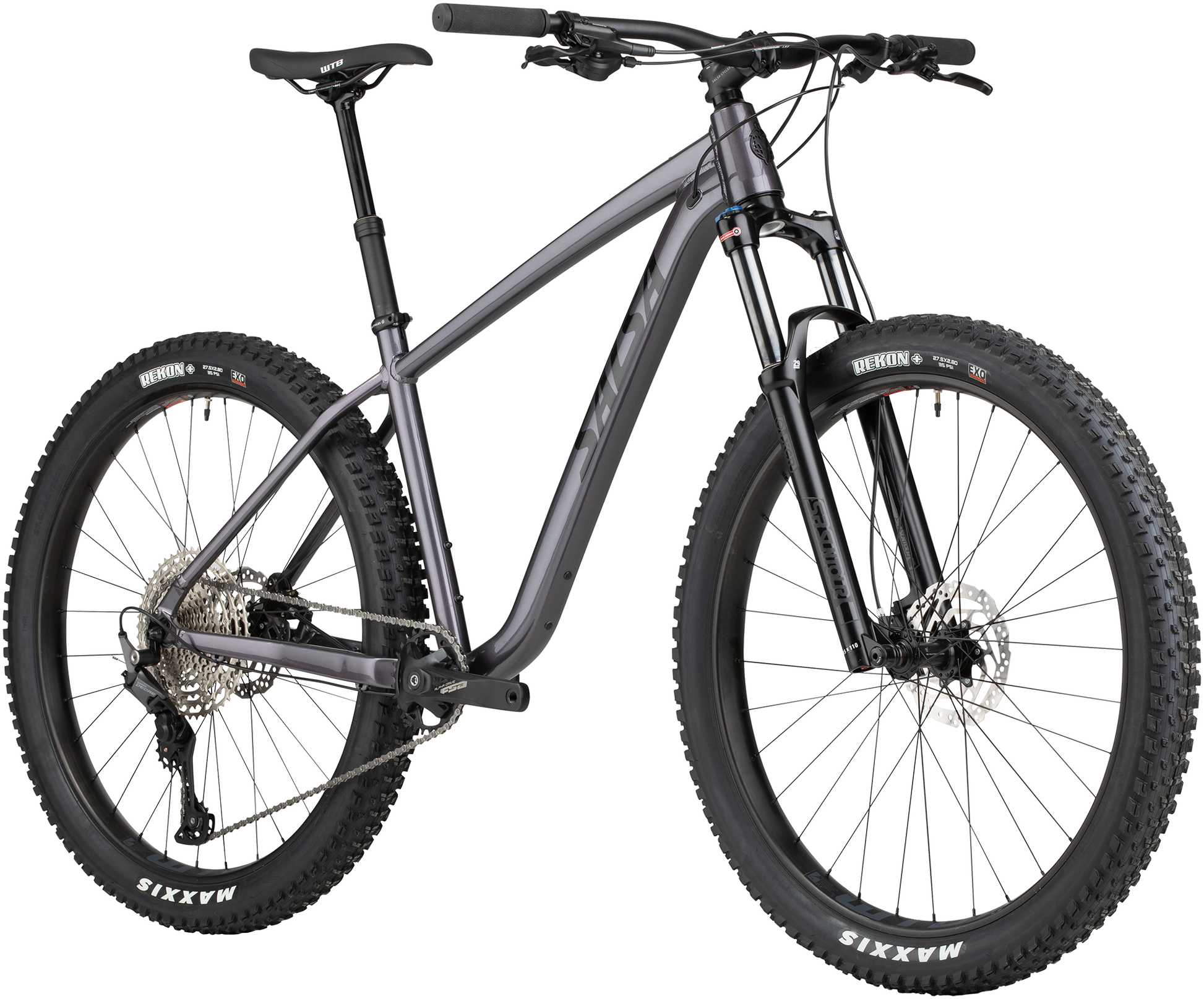

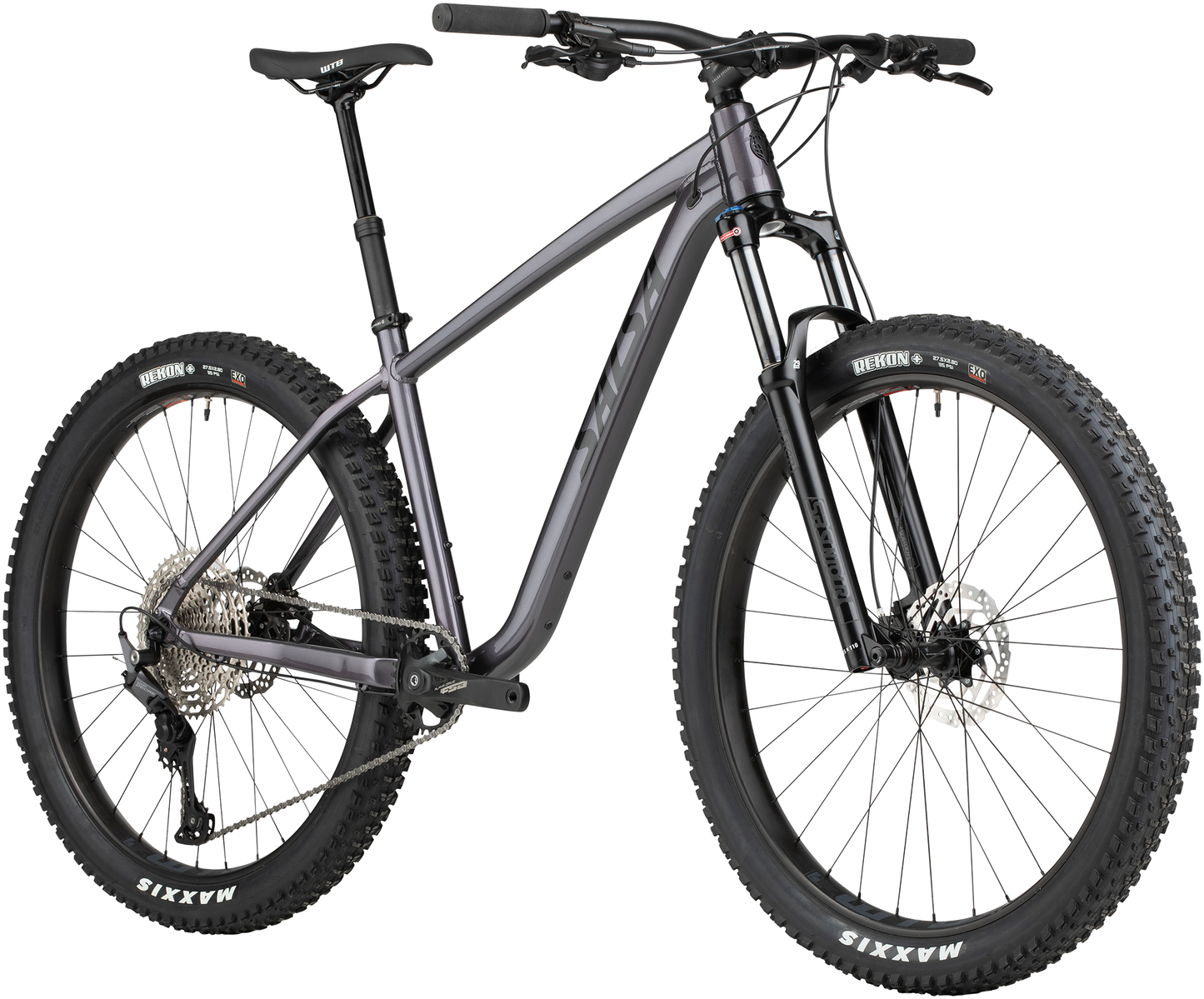

  • Salsa Rangefinder Deore 11 bike gray front three-quarter view on white background

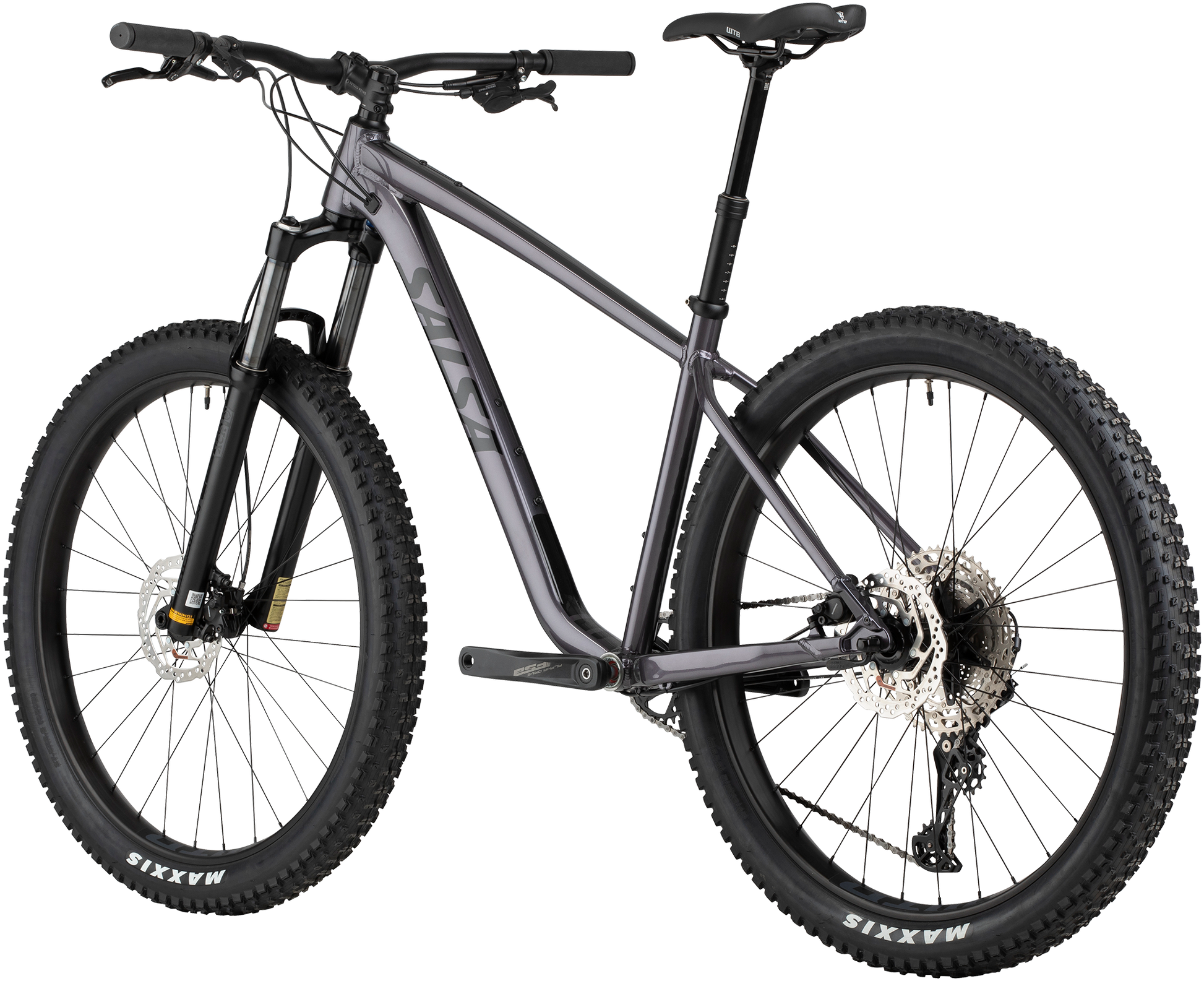

  • Salsa Rangefinder Deore 11 bike gray rear three-quarter view on white background
1 3

Rangefinder Deore 11 27.5+

Rangefinder Deore 11 27.5+

$949.99 USD
$1,199.00 USD $949.99 USD
Sale
Size

With Rangefinder Deore 11 27.5+, you’re equipped to explore your local trails or travel far and wide in search of new ones. Stable trail geometry provides a feeling of confidence when you’re pedaling through tough spots, descending steep slopes, or just riding unfamiliar terrain. A 120 mm fork and dropper post improve your control, while 27.5 x 2.8” wheels and tires are good for nimble handling, quick acceleration, and stellar traction. With Shimano’s reliable Deore 11-speed drivetrain, you’re looking at one of the very best trail hardtail options for aspiring mountain bikers.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

1 1

Product Details

Build Kit

Frameset

Frame

Rangefinder Aluminum

Color

Dark Gray

Suspension Fork

SR Suntour XCR32 Boost, Air, LOR, DS, 120 mm OR RST Aerial 110-15, Air, MLC, 120 mm

Rear Shock

N/A

Components

Headset

FSA Orbit NO.57B 1.5 ZS

Seatpost

TranzX YSP18PLQ 100 x 361 mm XS–SM; 130 x 425 mm MD–XL

Stem

Salsa Guide 31.8, 60 mm

Grips/Bar Tape

Salsa File Tread

Saddle

WTB Volt Medium, Steel, 142 x 265 mm

Handlebar

Salsa Salt Flat 31.8, 750 mm width XS–SM; Salsa Rustler 31.8, 800 mm width M–XL

Drivetrain

Front Derailleur

N/A

Rear Derailleur

Shimano Deore M5100 SGS

Cassette

Shimano Deore M5100 11–51t, 11-speed

Chain

Shimano HG601

Crankset

FSA Alpha Drive, 30t, FSA 124.5 mm bottom bracket

Shifter

Shimano Deore M5100

Brake Calipers

Shimano MT200 OR Promax DSK-925

Rotors

Shimano RT10 Center Lock rotors (160 mm)

Wheels

Front Wheel

Shimano MT400 Center Lock 15 x 110 mm hub, WTB ST i40 32h 27.5" rim

Rear Wheel

Shimano MT200 Center Lock 10 x 141 mm QR hub, WTB ST i40 32h 27.5" rim

Front Tire

Maxxis Rekon 27.5 x 2.8", EXO Wire Bead (not tubeless compatible)

Rear Tire

Maxxis Rekon 27.5 x 2.8", EXO Wire Bead (not tubeless compatible)

Weight

Complete Bike

32 lb 11 oz (with tubes, no pedals) for Medium

Geometry

Geometry Diagram
SizeX-SmallSmallMediumLargeX-Large
A. Effective Top Tube 568.2 590.5 614.8 643.5 670.1
B. Stand Over 678.6 698.3 737.2 769.1 798.7
C. Reach 395.0 416.0 439.0 465.0 489.0
D. Stack 605.6 610.2 614.9 624.2 633.4
E. Total Seat Tube Length 355.0 381.0 431.0 470.0 508.0
F. Headtube Length 95.0 100.0 105.0 115.0 125.0
G. Headtube Angle
68.0
68.0
68.0
68.0
68.0
H. Seat Tube Angle
74.0
74.0
74.0
74.0
74.0
I. BB Drop 58.0 58.0 58.0 58.0 58.0
K. Chainstay Length 439.0 439.0 439.0 439.0 439.0
L. Fork Length Axle to Crown 510.0 510.0 510.0 510.0 510.0
M. Fork Offset 46.0 46.0 46.0 46.0 46.0
N. Wheelbase 1100.6 1123.4 1148.3 1178.0 1205.8
Crank Arm Length 170.0 170.0 175.0 175.0 175.0
Handlebar Width 750.0 750.0 800.0 800.0 800.0
Recommended Rider Height 157.0 - 168.0 160.0 - 175.0 173.0 - 183.0 180.0 - 191.0 188.0
Stem Length 60.0 60.0 60.0 60.0 60.0

Measurements based on:

  • OE spec 120mm 29/27.5+ suspension fork at 25% sag
  • 27.5 x 2.8" tire measuring 722mm in diameter
  • Standover is measured from vertically from ground to the top of the toptube, 50mm forward of the BB. Add 8-12.5mm (0.3-0.5") for 29 x 2.4-2.6" wheels/tires

Frame Specs

  • Design Wheel/Tire Sizes 27.5 x 2.8–3.0"
  • Alternate Wheel/Tire Sizes 29 x 1.9–2.6"
  • Suspension Fork Length (Travel) 100–130 mm
  • Fork Offset 46 mm
  • Rear Spacing 141 x 10 mm QR
  • Headset - Upper ZS44
  • Headset - Lower ZS56
  • Seatpost 30.9 mm
  • Dropper Post Compatible Yes (internal)
  • Seatpost Clamp 35.0 mm
  • Front Derailleur Clamp N/A
  • Front Derailleur Type N/A
  • Derailluer Hanger FS2361
  • Bottom Bracket 73 mm BSA, threaded
  • Crankset (Max Ring) Boost 148 52 mm chainline only (32t max)
  • Accessory Mounts Rear Rack Mounts: Yes, Salsa Post-Lock seatpost collar required; Downtube Accessory Mounts: 1; Top Tube Mounts: Yes, compatible with Salsa EXP Series Top Tube bag.
  • Bottle Mounts 2
  • Front Fender Mounts No
  • Rear Fender Mounts No

Supportive Documents

Support Document links

Additional Features

6061-T6 Aluminum Tube Set

A blend of our proprietary, top-shelf 6061-T6 double- and triple-butted tubing creates a light, responsive, and durable frame with great trail feel

Rangefinder Trail Geometry

Rangefinder's long top tube, short stem, and 439 mm chainstays provide a stable ride to keep you in control on steep and technical terrain

120 mm of Front Suspension Travel

A 120 mm fork soaks up the trail and a thru-axle keeps the front end stiff for precise handling

Dropper Post Included

Drop your saddle at the press of a button to tackle steep descents and technical terrain with the included TranzX dropper post. The Rangefinder frame also provides stealth dropper post cable routing for a clean look

Cargo Capacity

The Rangefinder frame has two bottle cages on the inside of the frame, an accessory mount on the underside of the down tube, and top tube mounts for use with our EXP Series Direct-Mount Top Tube Bag. Rear rack mounting bosses are also included at the dropouts, and with the addition of a 35.0mm Rack-Lock seatpost collar, a rear rack can be fitted

Full-Length Cable Routing

Full-length housing improves shifting in poor conditions and increases the time between maintenance intervals

Dual Wheel Size Compatibility

Rangefinder can fit both 29" (maximum of 29 x 2.6") and 27.5+ (27.5 x 2.8–3.0") wheels and tires

FAQ

What size tires/wheels can I use on this frame?

Rangefinder is designed around 27.5 x 2.8–3.0" or 29 x 1.9–2.6" wheels and tires

Can I use a suspension fork on this frame?

Yes, this frame was designed and tested for use with a suspension fork with an axle-to-crown length up to 541mm (typically a 130 mm-travel 29/27.5+ fork). Check the fork manufacturer’s specifications to ensure the model and travel combination you intend to use is equal to or less than this length. Using a longer length fork will void the frame warranty and could result in frame failure.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

View Warranty

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
