Warbird C GRX 600 1x

Warbird C GRX 600 1x

Regular price $2,799.00 USD
Regular price $3,399.00 USD Sale price $2,799.00 USD
Sale
Size

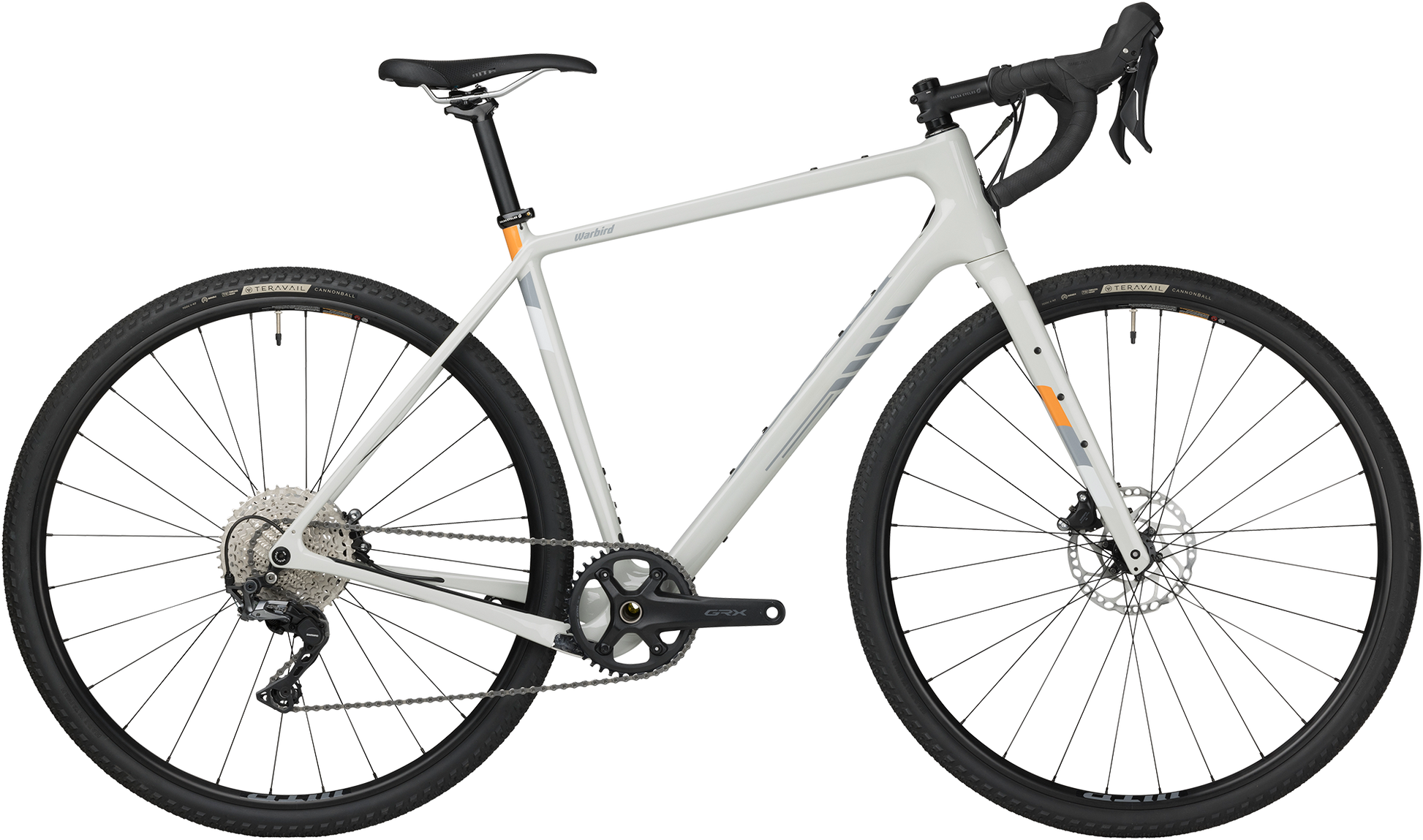

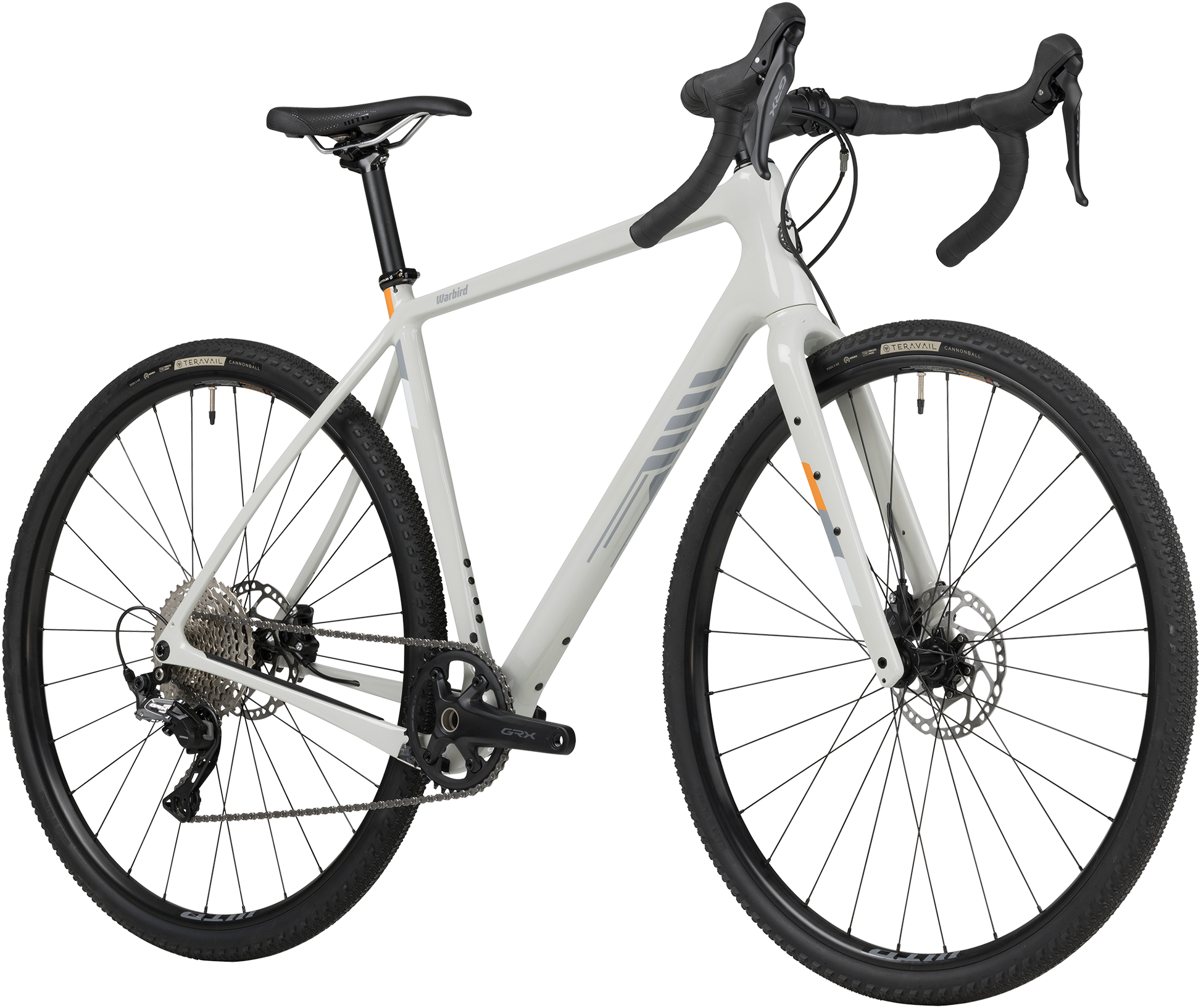

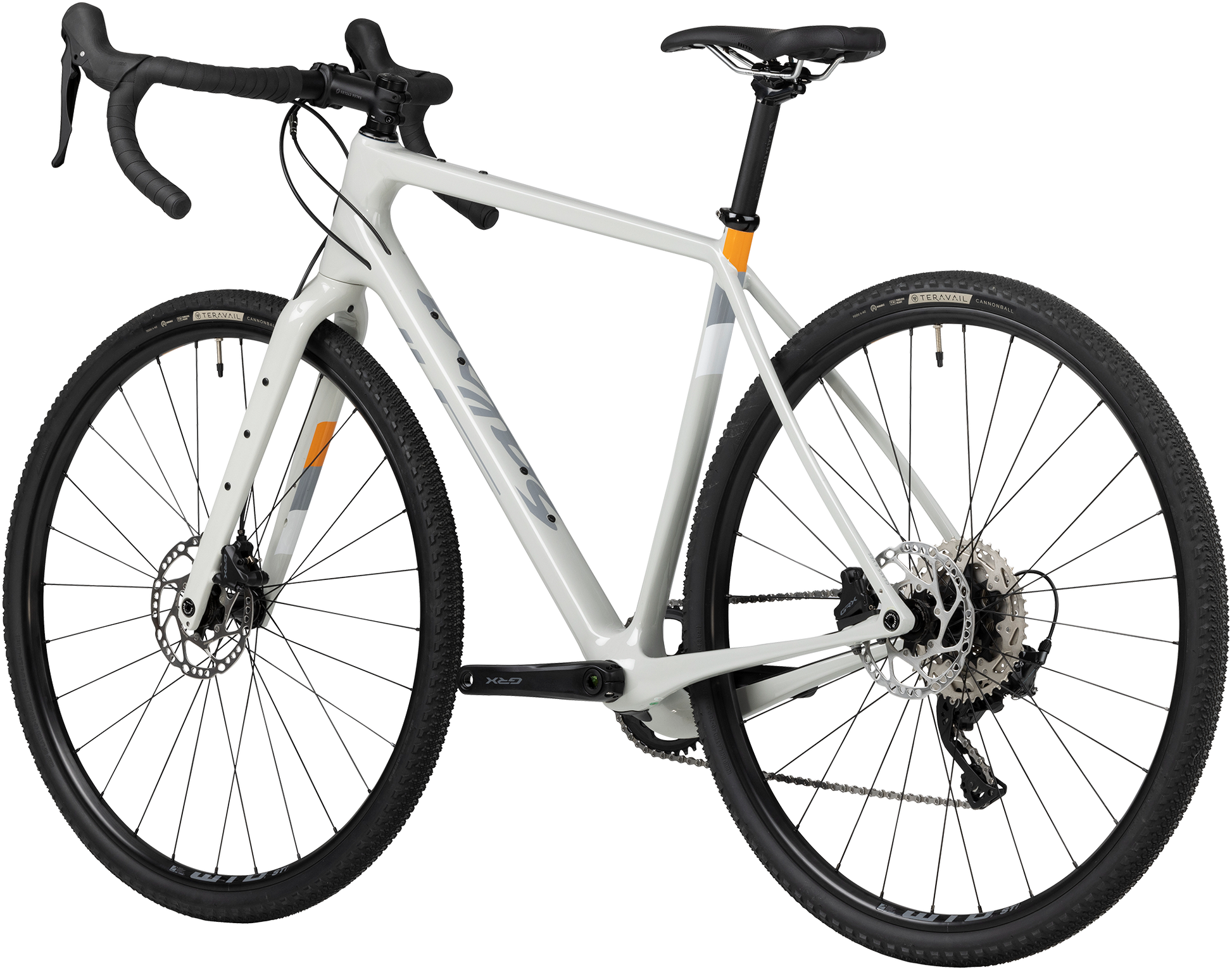

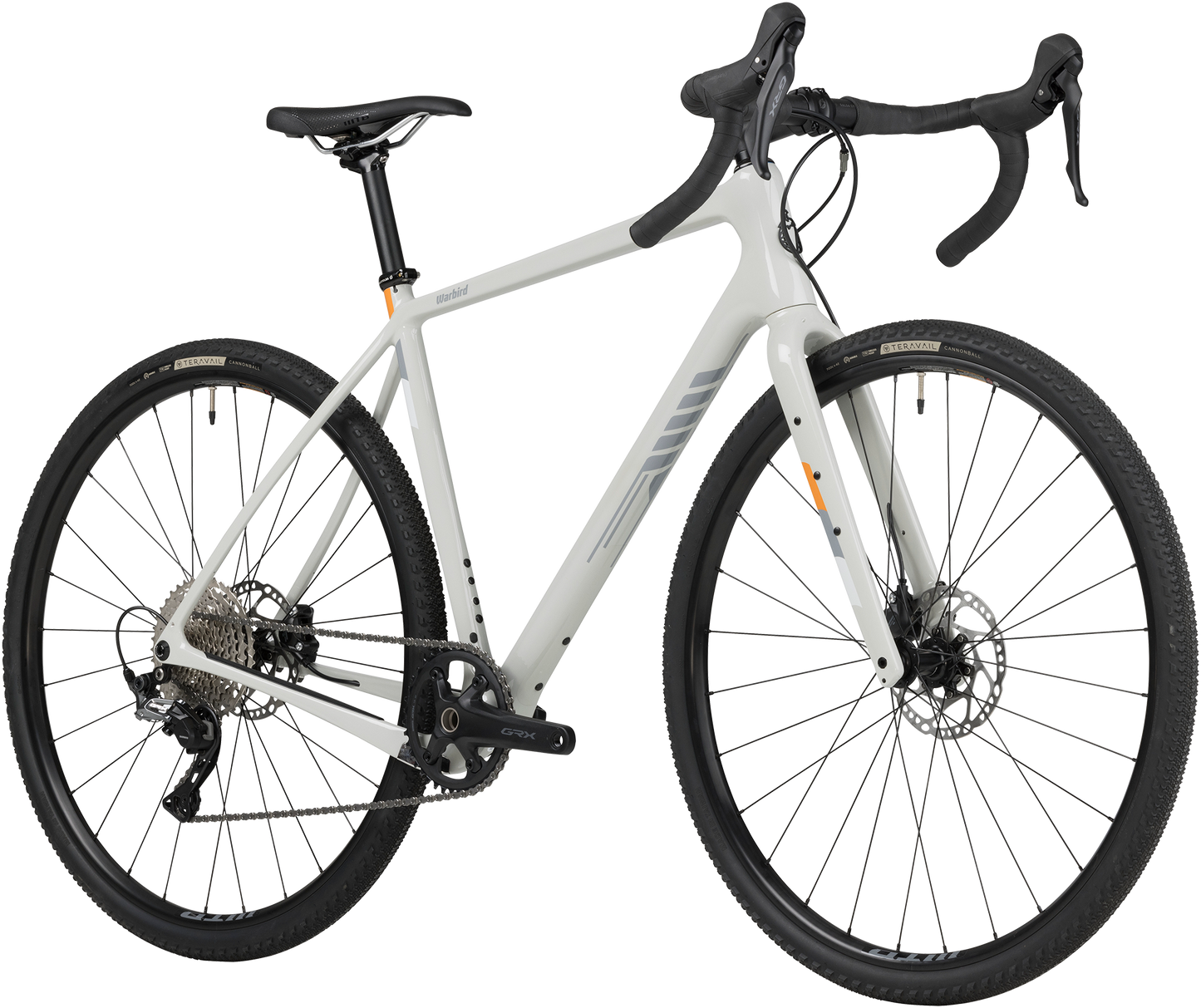

Warbird C GRX 600 1x is a carbon gravel bike designed to win races, but it’s built for much more than just speed. The compliant carbon frame with our gravel bike geometry and Class 5™ Vibration Reduction System (VRS) is comfortable on unmaintained roads. Extra cargo mounts on the fork, top tube, and down tube allow you to push more miles between resupplies or take light and fast bikepacking journeys. Dual wheel size compatibility gives you options for dialing in ride setups based on the course at hand. Shimano’s acclaimed GRX 600 1x group tops it all off with smooth and predictable performance on roads that are anything but. There are thousands of miles of backroads waiting to be explored—let Warbird be your guide.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Details

Build Kit

Frameset

Frame

Warbird Carbon

Color

Light Gray

Fork

Waxwing

Rear Shock

N/A

Components

Headset

Cane Creek 40

Seatpost

Salsa Guide

Stem

Salsa Guide

Grips/Bar Tape

Anti-Slip Silicone handlebar tape

Saddle

WTB SL8 Medium Steel SL

Handlebar

Salsa Cowbell

Drivetrain

Front Derailleur

N/A

Rear Derailleur

Shimano GRX RX812

Cassette

Shimano M5100, 11–42t, 11-speed

Chain

Shimano HG601

Crankset

Shimano GRX RX600, 40t -OR- FSA Omega MegaExo, 40t

Shifter

Shimano GRX RX600

Brake Calipers

Shimano GRX RX400

Rotors

Shimano RT64 rotors (Center Lock, 160 mm)

Wheels

Front Wheel

Shimano RS470 12 x 100 mm hub -OR- Novatec D981SB-CL-12 12 x 100 mm hub, WTB ST i23 TCS rim, 28h

Rear Wheel

Shimano RS470 12 x 142 mm hub -OR- Novatec D982TSB-CL-X12 12 x 142 mm hub, WTB ST i23 TCS rim, 28h

Front Tire

Teravail Cannonball 700c x 42 mm, tubeless compatible, Durable casing

Rear Tire

Teravail Cannonball 700c x 42 mm, tubeless compatible, Durable casing

Weight

Complete Bike

21 lb 8 oz (56 cm frame)

Geometry

Geometry Diagram
Size49cm52.5cm54.5cm56cm57.5cm59cm61cm
A. Effective Top Tube 499.0 525.0 545.0 560.0 575.0 590.0 610.0
B. Stand Over 670.2 714.48 744.3 770.11 785.96 808.4 830.55
C. Reach 360.24 368.13 371.97 381.19 390.42 399.65 407.74
D. Stack 517.85 547.09 565.97 584.85 603.73 622.61 641.5
E. Total Seat Tube Length 390.0 440.0 475.0 510.0 520.0 545.0 570.0
F. Headtube Length 90.0 120.0 140.0 160.0 180.0 200.0 220.0
G. Headtube Angle
71.0
70.75
70.75
70.75
70.75
70.75
70.75
H. Seat Tube Angle
75.0
74.0
73.0
73.0
73.0
73.0
72.5
I. BB Drop 70.0 70.0 70.0 70.0 70.0 70.0 70.0
K. Chainstay Length 430.0 430.0 430.0 430.0 430.0 430.0 430.0
L. Fork Length Axle to Crown 405.0 405.0 405.0 405.0 405.0 405.0 405.0
M. Fork Offset 50.0 50.0 50.0 50.0 50.0 50.0 50.0
N. Wheelbase 996.14 1011.96 1022.39 1038.21 1054.03 1069.85 1084.54
Crank Arm Length 165.0 170.0 170.0 172.5 172.5 175.0 175.0
Handlebar Width 38.0 40.0 42.0 44.0 46.0 46.0 46.0
Recommended Rider Height 142.0 - 157.0 155.0 - 165.0 162.0 - 173.0 170.0 - 180.0 178.0 - 188.0 185.0 - 93.0 190.0
Stem Length 70.0 70.0 80.0 90.0 90.0 100.0 110.0

Measurements based on:

  • A Warbird Carbon Fork which is 405 x 50mm offset
  • A 700c x 32mm tire measuring 698mm in diameter
  • Standover for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center

Frame Specs

  • Design Wheel/Tire Sizes 622 - 32 (700 x 32mm)
  • Alternate Wheel/Tire Sizes 622 – 32-45 (700c x 32–45mm / 1.2–1.8”) / 584 – 47-51 (650b x 47mm–51mm / 1.85–2.0”)
  • Max Tire Outer Diameter 700c: 716mm / 650b: 696mm (Some front derailleurs may reduce tire clearance. Check manufacturer’s specifications to confirm clearance before installing.)
  • Suspension Fork Length (Travel) 436.7mm axle-to-crown (40mm travel)
  • Rigid Fork Length 405mm
  • Fork Offset 50mm
  • Rear Spacing 142mm
  • Rear Axle Size M12 x 167L, TP = 1.5, TL = 20mm
  • Front Brake (Rotor) Flat mount 160, flat mount rear standard, 35mm thickness, 42mm bolt length
  • Headset - Upper IS41
  • Headset - Lower IS52
  • Front Spacing 12 x 100 mm TA
  • Front Axle Size M12 x 120L, TP = 1.5, TL = 12mm
  • Crown Race Integrated SHIS 40, 36° angle
  • Stem Clamp Ø28.6mm
  • Seatpost 27.2mm
  • Seatpost Clamp 32.0mm
  • Derailluer Hanger Hanger 465, QBP# FS2322
  • Bottom Bracket BB86 PressFit
  • Crankset (Max Ring) 1x: 44t max; 2x: 52/36t max, 46/30t minimum
  • Accessory Mounts Rack Mounts 165 mm Low-rider compatible. Salsa Down Under rack recommended; Downtube Accessory Mount: Yes, one pair; Toptube Mounts: Yes, compatible with Salsa Toptube bag; Three-Pack Mounts: One mount per fork leg
  • Bottle Mounts Frames up to 54cm: 2 in main triangle, frames 56cm and larger: 3 in main triangle
  • Front Fender Mounts Yes, required fender hardware included
  • Rear Fender Mounts Yes, required fender hardware included

Additional Features

Class 5 VRS

The Class 5™ Vibration Reduction System has specially shaped seatstays with a tall, thin, vertically oriented profile that promotes vertical compliance by allowing the seatstays to "flex" outwards on impacts. The horizontally oriented chainstays work to resist torque and maintain a laterally stiff rear end. The seatstays and chainstays lack bridges, furthering the full length of the stays to contribute to flexibility. And a rear thru-axle delivers precise tracking while allowing the seatstays to provide that incredible compliance

Interior Junction Control Molding Technology

We use internal molds at all the main front triangle junctions during layup and curing. This allows for precise control of wall thickness and inner wall smoothness in these areas. This process increases compaction and reduces voids and wrinkles in critical high stress zones. The end result is a top-quality carbon frame that delivers consistent high performance

Warbird Geometry

Warbird features the latest evolution of our already industry leading gravel racing geometry. Warbird places the rider in a position that can be maintained for hours on end over bumpy B-roads and loose surfaces, drastically reducing fatigue. A low bottom bracket and stable wheelbase help keep the tires planted and boost confidence. Long top tubes paired with short stems provide increased stability at high speed and on rough descents

Waxwing Fork

This fork features carbon construction with an aluminum steerer and utilizes a 12 x 100 mm thru axle for true tracking and flat mount brake for quick setup. Most importantly, the fork includes an incredible array of accessory features: Three-Pack mounts accept either water bottle cages or Anything Cages for increased hydration or gear carrying capacity / Mid-blade mounts allow the attachment of our Down Under Low Rider Rack for front pannier use / Internal Dynamo Hub Cable Routing means clean cable routing for those upgrading to dynamo front hubs / Fender mounts mean more pleasant riding in rainy weather, allowing you to tack on more training miles

700c x 42 mm Wheel/Tire Spec

For faster acceleration and overall speed

Dual Wheel Size Compatible

Warbird fits up to 700c x 45 mm OR 650b x 2.0" wheels/tires. We offer models with each spec so you can choose the wheel size that best meets your needs, or set up a second wheel set so your Warbird is optimized for the race course at hand

Integrated Toptube Bag Mount

Bolt on your Salsa EXP Series Top Tube Bag for secure connection and elimination of strap wear

Generous Water Bottle Capacity

Helps you stay hydrated during ultra-endurance training rides and races. 2–3 bottle mounts inside main triangle (56 cm and above receive 3), 1 accessory mount on underside of downtube, 2 bottle mounts possible on fork via Three-Pack mounts

Internal Sleeved Cable Routing

Helps you stay hydrated during ultra-endurance training rides and races. 2–3 bottle mounts inside main triangle (56 cm and above receive 3), 1 accessory mount on underside of downtube, 2 bottle mounts possible on fork via Three-Pack mounts

Refined Drivetrain Compatibility

Designed to accept 1x, 2x, and current electronic offerings

Stealth Dropper Post Compatible

Accepts 27.2 mm dropper posts for more confident descending at high speeds on rough, unpredicatable gravel roads. Internal stealth routing when running 1x setups

Fender Mounts

Fenders allow for longer, more pleasant rides in wet weather

Rear Rack Friendly

Compatible with the Salsa Wanderlust Rack when using the optional Salsa Rack-Lock seat collar

FAQ

Can I run fenders on the Warbird?

Yes, Warbird will fit up to 700c x 38mm tires or 650b x 47mm tires with fenders.

Can I use a suspension fork on this frame?

Yes, this frame was designed and tested for use with a gravel suspension fork with an axle-to-crown length up to 436.7mm (typically 40 mm of travel). Check the fork manufacturer’s specifications to ensure the model and travel combination you intend to use is equal to or less than this length. Using a longer length fork will void the frame warranty and could result in frame failure.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.
