• Salsa Stormchaser Single Speed bike side view, silver color, on white background

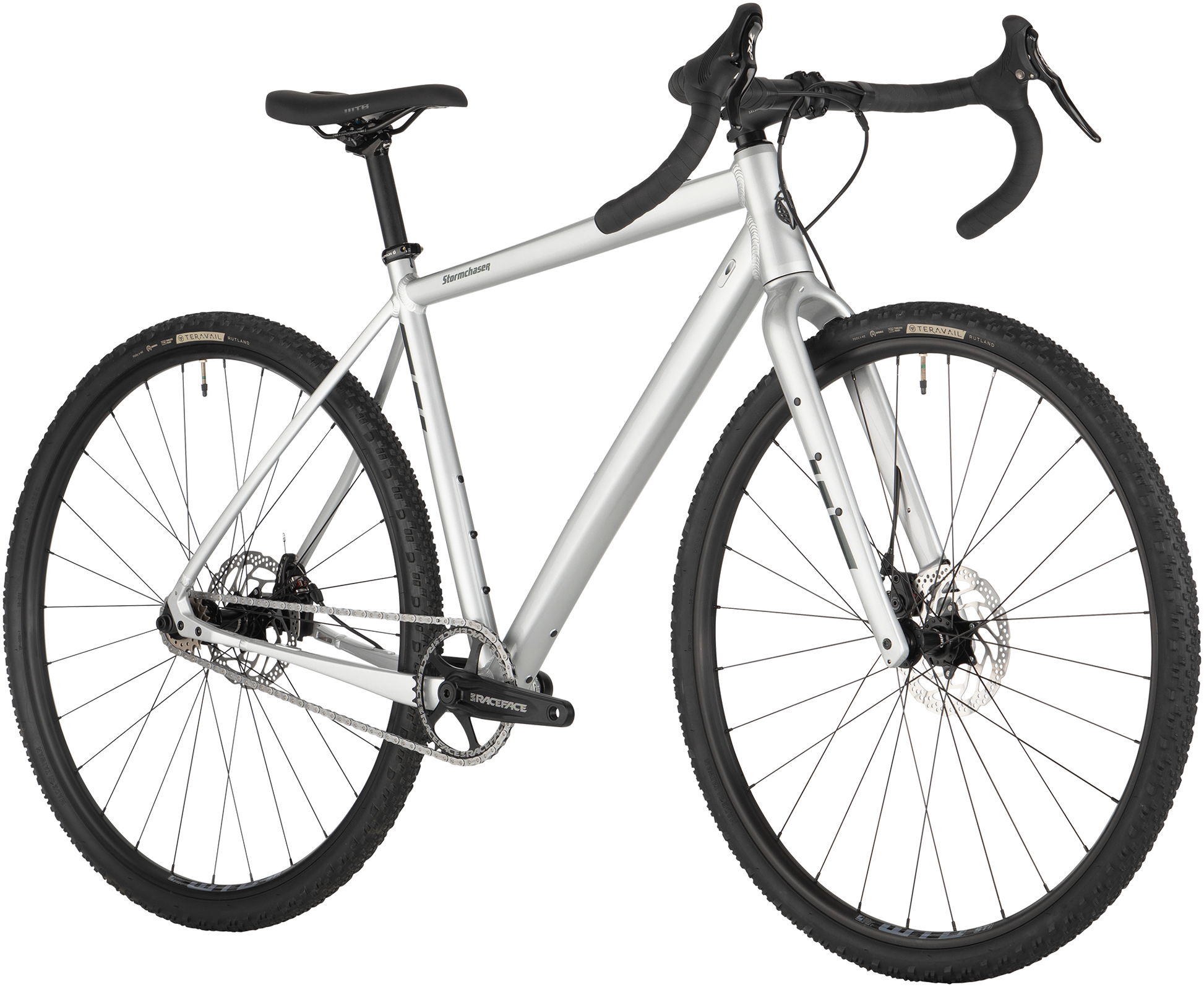

  • Salsa Stormchaser Single Speed bike three quarter front view, silver color, on white background
  • Salsa Stormchaser Single Speed bike three quarter front view, silver color, on white background
1 3

Stormchaser Single Speed

Stormchaser Single Speed

$1,799.00 USD
$1,899.00 USD $1,799.00 USD
Sale
Size

Stormchaser is our single-speed gravel bike designed to prevail through bad weather and drivetrain-crunching conditions. The 6066-T6 alloy frame features our Class 5™ VRS (vibration reduction system) for comfort and composure on harsh roads. The compliant carbon fork comes with extra tire clearance and protection plates to prevent wear from muddy tires.

Alternator Flat Mount dropouts allow for solid single-speed setups or 1x drivetrains (with geared dropout plate, sold separately). Frame and fork mounts make it easy to carry extra food and water on long rides, while the rack and fender mounts add a layer of versatility. Stormchaser is a trusty partner for single speed enthusiasts or gravel riders who saddle up no matter what.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

1 4

Product Details

Build Kit

Frameset

Frame

Stormchaser Aluminum

Color

Silver

Fork

Stormchaser Carbon

Rear Shock

N/A

Components

Headset

FSA No.42 ACB

Seatpost

Salsa Guide, 18 mm offset

Stem

Salsa Guide

Grips/Bar Tape

Anti-Slip Gel handlebar tape

Saddle

WTB Volt Medium Steel

Handlebar

Salsa Cowchipper

Drivetrain

Front Derailleur

N/A

Rear Derailleur

N/A

Cassette

17t and 18t cogs with spacer kit

Chain

KMC Z1 Anti-Rust

Crankset

Race Face Ride, 38t

Shifter

N/A

Brake Levers

TRP RRL levers

Brake Calipers

TRP Spyre-C Flat Mount

Rotors

Shimano RT30 rotors (160 mm)

Wheels

Front Wheel

Shimano RS470 12 x 100 mm hub, WTB ST i23 700c TCS rim, 28h

Rear Wheel

Shimano RS470 12 x 142 mm hub, WTB ST i23 700c TCS rim, 28h

Front Tire

Teravail Rutland, 700c x 42 mm, Durable casing

Rear Tire

Teravail Rutland, 700c x 42 mm, Durable casing

Weight

Complete Bike

21lbs for size 56cm

Geometry

Geometry Diagram
Size49cm52.5cm54.5cm56cm57.5cm59cm61cm
A. Effective Top Tube 506.0 527.0 545.0 560.0 575.0 590.0 605.0
B. Stand Over 686.86 726.74 756.48 785.5 794.05 820.44 842.79
C. Reach 366.53 371.06 374.06 383.35 392.64 401.93 411.22
D. Stack 529.73 543.82 562.61 581.41 600.2 619.0 637.79
E. Total Seat Tube Length 390.0 440.0 475.0 510.0 520.0 545.0 570.0
F. Headtube Length 90.0 105.0 125.0 145.0 165.0 185.0 205.0
G. Headtube Angle
70.0
70.0
70.0
70.0
70.0
70.0
70.0
H. Seat Tube Angle
75.25
74.0
73.0
73.0
73.0
73.0
73.1
I. BB Drop 70.0 70.0 70.0 70.0 70.0 70.0 70.0
K. Chainstay Length 435.0- 450.0 435.0- 450.0 435.0- 450.0 435.0- 450.0 435.0- 450.0 435.0- 450.0 435.0- 450.0
L. Fork Length Axle to Crown 420.0 420.0 420.0 420.0 420.0 420.0 420.0
M. Fork Offset 51.0 51.0 51.0 51.0 51.0 51.0 51.0
N. Wheelbase 1017.5- 1032.2 1027.1- 1041.9 1037.0- 1051.8 1053.1- 1067.9 1069.2- 1084.0 1085.4- 1100.2 1101.5- 1116.3
Crank Arm Length 165.0 165.0 170.0 170.0 175.0 175.0 175.0
Handlebar Width 40.0 42.0 44.0 46.0 48.0 50.0 52.0
Recommended Rider Height 142.0 - 157.0 155.0 - 165.0 162.0 - 173.0 170.0 - 180.0 178.0 - 188.0 185.0 - 193.0 190.0
Stem Length 60.0 70.0 80.0 90.0 90.0 100.0 110.0

Measurements based on:

  • a fork measuring 420x51mm
  • a 700x42mm tire measuring 720 mm in diameter
  • standover (B) measured vertically to top of toptube from a position 50mm forward of BB center.

Frame Specs

  • Design Wheel/Tire Sizes 700c x 42 mm
  • Alternate Wheel/Tire Sizes 700c x 32–50 mm; 650b x 47–50 mm
  • Suspension Fork Length (Travel) N/A
  • Rigid Fork Length 420 mm
  • Fork Offset 51 mm
  • Rear Spacing 12 x 142 mm TA
  • Rear Axle Size M12 x 167L, TP = 1.5, TL = 20 mm (NOTE, DOES NOT FIT SALSA DEABOLT W/ LEVER. DEADBOLT UL TOOLED AXLE ONLY)
  • Front Brake (Rotor) Flat mount frame standard, 35 mm thickness, 42 mm bolt length (160 mm rotor only)
  • Headset - Upper IS41
  • Headset - Lower IS52
  • Front Spacing 12 x 100 mm TA
  • Front Axle Size M12 x 120L, TP = 1.5, TL = 12 mm
  • Crown Race Integrated SHIS 40, 36° Angle
  • Stem Clamp 28.6 mm
  • Seatpost 27.2 mm
  • Dropper Post Compatible Yes (internal)
  • Seatpost Clamp 32.0 mm
  • Front Derailleur Clamp N/A
  • Front Derailleur Type N/A
  • Derailluer Hanger Hanger 465, QBP# FS2322 (Requires geared Alternator Flat Mount Plate, QBP# FS0719, and Hanger Axle/Stud Kit, QBP# FS1181)
  • Bottom Bracket 73 mm BSA, threaded
  • Crankset (Max Ring) Single Speed: 1x crankset, 40t max, Race Face/Easton 51 mm chainline, single speed only; Geared: 1x crankset only, 38t max, 49 mm MTN chainline, 168 Q-factor min.
  • Accessory Mounts Rear Rack Mounts: Yes, universal rack rear compatible. Salsa Post-Lock seat collar required. Salsa Wanderlust Rack recommended; Downtube Accessory Mounts: One; Top Tube Mounts: Yes, compatible with Salsa EXP Series Top Tube bag; Three-Pack Mounts: One mount per fork leg; Rack Mounts: 165 mm Low-rider compatible. Salsa Down Under rack recommended.
  • Bottle Mounts Frames up to 56 cm: 2 in main triangle. Frames 57.5 cm and larger: 3 in main triangle.
  • Front Fender Mounts Yes, required fender hardware included.
  • Rear Fender Mounts Yes, required fender hardware included.

Supportive Documents

Support Document links

Additional Features

Class 5™ VRS

The Class 5™ Vibration Reduction System has specially shaped seatstays with a tall, thin, vertically oriented profile that promotes vertical compliance by allowing the seatstays to "flex" outwards on impacts. The horizontally oriented chainstays work to resist torque and maintain a laterally stiff rear end. The seatstays and chainstays lack bridges, furthering the full length of the stays to contribute to flexibility. And a rear thru-axle delivers precise tracking while allowing the seatstays to provide that incredible compliance

Gravel Race Geometry

Stormchaser features geometry similar to our Warbird gravel race bike. Stormchaser places the rider in a position that can be maintained for hours on end over bumpy B-roads and loose surfaces, drastically reducing fatigue. A low bottom bracket and stable wheelbase help keep the tires planted and boost confidence. A long top tube paired with a short stem provides increased stability at high speed and on rough descents

Multiple Wheel Size Compatibility

Stormchaser fits up to 700c x 50mm OR 650b x 50 mm wheels/tires. Choose the wheel size that best meets your needs, or set up a second wheel set so your Stormchaser is optimized for the ride at hand

Two Cogs

Stormchaser comes with both a 17t and 18t cog installed. Coupled with the sliding Alternator Flat Mount dropouts, this allows for easy gearing adjustments based on route difficulty

Abrasion Plates on Fork

Integrated plates on the fork minimize abrasion from mud and debris

Extra Mud Clearance

Stormchaser has 40% more mud clearance than Warbird (measured with a 700c x 42 mm tire)

Alternator Flat Mount Dropout

15 mm of dropout adjustability (435–450 mm)

Bottle Capacity

2–3 bottle mounts inside main triangle (57.5 cm and above can accommodate 3), 1 accessory mount on underside of downtube, 2 bottle mounts possible on fork via Three-Pack mounts

Fender Mounts

2–3 bottle mounts inside main triangle (57.5 cm and above can accommodate 3), 1 accessory mount on underside of downtube, 2 bottle mounts possible on fork via Three-Pack mounts

Wide Bar Spec

Wider handlebars improve leverage for single speeding and control in poor conditions. Bar width is relative to frame size—49 cm bikes come with 40 cm Cowchippers; 61 cm bikes come with 52 cm Cowchippers

Three-Pack Fork Mounts

Two Three-Pack mounts on the fork allow for additional water, food, and accessory storage

Front and Rear Rack Mounts

Mid-blade mounts of the fork allow for front racks such as the Salsa Down Under, designed for carrying touring panniers; also compatible with the Salsa Wanderlust rear rack when used with a Salsa Rack-Lock seatpost collar

Top Tube Accessory Mounts

Top tube bolt-on mounts are designed for Salsa EXP Series Top Tube Bag or K-Edge Top Tube Computer Mount

Internal Cable Routing

Internal tubes guide brake, shift, and dynamo cables through the frame, simplifying setup and maintenance

Stealth Dropper Post Routing

Accommodates 27.2mm dropper posts for more confident descending at high speeds on rough, unpredictable gravel roads

FAQ

What size wheels/tires can I use on this frame?

Stormchaser is designed for 700c x 32–50 mm and 650b x 47–50 mm wheels and tires.

What size tire will fit this bike?

Stormchaser can fit a maximum of 700c x 50 mm or 650b x 50 mm. The maximum tire size with fenders is 700c x 47 mm or 650b x 47 mm

Can I use a suspension fork on this frame?

Yes, this frame was designed and tested for use with a suspension fork with an axle-to-crown length up to 457 mm (typically 60 mm of travel). Check the fork manufacturer’s specifications to ensure the model and travel combination you intend to use is equal to or less than this length. Using a longer length fork will void the frame warranty and could result in frame failure. We recommend forks with 51 mm offset.

How do I take care of the Alternator Dropouts?

Periodically, we recommend that you remove the bolts and clean the dirt and grime off the hardware and the frame surfaces. Then, lightly re-grease the threaded parts and re-assemble.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

View Warranty

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
