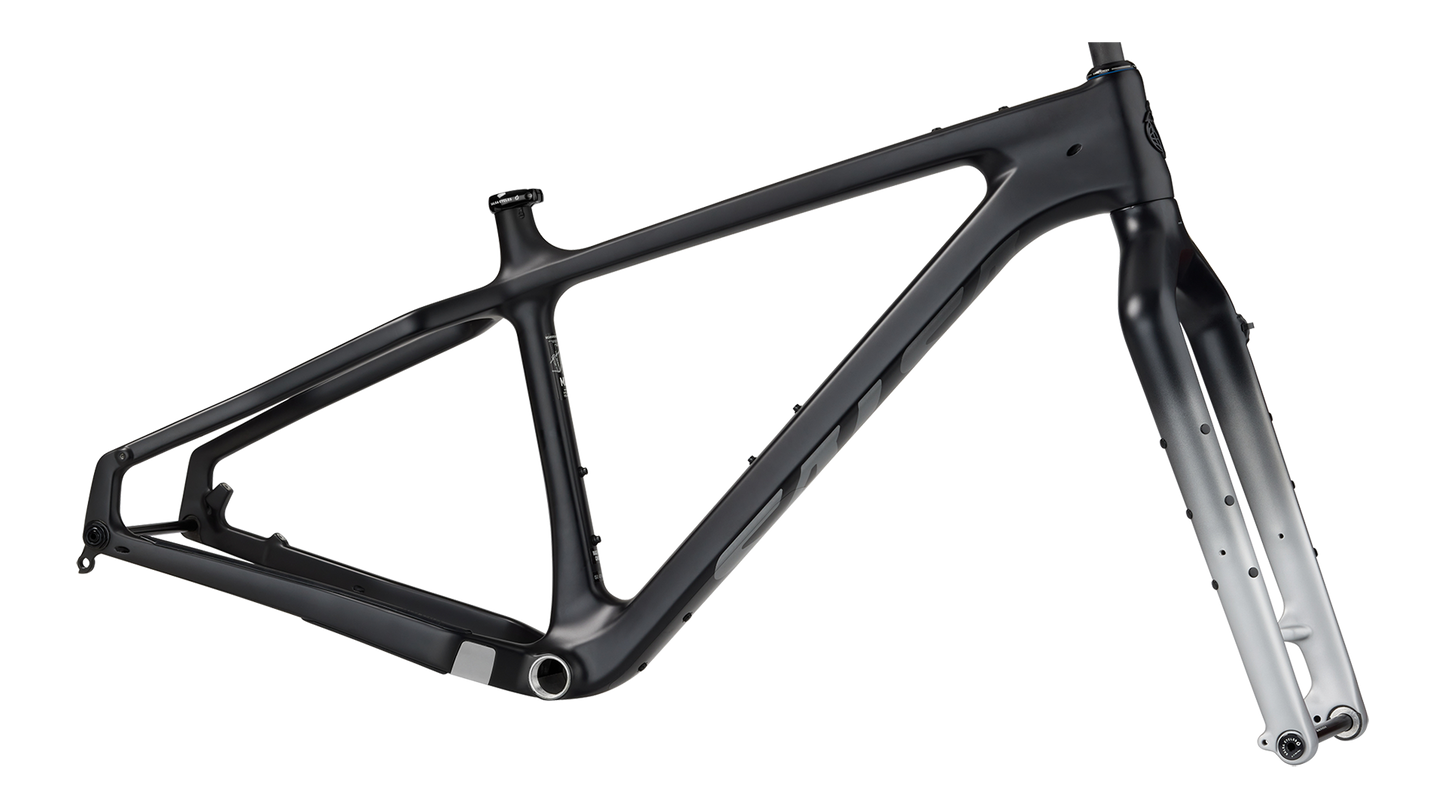

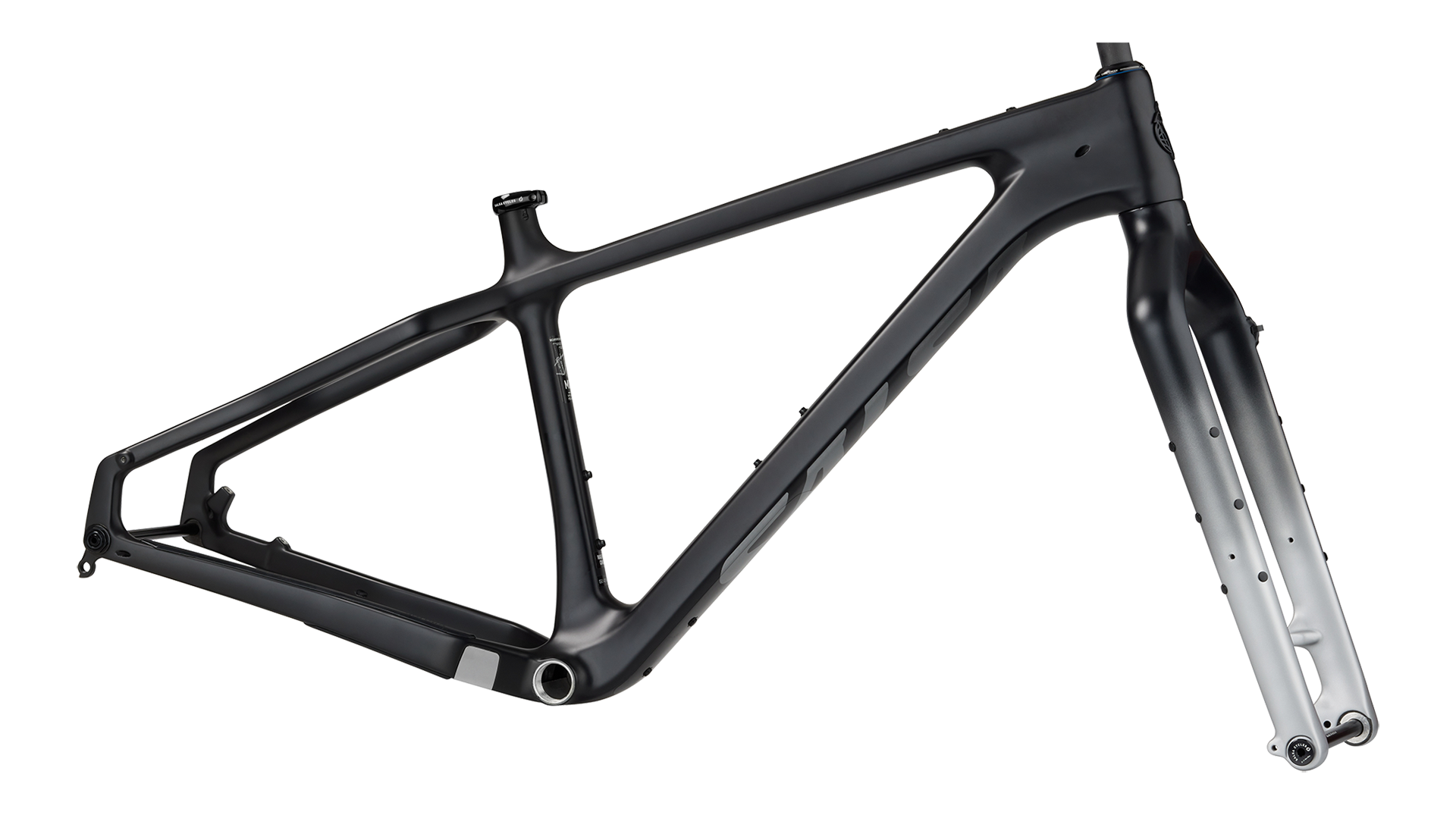

• Salsa Beargrease C Frameset side view, black with black to white fade on fork

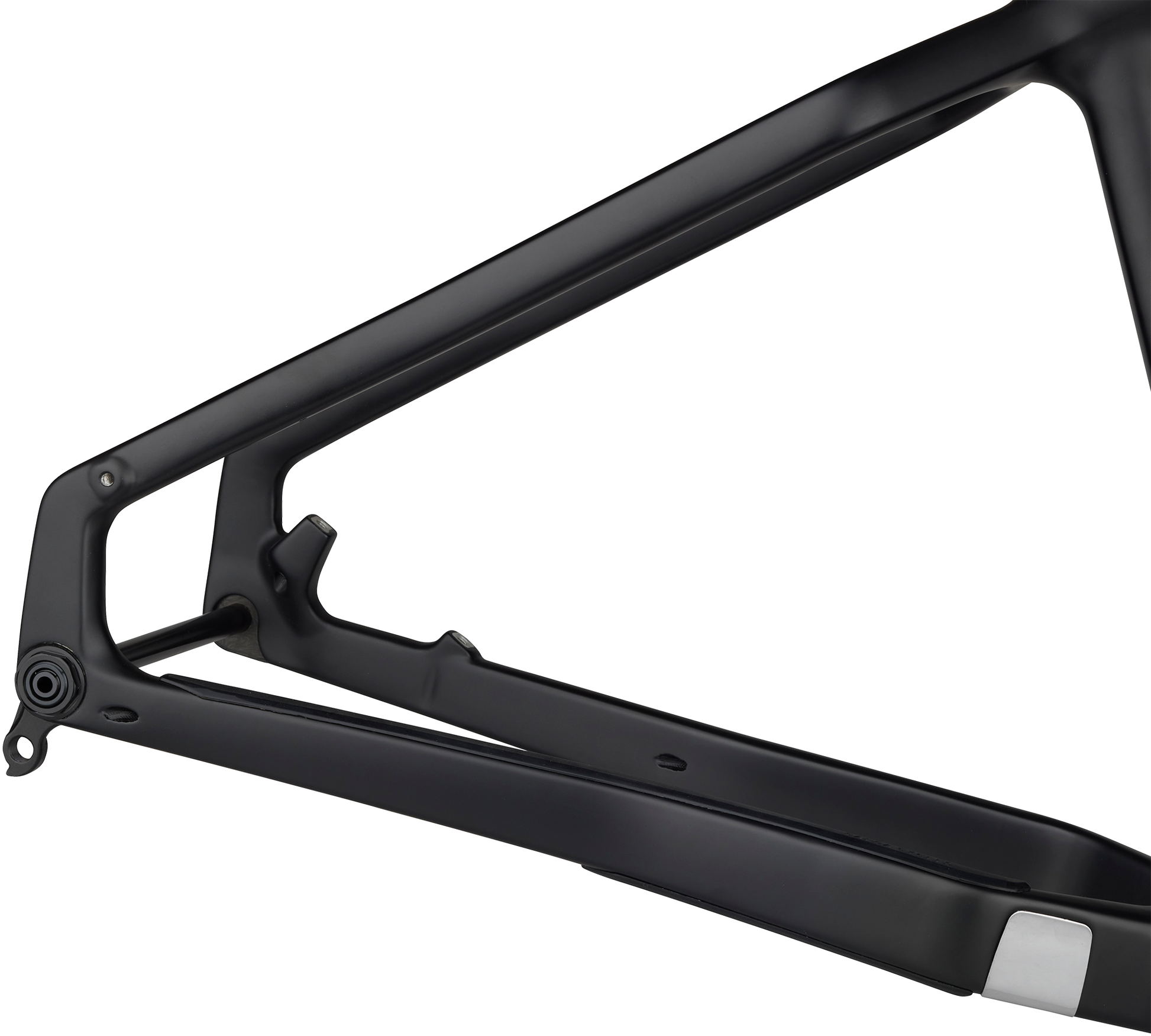

  • Salsa Beargrease C Frameset detail view of rear dropout with thru axle

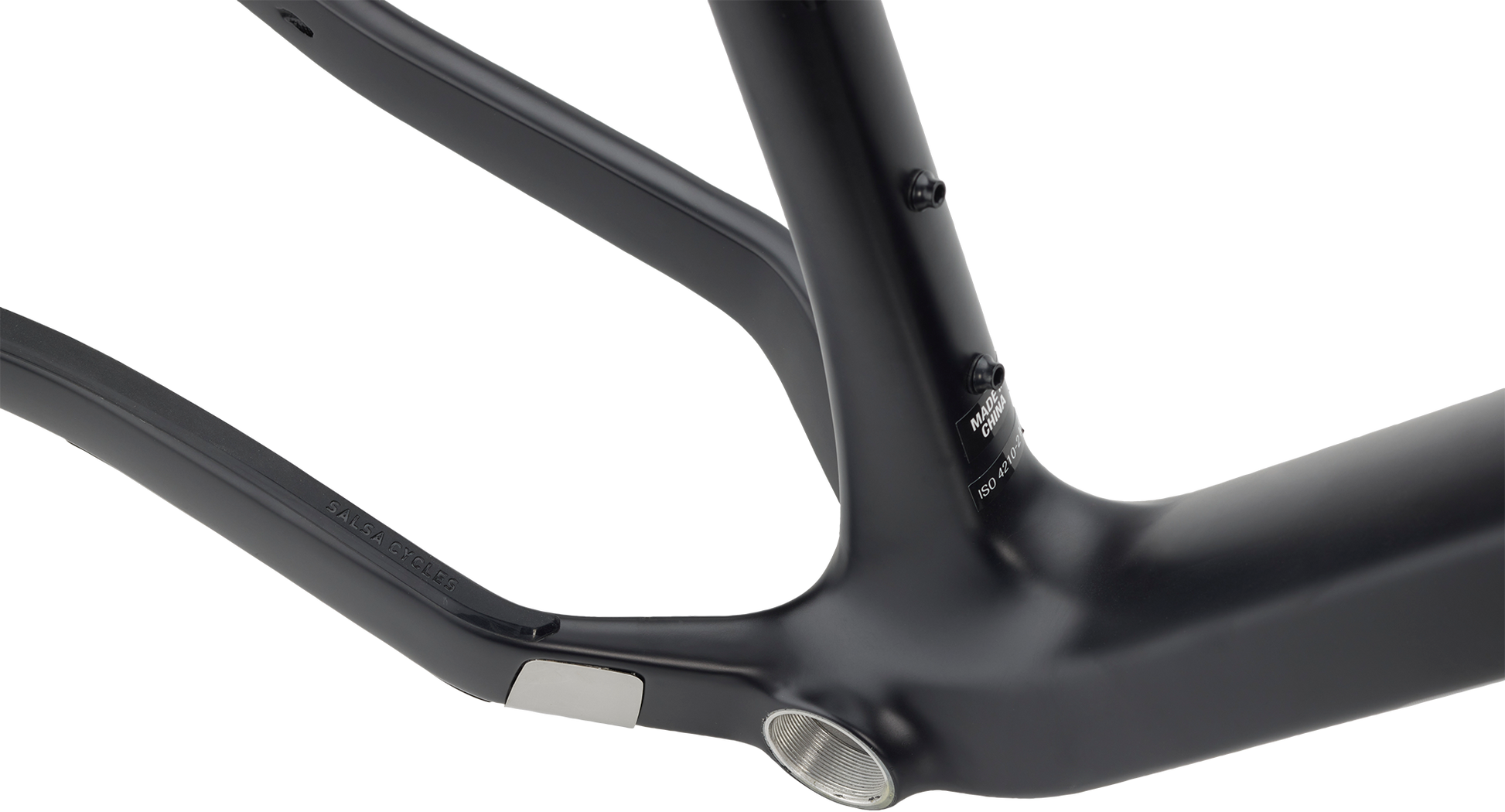

  • Salsa Beargrease C Frameset detail view of bottom bracket area

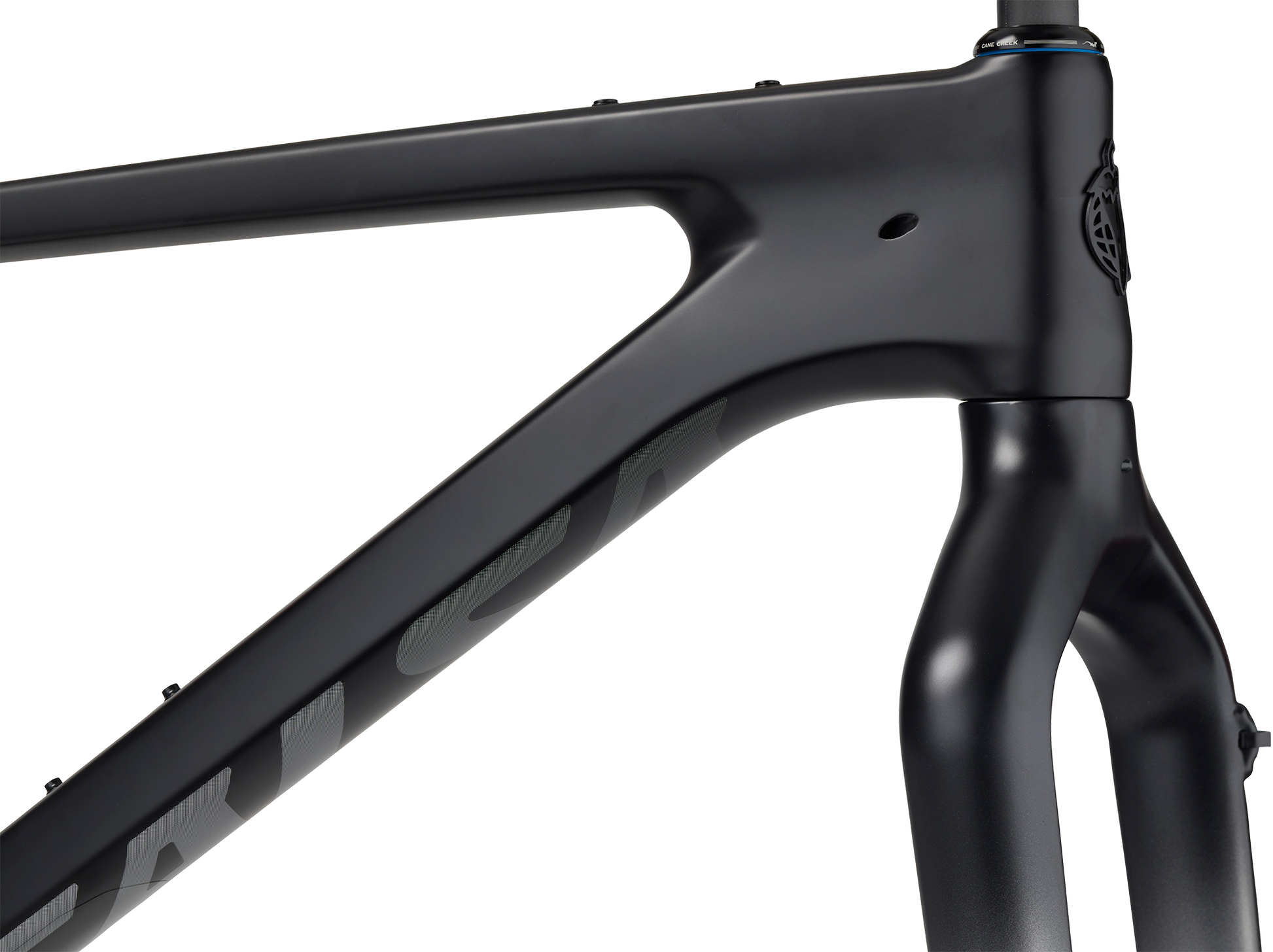

  • Salsa Beargrease C Frameset detail view of top tube, down tube, head tube, and fork crown

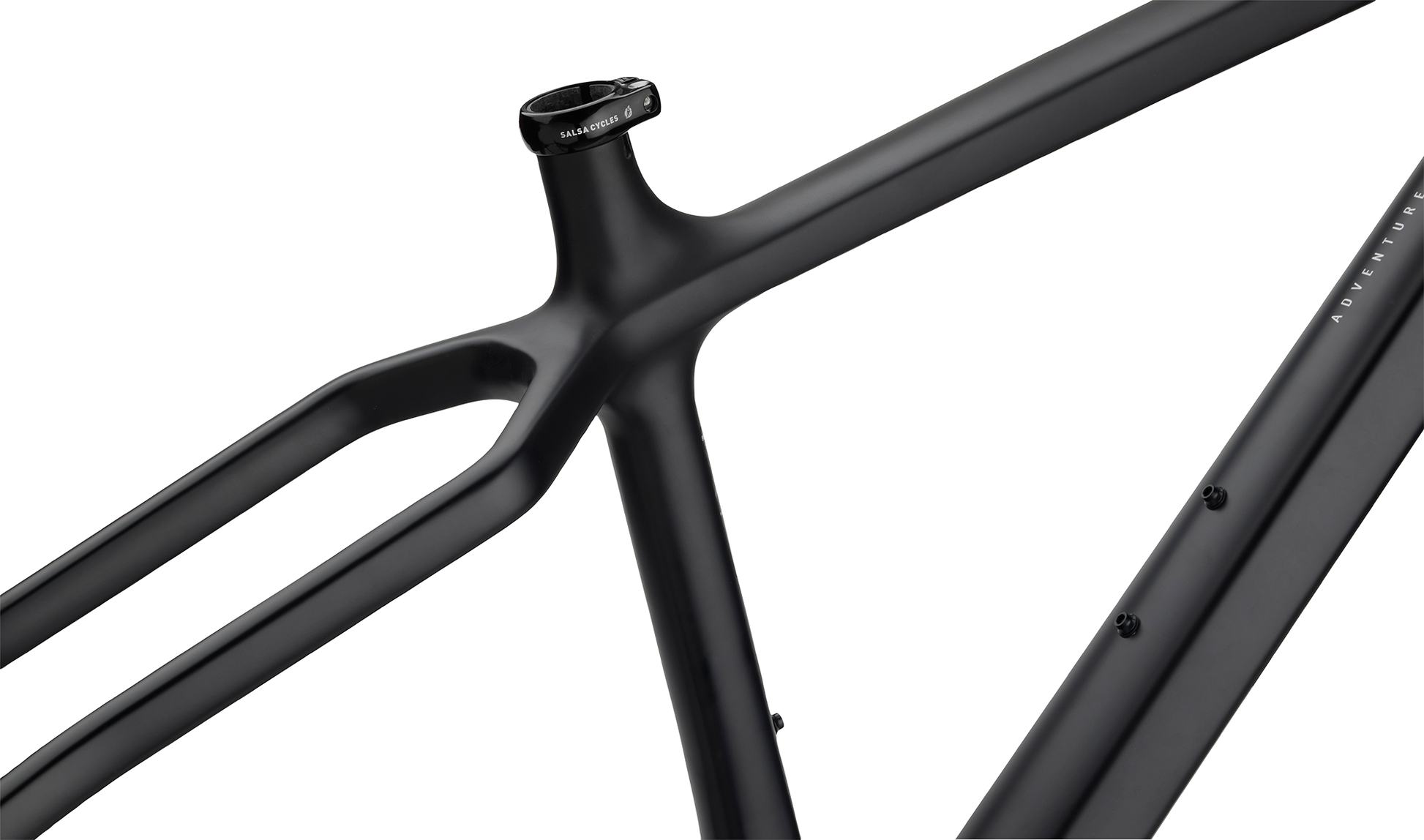

  • Salsa Beargrease C Frameset detail view of seat tube, top tube, and seat stays
1 5

Beargrease C Frameset

Beargrease C Frameset

$2,099.00 USD
$2,099.00 USD $2,099.00 USD
Size

The Beargrease carbon frameset is a lightweight chassis just begging you to build it into your speedy new trail machine. With trail-oriented geometry and an appetite for 27.5 x 4.0" tires, the Beargrease platform is nimble but sure-footed. Frame and fork cargo mounts open up the option of longer endurance rides or a bikepacking setup. Bring your favorite components to this capable fat-tire bike frame and build a groomed-snow racer, bikepacking machine, or all-season trail bike — anything is possible.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

1 1

Product Details

Build Kit

Frameset

Frame

Beargrease Carbon

Color

Black

Fork

Kingpin Carbon Deluxe

Components

Headset

Cane Creek 40 Series

Drivetrain

Wheels

Front Axle

Salsa Deadbolt UL Thru Axle 15 x 150 mm

Rear Axle

Salsa Deadbolt UL Thru Axle 12 x 197 mm

Weight

Frame

5 lb 6 oz (MD frame with fork, headset, seat collar, and axles)

Geometry

Geometry Diagram
SizeX-SmallSmallMediumLargeX-Large
A. Effective Top Tube
B. Stand Over
C. Reach
D. Stack
E. Total Seat Tube Length
F. Headtube Length
G. Headtube Angle
H. Seat Tube Angle
I. BB Drop
K. Chainstay Length
L. Fork Length Axle to Crown
M. Fork Offset
N. Wheelbase
Crank Arm Length
Handlebar Width
Recommended Rider Height
Stem Length

Measurements based on:

  • A Salsa Kingpin fork which is equivalent to an average 100mm travel suspension fat bike fork at 25% sag
  • A 27.5 x 3.8"" tire measuring 755mm in diameter
  • Standover is measure from top of toptube to ground 50mm forward of BB center

Frame Specs

  • Design Wheel/Tire Sizes 27.5 x 3.8" on an 82mm rim
  • Alternate Wheel/Tire Sizes 26 x 3.8–4.6" on up to a 100mm rim / 27.5 x 3.0-4.0 on up to a 82mm rim / 29 x 2.25–3.0"
  • Suspension Fork Length (Travel) 511mm (100mm)
  • Rigid Fork Length 483–486mm
  • Fork Offset 50–51mm
  • Axle to Crown 483mm
  • Rear Spacing 197 x 12mm thru-axle
  • Rear Axle Size ø12 x 220L, TP= 1.5, TL = 20
  • Front Brake (Rotor) 74mm post (160–203mm)
  • Headset - Upper IS41
  • Headset - Lower IS52
  • Front Spacing 150 x 15mm thru-axle
  • Front Axle Size ø15 x 198L, TP=1.5, TL=9
  • Steerer Tube 28.6mm, Tapered
  • Crown Race 40mm
  • Seatpost ø30.9mm
  • Dropper Post Compatible Yes, internal (stealth)
  • Seatpost Clamp ø35.4mm
  • Front Derailleur Type Not compatible
  • Derailluer Hanger FS2322
  • Bottom Bracket 100mm BSA threaded
  • Crankset (Max Ring) Fat bike 75 chainline, 1x only (32t)
  • Accessory Mounts Under Downtube Mount Pairs: 1; Top Toptube Mount Pairs: 1; Rear Rack Mounts, Lower: Yes, use Salsa Alternator Rack 170/177; Rear Rack Mounts, Upper: No, use Rack-Lock; Front Rack Mounts: 165mm Low Rider
  • Bottle Mounts XS = 1, SM–XL = 2
  • Front Fender Mounts Yes, shared with rack
  • Rear Fender Mounts No

Supportive Documents

Support Document links

Additional Features

High-Modulus Carbon Fiber Frame

This material offers improved stiffness, better vibration damping, excellent durability, and weight savings compared to other frame materials

Beargrease Geometry

A long front/center, short stem, and wide bars, and 440 mm chainstays create room to move and add confidence while maneuvering on tight trails. This geometry results in a fat bike that rides like a trail bike. It is stable, steers well in loose conditions, and remains nimble and agile despite the massive wheels and tires. The low bottom bracket height is also key to keeping the rider’s center of gravity low, which makes dabbing, dismounting, and remounting easier

27.5 x 4" Wheel & Tire Size

Beargrease rolls on 27.5 x 3.8" wheels and tires. For groomed snow or dirt, this diameter provides increased rollover, a longer contact patch, and the flotation of a 3.8" tire without the added rolling resistance when compared to a 26" wheel

Kingpin Deluxe Fork

Featuring a full carbon design, the Kingpin Deluxe Fork is lightweight and durable, and features an amazing array of accessory mounts to help you make the most of your Beargrease: Dual sets of Three-Pack mounts on each leg accept bottle cages or our Anything Cage accessory / Lowrider mounts work with our Down Under front rack for a traditional touring setup / Internal dynamo hub wire routing keeps the front end clean for those upgrading to dyno hubs.

Front Wheel & Tire Options

The fork included with this frame works with the following wheel and tire combinations: 26 x 3.8–5" on up to a 100 mm rim / 27.5 x 3.0–4.0" on an 80 mm rim / 29 x 2.3–3.0"" on a 50 mm rim

Rear Wheel & Tire Options

The Beargrease Carbon frame is compatible with the following wheel, tire, and rim sizes: 26 x 4.3–4.6" on up to a 100 mm rim / 27.5 x 3.0–4.0" on an 80 mm rim / 29 x 2.3–3.0" on a 50 mm rim

Optimal Drivetrain Design with Narrow Q-Factor Cranks

The Beargrease Carbon frame is designed for the best of all drivetrain performance while maintaining narrow fat bike crank arms for less knee stress: 197 mm symmetrical rear end for modern rim and tire fit / 100 mm threaded bottom bracket / Rider-friendly narrow Q-factor cranks / 1x optimized frame design / Up to a 32t max chainring

Internal Sleeved Cable Routing

The Beargrease Carbon frame features fully sleeved, internal cable routing. This improves shifting performance in poor conditions, increases time between maintenance intervals, and makes running new cables and housing a breeze

Dropper Post Compatible with Stealth Routing

The Beargrease Carbon frame features fully sleeved, internal cable routing. This improves shifting performance in poor conditions, increases time between maintenance intervals, and makes running new cables and housing a breeze

Rear Rack Compatible

Designed for use with the Salsa Alternator 170177 Rear Rack, with the addition of a Salsa Rack-Lock seat collar

Multiple Accessory Frame Mounts

Beargrease features numerous accessory mounts: Top tube mounts accommodate K-Edge Top Tube Mount for bike computers or the Salsa EXP Series Direct Mount Top Tube Bag / 2 water bottle mounts inside frame triangle / 1 accessory mount underneath downtube

FAQ

Can I run a front rack on this frame?

The Beargrease models that feature Kingpin Deluxe and Kingpin forks feature mid-blade mounts for Salsa Down Under Rack and Down Under HD rack compatibility.

Can I run a rear rack on this frame?

Yes, with the lower rack bosses in the frame and a Salsa 35.4 Rack Lock Seat Collar you can run the Salsa Alternator 170/177 rear rack. While the back end of the Beargrease is 197mm spaced, we designed the stays a narrow width for l heel clearance with big boots, thus it uses the Alternator 170/177 rear rack

What width cranks will this frame accept?

Though the new frame features a 197mm rear spacing it is still compatible with narrow q-factor cranks designed around a 100mm threaded BB with a nominal 75mm chainline. Both Race Face and SRAM offer cranks like this.

Can I run a front derailleur on this frame?

No, we have designed the Beargrease around a 1x only setup with 32t max chainring. If you would like a fat bike with front derailleur compatibility, consider the Mukluk.

What wheel and tire sizes can I use on this frame?

The Beargrease is capable of running 27.5" wheels with tires 3.0–4.0" on up to an 82mm rim, as well as 26" wheels with tires 3.8–4.6" on up to a 100mm rims, and 29" wheels with 2.25–3.0" tires on up to a 50mm rims.

Can I use a suspension fork on this frame?

Yes, you can run any of the options from RockShox or Manitou that have an axle to crown of 511mm, an average 100mm fork, no adapters needed.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.
