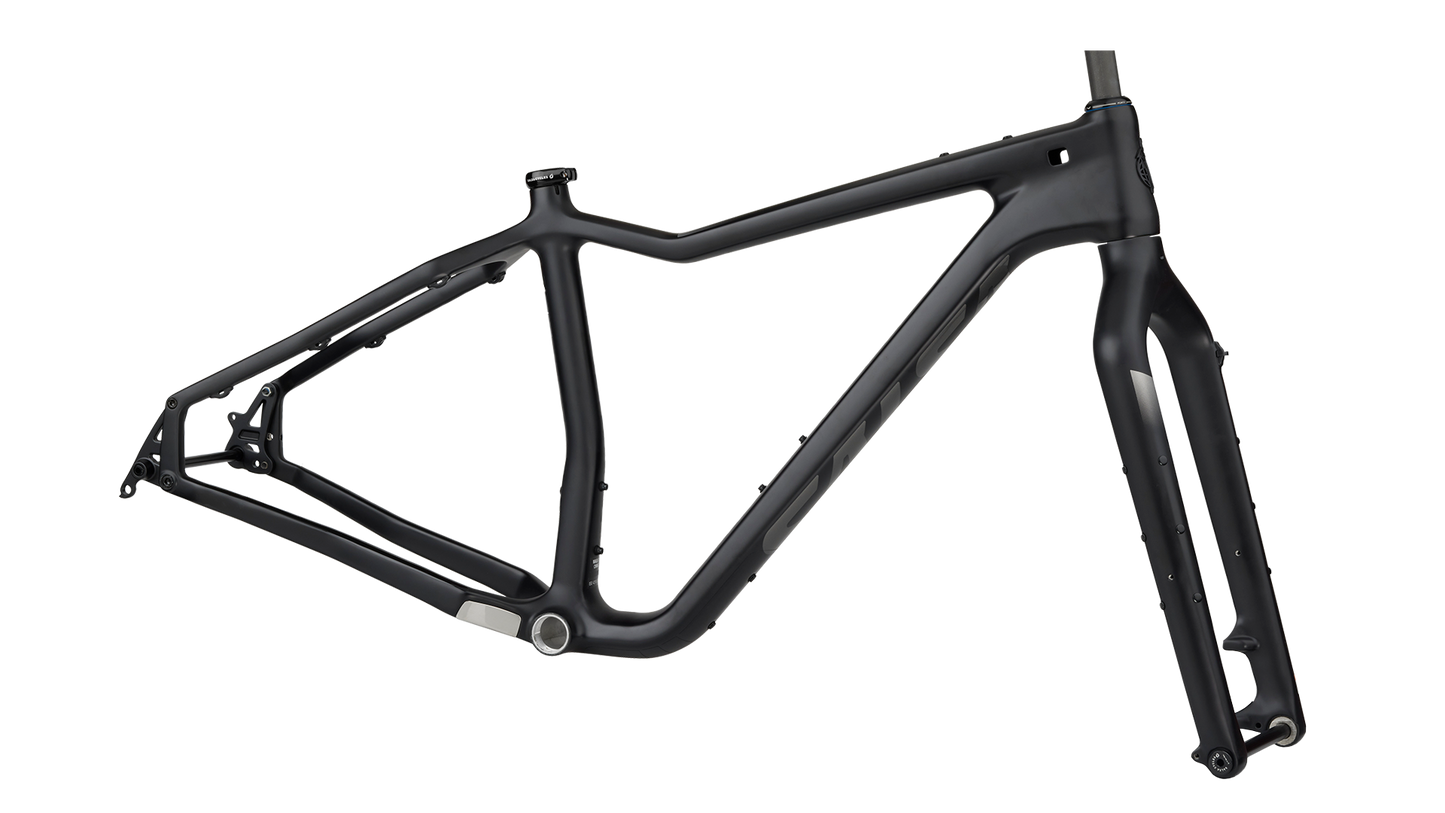

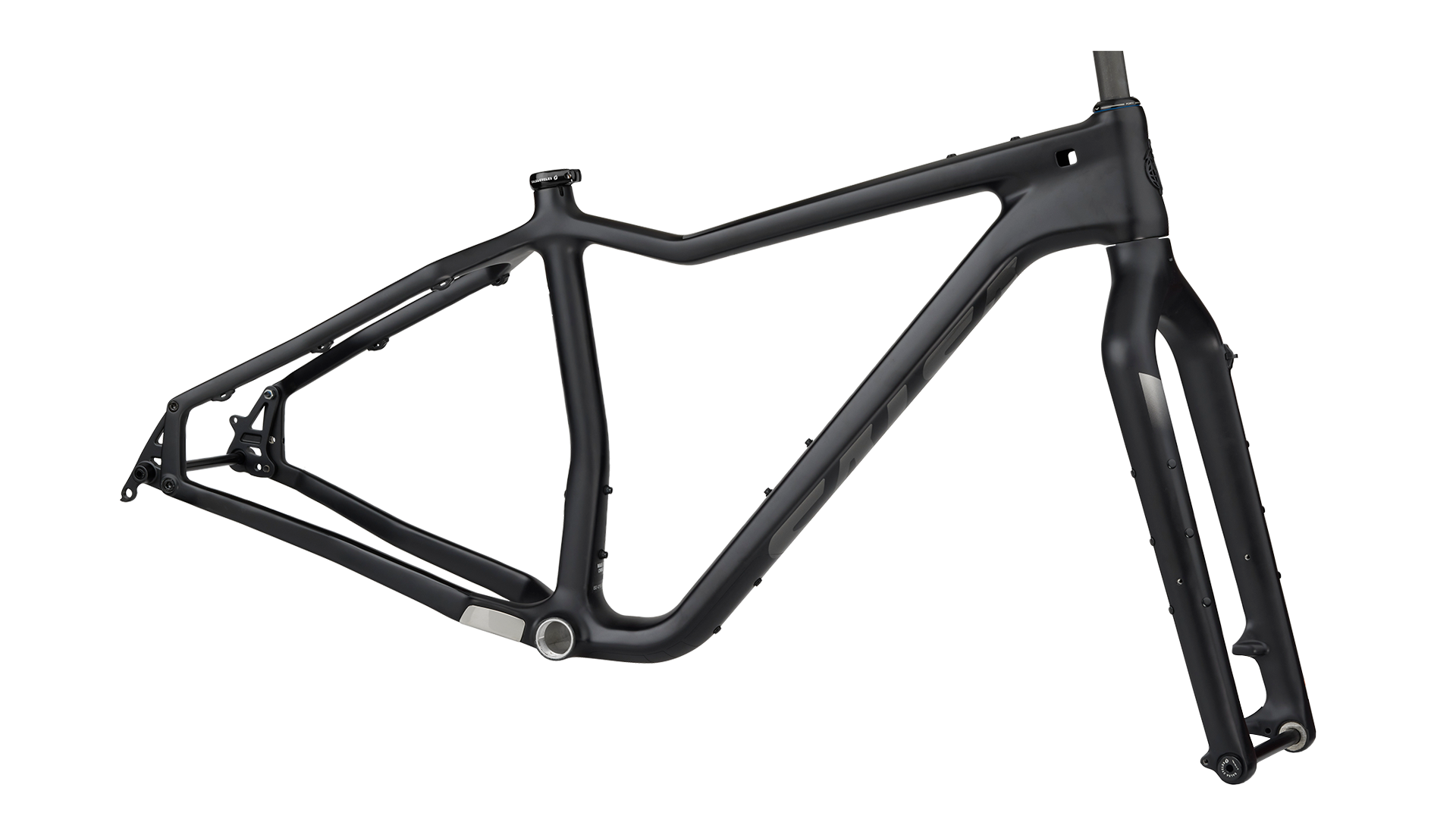

• Salsa Heyday! C Frameset, black, side view on white background

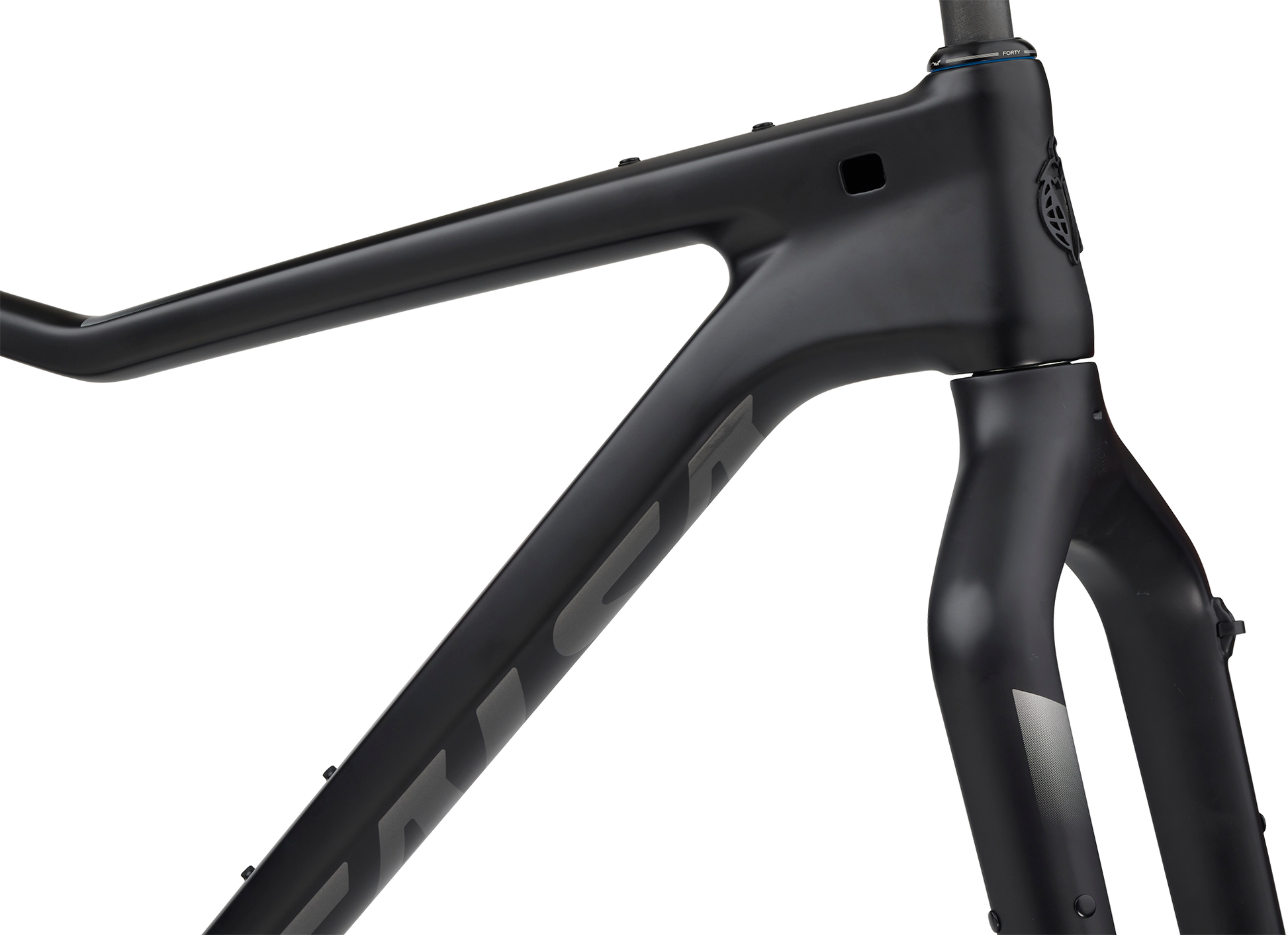

  • Salsa Heyday! C Frameset, detail view of headtube, top tube, down tube, and fork crown

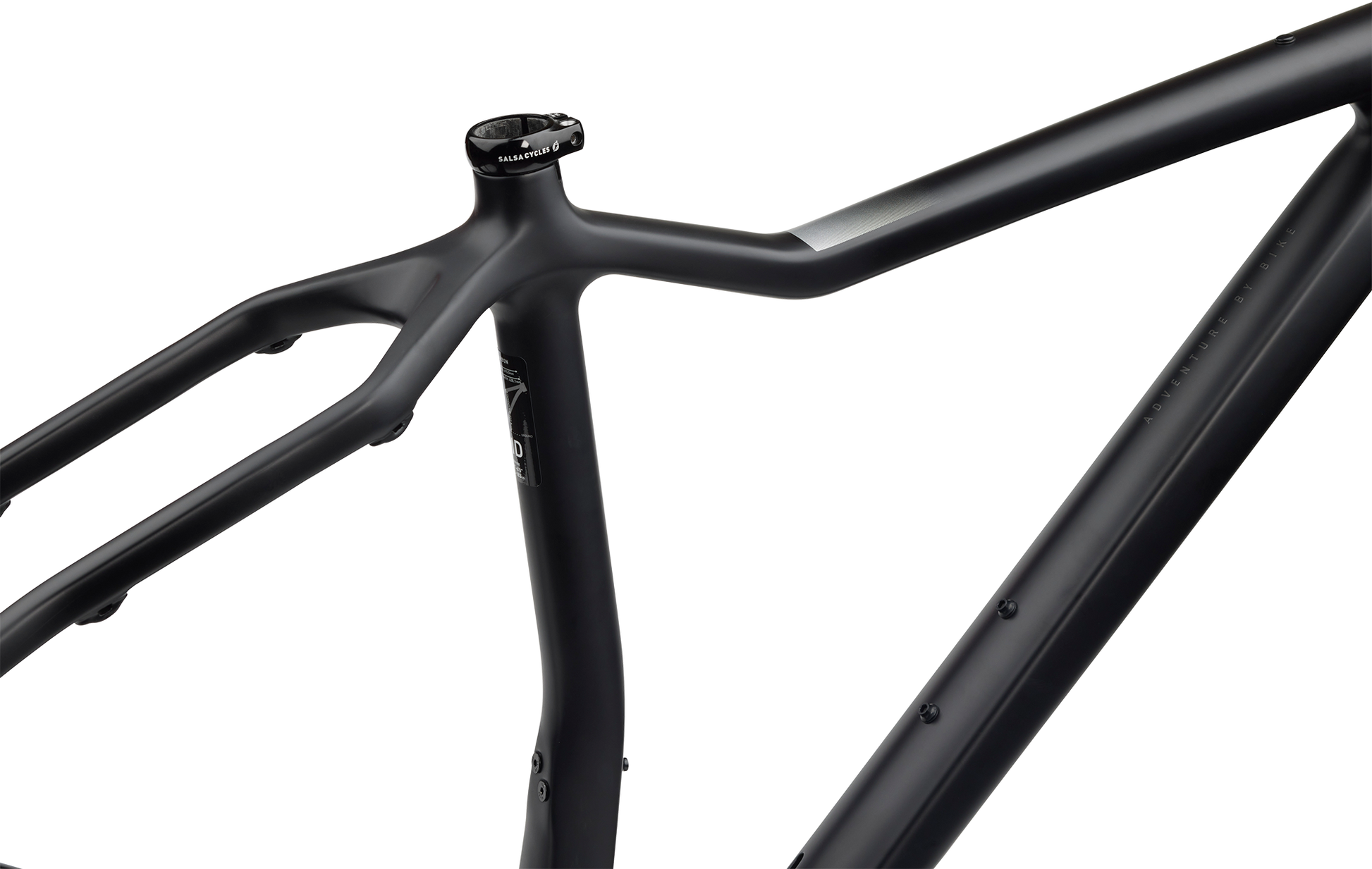

  • Salsa Heyday! C Frameset, detail view of top tube, seat tube, and seat stays

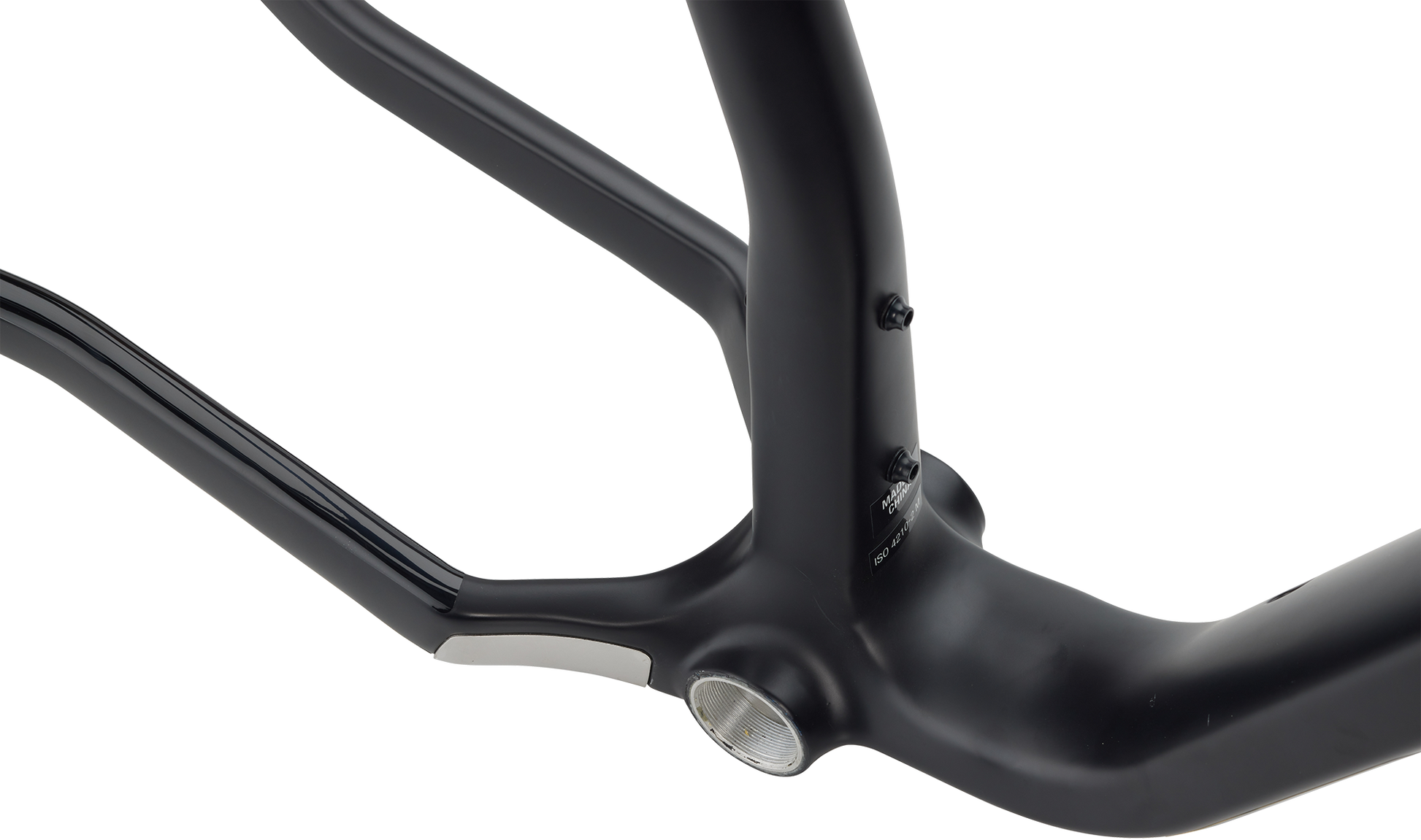

  • Salsa Heyday! C Frameset, detail view of bottom bracket area

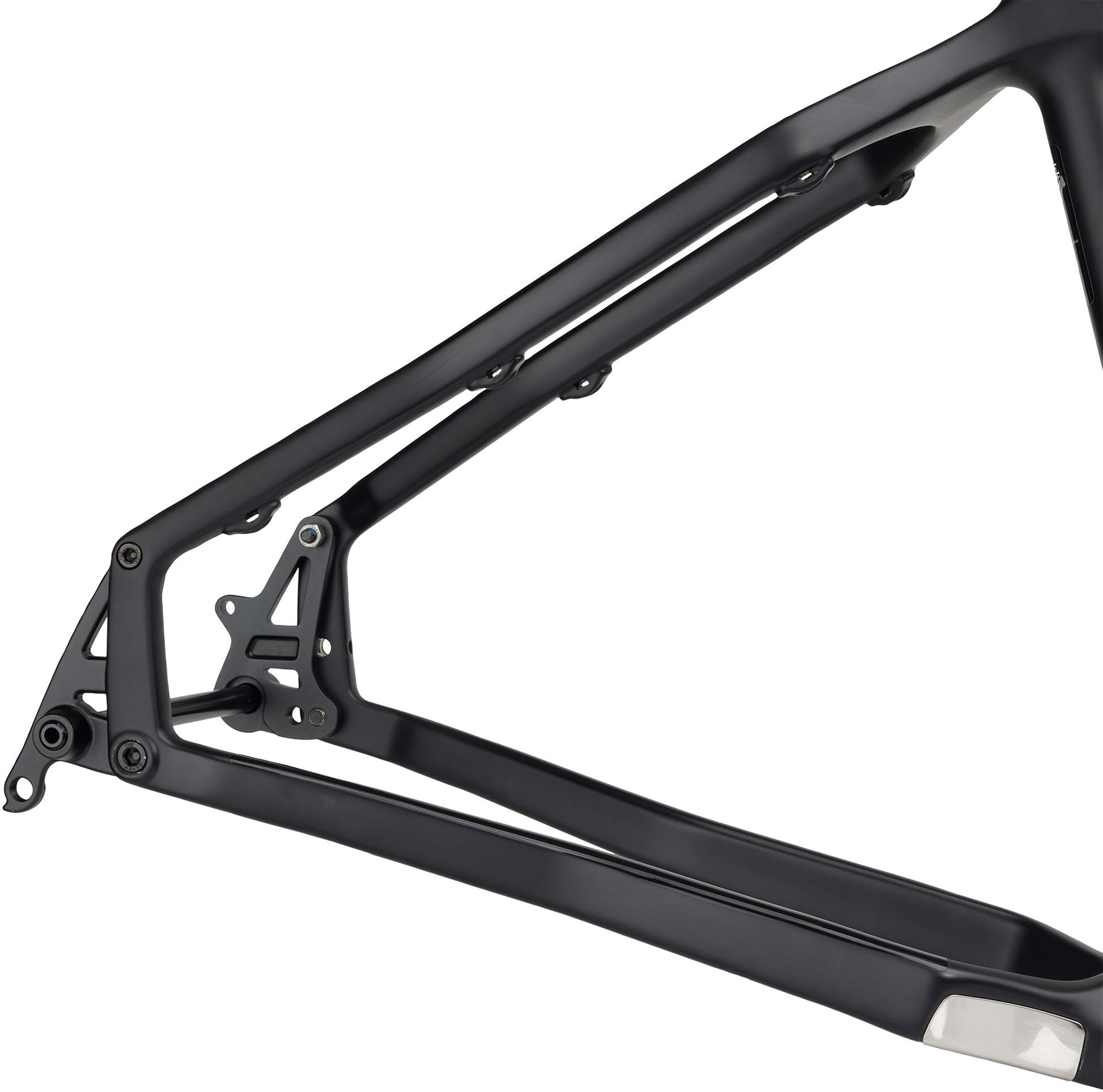

  • Salsa Heyday! C Frameset, detail view of alternator dropouts with thru axle
1 5

Heyday! C Frameset

Heyday! C Frameset

$2,199.00 USD
$2,199.00 USD $2,199.00 USD
Size

The Heyday! C Frameset is your ticket to the ultimate any-terrain adventure bike. With geometry that balances stability and agility, and ride-tuning Alternator 2.0 dropouts, the Heyday! C Frameset opens up new worlds of riding, from snow to sand to singletrack. Fit up to 26 x 4.8″ tires, or go with 27.5 fat or 29+ wheels and tires for other missions. Plentiful cargo mounts on the frame and fork make it easy to bring extra water for a day ride or a full-on expedition kit for journeys farther from home. Build this carbon fat-tire bike frame into your dream rig and see the quietest corners of the world together.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

1 2

Product Details

Build Kit

Frameset

Frame

Heyday! Carbon

Color

Black

Fork

Kingpin Carbon Deluxe

Components

Headset

Cane Creek 40 Series

Drivetrain

Wheels

Front Axle

Salsa Deadbolt UL Thru Axle 15x150mm

Rear Axle

Salsa Deadbolt UL Thru Axle 12x197mm

Weight

Frame

6 lb 0 oz (LG frame with fork, headset, seat collar, Alternator dropout plates, and axles)

Geometry

Geometry Diagram
SizeX-SmallSmallMediumLargeX-Large
A. Effective Top Tube 573.0 594.0 615.0 636.0 657.0
B. Stand Over 656.5 678.0 722.8 765.3 799.8
C. Reach 391.8 409.9 428.1 446.2 464.4
D. Stack 592.7 602.1 611.4 620.7 630.1
E. Total Seat Tube Length 406.0 406.0 457.0 508.0 558.0
F. Headtube Length 103.0 113.0 123.0 133.0 143.0
G. Headtube Angle
69.0
69.0
69.0
69.0
69.0
H. Seat Tube Angle
73.0
73.0
73.0
73.0
73.0
I. BB Drop 63.0 63.0 63.0 63.0 63.0
K. Chainstay Length 432.0- 449.0 432.0- 449.0 432.0- 449.0 432.0- 449.0 432.0- 449.0
L. Fork Length Axle to Crown 483.0 483.0 483.0 483.0 483.0
M. Fork Offset 51.0 51.0 51.0 51.0 51.0
N. Wheelbase 1077.1 1098.9 1120.6 1142.3 1164.1
Crank Arm Length
Handlebar Width
Recommended Rider Height 157.0 - 168.0 165.0 - 175.0 173.0 - 183.0 180.0 - 191.0 188.0
Stem Length

Measurements based on:

  • A Salsa Kingpin fork which is equivalent to a 100mm RockShox Bluto fork at 25% sag
  • A 26 x 4.8" tire measuring 759mm in diameter
  • Standover is measured from ground to top of toptube at forward portion of the kink

Frame Specs

  • Design Wheel/Tire Sizes 26 x 4.33" on up to 100mm rim
  • Alternate Wheel/Tire Sizes 26 x 3.8–4.8" on up to 100mm rim; 27.5 x 3.0–4.0"; 29 x 2.3–3.0"
  • Suspension Fork Length (Travel) 511mm (100mm)
  • Rigid Fork Length 483–486mm
  • Fork Offset 50–51mm
  • Rear Spacing 197 x 12mm thru-axle
  • Rear Axle Size 12 x 229L, TP = 1.5, TL = 20
  • Front Brake (Rotor) 74mm post mount (160–180mm)
  • Headset - Upper IS41
  • Headset - Lower IS52
  • Front Spacing 150 x 15mm thru-axle
  • Front Axle Size 15 x 198L, TP = 1.5, TL = 9
  • Crown Race Ø40mm
  • Stem Clamp Ø28.6mm
  • Seatpost 31.6mm
  • Dropper Post Compatible Yes, internal
  • Seatpost Clamp 35.0mm
  • Front Derailleur Clamp High direct-mount (54mm offset) via removable bracket (included)
  • Front Derailleur Type Compact 2x top-pull only
  • Derailluer Hanger Fixed Position - ND: FS2357, D: FS2355; / Adjustable - ND: FS2353, D: FS2356
  • Bottom Bracket 100mm, threaded
  • Crankset (Max Ring) 75mm chainline fat bike cranks only 2x: 36/24t max; 1x: 32t max
  • Accessory Mounts 2 per frame
  • Bottle Mounts 2 per frame
  • Fork Mounts 2 Three-Pack bosses per fork

Supportive Documents

Support Document links

Additional Features

High-Modulus Carbon Fiber Frame

This material offers the best blend of stiffness, vibration damping, durability, and weight savings

Heyday! Geometry

Heyday!’s geometry works extremely well in all conditions and use cases, whether it's riding groomed singletrack at your local trail, exploring a coastline, or embarking across the wild frozen expanses of Alaska. We use the shortest chainstays possible with a headtube angle and fork offset that place the rider’s center of gravity farther back. This combination of front and rear center is key to getting a fat bike that is stable, steers well in loose conditions, and still feels nimble despite the massive wheels and tires. A low bottom bracket also keeps the rider’s center of gravity low and makes dabbing, dismounting, and remounting easier

26 x 4.6" Wheel & Tire Size

Heyday! rolls on 26 x 4.6" tires on 80 mm rims. This huge tire delivers massive traction, stability, and optimum floatation on soft surfaces such as ungroomed snow or loose sand

Kingpin Deluxe Fork

Featuring full-carbon construction, the Kingpin Deluxe Fork is lightweight and durable, with an amazing array of accessory mounts to help you make the most of your Mukluk: Two sets of Three-Pack mounts on each fork leg for water bottles or Anything Cages / Lowrider rack mounts work with our Down Under front rack for a traditional touring setup / Internal dynamo hub wire routing keeps the front end looking clean

Alternator Dropouts V2.0

Heyday! Carbon is spec'd with a two-position fixed plate. The first of the two openings allows room for a 4.7" tire on a 70 mm rim and keeps chainstay length to 432 mm. The second position sets the wheel farther back, giving you options for larger rim and tire combinations. Adjustable dropout plates are available separately for single speed setups or finer adjustments

Front Wheel and Tire Options

The fork included with this frame works with the following wheel and tire combinations: 26 x 3.8–5.0” on up to a 100mm rim / 27.5 x 3.0–4.0” on an 80mm rim / 29 x 2.3–3.0” on a 50mm rim

Rear Wheel & Tire Options

The Heyday! frame is designed for use with the following wheel and tire combinations: 26 x 3.8–4.8" on up to a 100 mm rim / 27.5 x 3.0–4.0" on an 80 mm rim / 29 x 2.25–3.0" on a 50 mm rim

Optimal 1x or 2x Drivetrain Design with Narrow Q-Factor Cranks

The Heyday! frame is 1x and 2x-compatible and designed for premium drivetrain performance while maintaining narrow fat bike crank arms for less knee stress: 197 mm symmetrical rear end for modern rim and tire fit / 100 mm threaded bottom bracket / Rider-friendly narrow Q-factor cranks / Designed for 1x or 2x drivetrains / Up to a 32t max chainring for 1x setups; 36/24t max for 2x setups

Full-Length Internal Housing Cable Routing

The Heyday! frame is 1x and 2x-compatible and designed for premium drivetrain performance while maintaining narrow fat bike crank arms for less knee stress: 197 mm symmetrical rear end for modern rim and tire fit / 100 mm threaded bottom bracket / Rider-friendly narrow Q-factor cranks / Designed for 1x or 2x drivetrains / Up to a 32t max chainring for 1x setups; 36/24t max for 2x setups

Stealth Dropper Post Routing

Compatible with 31.6 mm dropper posts for a true trail bike experience

Rear Rack Compatible

Fits 2017 and later Mukluk and Heyday! frames (Salsa Rack-Lock seatpost collar required)

Multiple Accessory Frame Mounts

Heyday! Carbon features numerous accessory mounts: Top tube mounts for use with Salsa EXP Series Direct Mount Top Tube Bag / 2 water bottle mounts inside frame triangle / 1 accessory mount on under-side of down tube

FAQ

Will the Manitou Mastadon fork fit on my Heyday!?

Heyday! Carbon = Yes, but customer needs to check crown clearance if less than 3mm. (If less than 3mm, Salsa offers a Cane Creek spacer part # HD8880; Heyday! Aluminum = No

What wheel and tire sizes can I use on this frame?

Heyday! Carbon and Aluminum frames are designed to work with:

  • 26 x 3.8–5.0" on up to 100mm rim
  • 27.5 x 3.0–4.0" on an 80mm rim
  • 29 x 2.3–3.0" on a 50mm rim

Can I use a suspension fork on this frame?

Yes, this frame was designed and tested for use with a suspension fork with an axle-to-crown length up to 511mm (typically 100mm of travel). Check the fork manufacturer’s specifications to ensure the model and travel combination you intend to use is equal to or less than this length. Using a longer length fork will void the frame warranty and could result in frame failure. Forks with 51mm offset are strongly recommended, but 45mm offset is also acceptable (increases mechanical trail by 6mm).

How do I take care of the alternator dropouts?

Periodically, we recommend that you remove the bolts, and clean the dirt and grime off the hardware and the frame surfaces. Then, lightly regrease the threaded parts and re-assemble.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.
