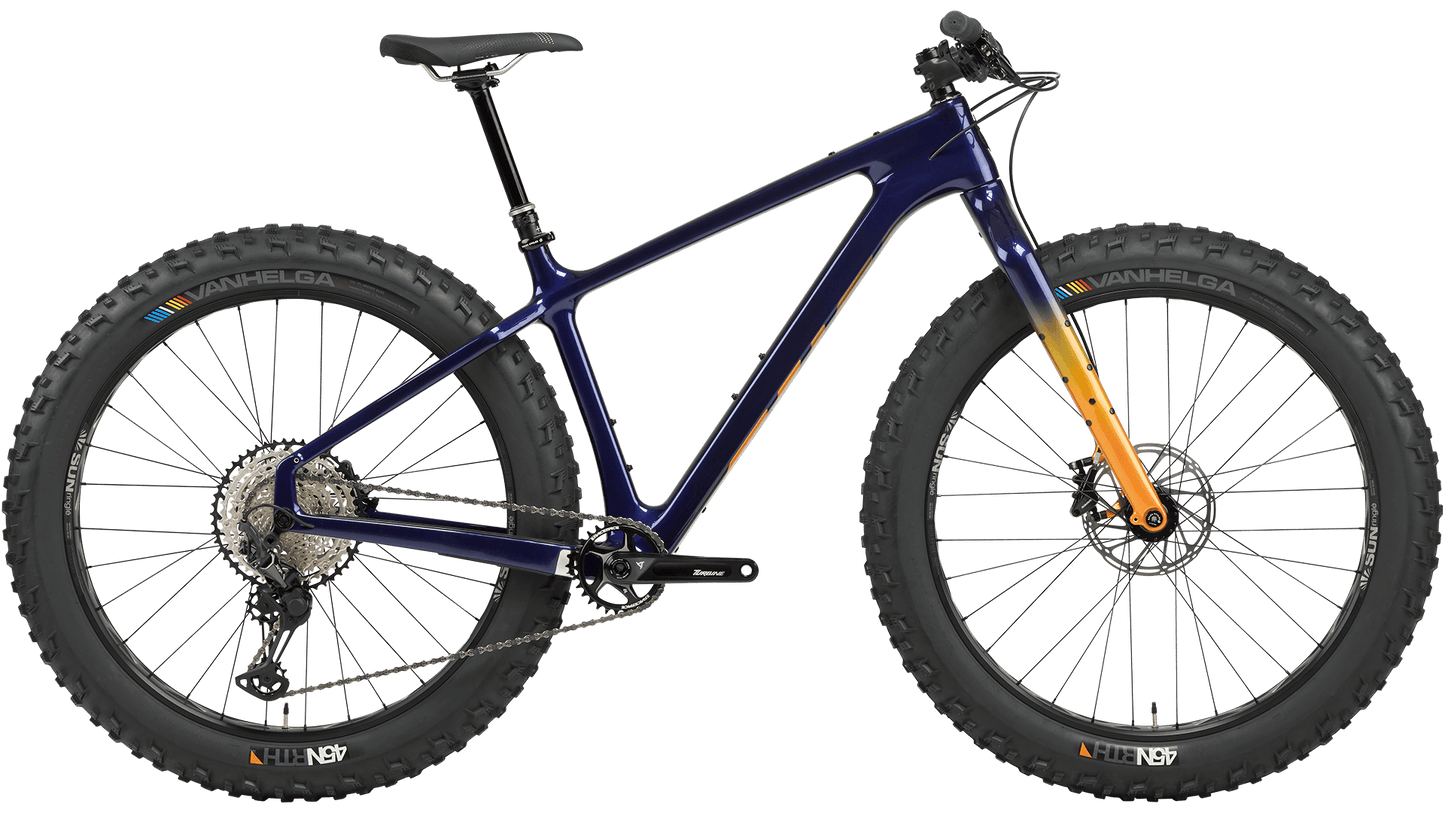

• Salsa Beargrease C XT fat bike Indigo side view on white background
  • Salsa Beargrease C XT fat bike Indigo front three-quarter view on white background

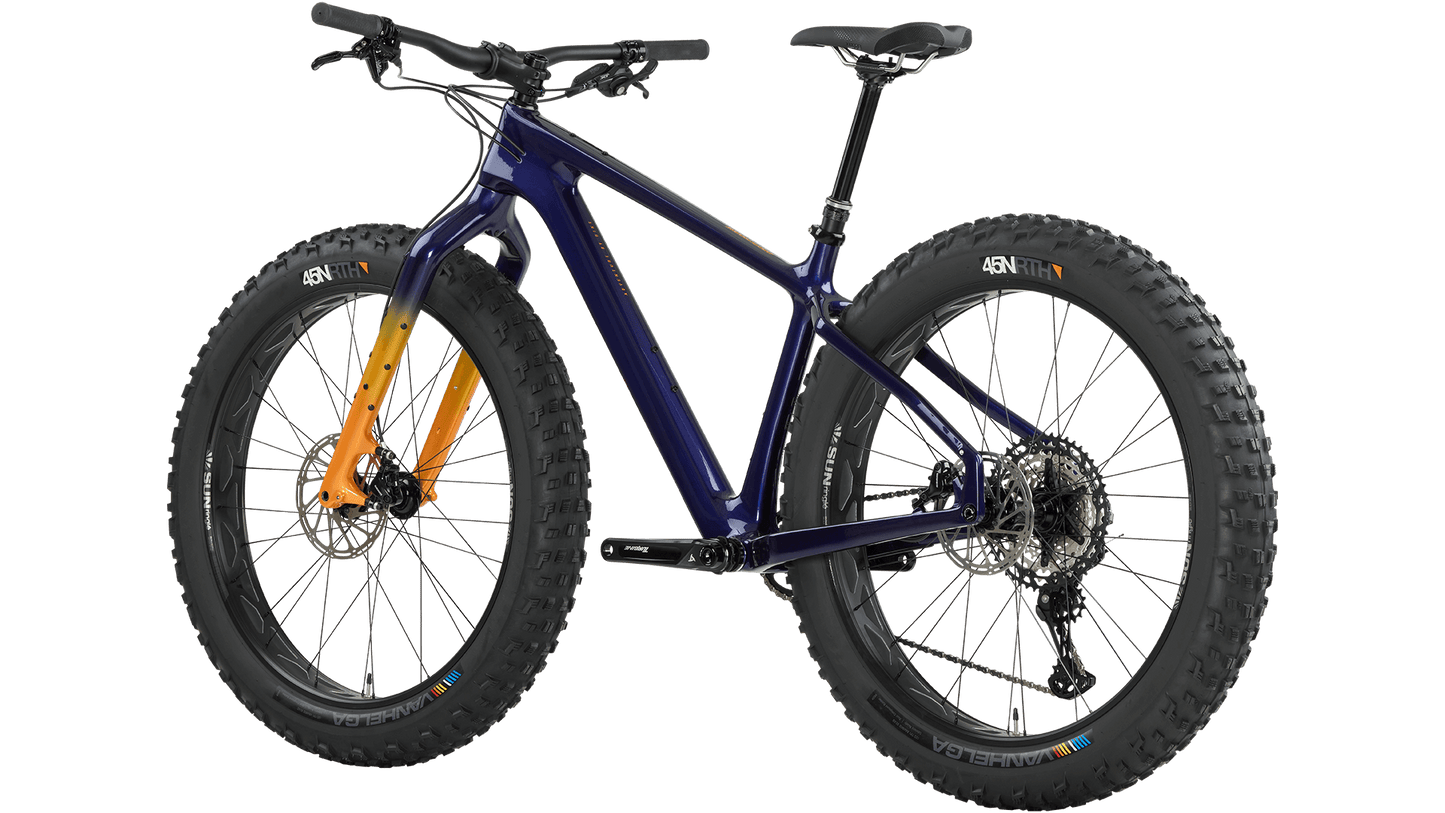

  • Salsa Beargrease C XT fat bike Indigo rear three-quarter view on white background
1 3

Beargrease C XT

Beargrease C XT

$3,999.00 USD
$3,999.00 USD $3,999.00 USD
Size

Beargrease C XT blends the DNA of a fat-tire bike and a trail bike for a ride that devours groomed snow trails and more. The carbon frame and fork are lightweight and pair perfectly with Beargrease’s nimble geometry. Its 27.5 x 4.0″ tires are an unstoppable combo of rollover and float that open up new terrain. Mounts for bags, bottles, and racks make it easy to bring extra layers, snacks, or even camping gear — whatever you need for extended rides. Shimano’s time-tested XT 1 x 12 drivetrain has tons of gear range on tap, making this one of the best fat-tire bikes for both racing and roaming.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

1 1

Product Details

Build Kit

Frameset

Frame

Beargrease Carbon

Color

Indigo

Fork

Bearpaw Carbon

Rear Shock

N/A

Components

Headset

Cane Creek 40 Series

Seatpost

TranzX YSI05GL RAD+, XS–SM: 125 mm travel; MD–XL: 150mm travel

Stem

Salsa Guide Trail 35.0

Grips/Bar Tape

Salsa File Tread

Saddle

WTB Volt Medium

Handlebar

Race Face Aeffect R 35, 780 mm, 20 mm rise

Drivetrain

Front Derailleur

N/A

Rear Derailleur

Shimano Deore XT M8100

Cassette

Shimano SLX M7100, 10–51t, 12-speed

Chain

Shimano M7100

Crankset

Race Face Turbine, SH12 direct-mount chainring, 30t

Shifter

Shimano Deore XT M8100-R

Brake Levers

SRAM Level TL

Brake Calipers

SRAM Level TL

Bottom Bracket

Race Face, BSA, 30mm spindle, 100mm

Rotors

SRAM CenterLine (6-bolt, 180 mm front, 160 mm rear)

Wheels

Front Wheel

Sun Ringle SRC 15 x 150 mm hub, Mulefüt SL 80 mm rim

Rear Wheel

Sun Ringle SRC 12 x 197 mm hub, Mulefüt SL 80 mm rim

Front Tire

45NRTH Vanhelga 27.5 x 4.0" tubeless-ready

Rear Tire

45NRTH Vanhelga 27.5 x 4.0" tubeless-ready

Geometry

Geometry Diagram
SizeX-SmallSmallMediumLargeX-Large
A. Effective Top Tube 565.0 591.0 612.0 633.0 654.0
B. Stand Over 684.5 726.6 744.4 774.8 804.0
C. Reach 390.8 408.4 426.5 444.7 462.8
D. Stack 588.1 597.4 606.7 616.0 625.3
E. Total Seat Tube Length 368.0 406.0 444.0 483.0 521.0
F. Headtube Length 98.0 108.0 118.0 128.0 138.0
G. Headtube Angle
68.56
68.56
68.56
68.56
68.56
H. Seat Tube Angle
73.5
73.0
73.0
73.0
73.0
I. BB Drop 65.0 65.0 65.0 65.0 65.0
K. Chainstay Length 440.0 440.0 440.0 440.0 440.0
L. Fork Length Axle to Crown 483.0 483.0 483.0 483.0 483.0
M. Fork Offset 51.0 51.0 51.0 51.0 51.0
N. Wheelbase 1086.2 1107.4 1129.2 1151.0 1172.9
Crank Arm Length 165.0 165.0 165.0 170.0 170.0
Handlebar Width 780.0 780.0 780.0 780.0 780.0
Recommended Rider Height 157.0 - 165.0 165.0 - 175.0 175.0 - 183.0 183.0 - 190.0 190.0
Stem Length 50.0 60.0 70.0 70.0 70.0

Measurements based on:

  • A Salsa Kingpin fork which is equivalent to an average 100mm travel suspension fat bike fork at 25% sag
  • A 27.5 x 3.8" tire measuring 755mm in diameter
  • Standover is measure from top of toptube to ground 50mm forward of BB center

Frame Specs

  • Design Wheel/Tire Sizes 27.5 x 3.8" on an 82mm rim
  • Alternate Wheel/Tire Sizes 26 x 3.8–4.6" on up to a 100mm rim / 27.5 x 3.0-4.0 on up to a 82mm rim / 29 x 2.25–3.0"
  • Suspension Fork Length (Travel) 511mm (100mm)
  • Rigid Fork Length 483–486mm
  • Fork Offset 50–51mm
  • Axle to Crown 483mm
  • Rear Spacing 197 x 12mm thru-axle
  • Rear Axle Size ø12 x 220L, TP= 1.5, TL = 20
  • Front Brake (Rotor) 74mm post (160–203mm)
  • Headset - Upper IS41
  • Headset - Lower IS52
  • Front Spacing 150 x 15mm thru-axle
  • Front Axle Size ø15 x 198L, TP=1.5, TL=9
  • Steerer Tube 28.6mm, Tapered
  • Crown Race 40mm
  • Seatpost ø30.9mm
  • Dropper Post Compatible Yes, internal (stealth)
  • Seatpost Clamp ø35.4mm
  • Front Derailleur Type Not compatible
  • Derailluer Hanger FS2322
  • Bottom Bracket 100mm BSA threaded
  • Crankset (Max Ring) Fat bike 75 chainline, 1x only (32t)
  • Accessory Mounts Under Downtube Mount Pairs: 1 ;Top Toptube Mount Pairs: 1; Rear Rack Mounts, Lower: Yes, use Salsa Alternator Rack 170/177; Rear Rack Mounts, Upper: No, use Rack-Lock; Front Rack Mounts: 165mm Low Rider
  • Bottle Mounts XS = 1, SM–XL = 2
  • Front Fender Mounts Yes, shared with rack
  • Rear Fender Mounts No

Supportive Documents

Support Document links

Additional Features

High-Modulus Carbon Fiber Frame

This material offers improved stiffness, better vibration damping, excellent durability, and weight savings compared to other frame materials

Beargrease Geometry

Completely redesigned frame and fork for 2019. 440mm chainstays, longer front/center, short stems, and wide bars create room to move and add confidence while maneuvering on tight trails. Standover height is improved, allowing the addition of a new XS frame size. This geometry results in a fat bike that rides like a trail bike. It is stable, steers well in loose conditions, and still remains nimble and agile despite the massive wheels and tires. A low bottom bracket height is also key, keeping the rider’s center of gravity low, and making dabbing, dismounting, and remounting easier.

27.5 x 4” Wheel & Tire Size

Beargrease rolls on 27.5 x 4” wheels and tires. For groomed snow or dirt, the increase in diameter provides increased rollover, a longer contact patch, and the flotation of a 5” tire without the added rolling resistance

Kingpin Deluxe Fork

Featuring a full carbon design, the Kingpin Deluxe Fork is lightweight and durable, and features an amazing array of accessory bosses to help you make the most of your Beargrease fat bike: Dual sets of Three-Pack bosses on each leg accept bottle cages or our Anything Cage accessory / Lowrider mounts work with our Down Under front rack for a traditional touring setup / Internal dynamo hub wire routing keeps the front end clean for those upgrading to dyno hubs / 150 x 15mm thru-axle design boosts stiffness and aids in solid tracking on the trail

Front Wheel & Tire Options

The fork included with this frame works with the following wheel and tire combinations: 26 x 3.8 - 5” on up to a 100mm rim / 27.5 x 3.0 – 4.0” on an 80mm rim / 29 x 2.3 – 3.0” on a 50mm rim

Rear Wheel & Tire Options

Beargrease Carbon is compatible with the following wheel, tire, and rim sizes: 26 x 4.3 – 4.6” on up to a 100mm rim / 27.5 x 3.0 – 4.0” on an 80mm rim / 29 x 2.3 – 3.0” on a 50mm rim

Optimal Drivetrain Design w/ Narrow Q-Factor Cranks

The Beargrease Carbon frame is designed for the best of all drivetrain performance while maintaining narrow fat bike crank arms for less knee stress: 197mm symmetrical rear end for modern rim/tire fit / 100mm threaded bottom bracket / Rider-friendly narrow Q-Factor cranks / 1x optimized frame design / Up to a 32t max chainring

Internal Sleeved Cable Routing

The Beargrease Carbon frame features fully sleeved, internal cable routing. This improves shifting performance in poor conditions, increases time between maintenance intervals, and makes running new cables and housing a breeze

Dropper Post Compatible w/ Stealth Routing

The Beargrease Carbon frame features fully sleeved, internal cable routing. This improves shifting performance in poor conditions, increases time between maintenance intervals, and makes running new cables and housing a breeze

Rear Rack Compatible

Designed for use with the Salsa Alternator Rack 170/177 (Salsa Rack-Lock seatpost collar required)

Multiple Accessory Frame Mounts

Beargrease Carbon features numerous accessory mounts: Toptube bosses for Salsa EXP Series Toptube Bag / 1 – 2 water bottle mounts inside frame triangle (depending on frame size) / 1 accessory mount underneath downtube

FAQ

Can I run a front rack on this frame?

The Beargrease models that feature Kingpin Deluxe and Kingpin forks feature mid-blade mounts for Salsa Down Under Rack and Down Under HD rack compatibility.

Can I run a rear rack on this frame?

Yes, with the lower rack bosses in the frame and a Salsa 35.4 Rack Lock Seat Collar you can run the Salsa Alternator 170/177 rear rack. While the back end of the Beargrease is 197mm spaced, we designed the stays a narrow width for l heel clearance with big boots, thus it uses the Alternator 170/177 rear rack.

What width cranks will this frame accept?

Though the new frame features a 197mm rear spacing it is still compatible with narrow q-factor cranks designed around a 100mm threaded BB with a nominal 75mm chainline. Both Race Face and SRAM offer cranks like this.

Can I run a front derailleur on this frame?

No, we have designed the Beargrease around a 1x only setup with 32t max chainring. If you would like a fat bike with front derailleur compatibility, consider the Mukluk.

What wheel and tire sizes can I use on this frame?

The Beargrease is capable of running 27.5" wheels with tires 3.0–4.0" on up to an 82mm rim, as well as 26" wheels with tires 3.8–4.6" on up to a 100mm rims, and 29" wheels with 2.25–3.0" tires on up to a 50mm rims.

Can I use a suspension fork on this frame?

Yes, you can run any of the options from RockShox or Manitou that have an axle to crown of 511mm, an average 100mm fork, no adapters needed.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.
