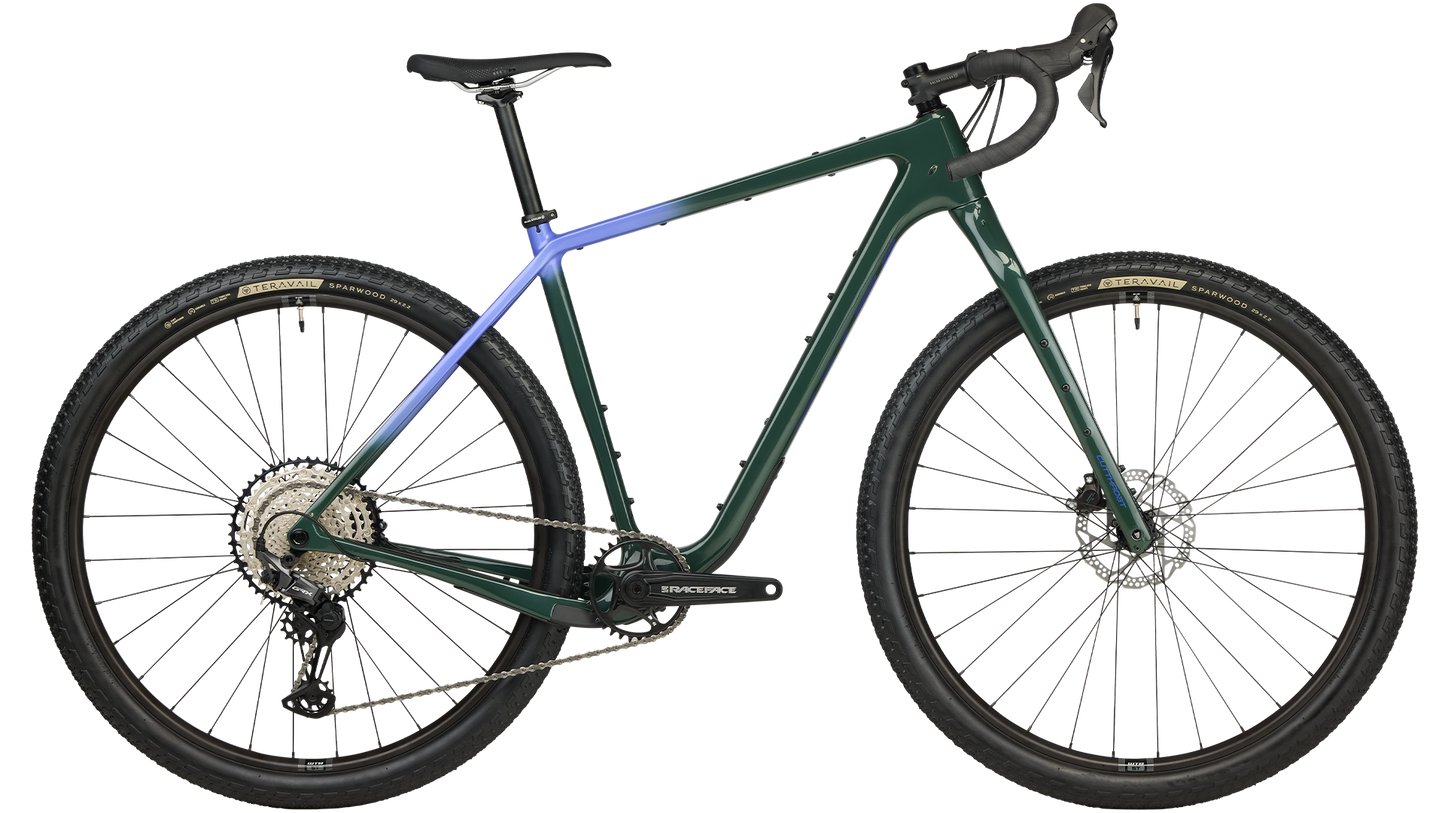

• Salsa Cutthroat C GRX 610 bike in Dark Pine color side view

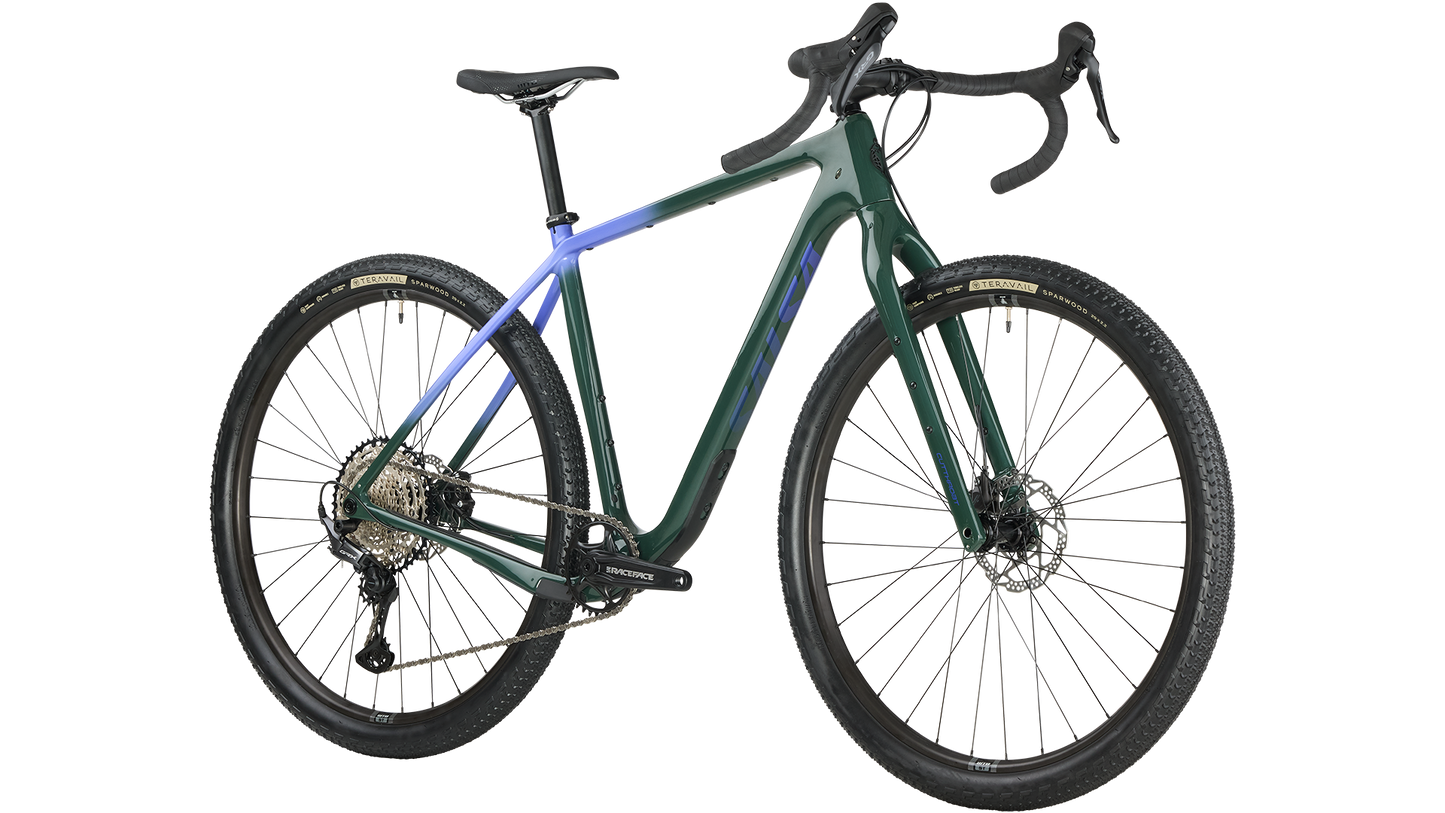

  • Salsa Cutthroat C GRX 610 bike in Dark Pine color front three-quarter view
  • Salsa Cutthroat C GRX 610 bike in Dark Pine color rear three-quarter view
1 3

Cutthroat C GRX 610 1x

Cutthroat C GRX 610 1x

$3,399.00 USD
$3,399.00 USD $3,399.00 USD
Size

The Cutthroat C GRX 610 1x blends speed, comfort, and utility for one of the best Tour Divide bikes available. Designed with a compliant carbon frame, our Class 5 VRS™ (vibration reduction system), and drop-bar mountain bike geometry, Cutthroat will carry you through many types of bikepacking adventures. With rack mounts and a frame that plays well with bikepacking bags, you can roll with more supplies. Shimano’s smooth GRX 610 1 x 12 drivetrain ensures you’ll always find the right gearing for miles-long climbs, hustling to the next resupply, and everything in between.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

1 3

Product Details

Build Kit

Frameset

Frame

Cutthroat C

Color

Dark Pine

Fork

Cutthroat Carbon Deluxe

Rear Shock

N/A

Components

Headset

FSA NO.42/ACB

Seatpost

Salsa Guide

Stem

Salsa Guide

Grips/Bar Tape

Velo anti-slip, shock-proof silicone tape

Saddle

WTB SL8 Medium Steel SL

Handlebar

Salsa Cowchipper

Drivetrain

Front Derailleur

N/A

Rear Derailleur

Shimano GRX RX822

Cassette

Shimano SLX M7100, 10–51t, 12-speed

Chain

Shimano SLX M7100

Crankset

Race Face Ride, 36t

Shifter

Shimano GRX RX610

Brake Calipers

Shimano GRX RX400

Rotors

Shimano RT54 (Center Lock, 160mm)

Wheels

Front Wheel

Shimano TC500-15-B 15 x 110mm hub, WTB ST 25 TCS 2.0 29" rim, 32h (taped, WTB tubeless valve included)

Rear Wheel

Shimano TC500-HM-B 12 x 148mm hub, WTB ST 25 TCS 2.0 29" rim, 32h (taped, WTB tubeless valve included)

Front Tire

Teravail Sparwood, 29 x 2.2", Durable casing, tubeless-ready

Rear Tire

Teravail Sparwood, 29 x 2.2", Durable casing, tubeless-ready

Geometry

Geometry Diagram
Size52cm54cm56cm58cm60cm
A. Effective Top Tube 520.0 540.0 560.0 580.0 600.0
B. Stand Over 700.0 742.0 811.0 852.0 874.0
C. Reach 357.0 372.0 385.0 394.0 406.0
D. Stack 585.0 592.0 620.0 645.0 664.0
E. Total Seat Tube Length 356.0 419.0 508.0 559.0 584.0
F. Headtube Length 90.0 98.0 127.0 154.0 175.0
G. Headtube Angle
69.0
69.0
69.0
69.0
69.0
H. Seat Tube Angle
74.5
74.25
74.25
74.0
73.75
I. BB Drop 70.0 70.0 70.0 70.0 70.0
J. BB Height 300.0 300.0 300.0 300.0 300.0
K. Chainstay Length 445.0 445.0 445.0 445.0 445.0
L. Fork Length Axle to Crown 483.0 483.0 483.0 483.0 483.0
M. Fork Offset 483.0 483.0 483.0 483.0 483.0
N. Wheelbase 1050.0 1066.0 1091.0 1110.0 1129.0
Crank Arm Length 165.0 170.0 175.0 175.0 175.0
Handlebar Width 440.0 460.0 480.0 500.0 520.0
Recommended Rider Height 154.0 - 168.0 168.0 - 175.0 173.0 - 185.0 183.0 - 193.0 190.0
Stem Length 60.0 70.0 80.0 80.0 90.0

Measurements based on:

  • an 483mm AC x 51mm offset fork which is equivalent to an average 100mm 29" suspension fork at 25% sag
  • a 29" x 2.2" tire measuring 740mm in diameter
  • Standover for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center

Frame Specs

  • Design Wheel/Tire Sizes 29 x 2.25" (29 x 2.4" Max) (Some front derailleurs may reduce tire clearance. Check manufacturer’s specifications to confirm clearance before installing.)
  • Suspension Fork Length (Travel) 506 mm (100 mm Travel)
  • Rigid Fork Length 483 mm
  • Fork Offset 51 mm
  • Rear Spacing 148 x 12 mm Thru-axle
  • Rear Axle Size M12 x P1.0 x 175
  • Front Brake (Rotor) Flat mount (160–180 mm), flat mount frame standard (35 mm thickness), 42 mm bolt length
  • Headset - Upper IS41
  • Headset - Lower IS52
  • Front Spacing 110 x 15 mm Thru-axle
  • Seatpost 27.2 mm
  • Dropper Post Compatible Yes, internal. For Internal Dropper Post Routing: 1x mechanical drivetrain: Route the dropper post cable through the drive side of the down tube. Di2 drivetrains: Mount the Di2 battery in the seatpost, then route the dropper post cable through the drive side of the downtube; For External Dropper Post Routing: 1x and 2x mechanical and Di2 drivetrains:Route the dropper post cable through the dynamo rear light holes on the non-drive side of the top tube.
  • Seatpost Clamp 32.0 mm
  • Front Derailleur Type Road, braze-on, 2x, bottom-pull
  • Derailluer Hanger SRAM UDH
  • Bottom Bracket Press Fit BB92, 41 x 92 mm
  • Crankset (Max Ring) 1x MTN Boost: 40t Max; 2x RD Boost outer ring: 46–50t, inner ring: 30–36t *Oval chainrings subtract 2t from max*
  • Accessory Mounts Front Rack Mounts: Yes, lowrider compatible. Salsa Down Under rack recommended; Rear Rack Mounts: Yes, Salsa Rack Lock seatpost collar required. Salsa Wanderlust Rack recommended. Salsa Bent Rack Struts (part #RK8030) required for installation on 58 cm and 60 cm frames. Not compatible with Salsa Wanderlust HD Rack; Under Downtube Mount: Yes, two pair; Top Tube Mounts: Yes, compatible with Salsa Top Tube bag
  • Bottle Mounts Frames up to 54cm: 2 in main triangle. Frames 56cm and larger: 3 in main triangle.
  • Fork Mounts Yes, one set of Three-Pack mounts on each fork leg
  • Rear Fender Mounts n/a

Supportive Documents

Support Document links

Additional Features

Cutthroat Carbon Fork

With trail-taming compliance and abrasion-resistant plates in high-wear areas, the Cutthroat Carbon fork is designed for the rigors of rides that cover multiple road surfaces in unpredictable conditions

Class 5™ VRS

The Class 5™ Vibration Reduction System revolves around seatstays with a tall, thin, vertically-oriented profile that promotes vertical compliance by allowing the seatstays to "flex" outwards on impacts. Horizontally-oriented chainstays work to resist torque and maintain a laterally stiff rear end. The lack of seatstay and chainstay bridges allows the full length of the stays to contribute to flexibility. A rear thru-axle delivers precise tracking while allowing the seatstays to provide incredible compliance

Interior junction control mold technology

We use interior molds at all of the main front triangle junctions during layup and curing. This allows for precise control of wall thickness and inner-wall smoothness in these areas. This process increases compaction and reduces voids and wrinkles in critical high-stress zones. The end result is a top-quality carbon frame that delivers consistent high performance

Cutthroat geometry

Our drop bar mountain bike geometry features a 69° head tube angle for a long wheelbase that provides supreme stability over long days on any surface. 445 mm chainstays with Class 5 VRS will get you through everything from remote two-track gravel roads to technical singletrack trails, with the efficiency and comfort that endurance riders need to keep at it day after day. Cutthroat is designed for optimized fit with the Salsa Cowchipper or Woodchipper Bars

Tour Divide-inspired features

Designed for maximum frame bag volume on every size. Stay hydrated with room for three bottles on 54–60 cm frames (two bottles on 52 cm frames). The top tube bag mount makes mid-ride refueling easy, and the two Three-Pack mounts on the fork offer extra capacity for gear or water. The Cutthroat carbon fork has internal wire routing for dynamo hub lighting systems. Abrasion-resistant plates reduce frame and fork wear cause by mud and debris

Massive tire and mud clearance

Fits a 29 x 3.0" tire up front and a 29 x 2.4" tire in the rear, plus the mud you are likely to encounter in multi-day endurance races.

Road Boost drivetrain

2x mechanical-compatible using Race Face mountain boost cranks and Easton direct-mount chainrings (max 50/34t, complete bikes ship with 46/30t) and a road drivetrain in all other areas

Direct-mount frame pack compatible

Custom frame bags can be bolted directly to frame tool-free with EXP Series Direct Mount Thumb Screws

Multiple bottle and cargo-carrying options

Custom frame bags can be bolted directly to frame tool-free with EXP Series Direct Mount Thumb Screws

Rear rack compatible

Accommodates the Salsa Wanderlust Rack (requires the Salsa Rack-Lock seatpost collar). Salsa Bent Rack Struts (part #RK8030) required for installation on 58 cm and 60 cm frames. Cutthroat V2 is not compatible with the Salsa Wanderlust HD Rack.

Frame protection

Abrasion-resistant plates on the frame and fork prevent damage from mud buildup and other debris.

SRAM UDH-compatible

SRAM's Universal Derailleur Hanger (UDH) makes it faster and easier to find a replacement at any bike shop, no matter how far from home you are.

FAQ

Can I run 27.5" (650b) rims and tires on this frameset?

No, you cannot. That wheel size is significantly smaller than the 29er wheels the bike is designed for.

Can I run 29+ rims and tires on this frameset?

No, you cannot.

Can I run flat bars on my Cutthroat?

Yes, but it is important to keep in mind that the Cutthroat is designed specifically as a drop bar mountain bike. Switching to a flat bar essentially results in a very short toptube length, compared to how a traditional flat bar mountain bike would be designed.

Can I use a suspension fork on this frame?

Yes, this frame was designed and tested for use with a suspension fork with an axle-to-crown length up to 506mm (typically 100mm of travel). Check the fork manufacturer’s specifications to ensure the model and travel combination you intend to use is equal to or less than this length. Using a longer length fork will void the frame warranty and could result in frame failure. Forks with 51mm offset are recommended.

Can I install a rack on my Cutthroat?

Yes. We recommend the Salsa Wanderlust Rack. You will need a Salsa Rack Lock seatpost collar. Salsa Bent Rack Struts (part #RK8030) are required for installation on 58 cm and 60 cm frames. The Salsa Wanderlust HD Rack is not compatible with Cutthroat V2.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.
