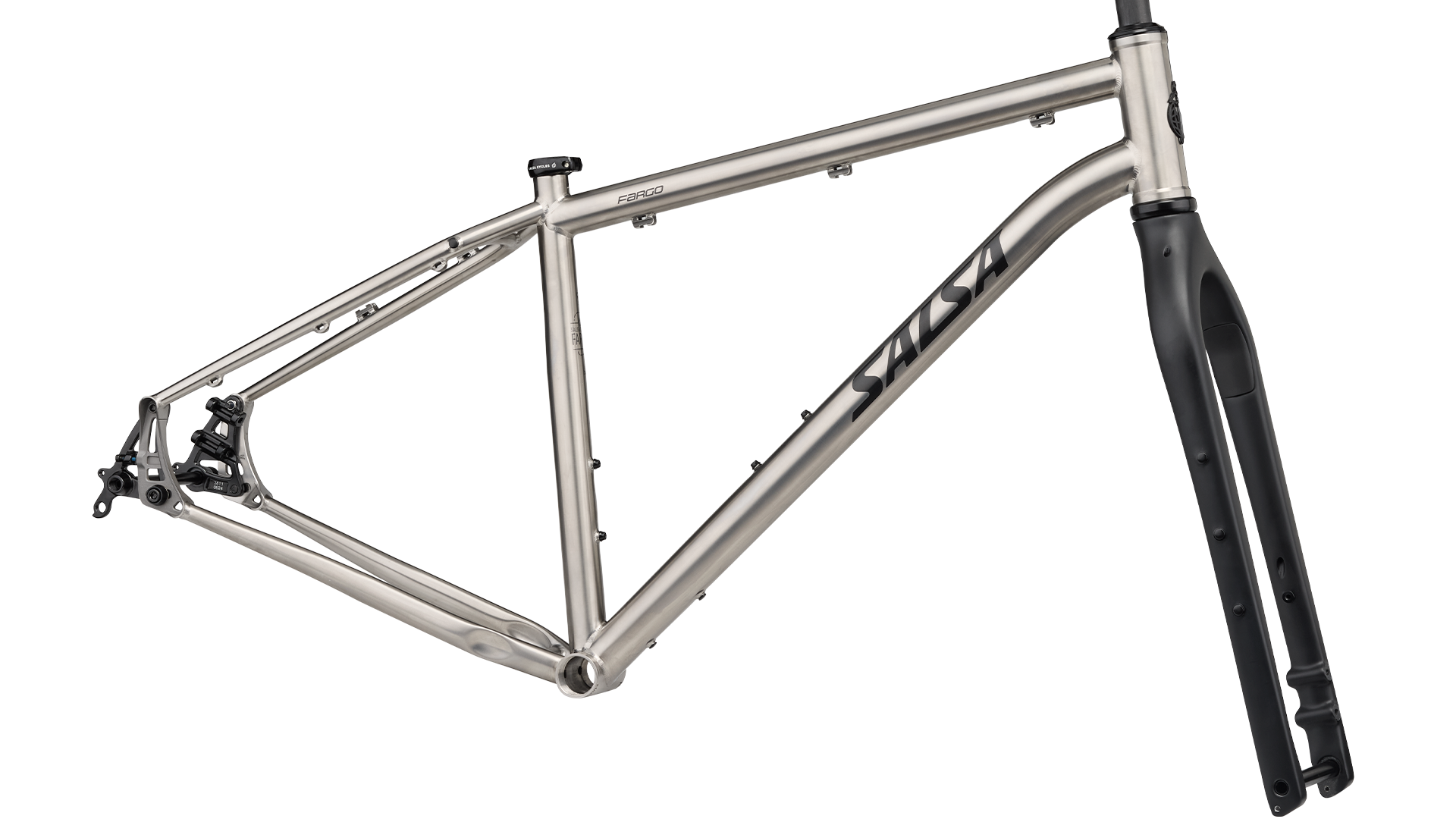

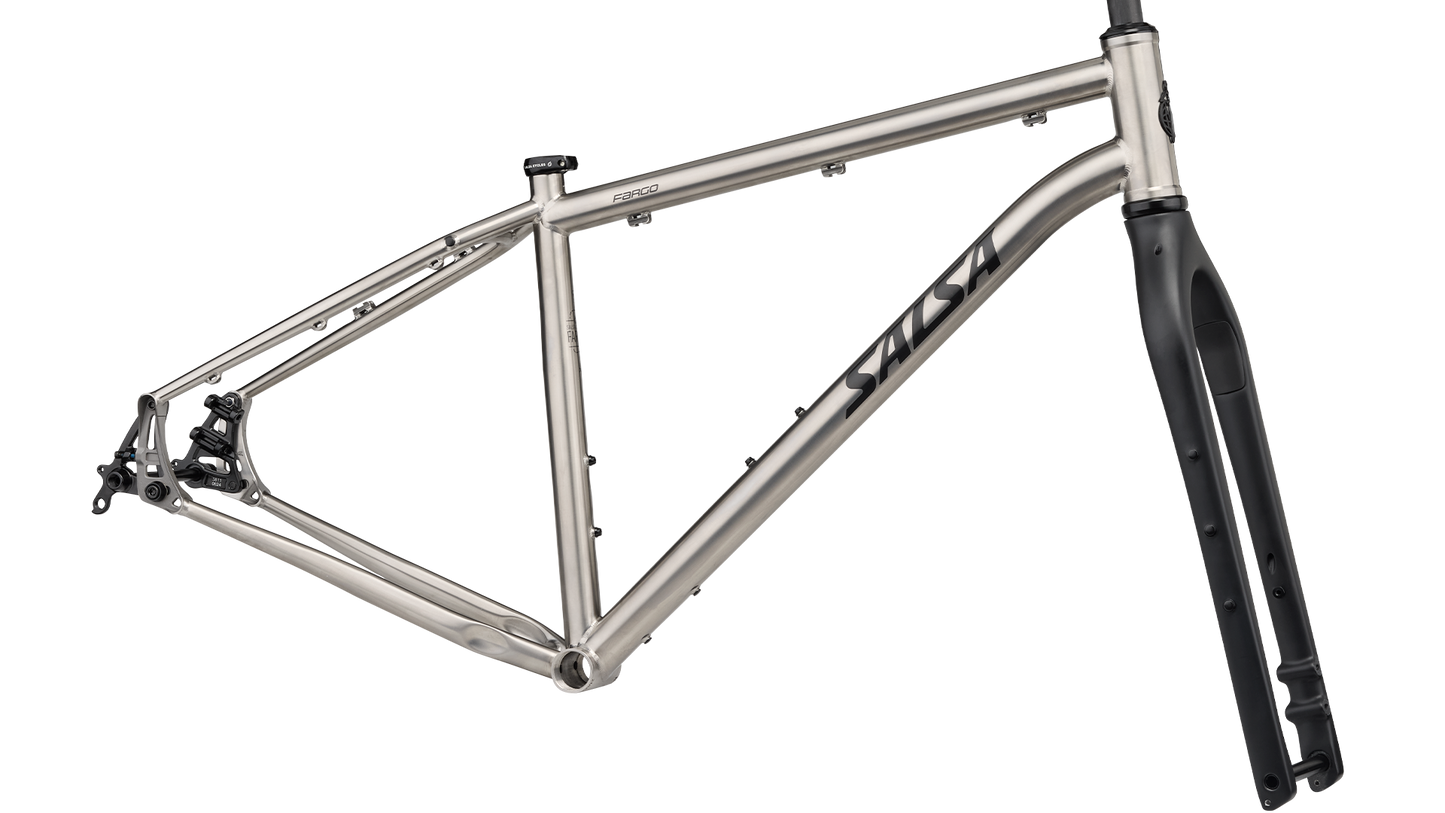

• Salsa Fargo Ti Frameset side view

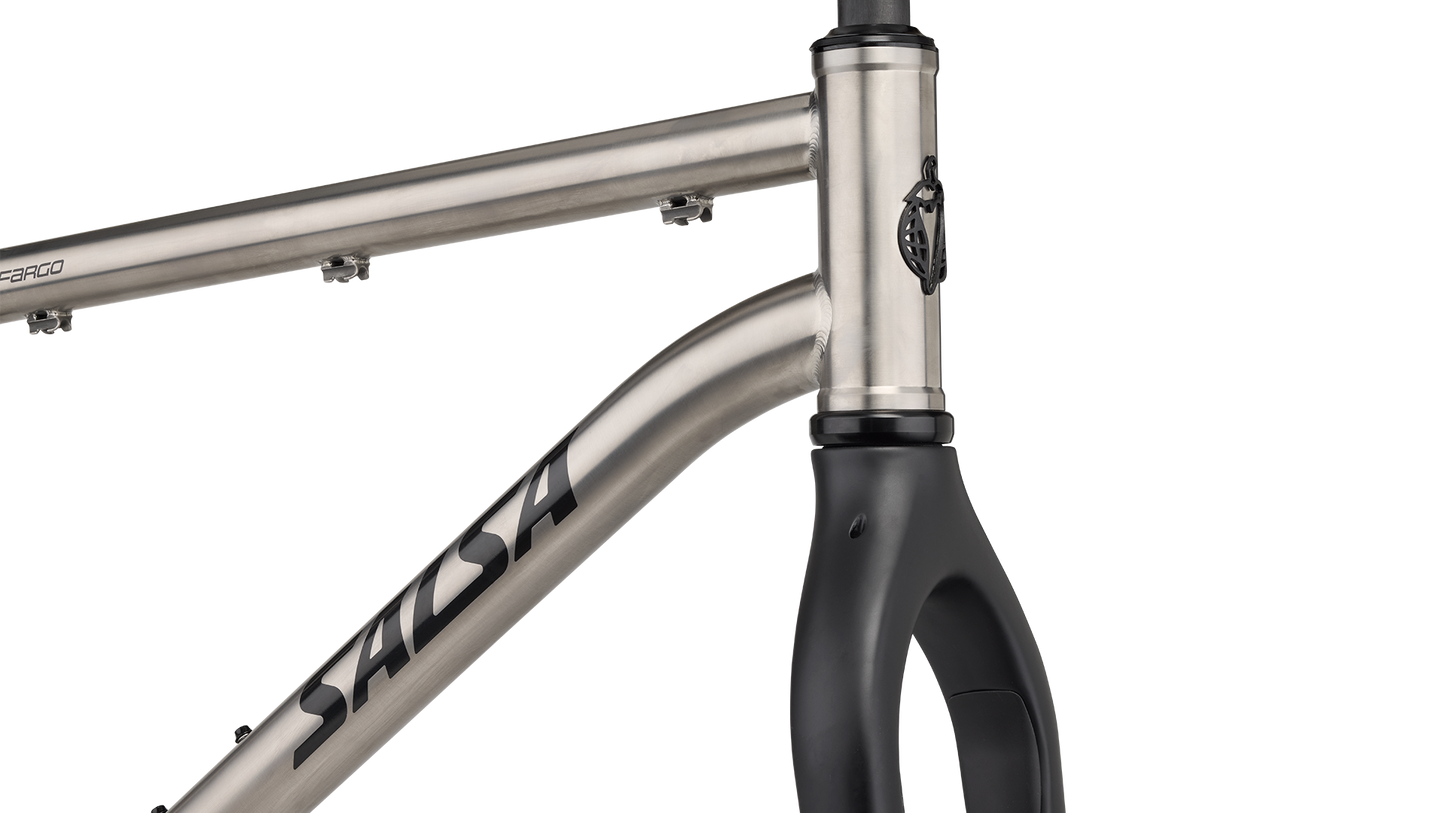

  • Salsa Fargo Ti Frameset side view head tube focus

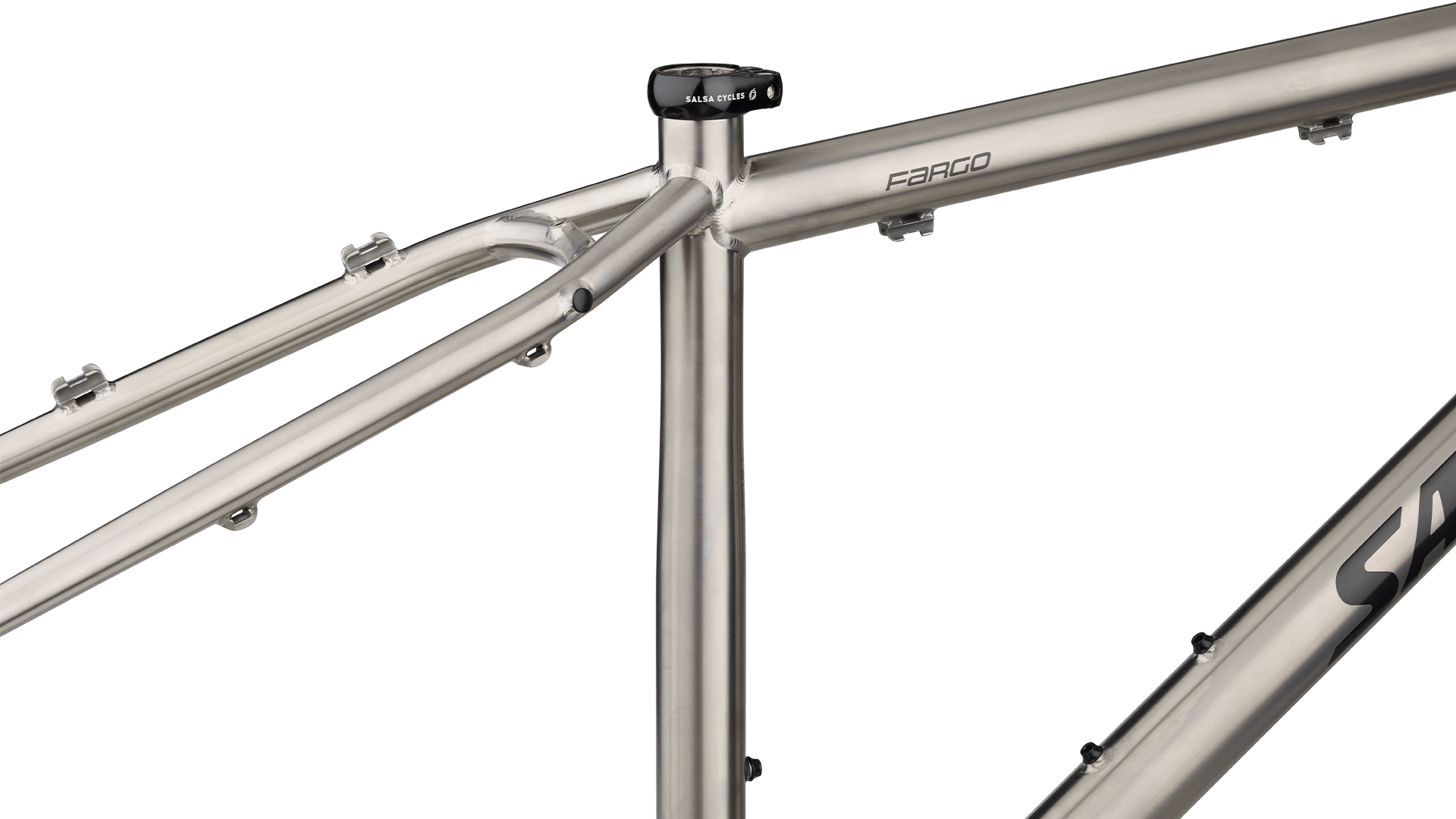

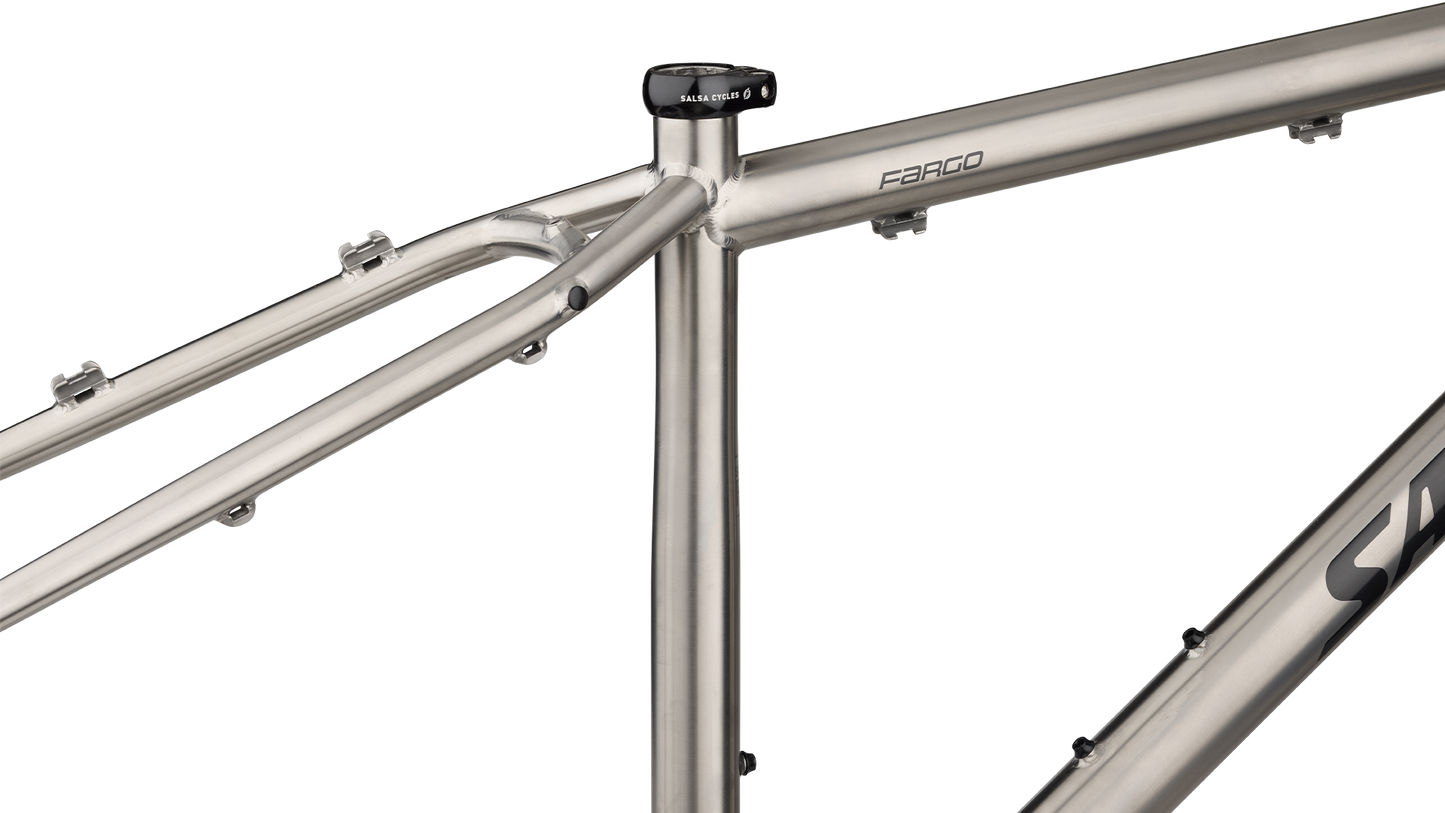

  • Salsa Fargo Ti Frameset side view seat tube focus
  • Salsa Fargo Ti Frameset side view rear Alternator dropout focus

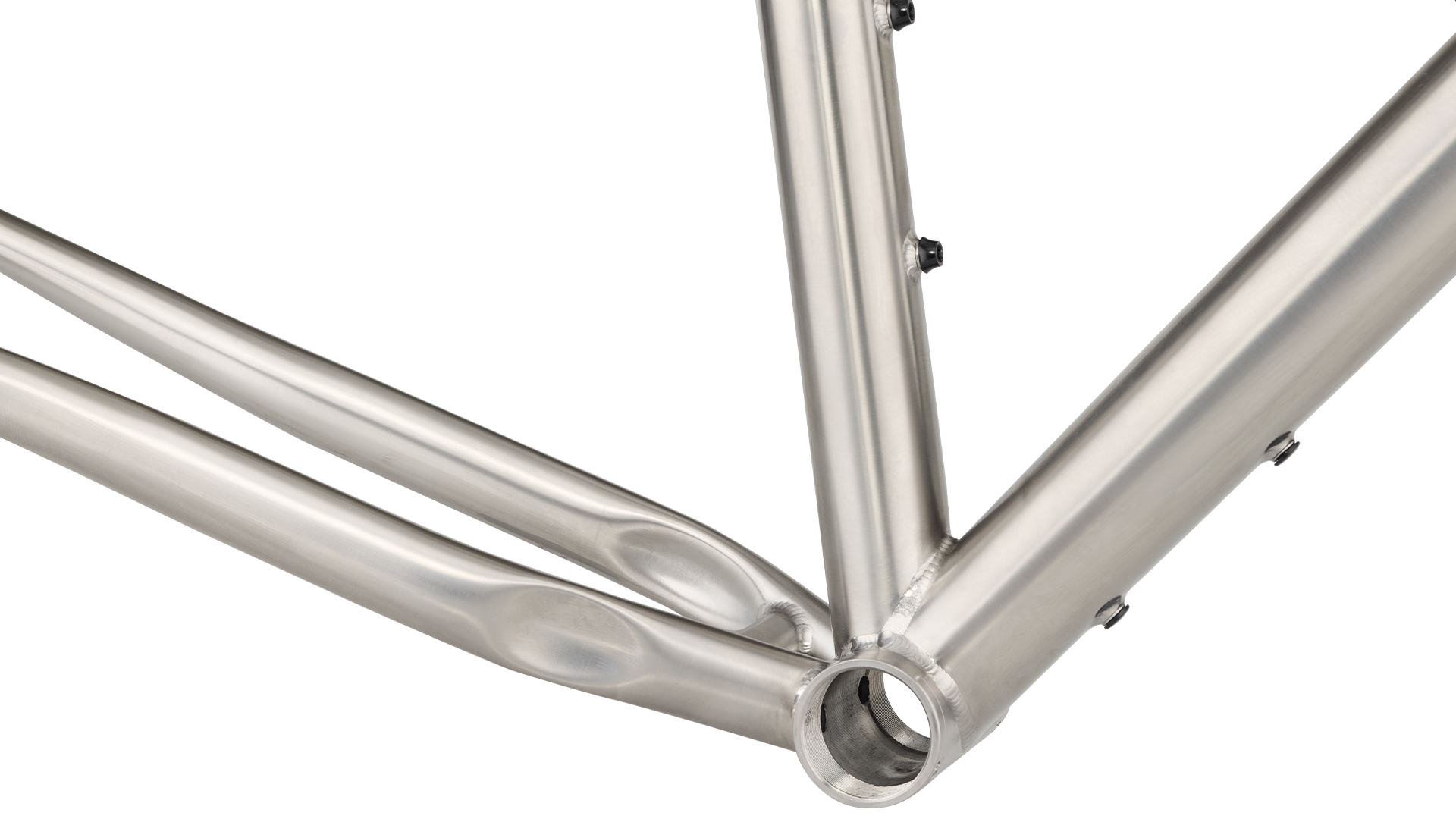

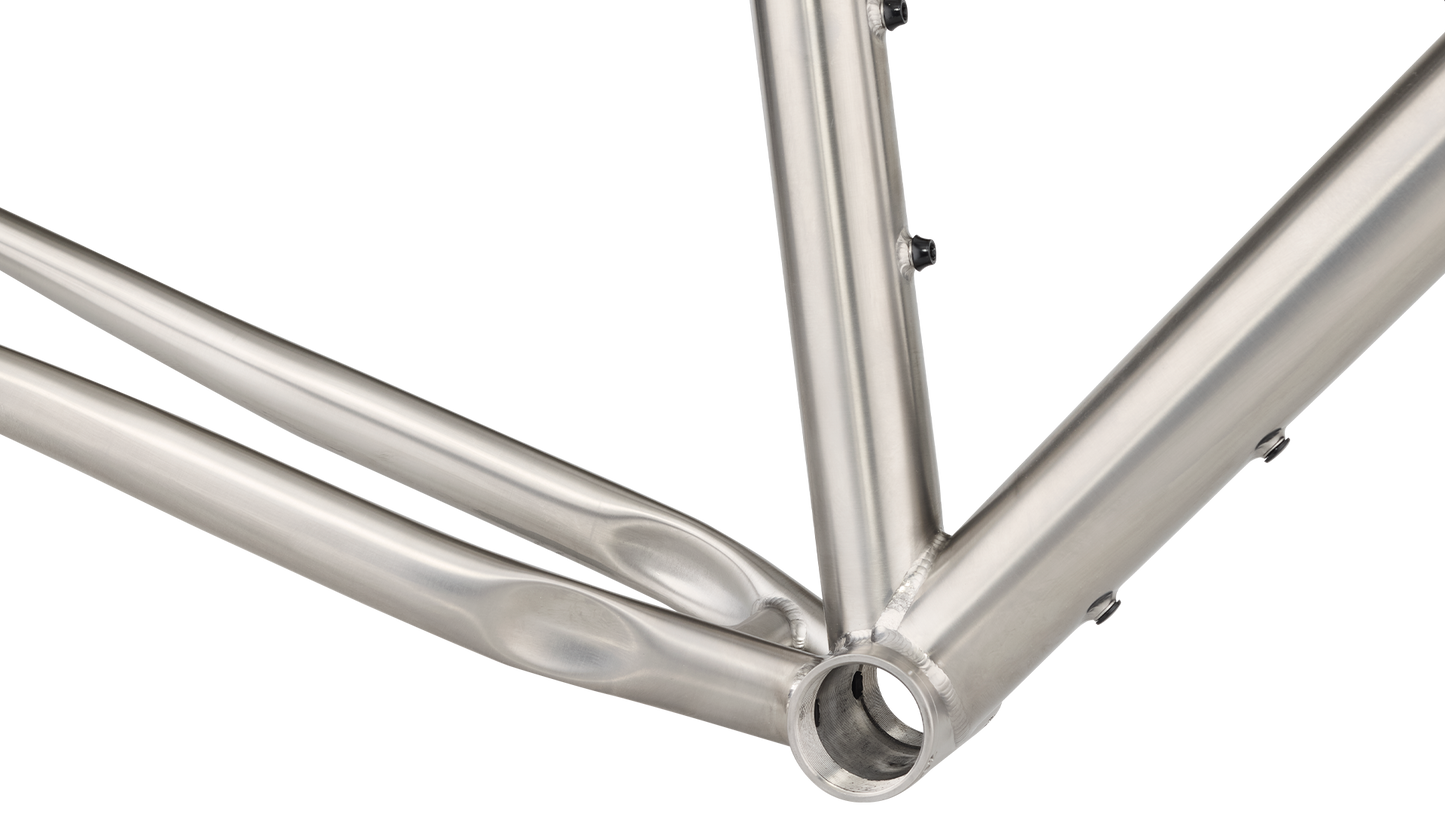

  • Salsa Fargo Ti Frameset side view bottom bracket area focus

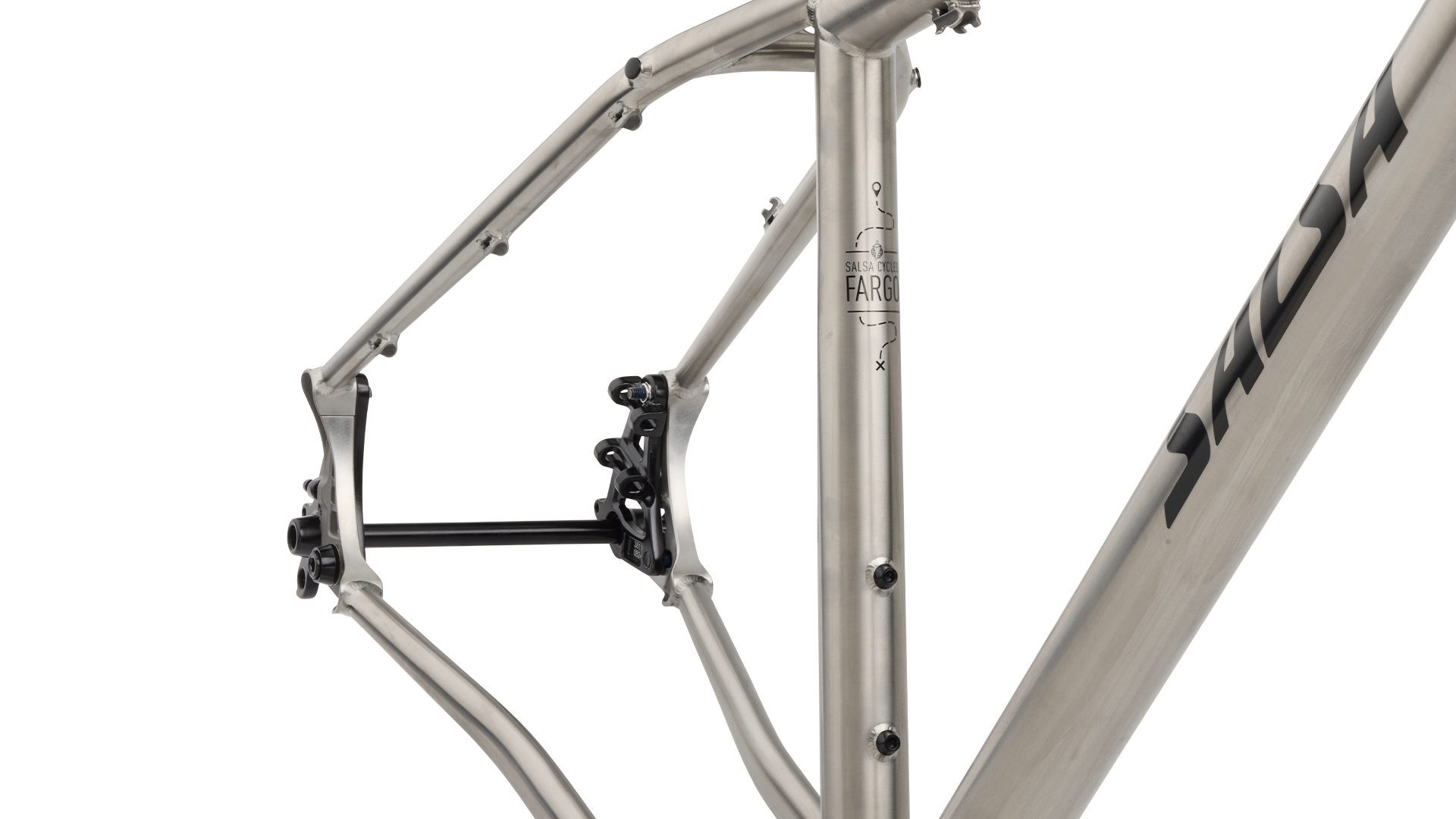

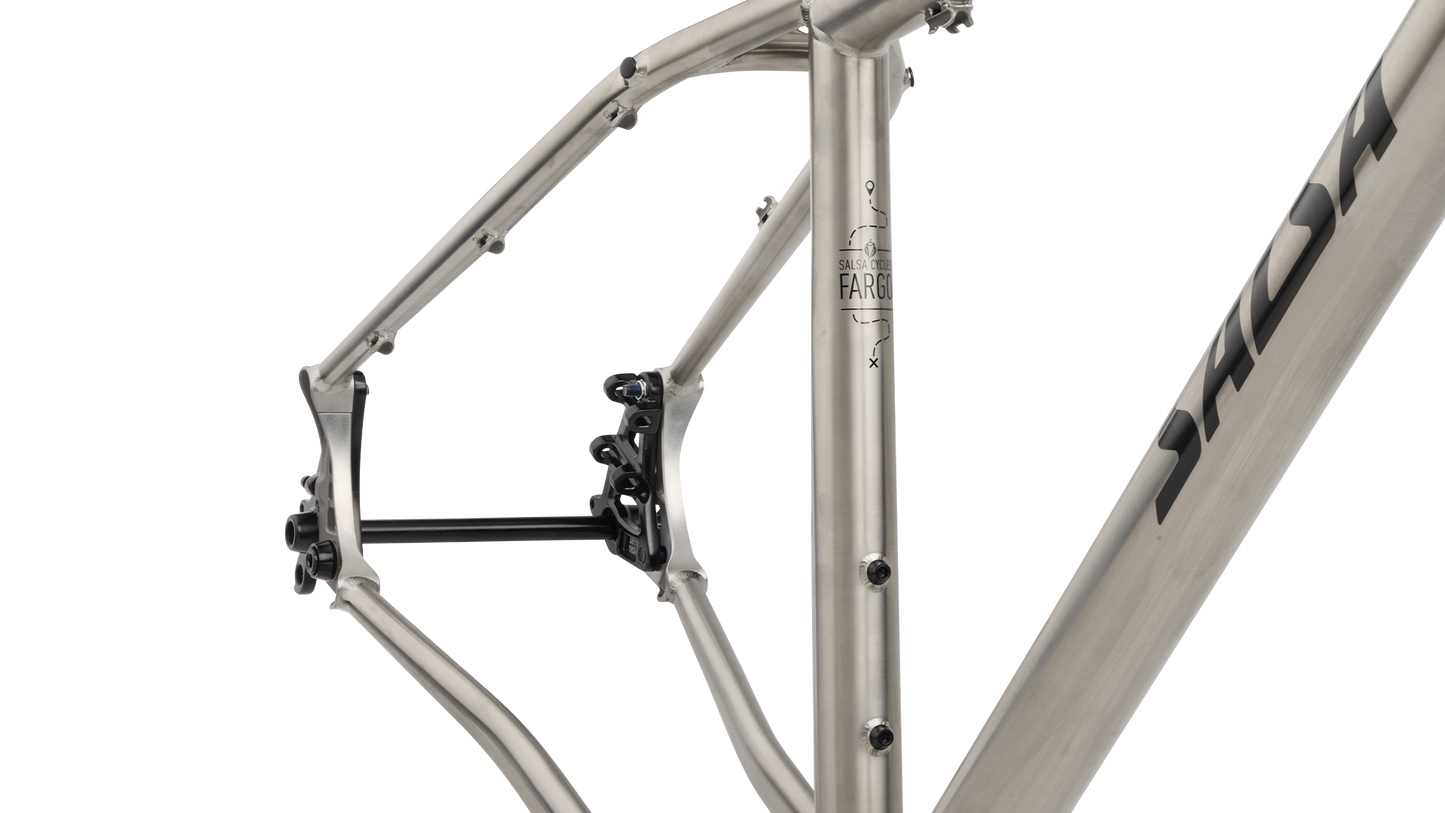

  • Salsa Fargo Ti Frameset seat tube focus looking back through rear triangle
1 6

Fargo Ti Frameset

Fargo Ti Frameset

$3,099.00 USD
$3,099.00 USD $3,099.00 USD
Size

The Fargo Titanium Frameset is a high-quality canvas for mixed-terrain bikepacking adventures. With the adaptability for many different drivetrains, wheel/tire sizes, and cargo setups, you can choose what suits your needs and keep evolving as your riding does. The 3/2.5 seamless titanium tubing and Cutthroat Carbon Deluxe fork deliver supreme ride quality, and the comfortable geometry will make you feel right at home no matter how far you roam. Build this into your dream titanium bikepacking bike and go get lost (in a good way).

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

1 2

Product Details

Build Kit

Frameset

Frame

Fargo 3/2.5 seamless triple-butted Titanium

Color

Titanium

Fork

Cutthroat Carbon Deluxe

Components

Headset

FSA Orbit ITA

Seatpost

Salsa Lip-Lock seat post collar

Drivetrain

Wheels

Front Axle

Deadbolt UL thru axle

Rear Axle

Deadbolt UL thru axle

Weight

Frame

6.31 lbs (includes fork, headset, front/rear thru axles, seat collar, alternator plates)

Geometry

Geometry Diagram
SizeX-SmallSmallMediumLargeX-Large
A. Effective Top Tube 520.0 540.0 565.0 590.0 620.0
B. Stand Over 692.0 734.0 781.0 823.0 861.0
C. Reach 350.0 364.0 368.0 385.0 409.0
D. Stack 594.0 615.0 643.0 671.0 690.0
E. Total Seat Tube Length 355.6 406.4 457.2 508.0 558.8
F. Headtube Length 90.0 110.0 140.0 170.0 190.0
G. Headtube Angle
68.5
69.0
69.0
69.0
69.0
H. Seat Tube Angle
74.0
74.0
73.0
73.0
73.0
I. BB Drop 70.0 70.0 70.0 70.0 70.0
K. Chainstay Length 445.0- 462.0 445.0- 462.0 445.0- 462.0 445.0- 462.0 445.0- 462.0
L. Fork Length Axle to Crown 480.0 480.0 480.0 480.0 480.0
M. Fork Offset 480.0 480.0 480.0 480.0 480.0
N. Wheelbase 1050.0- 1067.0 1067.0- 1084.0 1083.0- 1100.0 1110.0- 1127.0 1141.0- 1158.0
Crank Arm Length
Handlebar Width
Recommended Rider Height 150.0 - 160.0 160.0 - 175.0 173.0 - 183.0 180.0 - 191.0 188.0
Stem Length

Measurements based on:

  • A Firestarter Fork which is 483 x 45mm offset, this is equivalent to an average 100mm fork at 20% sag
  • Measurements listed are based on a 29 x 2.4" tire measuring 746mm in diameter
  • Standover (P) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center

Frame Specs

  • Design Wheel/Tire Sizes 29" wheels: 41–76mm (1.6"–3.0") SM - XL; 41–66mm (1.6" - 2.6") XS 27.5" wheels: 47–76mm (1.85"–3.0") 26" wheels: 70–76mm (2.75"–3.0")
  • Max Tire Outer Diameter 29" wheels: 41–76mm (1.6"–3.0") SM - XL; 41–66mm (1.6" - 2.6") XS 27.5" wheels: 47–76mm (1.85"–3.0") 26" wheels: 70–76mm (2.75"–3.0")
  • Frame Construction Fargo 3/2.5 seamless triple-butted titanium
  • Fork Construction Carbon
  • Suspension Fork Length (Travel) 501–511mm (100mm travel)
  • Rigid Fork Length 483mm axle-to-crown
  • Fork Offset 45–51mm
  • Rear Spacing 148mm; 142mm thru-axle or 135mm quick-release with Alternator Reduction Plates
  • Front Brake (Rotor) Flat mount (160–180mm rotor), flat mount frame standard (35 mm thickness), 42 mm bolt length
  • Headset - Upper ZS44
  • Headset - Lower EC44
  • Front Spacing 110 x 15 mm thru-axle
  • Steerer Tube 28.6mm, Tapered
  • Crown Race 40mm
  • Seatpost 27.2mm
  • Dropper Post Compatible No
  • Seatpost Clamp 32.0mm
  • Front Derailleur Clamp 148mm rear spaced: high direct-mount (29mm offset) with Problem Solvers bracket (FS1328) 142mm rear spaced: high direct-mount (26.5mm offset) with 34.9mm clamp Problem Solvers Bracket (FS1323)
  • Derailluer Hanger Alternator 1.0 Flat Mount
  • Bottom Bracket 73mm BSA, threaded
  • Crankset (Max Ring) 1x crankset: 36t max. Boost and 34t non-boost or 46t Gates Belt Drive Sprocket; 2x crankset: 42/28t max. Boost and Non-Boost
  • Accessory Mounts Rack Mounts Frame: Yes; Rack Mounts Fork: Yes, low-rider compatible. Salsa Down Under rack recommended.
  • Bottle Mounts Bottle Mounts Frame: XS: Two; SM–XL: Three; Bottle Mounts Fork: One set of Three-Pack mounts on each fork leg
  • Front Fender Mounts No

Supportive Documents

Support Document links

Additional Features

3/2.5 seamless titanium tubeset

Custom spec, seamless triple-butted titanium tubing. Appropriate stiffness and compliance for a fantastic ride quality. Lightweight with superior fatigue life

Cutthroat Carbon Deluxe fork

With trail-taming compliance and abrasion-resistant plates in high-wear areas, the Cutthroat Carbon Deluxe fork is designed for the rigors of rides that cover multiple road surfaces in unpredictable conditions

Fargo Geometry

Designed as a drop bar mountain bike, optimized for fit with the Salsa Cowchipper or Woodchipper handlebars. Capable of handling everything from technical singletrack trails, two-track, gravel, and the occasional paved road. Predictable handling with or without a load. The bike to ride for multiple-surface excursions

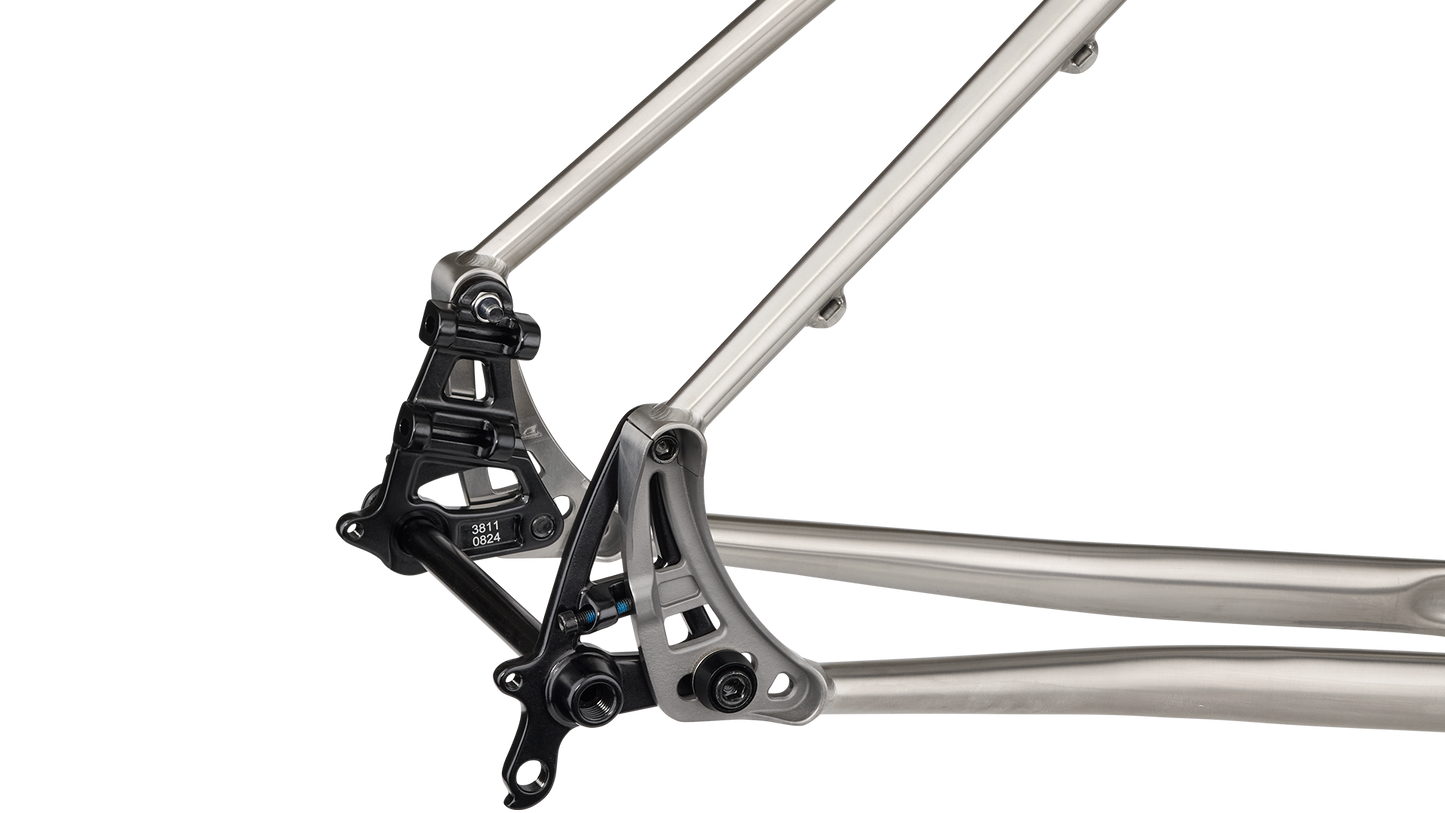

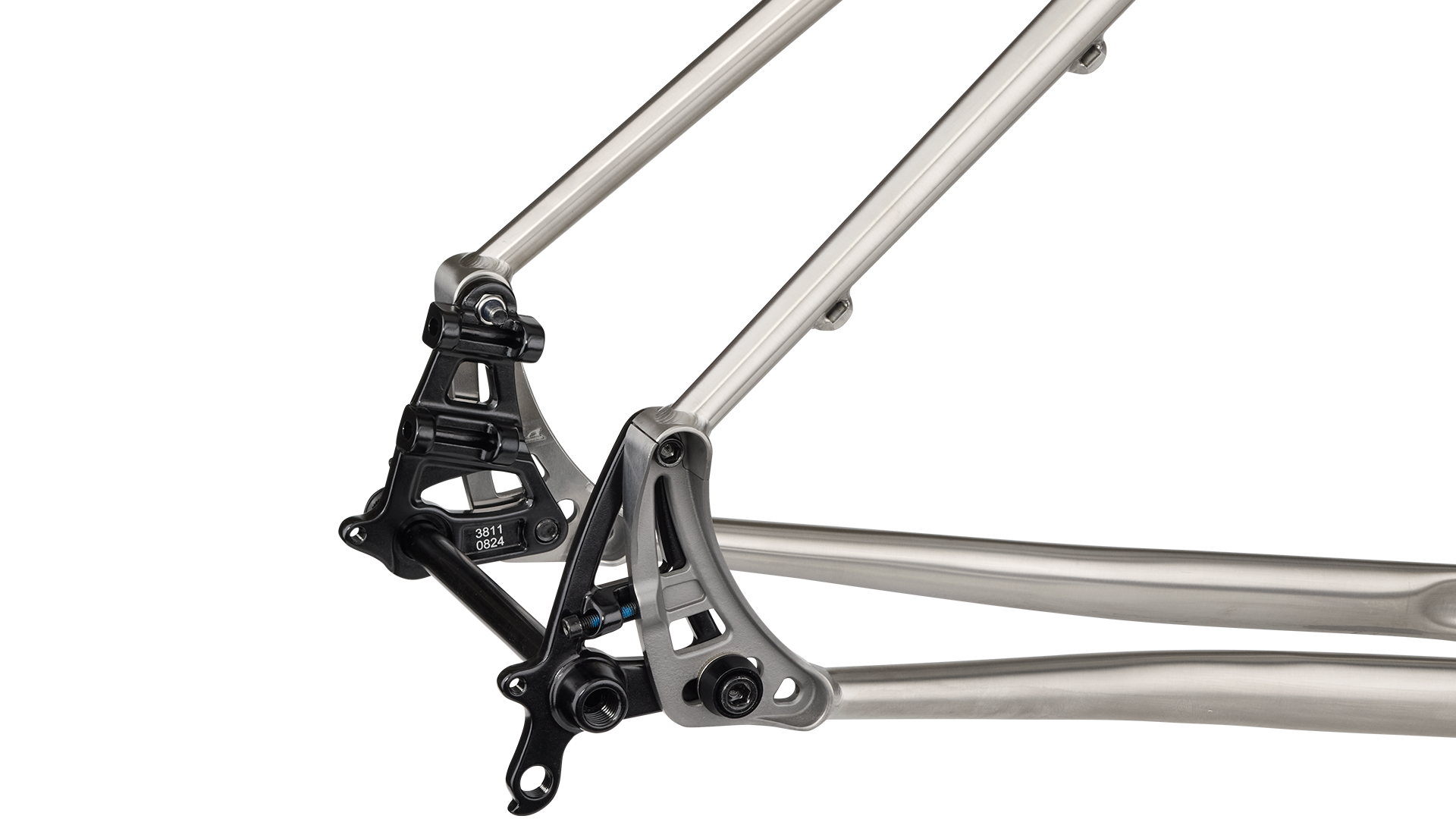

Alternator 1.0 Flat Mount dropouts

Our renowned Alternator rear dropout grants you ultimate drivetrain versatility. Go geared or single speed, QR or thru-axle, freehub, Rohloff, or Gates Belt Drive. Fargo comes equipped with a Boost-spaced thru-axle plates that are compatible with flat-mount brakes and ready for a rack and fenders. Different plates may be required for other drivetrain setups. Alternator also lets you adjust your wheelbase: set them all the way forward for a shorter wheelbase that results in quick and nimble handling or set them back for more stability.

Belt Drive Compatible

Tested and certified for belt drive use

Multiple Wheelsize Versatility

The Fargo frame can accommodate 27.5+, 29″, 29+ wheels and tires (29+ only compatible with sizes Small to X-large). This makes for a highly capable bike that’s ready for any endeavor on just about any terrain.

Cargo-friendly

Designed for use with Salsa Alternator Plus Rack 135/142/148 in the rear. The fork is compatible with Salsa Down Under Rack or Anything Cage HD using the Three-Pack mounts.

FAQ

Can I run 27.5+ rims and tires on this frameset?

Yes, you can. To maintain appropriate geometry we recommend using 27.5 x 3.0" tires.

Can I run 29+ rims and tires on this frameset?

Yes, on sizes Small through X-Large. 29+ is not possible on size X-Small due to toe overlap.

Can I run flat bars on my Fargo?

Yes, but it is important to keep in mind that the Fargo is designed specifically as a drop bar mountain bike. Switching to a flat bar essentially results in a very short toptube length, compared to how a traditional flat bar mountain bike would be designed.

Can I use a suspension fork on this frame?

Yes, this frame was designed and tested for use with a suspension fork with an axle-to-crown length up to 511mm (typically 100mm of travel). Check the fork manufacturer's specifications to ensure the model and travel combination you intend to use is equal to or less than this length. Using a longer length fork will void the frame warranty and could result in frame failure. Forks with 45mm offset are recommended, but 51mm offset is also acceptable (decreases mechanical trail by 6mm).

How do I take care of the Alternator Dropouts?

Periodically, we recommend that you remove the bolts and clean the dirt and grime off the hardware and the frame surfaces. Then, lightly re-grease the threaded parts and re-assemble.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.
