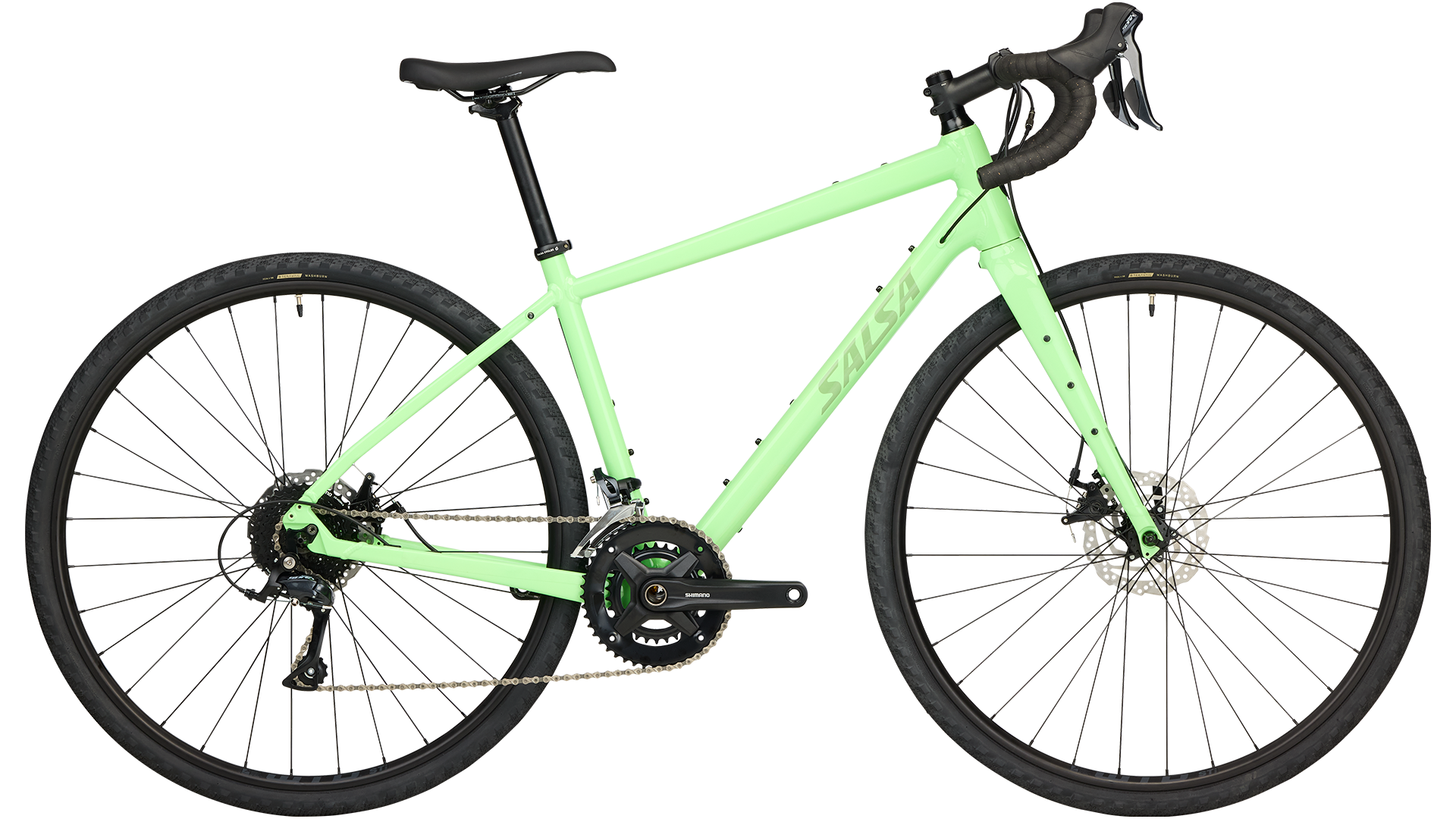

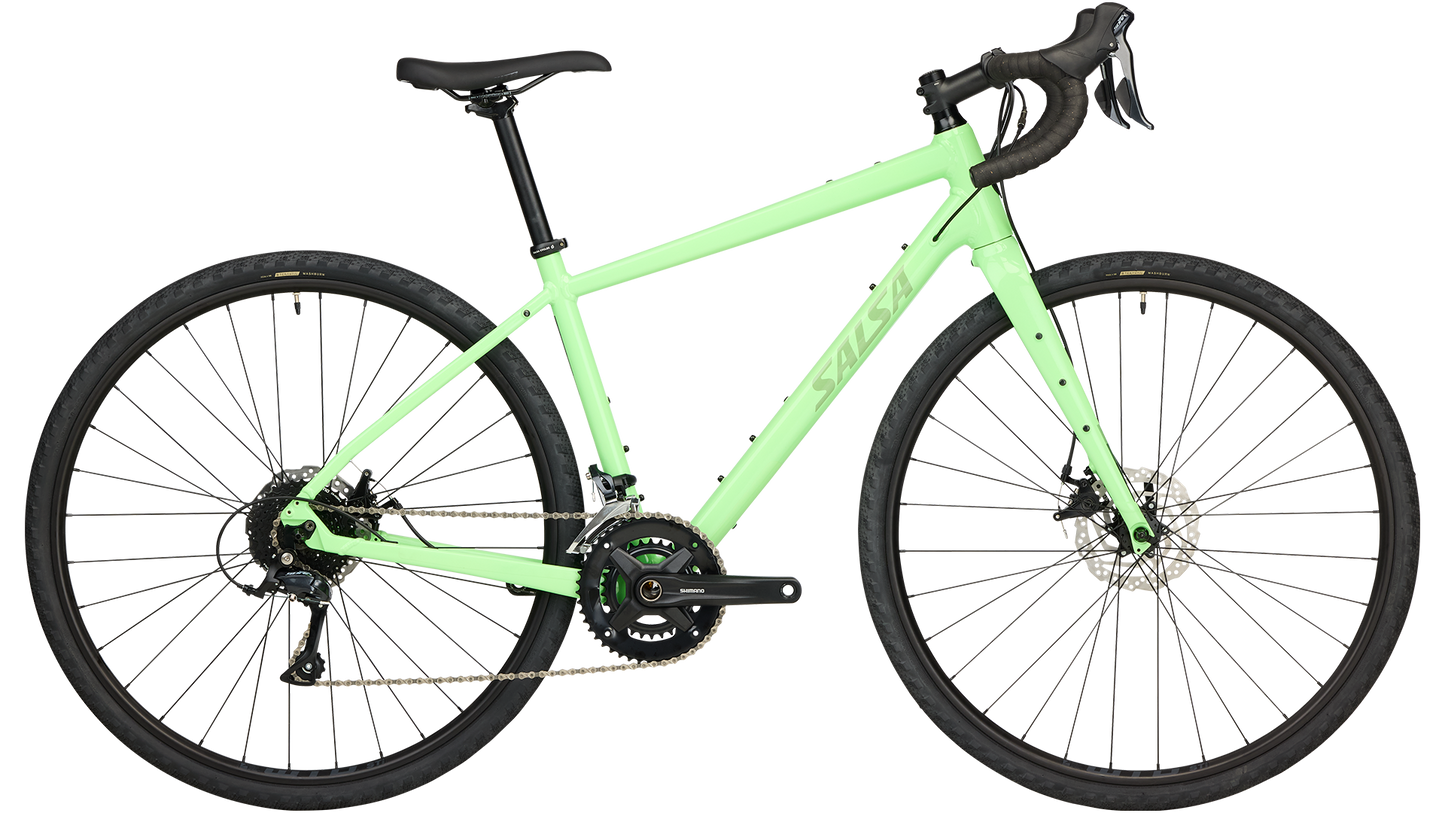

• Salsa Journeyer Sora bike green side view

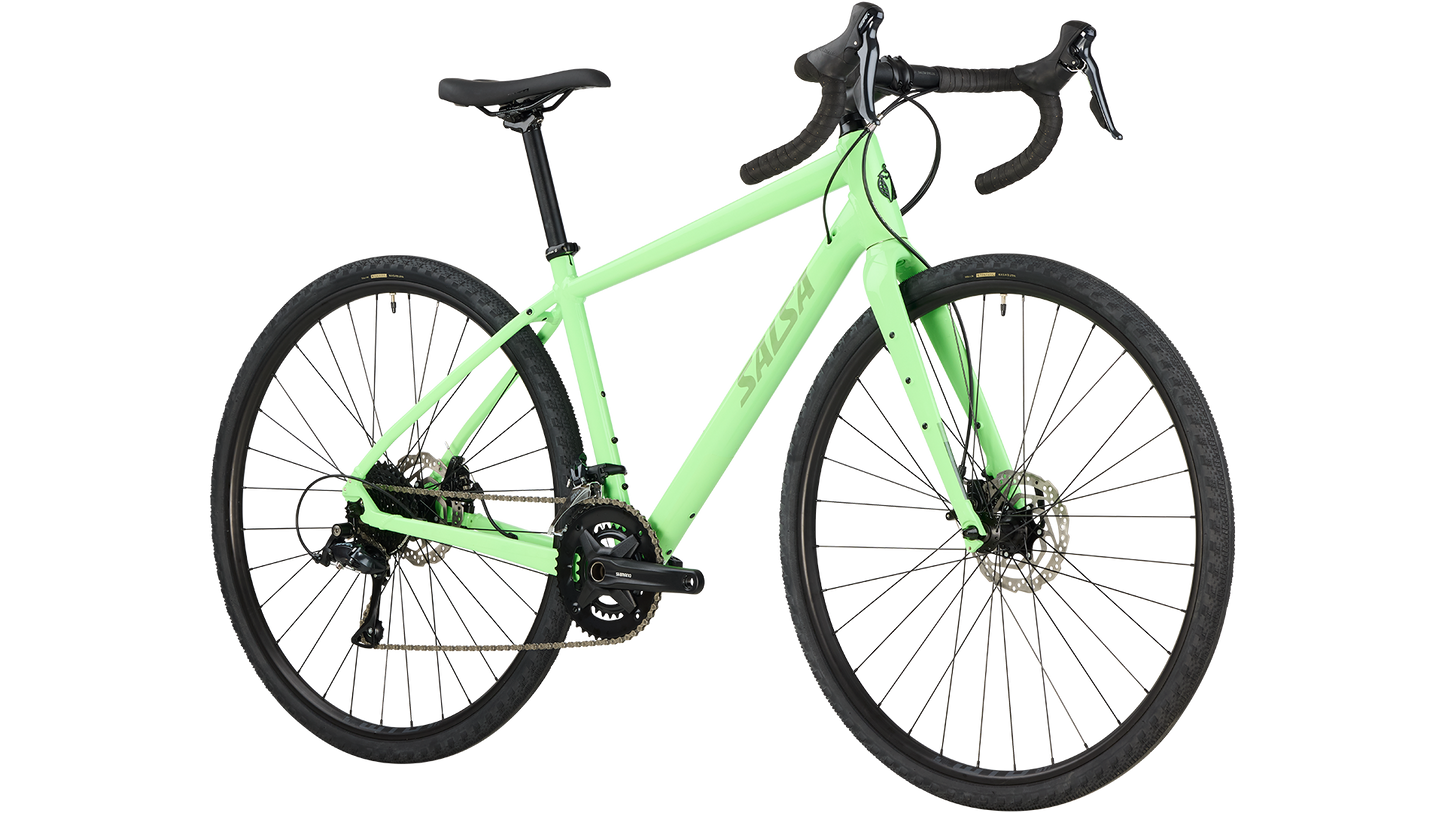

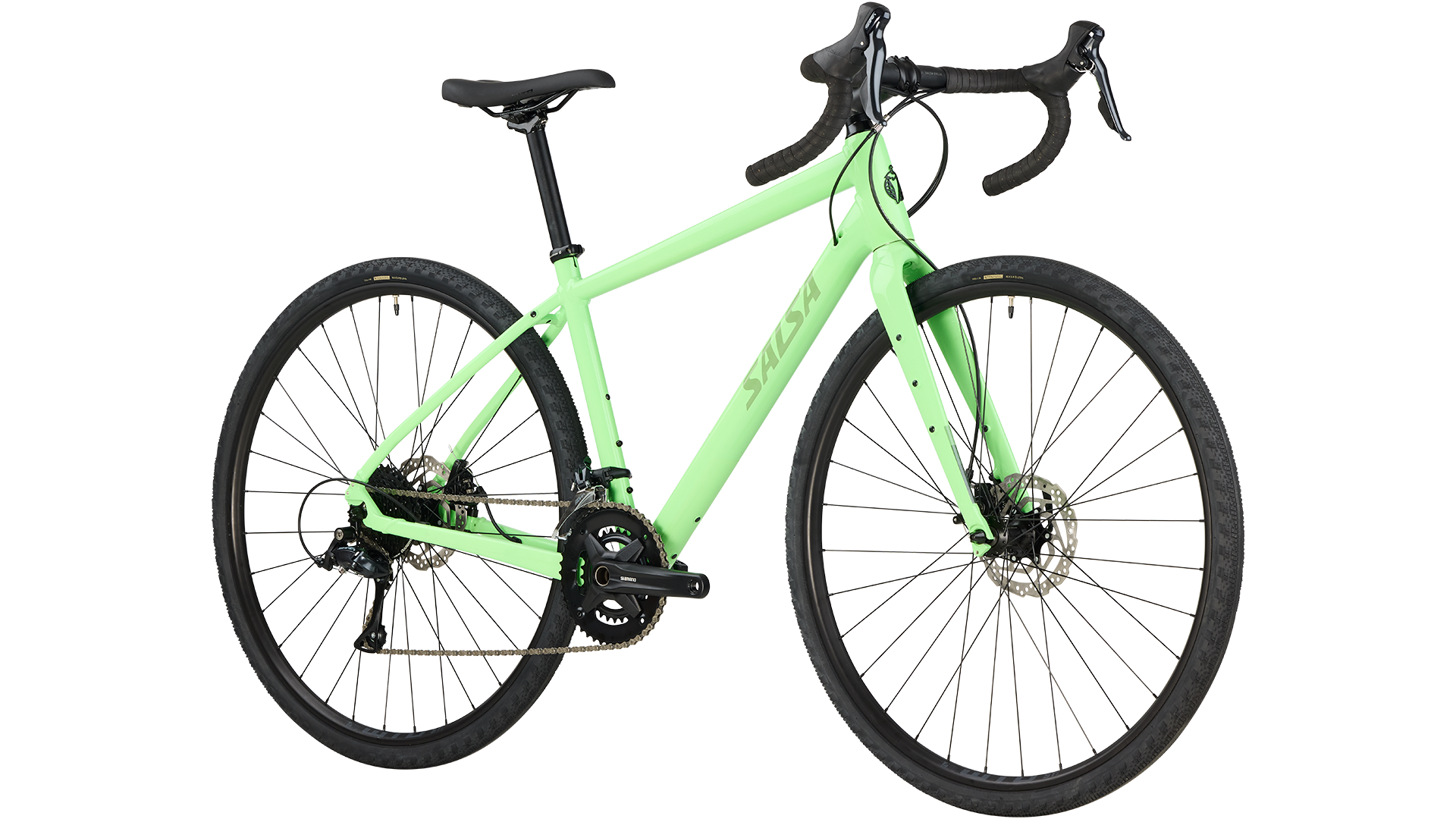

  • Salsa Journeyer Sora bike green front three-quarter view

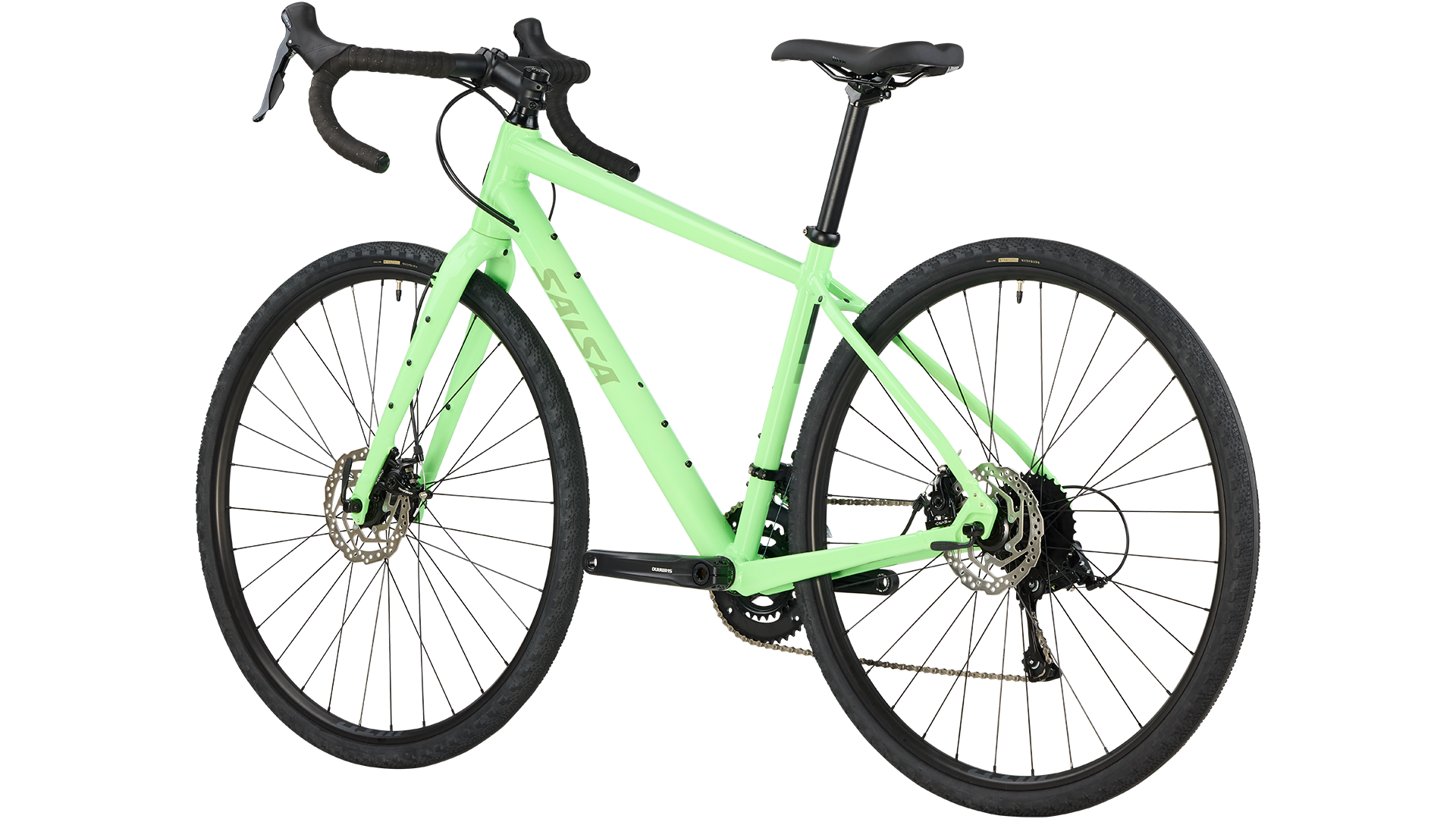

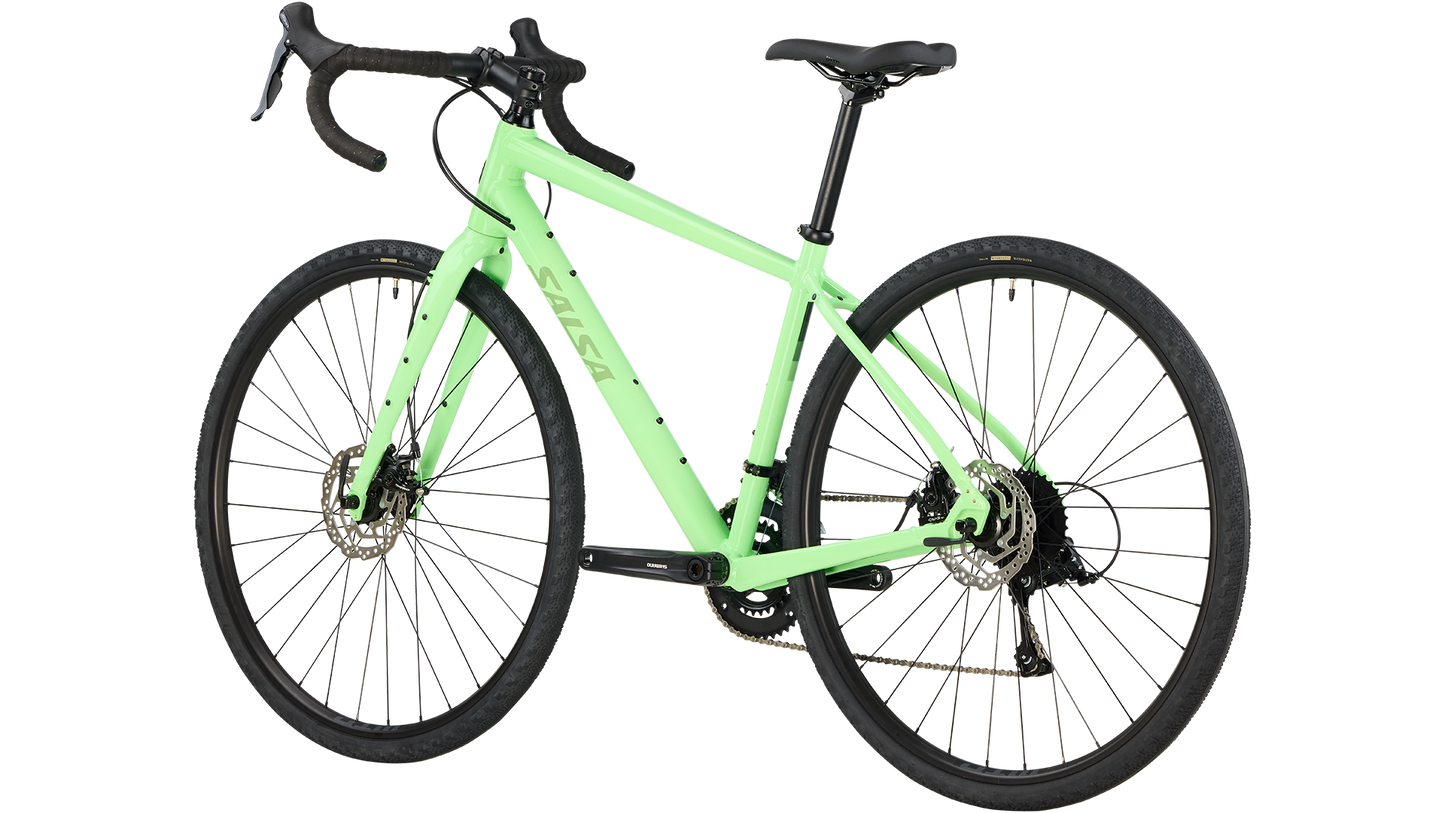

  • Salsa Journeyer Sora bike green rear three-quarter view
1 3

Journeyer Sora 700c

Journeyer Sora 700c

$1,149.00 USD
$1,149.00 USD $1,149.00 USD
Size

Journeyer SORA 2x9 is a gravel adventure bike built for guiding you into the world of gravel racing, wandering beautiful backroads, light bikepacking, or any other gravel fun you can cook up. Comfortable upright geometry grants you confidence on rougher roads (and helps you take in the view). The aluminum frame and fork feature mounts for fenders, racks, and accessories like our EXP-R Series Trillium Top Tube Bag, so you can adapt it for any adventure. The Shimano SORA 2x9 drivetrain is a workhorse with more than enough gear range for soaring climbs and long flats. Journeyer’s blend of comfort, cargo, and capability make it the best gravel adventure bike for riders starting to explore the off-pavement world.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

1 2

Product Details

Build Kit

Frameset

Frame

Journeyer Drop-Bar Quick-Release

Color

Citrus Green

Fork

Fantail QR

Components

Headset

FSA NO.42/ACB

Seatpost

ProMax

Stem

Salsa Guide

Grips/Bar Tape

Black cork

Saddle

WTB Volt Medium

Handlebar

Salsa Cowbell 3

Drivetrain

Front Derailleur

Shimano Sora R3000

Rear Derailleur

Shimano Sora R3000

Cassette

Shimano HG200, 11–34t, 9-speed

Chain

KMC X9

Crankset

Shimano MT210, 46–30t -OR- FSA Tempo, 46–36t

Shifter

Shimano Sora R3000

Brake Levers

Shimano Sora R3000

Brake Calipers

Tektro C550

Bottom Bracket

Shimano RS501 -OR- FSA Square Taper, 68mm, BSA, 118mm spindle

Rotors

Shimano RT10 (Center Lock, 160mm front and rear)

Wheels

Front Tire

Teravail Washburn 700c x 38mm, wire-bead

Rear Tire

Teravail Washburn 700c x 38mm, wire-bead

Front Hub

Shimano TX5050, QR, OLD: 100mm

Rear Hub

Shimano TX5050, QR, OLD: 135mm

Spoke

14g, black

Rim

WTB ST i23, TCS 2.0, 32h, 700c

Geometry

Geometry Diagram
Size49cm51cm53cm55cm57cm60cm
A. Effective Top Tube 493.0 510.0 530.0 550.0 570.0 600.0
B. Stand Over 617.0 652.0 688.0 724.0 760.0 807.0
C. Reach 366.0 369.0 372.0 376.0 387.0 409.0
D. Stack 510.0 528.0 552.0 570.0 599.0 627.0
E. Total Seat Tube Length 340.0 380.0 410.0 450.0 490.0 520.0
F. Headtube Length 90.0 105.0 130.0 150.0 180.0 210.0
G. Headtube Angle
68.5
69.5
69.5
69.5
69.5
69.5
H. Seat Tube Angle
76.0
75.0
74.0
73.0
73.0
73.0
I. BB Drop 70.0 70.0 70.0 70.0 70.0 70.0
K. Chainstay Length 440.0 440.0 440.0 440.0 440.0 440.0
L. Fork Length Axle to Crown 402.0 402.0 402.0 402.0 402.0 402.0
M. Fork Offset 50.0 50.0 50.0 50.0 50.0 50.0
N. Wheelbase 1027.0 1028.0 1040.0 1051.0 1072.0 1104.0
Crank Arm Length 165.0 165.0 170.0 172.5 175.0 175.0
Handlebar Width 380.0 400.0 420.0 440.0 460.0 460.0
Recommended Rider Height 142.0 - 152.0 150.0 - 160.0 157.0 - 170.0 165.0 - 178.0 173.0 - 185.0 183.0 - 196.0
Stem Length 60.0 70.0 80.0 80.0 90.0 100.0

Measurements based on:

  • a fork measuring 405mm with 50mm offset
  • a 700 x 38mm tire measuring 706 mm in diameter
  • Stand over measured vertically to top of top tube from a position 50mm forward of BB center

Frame Specs

  • Design Wheel/Tire Sizes 700c x 38mm
  • Alternate Wheel/Tire Sizes 700c x 32–50mm; 650b x 47–50mm
  • Frame Construction Aluminum
  • Fork Construction Aluminum
  • Rigid Fork Length 405mm axle to crown
  • Fork Offset 50mm
  • Rear Spacing 135mm
  • Rear Axle Size 10 x 135mm quick-release
  • Front Brake (Rotor) Flat mount 140 fork standard (160mm max.)
  • Headset - Upper IS41
  • Headset - Lower IS52
  • Front Spacing 100mm
  • Front Axle Size 9 x 100mm quick-release
  • Steerer Tube 28.6mm / 1 1/8"
  • Crown Race 40mm
  • Seatpost 27.2mm
  • Dropper Post Compatible Yes (internal)
  • Seatpost Clamp 32.0mm
  • Front Derailleur Clamp 31.8mm OD, bottom pull
  • Front Derailleur Type 2x, bottom swing
  • Derailluer Hanger Salsa 959
  • Bottom Bracket 68mm BSA
  • Crankset (Max Ring) 1x crankset: 42t max.; 2x crankset: 48/33t max.
  • Accessory Mounts 1 downtube accessory mount
    Frame rack mounts
    Low-rider fork rack mounts
    Frame fender mounts
    Fork fender mounts
  • Bottle Mounts Frame: 49cm frame: one in main triangle; 51–56cm frames: two in main triangle; 57–60cm frames: three in main triangle
    Fork: Two

Supportive Documents

Support Document links

Additional Features

We use alloy tubing developed specifically for the Journeyer frame, which is then heat-treated to T6 alloy standards for extra strength and durability.

6061-T6 Aluminum Frame

The Fantail fork is constructed from aluminum alloy and designed for a 9 x 100 mm quick-release axle. Fantail’s two sets of Three-Pack mounts and mid-blade rack mounts let you load up everything you need for your rides. Fender mounts add a touch of all-weather utility, and massive 700c x 56 mm or 650b x 59 mm (27.5 x 2.3") tire clearance lets you choose the wheel and tire setup for your riding conditions.

Fantail aluminum fork

Journeyer feels comfortable and stable whether you're entering your first gravel race, exploring dirt paths around town, or venturing into unfamiliar terrain. It's spirited when you want it to be but relaxed enough to leave you with the energy for long rides.

Gravel Geometry

Full-length housing improves shifting performance in poor conditions and increases use time between maintenance intervals. Internal routing for a clean, uncluttered look.

Internal Cable Routing

Internal dropper post routing makes it easy to outfit your Journeyer for more technical riding.

Dropper Post Routing

Flat-mount brakes offer a clean look, easy setup, and compatibility with most of today’s road and gravel brake offerings.

Flat-Mount Brakes

Journeyer features front and rear rack mounts, a Three-Pack mount on each fork leg, a top tube mount, down tube mount, and bottle mounts. With this many options, you can load it up however you like.

Cargo Capability

700c wheels hold their momentum well, and the 38 mm Teravail Washburn tires blend straight-line speed with confidence in turns on loose terrain.

700c x 38 mm Wheels and Tires

700c wheels hold their momentum well, and the 38 mm Teravail Washburn tires blend straight-line speed with confidence in turns on loose terrain.

Salsa Cowbell Drop Handlebar

Journeyer fits both 700c and 650b wheel sizes so you can adapt it for any type of gravel or all-road ride.

FAQ

Can I use a suspension fork on this frame?

No, this frame was not designed or tested for use with a suspension fork.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.
