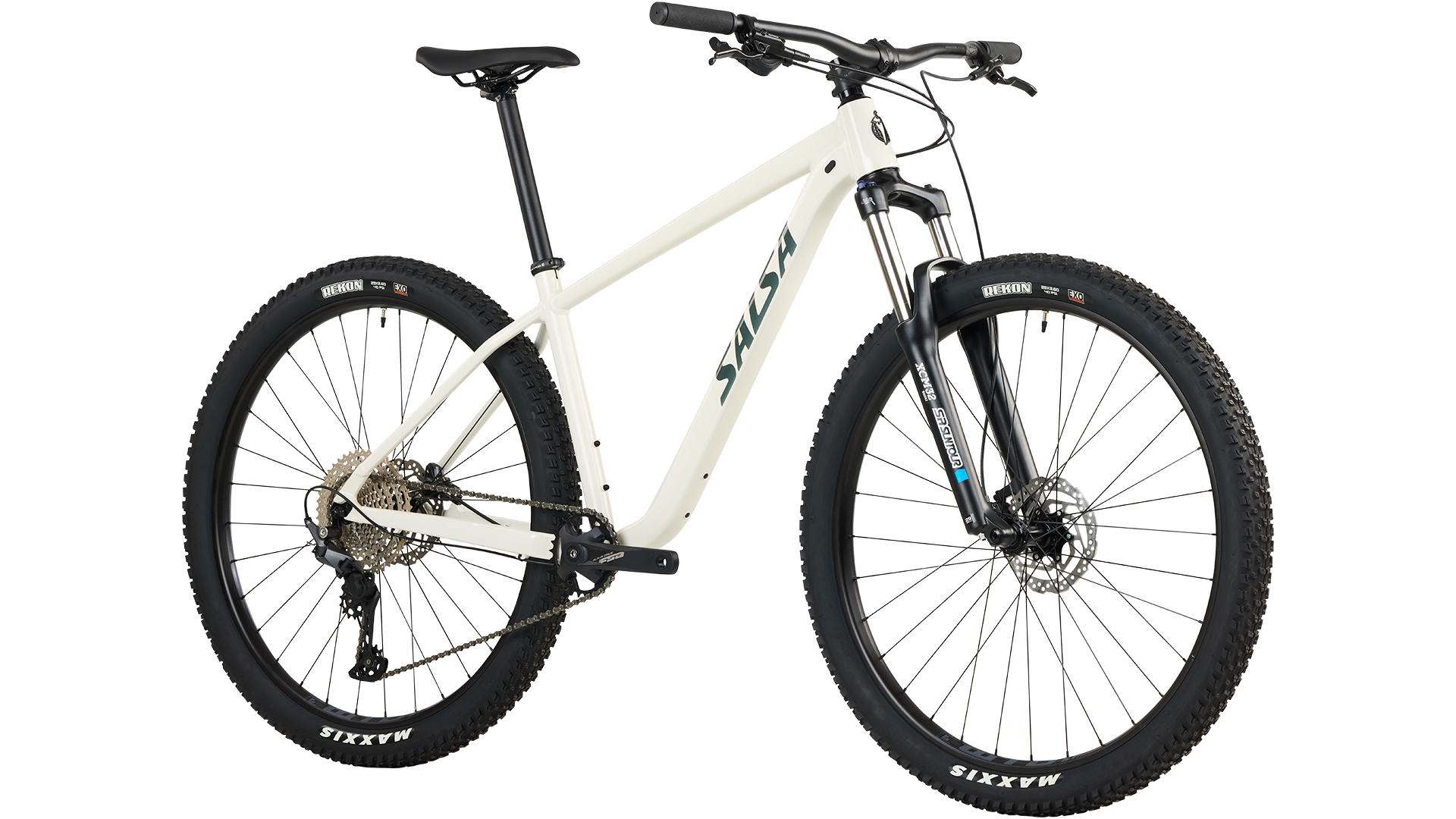

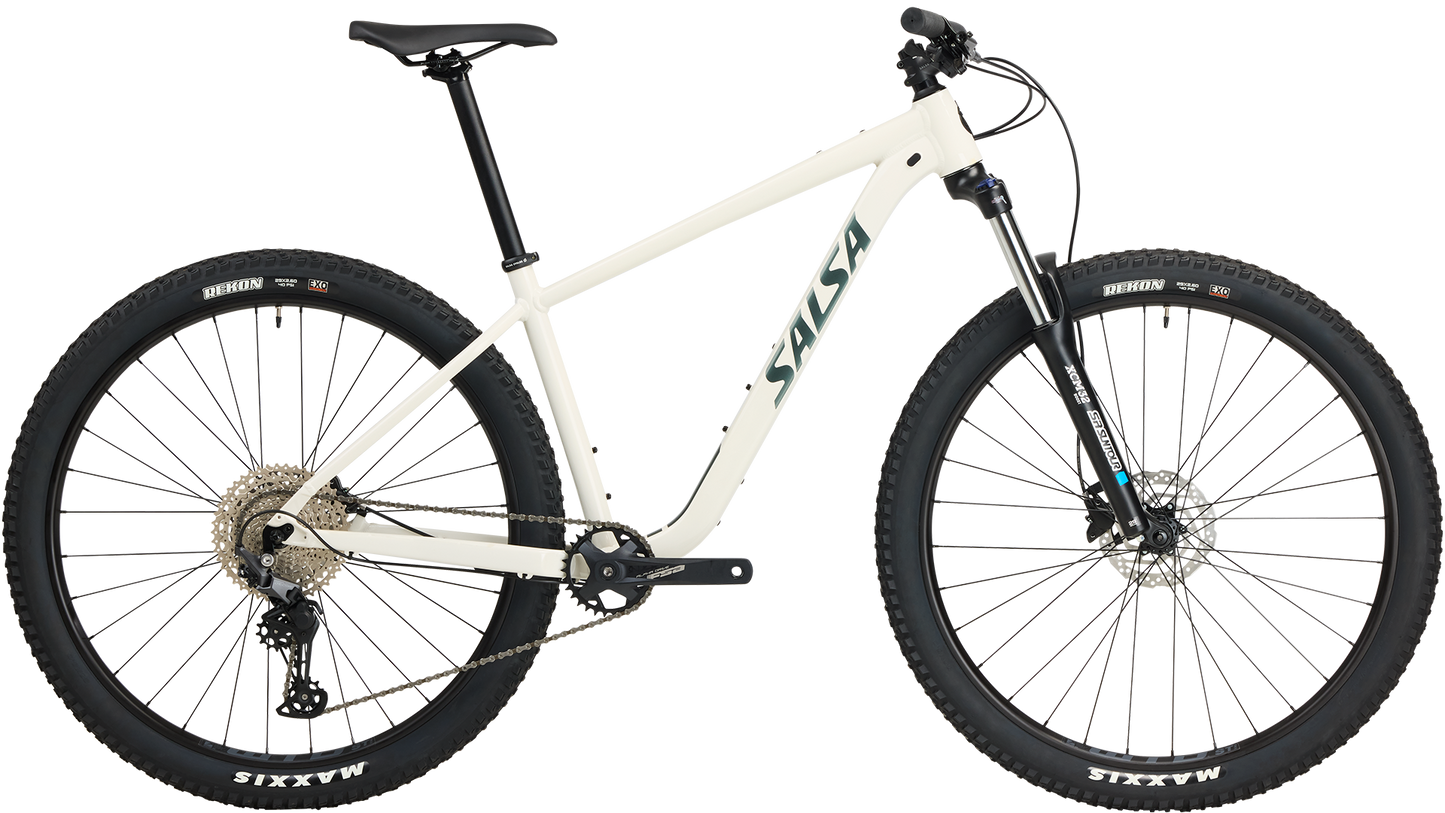

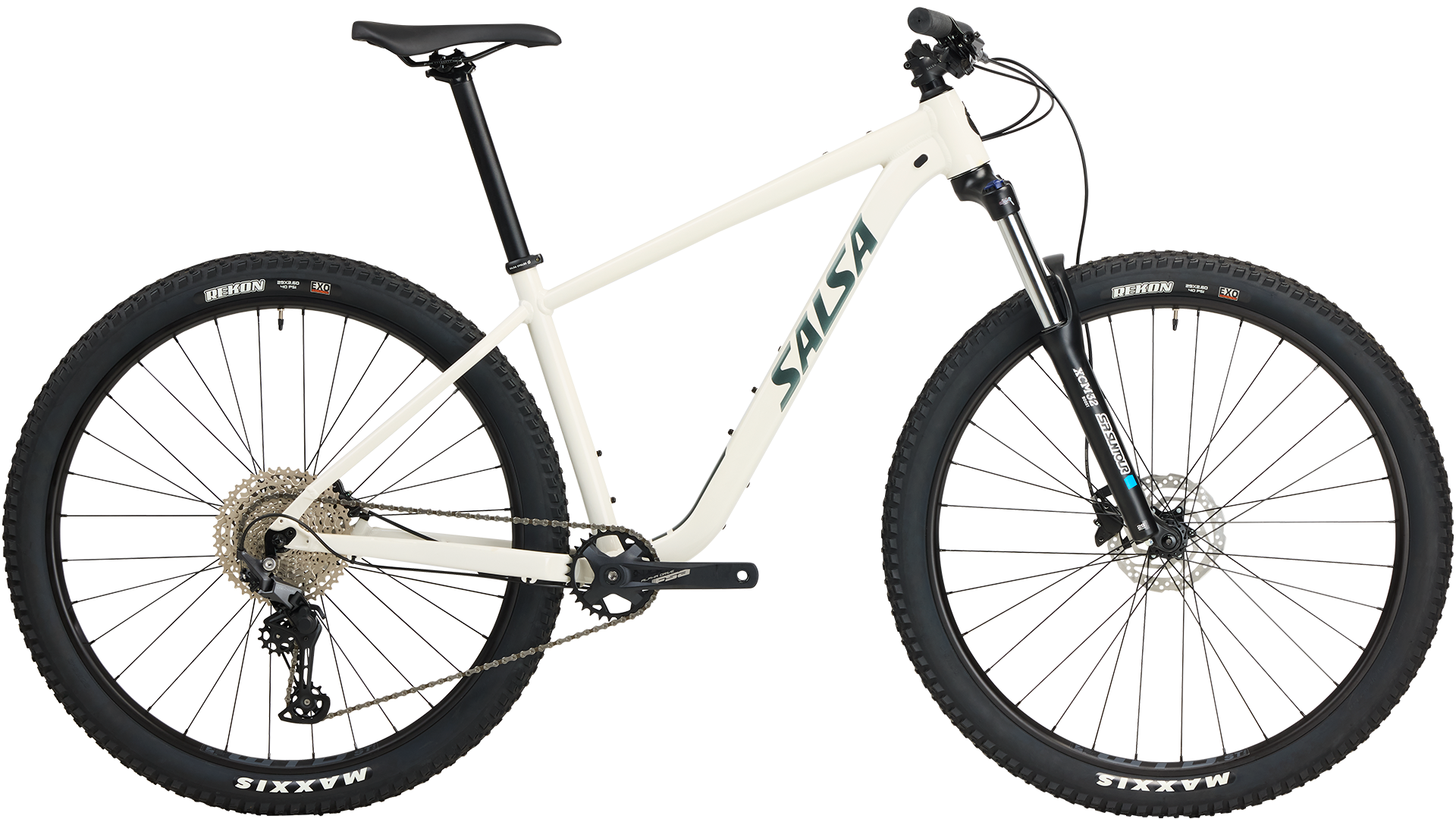

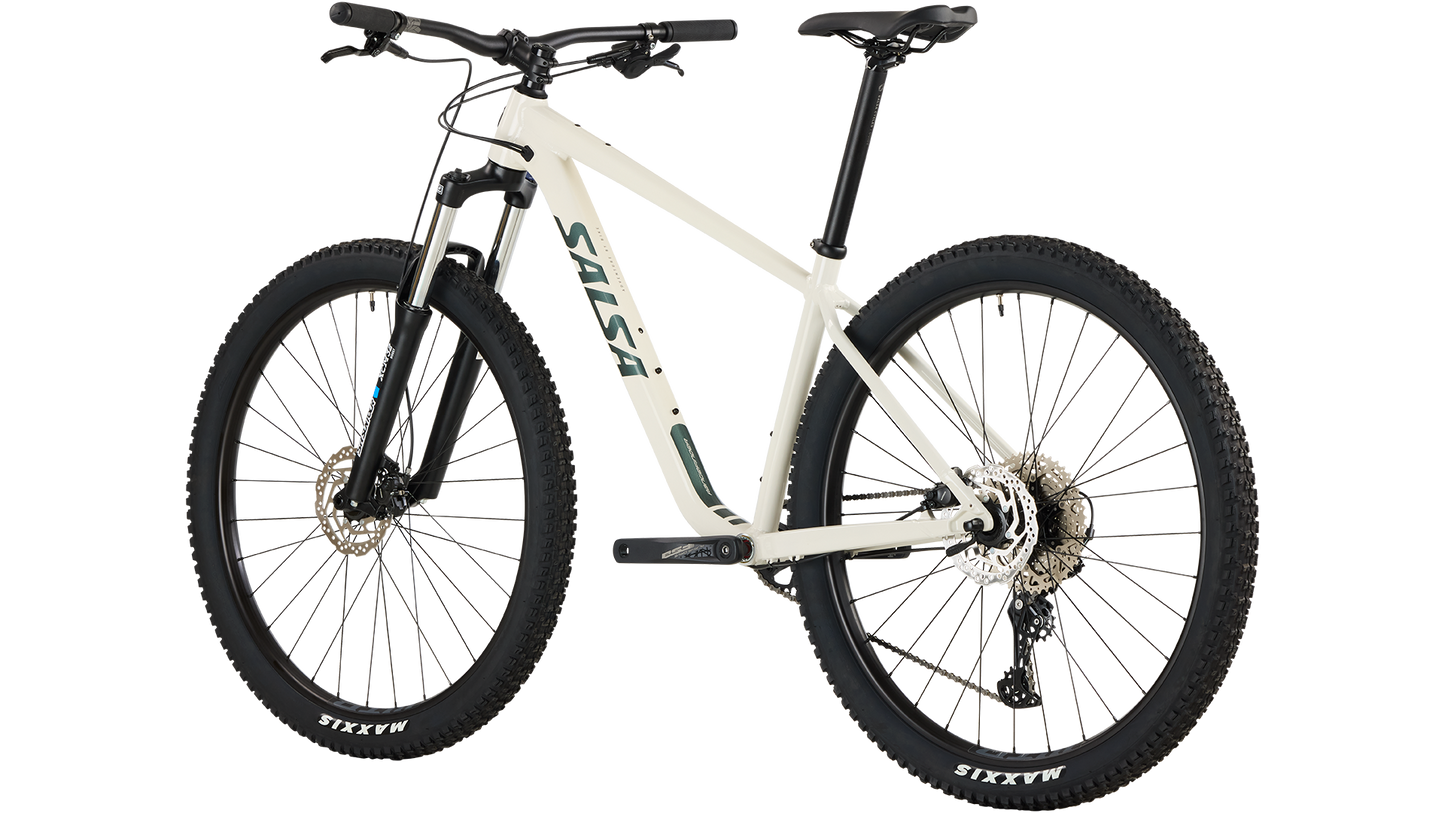

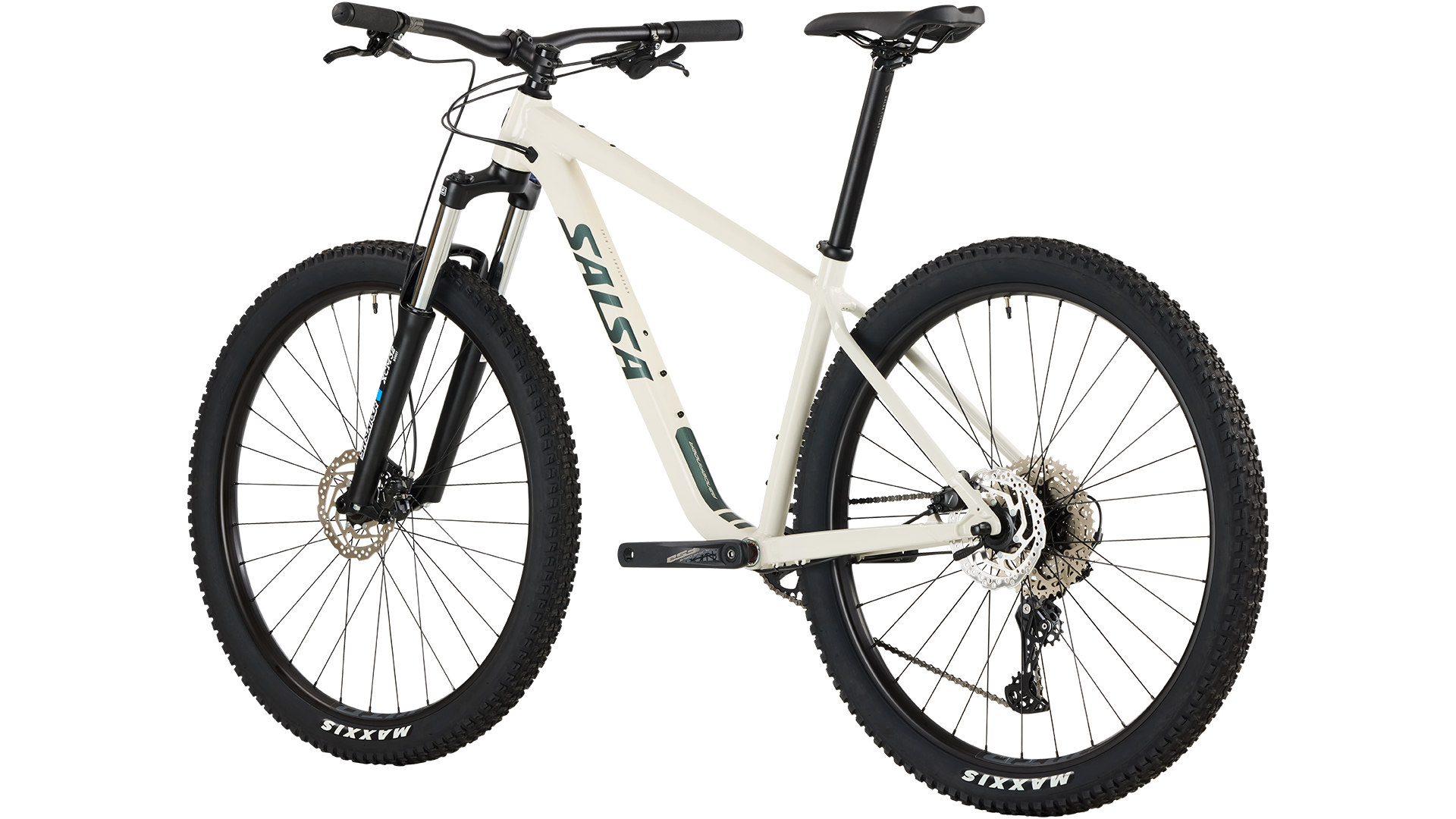

Bike Key Features
Build Kit
Frameset
Frame
Rangefinder
Color
Ceramic White
Fork
SR Suntour XCM32 Coil Boost NLO DS, 120mm
Rear Shock
N/A
Components
Headset
FSA Orbit NO.57B 1.5 ZS
Seatpost
Salsa Guide 30.9, 0 offset
Stem
Salsa Guide 31.8, 60 mm, 6d
Grips/Bar Tape
Salsa File Tread
Saddle
WTB Volt Medium, Steel, 142 x 265 mm
Handlebar
Salsa Salt Flat 31.8, 750 mm width XS–SM; Salsa Rustler 31.8, 800 mm width M–XL
Drivetrain
Front Derailleur
N/A
Rear Derailleur
Shimano Deore M5120 SGS
Cassette
Shimano Deore M4100 11–46t, 10-speed
Chain
Shimano HG54
Crankset
FSA Alpha Drive, 30t, FSA 124.5 mm bottom bracket
Shifter
Shimano Deore M4100
Brake Calipers
Shimano MT200
Rotors
Shimano RT10 (Center Lock, 160 mm)
Wheels
Front Wheel
Shimano TC500-B 15 x 110 mm TA hub, WTB ST i30 32h 29" rim
Rear Wheel
Shimano MT200-B 10 x 141 mm QR hub, WTB ST i30 32h 29" rim
Front Tire
Maxxis Rekon 29 x 2.6", EXO, Wire Bead
Rear Tire
Maxxis Rekon 29 x 2.6", EXO, Wire Bead
Weight
Complete Bike
32 lbs 8 oz (size Medium, with tubes, no pedals)
Geometry
| Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| A. Effective Top Tube | 566.7 | 589.0 | 613.3 | 641.9 | 668.5 |
| B. Stand Over | 688.6 | 708.3 | 747.2 | 779.1 | 808.7 |
| C. Reach | 400.6 | 421.5 | 444.4 | 470.4 | 494.3 |
| D. Stack | 601.9 | 606.4 | 611.0 | 620.1 | 629.3 |
| E. Total Seat Tube Length | 355.0 | 381.0 | 431.0 | 470.0 | 508.0 |
| F. Headtube Length | 95.0 | 100.0 | 105.0 | 115.0 | 125.0 |
| G. Headtube Angle |
68.6
|
68.6
|
68.6
|
68.5
|
68.5
|
| H. Seat Tube Angle |
74.6
|
74.6
|
74.6
|
74.5
|
74.5
|
| I. BB Drop | 62.0 | 62.0 | 61.9 | 61.8 | 61.7 |
| J. BB Height | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| K. Chainstay Length | 439.0 | 439.0 | 439.0 | 439.0 | 439.0 |
| L. Fork Length Axle to Crown | 501.0 | 501.0 | 501.0 | 501.0 | 501.0 |
| M. Fork Offset | 501.0 | 501.0 | 501.0 | 501.0 | 501.0 |
| N. Wheelbase | 1101.9 | 1124.7 | 1149.6 | 1179.4 | 1207.1 |
| Crank Arm Length | 170.0 | 170.0 | 175.0 | 175.0 | 175.0 |
| Handlebar Width | 750.0 | 750.0 | 800.0 | 800.0 | 800.0 |
| Recommended Rider Height | 157.0 - 168.0 | 160.0 - 175.0 | 173.0 - 183.0 | 180.0 - 191.0 | 188.0 |
| Stem Length | 60.0 | 60.0 | 60.0 | 60.0 | 60.0 |
Measurements based on:
- OE spec 120mm 29/27.5+ suspension fork at 25% sag
- 27.5 x 2.8" tire measuring 722mm in diameter
- Standover is measured from vertically from ground to the top of the toptube, 50mm forward of the BB. Add 8-12.5mm (0.3-0.5") for 29 x 2.4-2.6" wheels/tires
Frame Specs
- Design Wheel/Tire Sizes 29 x 1.9–2.6"
- Alternate Wheel/Tire Sizes 27.5 x 2.8–3.0"
- Suspension Fork Length (Travel) 100–130 mm
- Fork Offset 46 mm
- Rear Spacing 141 x 10 mm QR
- Headset - Upper ZS44
- Headset - Lower ZS56
- Seatpost 30.9 mm
- Dropper Post Compatible Yes (internal)
- Seatpost Clamp 35.0 mm
- Front Derailleur Clamp N/A
- Front Derailleur Type N/A
- Derailluer Hanger FS2361
- Bottom Bracket 73 mm BSA, threaded
- Crankset (Max Ring) Boost 148 52 mm chainline only (32t max)
- Accessory Mounts Rear Rack Mounts: Yes. Salsa Post-Lock seatpost collar required; Downtube Accessory Mounts: 1; Top Tube Mounts: Yes, compatible with Salsa EXP Series Top Tube bag.
- Bottle Mounts 2
- Front Fender Mounts No
- Rear Fender Mounts No
