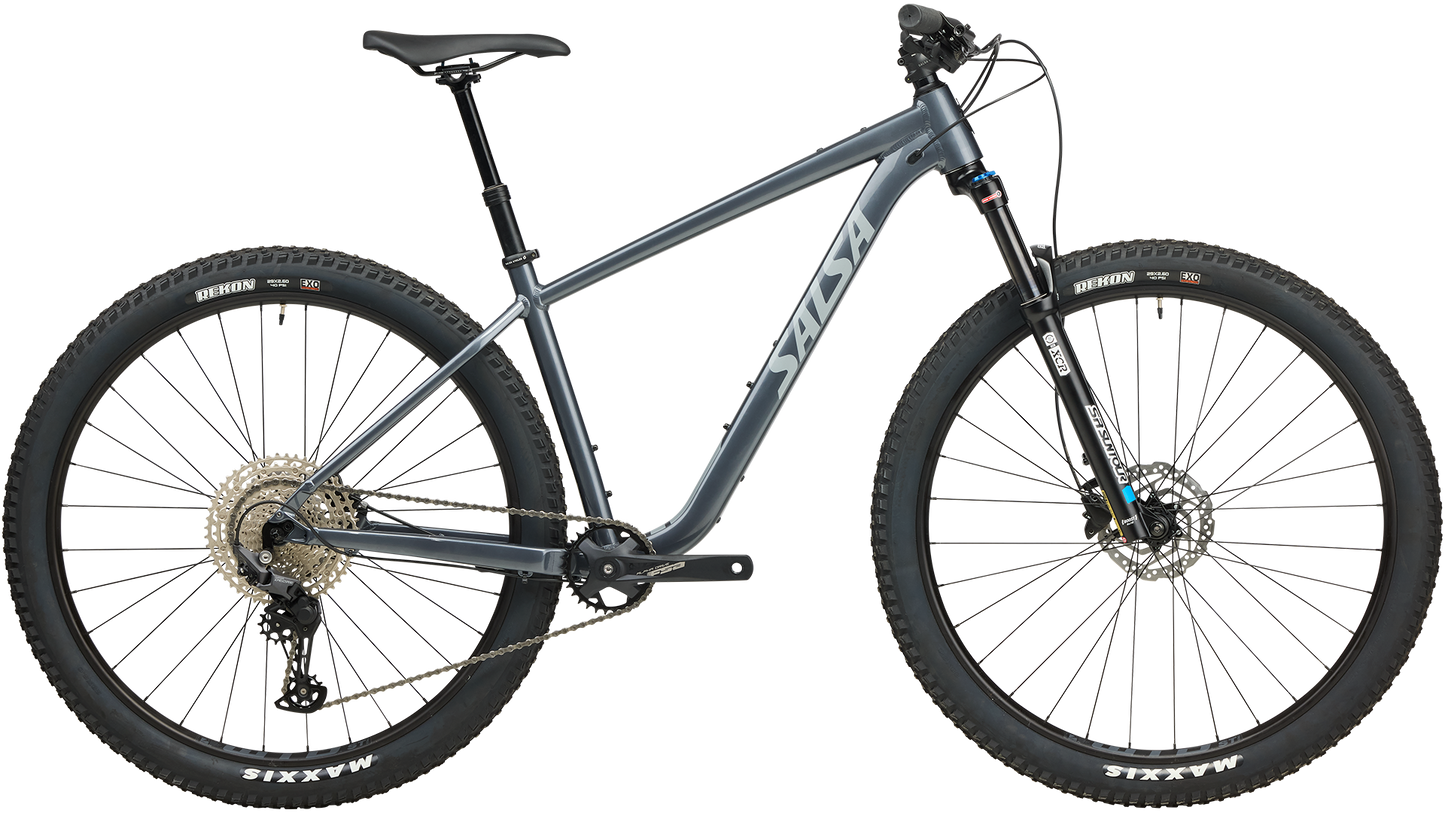

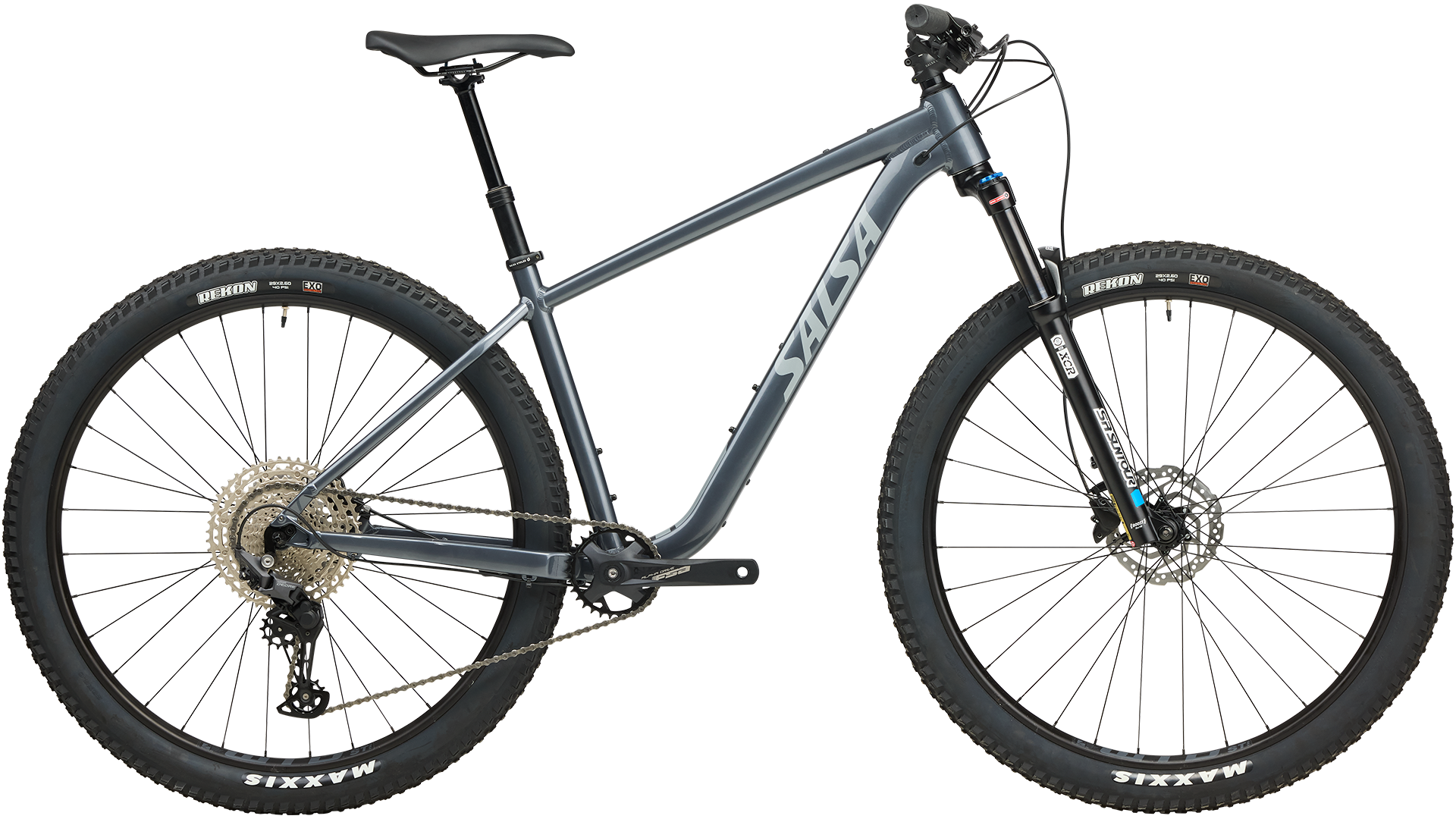

• Salsa Rangefinder Deore 11 29" bike Slate color side view

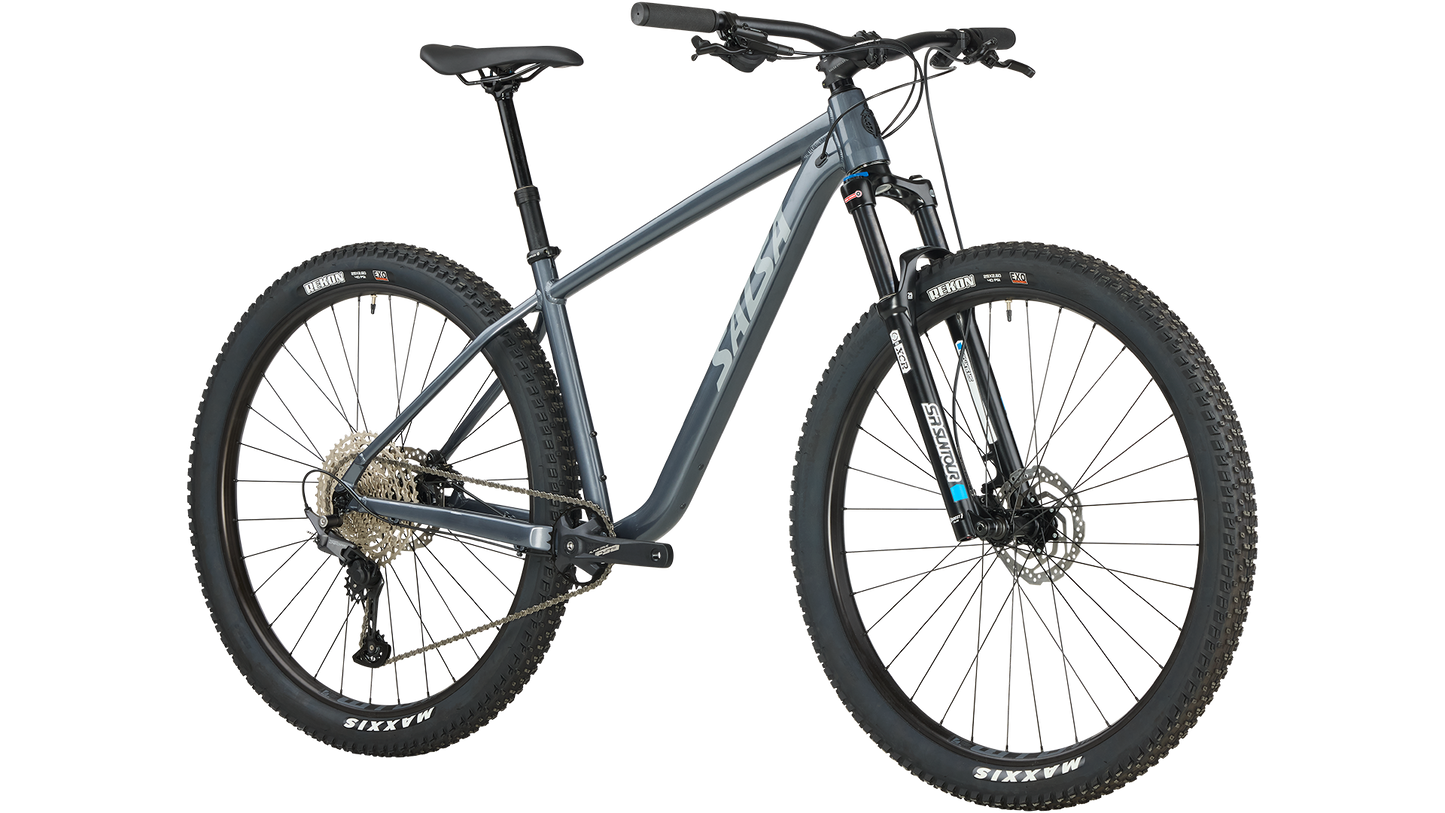

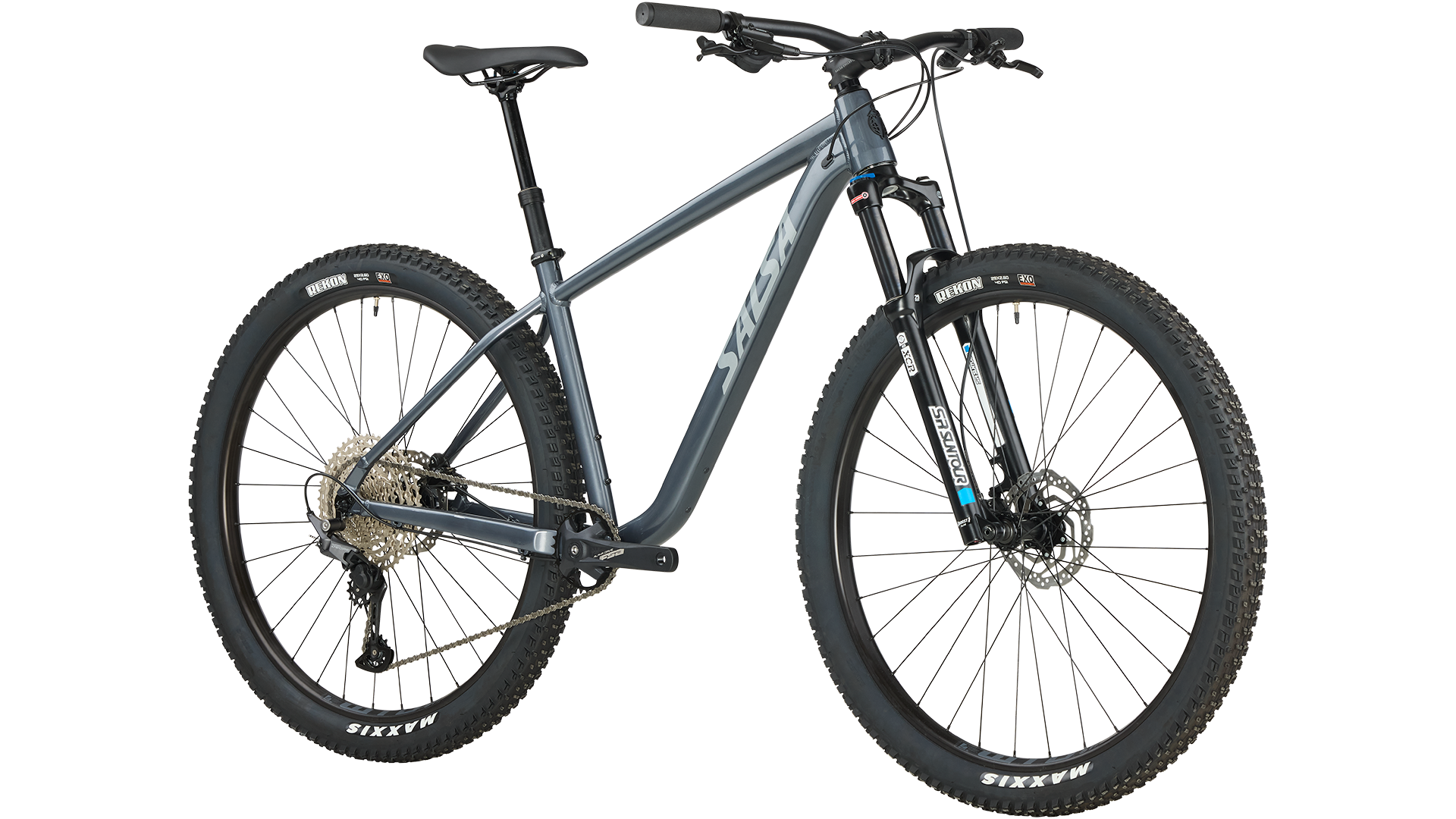

  • Salsa Rangefinder Deore 11 29" bike Slate color three-quarter front view

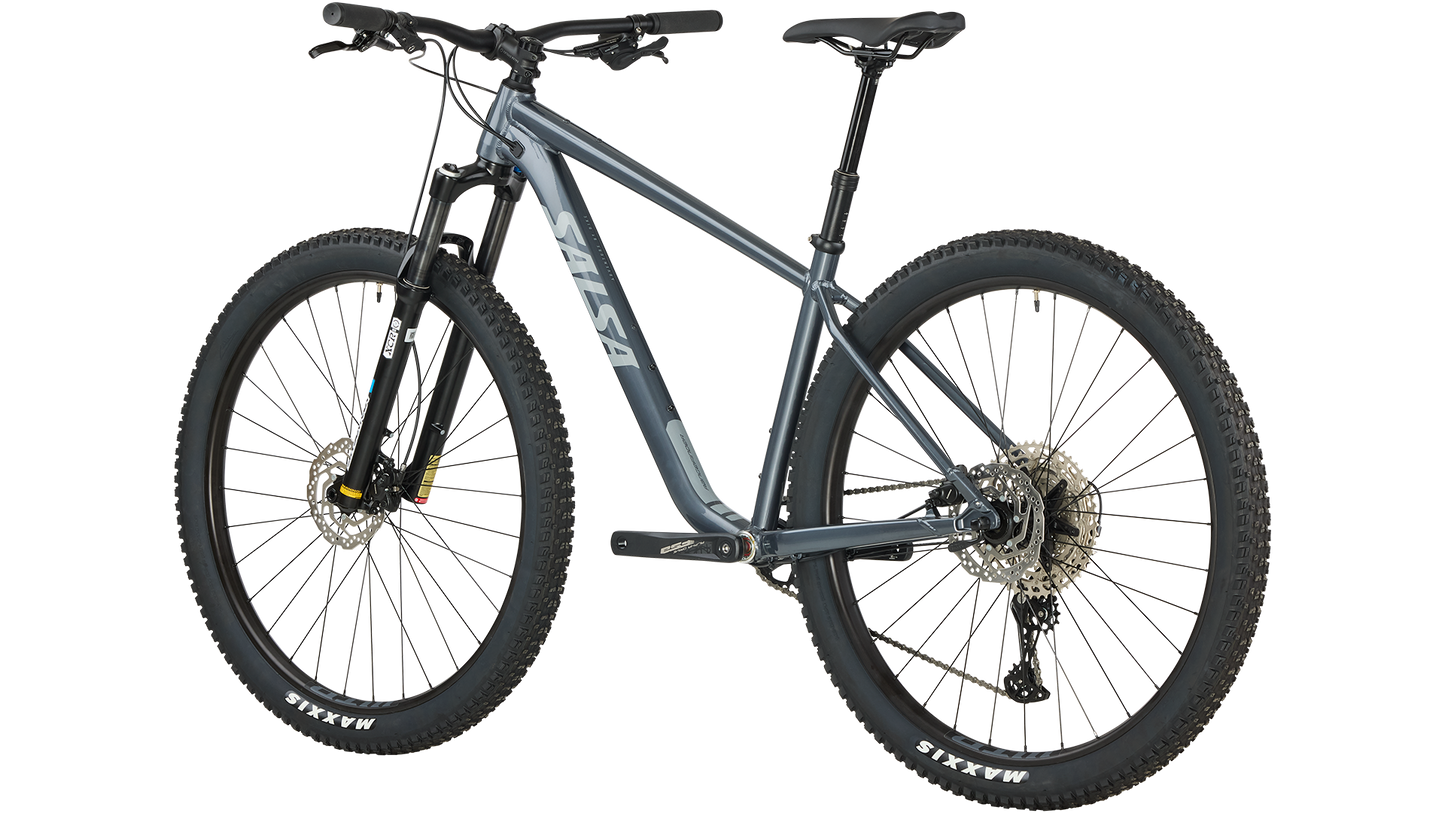

  • Salsa Rangefinder Deore 11 29" bike Slate color three-quarter rear view
1 3

Rangefinder Deore 11 29

Rangefinder Deore 11 29

$1,199.00 USD
$1,199.00 USD $1,199.00 USD
Size

New to mountain biking? Rangefinder Deore 11 29 is the best hardtail trail bike for building your confidence on the trails. Its trail geometry, 120mm fork, dropper post, and 29 x 2.6” wheels and tires keep you comfortably in control over rocks and roots. Cargo mounts extend your riding range for more adventures. The Shimano Deore 1 x 11-speed drivetrain shifts smoothly and offers enough gear range to get you up the steepest hills. All of this adds up to make Rangefinder the best hardtail trail bike for starting your mountain biking journey.

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

1 1

Product Details

Build Kit

Frameset

Frame

Rangefinder

Color

Slate

Fork

SR Suntour XCR32 Air Boost LOR DS, 120 mm

Rear Shock

N/A

Components

Headset

FSA Orbit NO.57B 1.5 ZS

Seatpost

TranzX YSP18PLQ 100 x 361 mm XS–SM; 130 x 425 mm MD–XL

Stem

Salsa Guide 31.8, 60 mm

Grips/Bar Tape

Salsa File Tread

Saddle

WTB Volt Medium, Steel, 142 x 265 mm

Handlebar

Salsa Salt Flat 31.8, 750 mm width XS–SM; Salsa Rustler 31.8, 800 mm width M–XL

Drivetrain

Front Derailleur

N/A

Rear Derailleur

Shimano Deore M5100 SGS

Cassette

Shimano Deore M5100 11–51t, 11-speed

Chain

Shimano HG601

Crankset

FSA Alpha Drive, 30t, FSA 124.5 mm bottom bracket

Shifter

Shimano Deore M5100

Brake Calipers

Shimano MT200

Rotors

Shimano RT10 (Center Lock, 160 mm)

Wheels

Front Wheel

Shimano MT400-B 15 x 110 mm hub, WTB ST i30 32h 29" rim

Rear Wheel

Shimano MT200-B 10 x 141 mm QR hub, WTB ST i30 32h 29" rim

Front Tire

Maxxis Rekon 29 x 2.6", EXO Wire Bead

Rear Tire

Maxxis Rekon 29 x 2.6", EXO Wire Bead

Weight

Complete Bike

30 lbs 12 oz (size Medium, with tubes, no pedals)

Geometry

Geometry Diagram
SizeX-SmallSmallMediumLargeX-Large
A. Effective Top Tube 566.7 589.0 613.3 641.9 668.5
B. Stand Over 688.6 708.3 747.2 779.1 808.7
C. Reach 400.6 421.5 444.4 470.4 494.3
D. Stack 601.9 606.4 611.0 620.1 629.3
E. Total Seat Tube Length 355.0 381.0 431.0 470.0 508.0
F. Headtube Length 95.0 100.0 105.0 115.0 125.0
G. Headtube Angle
68.6
68.6
68.6
68.5
68.5
H. Seat Tube Angle
74.6
74.6
74.6
74.5
74.5
I. BB Drop 62.0 62.0 61.9 61.8 61.7
J. BB Height 0.0 0.0 0.0 0.0 0.0
K. Chainstay Length 439.0 439.0 439.0 439.0 439.0
L. Fork Length Axle to Crown 501.0 501.0 501.0 501.0 501.0
M. Fork Offset 501.0 501.0 501.0 501.0 501.0
N. Wheelbase 1101.9 1124.7 1149.6 1179.4 1207.1
Crank Arm Length 170.0 170.0 175.0 175.0 175.0
Handlebar Width 750.0 750.0 800.0 800.0 800.0
Recommended Rider Height 157.0 - 168.0 160.0 - 175.0 173.0 - 183.0 180.0 - 191.0 188.0
Stem Length 60.0 60.0 60.0 60.0 60.0

Measurements based on:

  • OE spec 120mm 29/27.5+ suspension fork at 25% sag
  • 27.5 x 2.8" tire measuring 722mm in diameter
  • Standover (P) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center

Frame Specs

  • Design Wheel/Tire Sizes 29 x 1.9–2.6"
  • Alternate Wheel/Tire Sizes 27.5 x 2.8–3.0"
  • Suspension Fork Length (Travel) 100–130 mm
  • Fork Offset 46 mm
  • Rear Spacing 141 x 10 mm QR
  • Headset - Upper ZS44
  • Headset - Lower ZS56
  • Seatpost 30.9 mm
  • Dropper Post Compatible Yes (internal)
  • Seatpost Clamp 35.0 mm
  • Front Derailleur Clamp N/A
  • Front Derailleur Type N/A
  • Derailluer Hanger FS2361
  • Bottom Bracket 73 mm BSA, threaded
  • Crankset (Max Ring) Boost 148 52 mm chainline only (32t max)
  • Accessory Mounts Rear Rack Mounts: Yes. Salsa Post-Lock seatpost collar required; Downtube Accessory Mounts: 1; Top Tube Mounts: Yes, compatible with Salsa EXP Series Top Tube bag.
  • Bottle Mounts 2
  • Front Fender Mounts No
  • Rear Fender Mounts No

Supportive Documents

Support Document links

Additional Features

6061-T6 Aluminum Tube Set

A blend of our proprietary, top-shelf 6061-T6 double- and triple-butted tubing creates a light, responsive, and durable frame with great trail feel

Rangefinder Trail Geometry

Rangefinder's long top tube, short stem, and 439 mm chainstays provide a stable ride to keep you in control on steep and technical terrain

120mm front suspension travel

A 120 mm fork soaks up the trail and a thru-axle keeps the front end stiff for precise handling

Dropper Post

Drop your saddle at the press of a button to tackle steep descents and technical terrain with the included TranzX dropper post. The Rangefinder frame also provides stealth dropper post cable routing for a clean look

Cargo Capacity

The Rangefinder frame has two bottle cages on the inside of the frame, an accessory mount on the underside of the down tube, and top tube mounts for use with our EXP-R Series Trillium Top Tube Bag

Full-length Cable Housing

Full-length housing improves shifting in poor conditions and increases the time between maintenance intervals

Dual Wheel Size Compatiblity

Rangefinder can fit both 29" (maximum of 29 x 2.6") and 27.5+ (27.5 x 2.8–3.0") wheels and tires

FAQ

What size wheels/tires can I use on this frame?

Rangefinder is designed around 27.5 x 2.8–3.0" or 29 x 1.9–2.6" wheels and tires

Can I use a suspension fork on this frame?

Yes, this frame was designed and tested for use with a suspension fork with an axle-to-crown length up to 541mm (typically a 130 mm-travel 29/27.5+ fork). Check the fork manufacturer’s specifications to ensure the model and travel combination you intend to use is equal to or less than this length. Using a longer length fork will void the frame warranty and could result in frame failure.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

ViewWarranty

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.

Review Warranty Info
