Warbird C Rival GX AXS

Warbird C Rival GX AXS

Regular price $5,299.00 USD
Regular price $5,299.00 USD Sale price $5,299.00 USD
Size

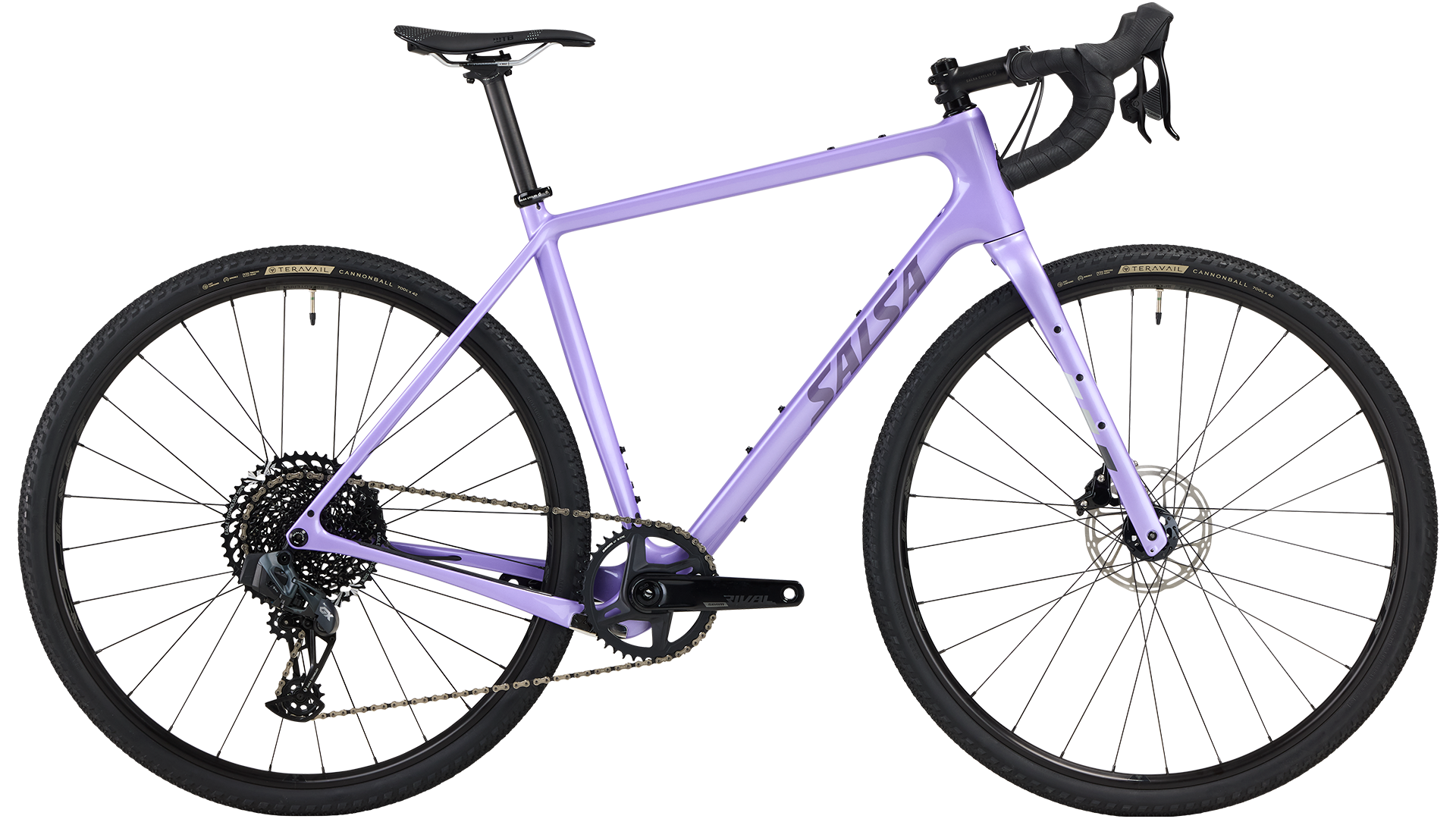

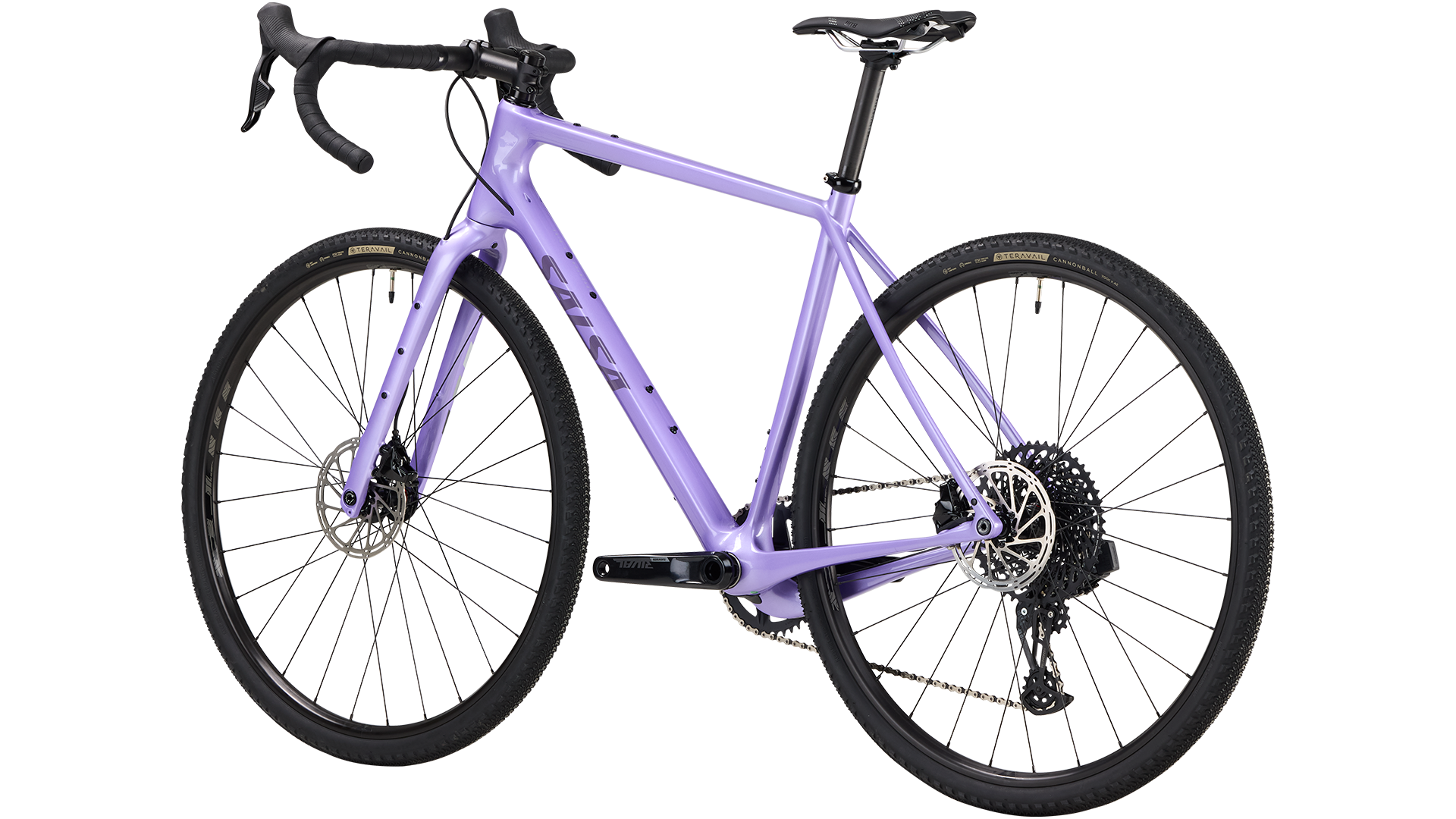

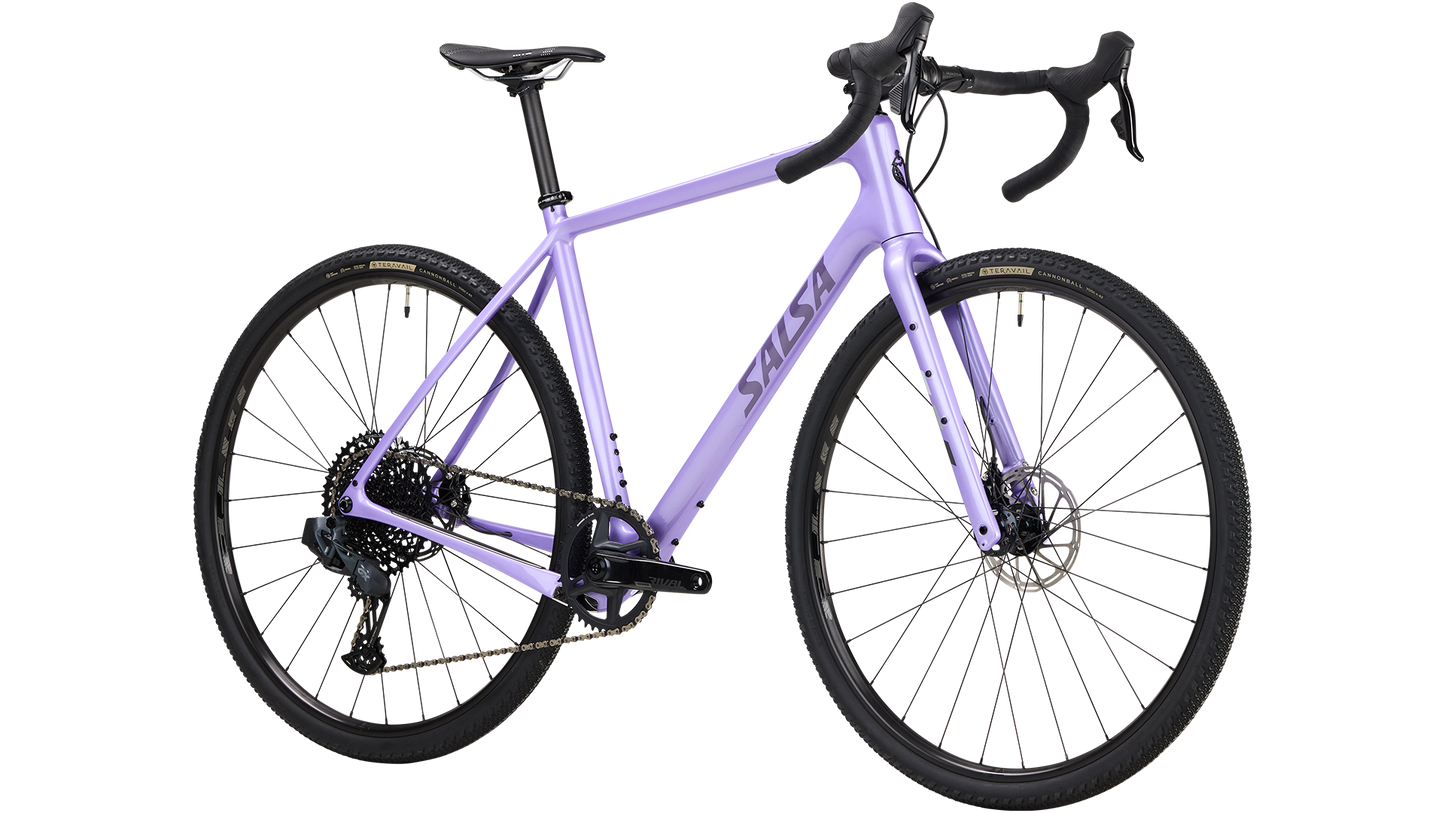

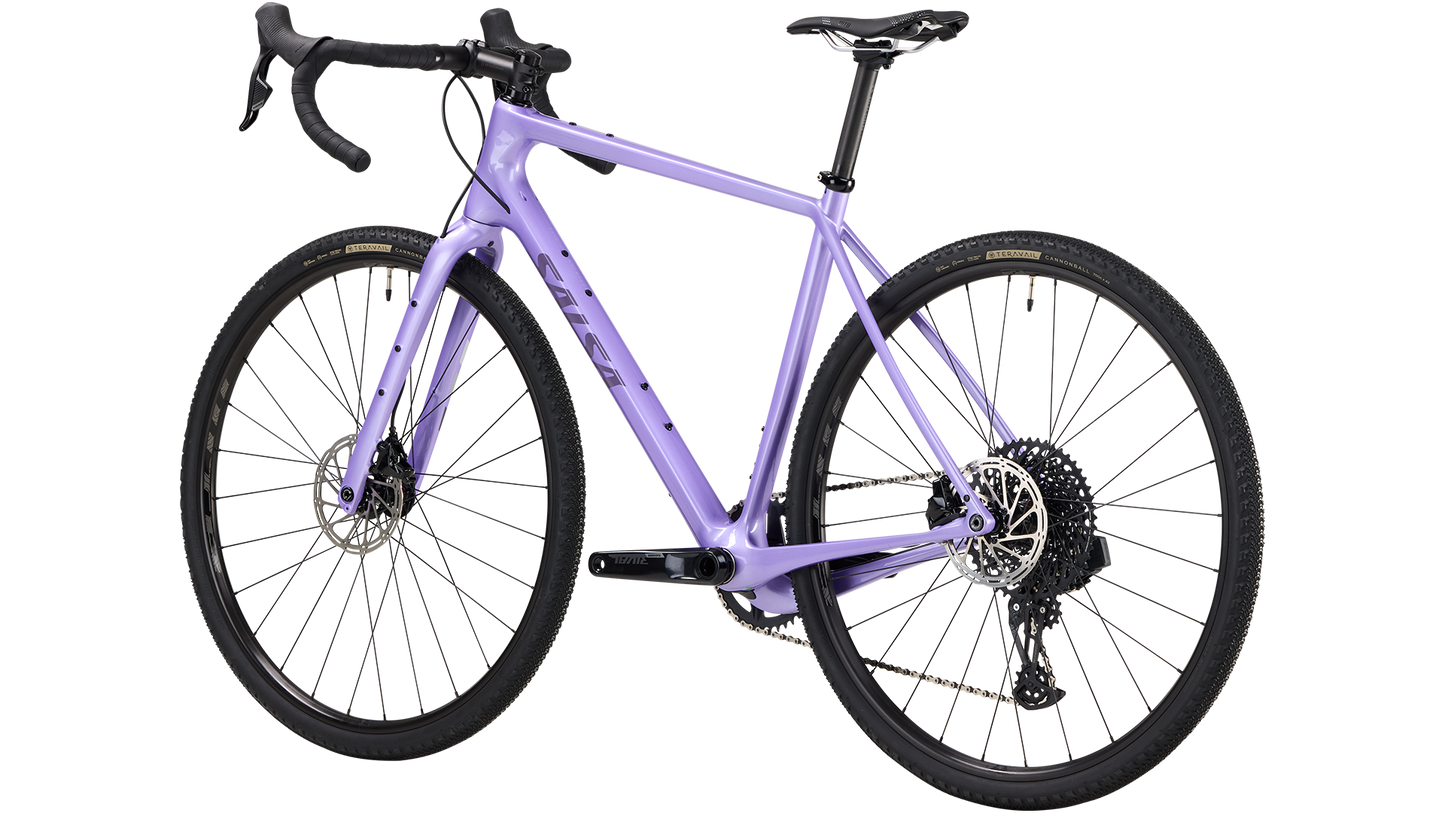

Warbird C Rival GX Eagle AXS is a carbon gravel bike designed for racing but capable of much more. The carbon frameset features our gravel race geometry and comfortable Class 5 VRS™, following our philosophy that less fatigue = more speed. And because a great gravel ride can take you far from home, pack all you need for the day (or more) with Warbird’s frame and fork cargo mounts. A SRAM Rival/GX Eagle AXS shifting setup ensures smooth, quick gear changes so you can focus on the road ahead.

Warning for Residents of California

View full details

Product Details

Build Kit

Frameset

Frame

Warbird

Color

Lilac

Fork

Waxwing Deluxe V2

Rear Shock

N/A

Components

Headset

FSA NO.42/ACB

Seatpost

Salsa Guide Carbon, zero offset

Stem

Salsa Guide

Grips/Bar Tape

Anti-slip, shock-proof silicone tape

Saddle

WTB Gravelier Medium, Cromoly SL, 142 x 250mm

Handlebar

Salsa Cowbell

Drivetrain

Front Derailleur

N/A

Rear Derailleur

SRAM GX AXS

Cassette

SRAM XG-1275, 10–50t, 12-speed

Chain

SRAM GX Eagle

Crankset

SRAM Rival 1, D1, Dub Wide, 42t

Shifter

SRAM Rival AXS D1

Brake Levers

SRAM Rival AXS D1

Brake Calipers

SRAM Rival D1

Bottom Bracket

SRAM DUB PF86.5 Road Wide

Rotors

SRAM CenterLine (6-bolt, 160mm front and rear)

Wheels

Front Tire

Teravail Cannonball 700c x 42mm, Durable casing, tubeless-ready

Rear Tire

Teravail Cannonball 700c x 42mm, Durable casing, tubeless-ready

Front Hub

WTB Speedterra 12 x 100mm

Rear Hub

WTB Speedterra 12 x 142mm

Spoke

Butted, black

Rim

WTB Speedterra i25, TCS 2.0, 28h, 700c (taped w/ WTB tubeless valve and sealant included)

Weight

Complete Bike

20 lb 4 oz for 56cm

Geometry

Geometry Diagram
Size49cm52.5cm54.5cm56cm57.5cm59cm61cm
A. Effective Top Tube 499.0 525.0 545.0 560.0 575.0 590.0 610.0
B. Stand Over 670.2 714.48 744.3 770.11 785.96 808.4 830.55
C. Reach 360.24 368.13 371.97 381.19 390.42 399.65 407.74
D. Stack 517.85 547.09 565.97 584.85 603.73 622.61 641.5
E. Total Seat Tube Length 390.0 440.0 475.0 510.0 520.0 545.0 570.0
F. Headtube Length 90.0 120.0 140.0 160.0 180.0 200.0 220.0
G. Headtube Angle
71.0
70.75
70.75
70.75
70.75
70.75
70.75
H. Seat Tube Angle
75.0
74.0
73.0
73.0
73.0
73.0
72.5
I. BB Drop 70.0 70.0 70.0 70.0 70.0 70.0 70.0
J. BB Height 279.0 279.0 279.0 279.0 279.0 279.0 279.0
K. Chainstay Length 430.0 430.0 430.0 430.0 430.0 430.0 430.0
L. Fork Length Axle to Crown 405.0 405.0 405.0 405.0 405.0 405.0 405.0
M. Fork Offset 50.0 50.0 50.0 50.0 50.0 50.0 50.0
N. Wheelbase 996.14 1011.96 1022.39 1038.21 1054.03 1069.85 1084.54
Crank Arm Length 165.0 170.0 170.0 172.5 172.5 175.0 175.0
Handlebar Width 380.0 400.0 420.0 440.0 460.0 460.0 460.0
Recommended Rider Height 14.0 - 157.0 155.0 - 165.0 162.0 - 173.0 170.0 - 180.0 178.0 - 188.0 185.0 - 193.0 190.0
Stem Length 60.0 70.0 80.0 90.0 90.0 100.0 110.0

Measurements based on:

  • A Warbird Carbon Fork which is 405 x 50mm offset
  • A 700c x 32mm tire measuring 698mm in diameter
  • Standover for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center

Frame Specs

  • Design Wheel/Tire Sizes 622 - 32 (700 x 32mm)
  • Alternate Wheel/Tire Sizes 622 – 32-45 (700c x 32–45mm / 1.2–1.8”) / 584 – 47-51 (650b x 47mm–51mm / 1.85–2.0”)
  • Max Tire Outer Diameter 700c: 716mm / 650b: 696mm (Some front derailleurs may reduce tire clearance. Check manufacturer’s specifications to confirm clearance before installing.)
  • Frame Construction Carbon
  • Fork Construction Carbon
  • Suspension Fork Length (Travel) 436.7mm A2C (40mm travel)
  • Rigid Fork Length 405mm A2C
  • Fork Offset 50mm
  • Rear Spacing 142mm
  • Rear Axle Size M12 x 167mm, TP=1.5, TL=20
  • Headset - Upper IS41
  • Headset - Lower IS52
  • Front Spacing 100mm
  • Front Axle Size M12 x 120mm, TP=1.5, TL=12
  • Steerer Tube 28.6mm
  • Crown Race Integrated SHIS 40, 36° angle
  • Seatpost 27.2mm
  • Seatpost Clamp 32.0mm
  • Derailluer Hanger 465, (QBP# FS2322)
  • Bottom Bracket BB86 press fit
  • Crankset (Max Ring) 1x: 44t max; 2x: 52/36t max, 46/30t minimum
  • Accessory Mounts Downtube Accessory Mounts: Yes, one; Rack Mounts Frame: Yes; Fender Mounts Frame: Yes, required fender hardware included
  • Bottle Mounts Frame: Frames up to 54cm: 2 in main triangle, frames 56cm and larger: 3 in main triangle; Fork: Yes, two
  • Fork Mounts Rack Mounts Fork: Yes, low-rider; Fender Mounts Fork: Yes

Additional Features

Class 5 VRS

The Class 5™ Vibration Reduction System has specially shaped seatstays with a tall, thin, vertically oriented profile that promotes vertical compliance by allowing the seatstays to "flex" outwards on impacts. The horizontally oriented chainstays work to resist torque and maintain a laterally stiff rear end. The seatstays and chainstays lack bridges, furthering the full length of the stays to contribute to flexibility. And a rear thru-axle delivers precise tracking while allowing the seatstays to provide that incredible compliance

Interior Junction Control Molding Technology

We use internal molds at all the main front triangle junctions during layup and curing. This allows for precise control of wall thickness and inner wall smoothness in these areas. This process increases compaction and reduces voids and wrinkles in critical high stress zones. The end result is a top-quality carbon frame that delivers consistent high performance

Warbird Geometry

Warbird features the latest evolution of our already industry leading gravel racing geometry. Warbird places the rider in a position that can be maintained for hours on end over bumpy B-roads and loose surfaces, drastically reducing fatigue. A low bottom bracket and stable wheelbase help keep the tires planted and boost confidence. Long top tubes paired with short stems provide increased stability at high speed and on rough descents

Waxwing Deluxe V2 Fork

Our Waxwing V2 gravel fork features carbon construction with a carbon steerer and utilizes a 12x100mm thru axle for true tracking and flat-mount brake for quick setup. Waxwing V2 also comes loaded with features. Three-Pack mounts accommodate bottle cages or Anything Cages for increased hydration or cargo capacity. Mid-blade rack mounts allow make it easy to install our Down Under low rider rack for front panniers. Fender mounts let you keep riding comfortably in wet weather

700c x 42 mm Wheel/Tire Spec

For faster acceleration and overall speed

Dual Wheel Size Compatible

Warbird fits up to 700c x 45 mm OR 650b x 2.0" wheels/tires. We offer models with each spec so you can choose the wheel size that best meets your needs, or set up a second wheel set so your Warbird is optimized for the race course at hand

Top tube bag mounts

Bolt on your EXP-R Series Trillium Tube Bag for a secure connection that eliminates strap wear.

Generous Water Bottle Capacity

Helps you stay hydrated during ultra-endurance training rides and races. 2–3 bottle mounts inside main triangle (56 cm and above receive 3), 1 accessory mount on underside of downtube, 2 bottle mounts possible on fork via Three-Pack mounts

Internal Sleeved Cable Routing

Helps you stay hydrated during ultra-endurance training rides and races. 2–3 bottle mounts inside main triangle (56 cm and above receive 3), 1 accessory mount on underside of downtube, 2 bottle mounts possible on fork via Three-Pack mounts

Refined Drivetrain Compatibility

Designed to accept 1x, 2x, and current electronic offerings

Stealth Dropper Post Compatible

Accepts 27.2 mm dropper posts for more confident descending at high speeds on rough, unpredicatable gravel roads. Internal stealth routing when running 1x setups

Fender Mounts

Fenders allow for longer, more pleasant rides in wet weather

Rear Rack Friendly

Compatible with the Salsa Wanderlust Rack when using the optional Salsa Rack-Lock seat collar

FAQ

Can I run fenders on the Warbird?

Yes, Warbird will fit up to 700c x 38mm tires or 650b x 47mm tires with fenders.

Can I use a suspension fork on this frame?

Yes, this frame was designed and tested for use with a gravel suspension fork with an axle-to-crown length up to 436.7mm (typically 40 mm of travel). Check the fork manufacturer’s specifications to ensure the model and travel combination you intend to use is equal to or less than this length. Using a longer length fork will void the frame warranty andcould result in frame failure.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.

What is the warranty for this bike?

Warranty Information

All Salsa products are warranted against manufacturing defects in materials and workmanship from the date of retail purchase of the product, subject to the limitations detailed below.
