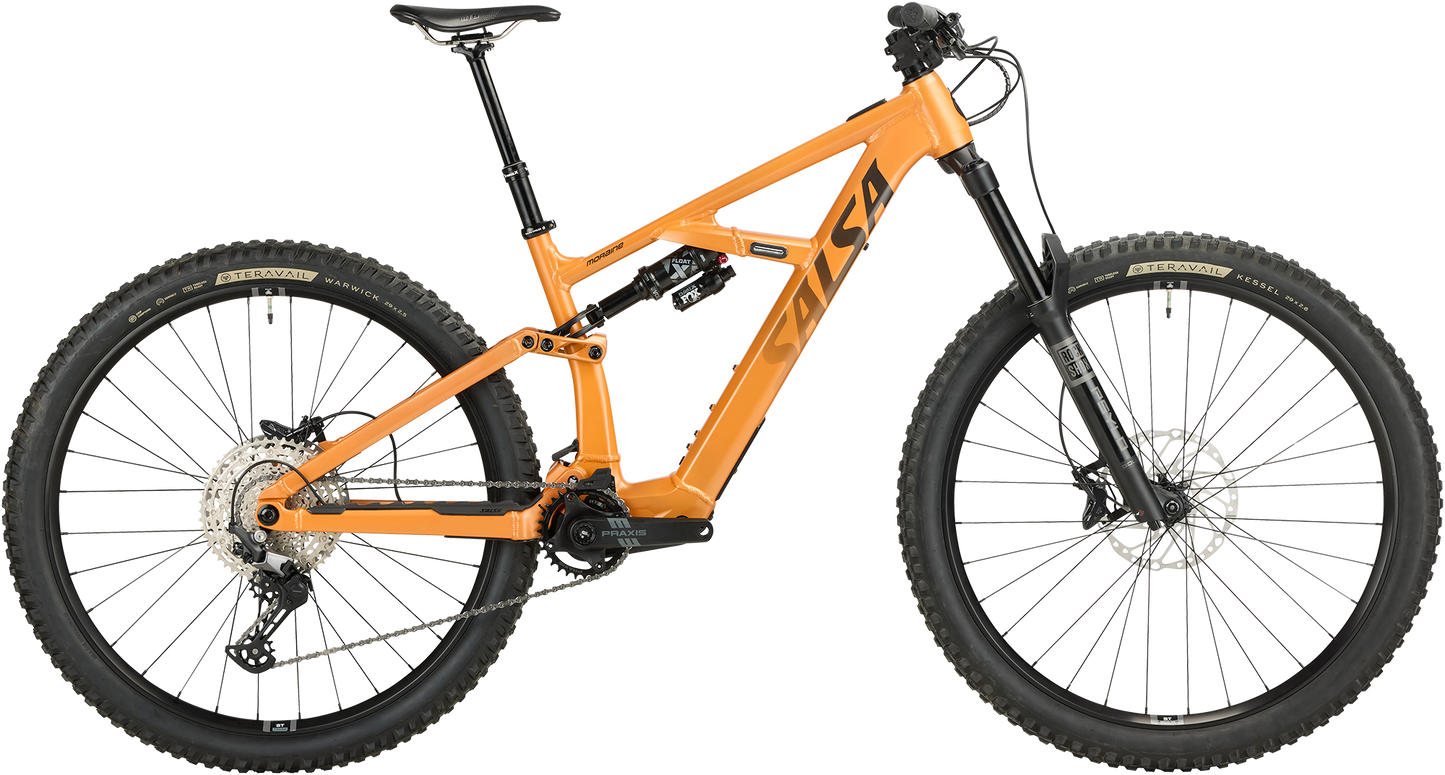

• Salsa Moraine Deore 12 trail ebike orange color side view on white background
  • Salsa Moraine Deore 12 trail ebike orange color front three-quarter view on white background
  • Salsa Moraine Deore 12 trail ebike orange color rear three-quarter view on white background
1 3

Moraine Deore 12

Moraine Deore 12

$5,599.00 USD
$5,999.00 USD $5,599.00 USD
Sale
Size

Moraine Deore 12 is the best eMTB for all-mountain riders who want to extend their roaming range. Get down with its 6061-T6 aluminum frame and playful jack-of-all-trades geometry. 145mm of Split Pivot suspension travel and a 160mm fork deliver a supportive and efficient ride both downhill and up. Fazua’s Ride 60 drive system (quietly) sings a similar tune with 60Nm assist and a 430Wh battery in a lightweight package. Our on-bike storage lets you bolt on your ride necessities without unnecessary bulk. Last but not least, Shimano’s legendary Deore drivetrain offers 12 speeds and a 10t–51t range so you can find the perfect gear for any terrain. Moraine: more go, more flow.

  • Meets UL 2849, and UL 2271 certification

Warning for Residents of California

⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Bike Key Features

1 6

Product Details

Build Kit

Frameset

Frame

Moraine Aluminum

Color

Terracotta Orange

Suspension Fork

Rockshox Psylo Gold RC, 160mm

Rear Shock

Fox Float X Performance

Components

Headset

FSA Orbit 1.5E ZS NO.57E

Seatpost

Tranz X YSP18, SM, MD: 150mm travel; LG, XL: 170mm travel

Stem

Salsa 35.0 Guide Trail, 40mm

Grips/Bar Tape

WTB Wavelength Lock-On

Saddle

WTB Solano, Medium, Fusion Form, steel rail

Handlebar

RaceFace Chester 35.0, 780mm wide, SM, MD: 20mm rise; LG, XL: 35mm rise

Lights Included

No

Drivetrain

Front Derailleur

N/A

Rear Derailleur

Shimano Deore M6100-SGS

Cassette

Shimano Deore M6100-12, 10–51t, 12-speed

Drive Type

Mid-drive

Chain

Shimano Deore M6100 HYPERGLIDE+

Crankset

FSA CK-730 Fazua Ride 60 crank arms, 55mm CL, 104 BCD Spider, MegaTooth 34t steel chainring. MRP 1x SL TR2 for Fazua Ride 60

Shifter

Shimano Deore M6100

Brake Levers

Shimano Deore M6100

Brake Calipers

Shimano Deore M6120, 4-piston

Assist Levels

Breeze / River / Rocket / Boost

Rotors

Shimano Deore RT64, Center Lock (200mm front and rear)

Drive Unit

Fazua Ride 60

Ebike Classification

Class 1

Max Assist Speed

20 mph / 32 kph

Motor Torque

60Nm

Max Motor Assist

450W (w/ Boost function)

Battery Capacity Watt Hours

430Wh

Battery Type

Energy 430 Fix (Lithium Ion)

Removable Battery

Removable for Service

Battery Power Volts

43V

Battery Capacity Amp Hours

9.95Ah

Estimated Charge Time

3.5 hours

Charger Included

Yes

Range Estimate

40 miles

Throttle

No

Walk Assist

Yes

Wheels

Front Tire

Teravail Kessel 29 x 2.6", Durable casing, WTB TCS Sealant included (tubes installed)

Rear Tire

Teravail Warwick 29 x 2.5", Durable casing, WTB TCS Sealant included (tubes installed)

Front Hub

Shimano TC500-15-B CLD

Rear Hub

Shimano TC500-MS-B CLD

Spoke

2.0mm straight gauge, black

Rim

WTB ST i30 Tough TCS, 32h

Weight

Complete Bike

49 lbs 13 oz (Medium)

Geometry

Geometry Diagram
SizeSmallMediumLargeX-Large
A. Effective Top Tube 590.2 612.2 634.2 656.2
B. Stand Over 754.6 754.5 754.3 754.2
C. Reach 453.0 473.0 493.0 513.0
D. Stack 613.6 622.6 631.6 640.5
E. Total Seat Tube Length 405.0 430.0 455.0 480.0
F. Headtube Length 100.0 110.0 120.0 130.0
G. Headtube Angle
63.9
63.9
63.9
63.9
H. Seat Tube Angle
77.4
77.4
77.4
77.4
I. BB Drop 25.0 25.0 25.0 25.0
J. BB Height 351.0 351.0 351.0 351.0
K. Chainstay Length 435.3 435.3 435.3 435.3
L. Fork Length Axle to Crown 573.0 573.0 573.0 573.0
M. Fork Offset 44.0 44.0 44.0 44.0
N. Wheelbase 1225.0 1249.4 1273.8 1298.2
Crank Arm Length 165.0 165.0 165.0 165.0
Handlebar Width 780.0 780.0 780.0 780.0
Recommended Rider Height 157.0 - 170.0 168.0 - 180.0 178.0 - 191.0 188.0
Stem Length 40.0 40.0 40.0 40.0

Measurements based on:

  • An unsprung bike (no sag)
  • A 29 x 2.5" tire measuring 752 mm in diameter
  • Standover (D) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center

Frame Specs

  • Design Wheel/Tire Sizes 29 x 2.2–2.5" (55–66mm)
  • Alternate Wheel/Tire Sizes 27.5 x 2.6–2.7" (66–71mm) **rear only w/ H chip setting, 160mm fork, and crank arms ≤165mm
  • Max Tire Outer Diameter Tire Clearance Frame 29 x 2.5"; Tire Clearance Fork: Max tire diameter=732mm; max tire width=81mm
  • Suspension Fork Length (Travel) 551–573mm A2C (140–160mm travel)
  • Rigid Fork Length N/A
  • Fork Offset 44mm
  • Rear Spacing 12 x 148mm
  • Rear Axle Size 12 x 188mm, TP=1.0, TL=13
  • Front Brake (Rotor) 74mm post mount (180–220mm rotor)
  • Headset - Upper ZS44 / 28.6
  • Headset - Lower ZS56 / 40
  • Rear Shock Size 210 x 55mm
  • Shock Mount, Fore ⌀10 x 30mm
  • Front Spacing 15 x 110mm
  • Front Axle Size 15 x 110mm, TP=M15x1.5, TL=9mm, 158mm overall length
  • Steerer Tube 1.125–1.5" tapered
  • Crown Race 59mm
  • Seatpost 30.9mm
  • Dropper Post Compatible Yes (internal)
  • Seatpost Clamp 35.0mm
  • Max Post Insertion SM: 215mm / MD: 240mm / LG: 265mm / XL: 290mm
  • Front Derailleur Clamp N/A
  • Front Derailleur Type N/A
  • Derailluer Hanger Universal Derailleur Hanger (UDH w/ Ø30mm washer)
  • Bottom Bracket Fazua Ride 60
  • Crankset (Max Ring) 34t
  • Bottle Mounts 1 per frame

Supportive Documents

Support Document links

Additional Features

6061-T6 Alloy Frame

Moraine’s aluminum alloy tubing is developed specifically for the Moraine frame, and is heat-treated to T6 alloy standards for extra strength and durability.

Split Pivot Rear Suspension

Split Pivot provides a host of impressive suspension characteristics because the system isolates pedaling forces and braking forces from each other, allowing us to tune and optimize the bike for both independently. The concentric rear axle pivot, in conjunction with precise wheel link, brake link, and control link placement, results in excellent bump compliance and pedaling efficiency, smooth and predictable braking throughout travel, and maximum traction.

Split Pivot+ Design Methodology

The Split Pivot+ design methodology allows our engineers to optimize a frame for more than one travel class. This means you can swap control and shock links, in addition to the rear shock and fork, for more or less travel. You can set up Moraine for 125—145mm of rear travel and a 140–160mm fork. One frame, multiple bikes.

Fazua Ride 60 Drive System

Moraine runs on Fazua’s Ride 60 drive system, a lightweight unit weighing in at just 9.2lb (4.2kg) yet delivering 60Nm max torque. Moraine’s mid-drive setup also keeps the motor’s weight low and centered on the bike for neutral handling. The Fazua Ride 60 is a Class 1 motor with electric assist up to 20 mph/32 kph.

60Nm max torque

The Fazua Ride 60 system delivers up to 60Nm of assist, with three customizable assist levels and a speed sensor to control torque output.

430Wh Internal Battery

The Fazua Energy 430 battery offers enough range to roam far on your favorite trail systems or into the backcountry. It’s also fully encased in the downtube for added stiffness and a nice, clean look.

Fazua Ring Controller

The handlebar-mounted Fazua Ring Controller lets you cycle through assist levels in an intuitive and minimalist way.

Flip Chip

Make simple, quick adjustments to Moraine's bottom bracket height (5mm) and head and seat tube angles (0.3 degrees) to account for your preferences, terrain, or wheel and tire size

Pack-Free Riding Features

Make simple, quick adjustments to Moraine's bottom bracket height (5mm) and head and seat tube angles (0.3 degrees) to account for your preferences, terrain, or wheel and tire size

Internal Routing

Internal routing for dropper and shift cable housing and brake hoses gives Moraine a clean look and helps keep cables from catching on the trail.

29 x 2.5" Tire Clearance

Hold your line on steep, loose terrain with clearance for large tires.

Molded Frame Protection

Take the “ding” out of riding with durable, custom-fit frame protection pieces in high-wear and damage-prone areas.

SRAM UDH Compatible

This derailleur hanger design optimizes shifting performance and makes it much easier to replace a bent or broken hanger.

FAQ

What is the Fazua Ride 60 mid-drive system?

Moraine uses the Fazua Ride 60 mid-drive system. This system features a motor built into the bike’s bottom bracket, powered by a battery in the bike’s downtube. The Fazua Ride 60 system delivers up to 60Nm of torque and is paired with a 430Wh Fazua Energy 430 battery. This is a Class 1 system that only provides electric assist up to 20mph/32kph.

For more information, visit our Why Fazua? page.

What is the range?

Ebike range depends on many factors, including rider and equipment weight, weather conditions, route choice, assist level, and more. The Fazua App provides real-time data on battery level and range

Want to go even farther on a single charge? The Fazua Energy range-extender battery (sold separately) mounts to the Moraine frame and can extend range by up to 58%.

Is the battery removable?

The battery is designed to be removed only by a bike shop for service.

How do I maintain my e-bike?

Maintenance on an ebike is mostly the same as any other bike, but keep these tips in mind:

  • More torque and more miles = more wear: Electric assist puts more strain on components and empowers you to ride more miles, so parts like your chain, brakes, and tires may wear out faster than you’re used to. Check them frequently and replace as you would on any other bike.
  • Washing is OK: The motor and battery on your ebike are sealed against water, so you can wash your ebike like you would a regular bike. However, avoid high-pressure hoses and keep the charging port closed to block moisture. Wipe down controllers rather than spraying them directly with water.
  • Battery care: Your ebike’s battery will last longer if the bike is stored in a cool, dry place. If storing the bike for long periods of time, try to keep battery charged between 30–60%. The battery will gradually lose charge, so check it periodically and charge as necessary.
  • Don’t try motor maintenance at home: If your ebike’s motor, battery, or other electronic components aren’t functioning properly, take them to your local authorized Salsa retailer for service — they are trained and best-equipped to maintain and repair ebike systems.

Is my ebike safe to keep in my home?

Yes. The batteries used in Salsa ebikes are UL 2849-compliant, meaning they have been tested to the highest standards of safety to prevent electrical shock or fires. Always use the manufacturer-supplied charger for your ebike.

Do you offer touch-up paint?

No, we do not offer touch up paint. Hobby shops or automotive stores are excellent places to find paint. We suggest you test the paint on a scrap piece of metal before using it on your frame.

I crashed and dented (or cracked) my frame. Is it safe to ride?

Stop riding your frame immediately and take it to the nearest Salsa authorized dealer for inspection. A dented or cracked tube represents a structural weakening of the frame, and is a safety risk.
